4x4 HDMI Matrix Extender - UltraHD 4K@60Hz Over Single CAT6/7 Cable (UHD48-EX230-K)

Name: 4x4 HDMI Matrix Extender - UltraHD 4K@60Hz Over Single CAT6/7 Cable (UHD48-EX230-K)
Brand: OREI
SKU: UHD48-EX230-K
Price: 449.00 USD
Availability: InStock

$449.00 $499.99

Shipping calculated at checkout.

SKU: UHD48-EX230-K

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Quantity

Reseller & Installer Discounts

Add to Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

OREI 4x4 4k HDMI Matrix Extender - With Uni-directional IR, Power Over Cable & Downscaling

Key Features:

HDMI 2.0b & HDCP 2.2 compliant
Video resolutions up to 4K@60Hz and 2K@60Hz
Lossless video bandwidth of up to 18Gbps
4 HDMI loop outputs & 4 mirrored CAT outputs
Downscaling support from 4K to 1080P for all output ports
HDR10+, Dolby Vision & HLG pass-through
HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
Advanced EDID management and CEC control
One-way IR control from Receivers to the Transmitter
Power over cable technology; only requires power at the Transmitter end
Control via IR remote, RS-232, WebGUI, LAN, and the buttons on the front panel
Robust build, perfect for personal and commercial uses.

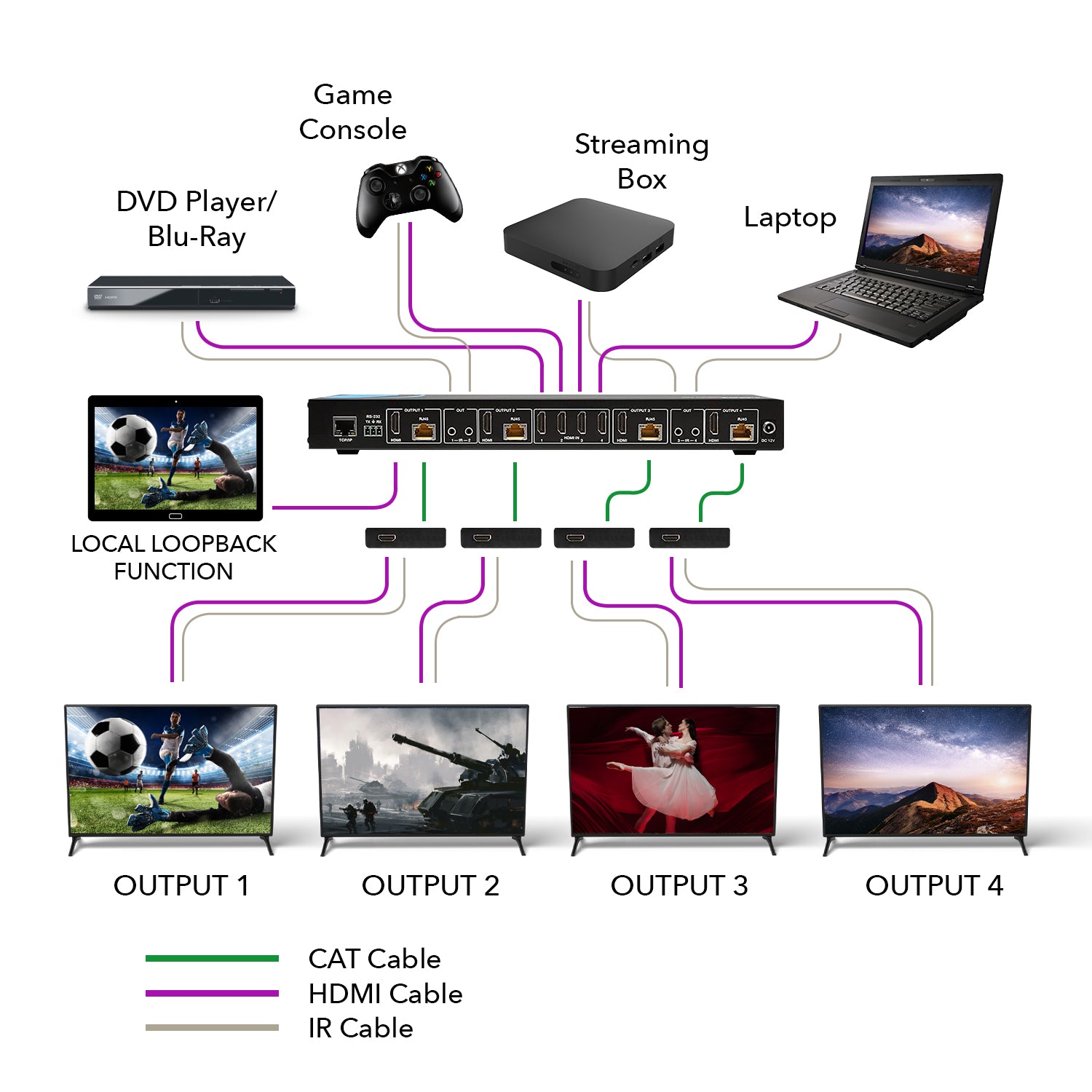

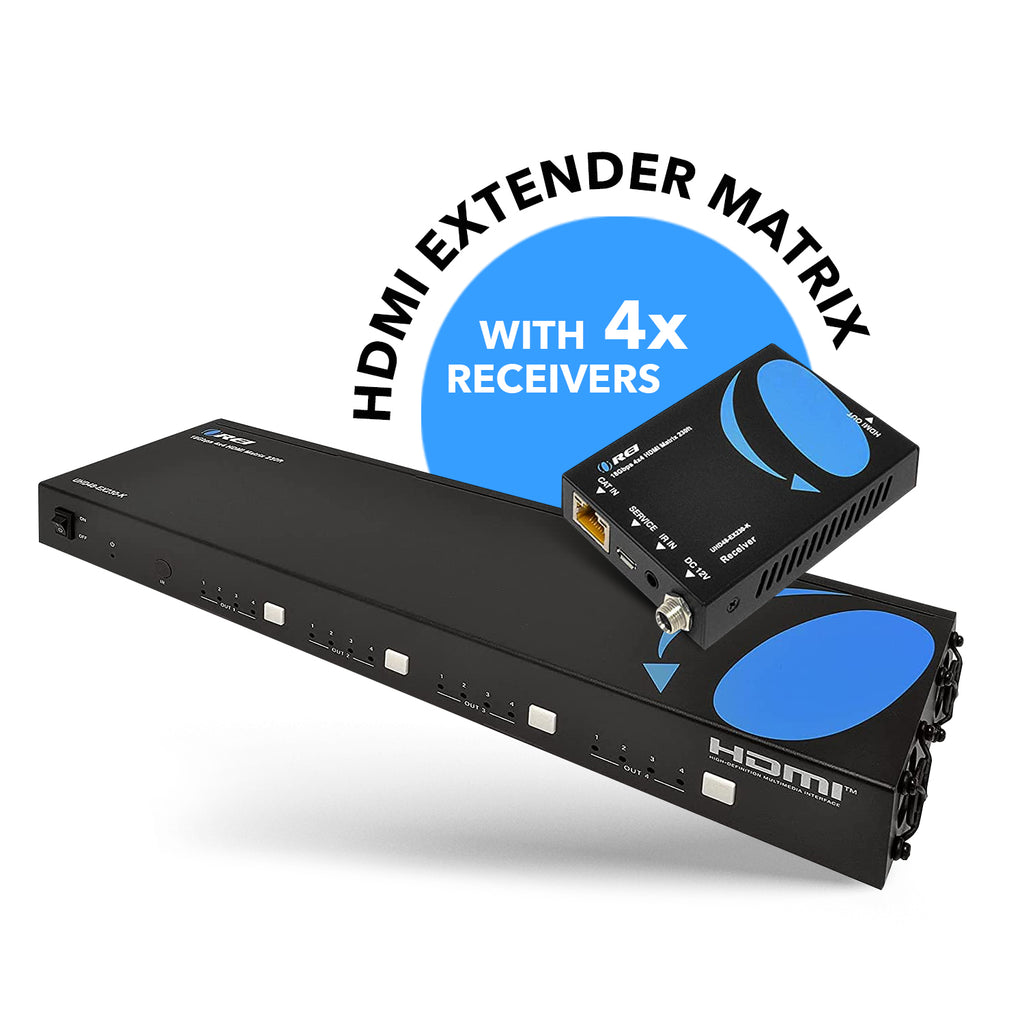

The UHD48-EX230-K is an HDMI Matrix Extender featuring 4 inputs, 4 HDMI loop outputs, and 4 CAT outputs. It can extend all 4 inputs to displays up to 230 feet away from the transmitter. The device is HDMI 1.4 and HDCP 1.4 compliant, supporting video resolutions up to 4K@60Hz and 2K@60Hz and a video bandwidth of 18Gbps, with HDR10+, Dolby Vision, and HLG pass-through. It can downscale the resolution from 4K to 1080p for all outputs. HDMI audio pass-through of up to 7.1 channels of HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio). The device offers advanced EDID management and CEC control. Power over Cable (PoC) functionality allows all receivers and the transmitter unit to be powered through a single power adapter. Control the unit via front panel buttons, IR remote, RS-232, LAN, or the WebGUI interface. Perfect for both personal and commercial use.

CONNECTIVITY

Transmitter:	INPUT:	4 × HDMI [Type A, 19-pin female]
	OUTPUT:	4 × HDMI [Type A, 19-pin female]
		4 × CAT [RJ45, 8-pin female]
	CONTROL:	4 × IR OUT [3.5mm Stereo Mini-jack]
		1 × TCP/IP [RJ45]
		1 × RS-232 [3-Pin Phoenix Connector]
Receiver:	INPUT:	1 × CAT [RJ45, 8-pin female]
	OUTPUT:	1 × HDMI [Type A, 19-pin female]
	CONTROL:	1 × IR IN [3.5mm Stereo Mini-jack]
		1× SERVICE [Micro-USB, Update port]

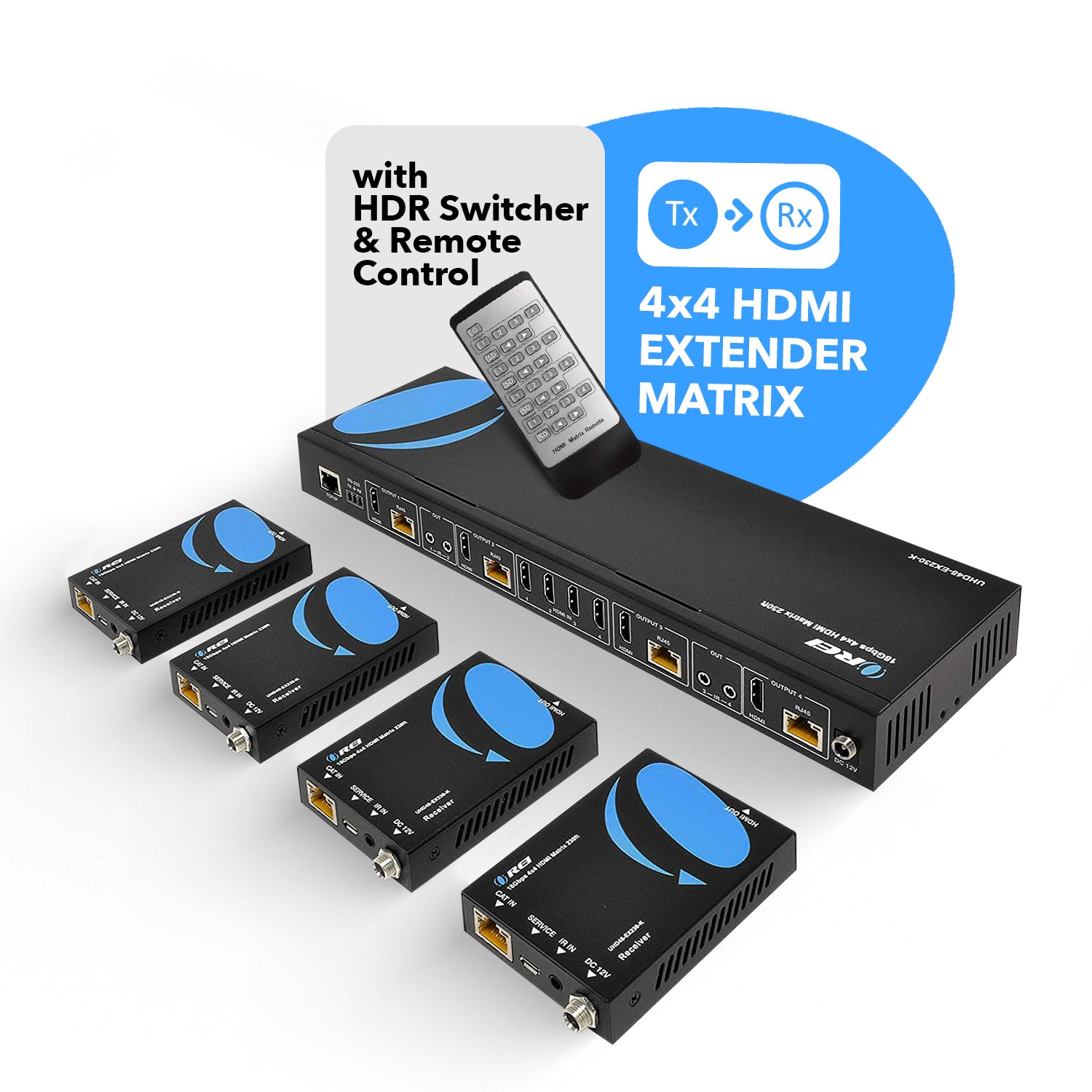

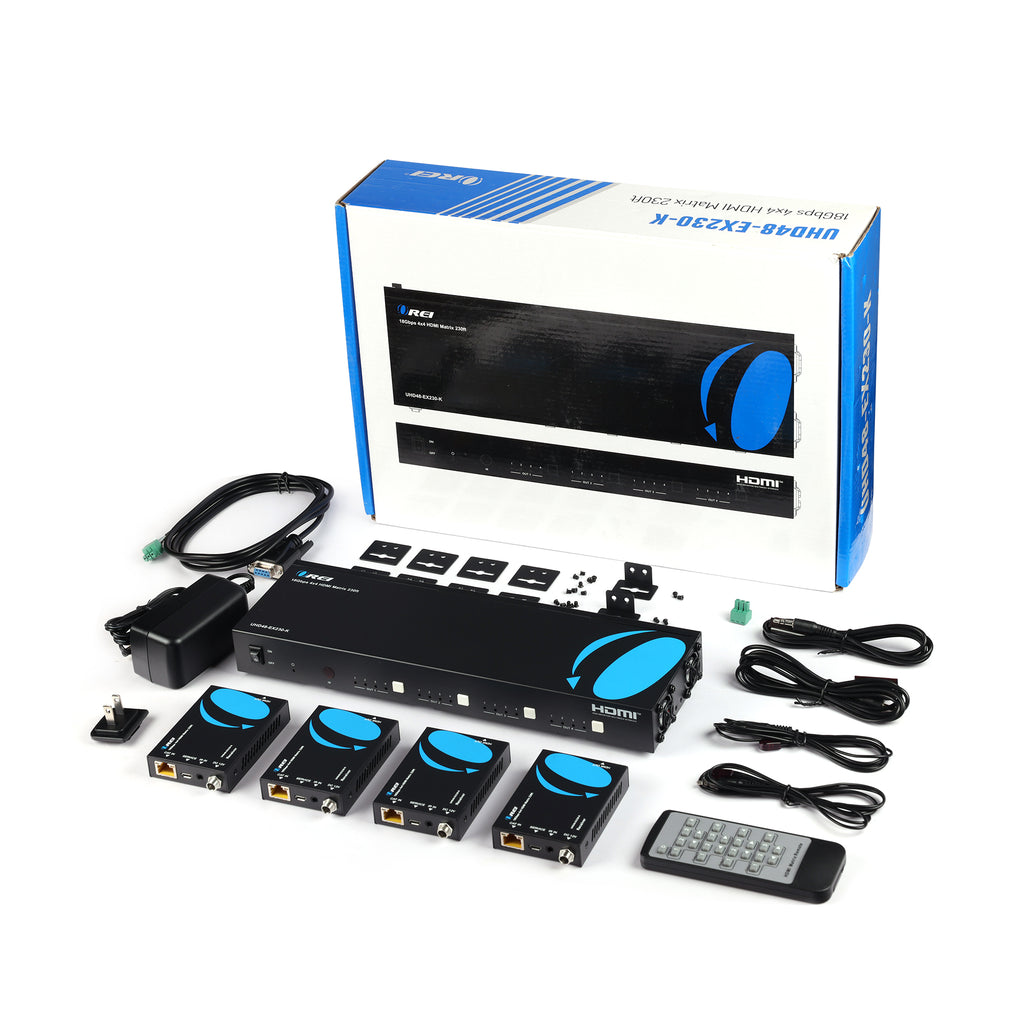

PACKAGE CONTENTS

1x Transmitter

4x Receiver

1x IR Remote Control

1x RS-232 Serial Cable

1x 3-pin Phoenix Connectors

4x IR Blaster cable

4x IR Receiver cable

10 x Mounting Ear

1x Power Cable

User Manual

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@60Hz:

230 Feet

VIDEO OUTPUT

Video Bandwidth:	18Gbps
Video Resolutions:	Up to 4K@60Hz, 2K@60Hz

ADDITIONAL FEATURES

CEC:	Yes
ARC:	No
USB KVM:	No
PoC/PoE:	Yes
IR Control:	Yes
Downmix:	No
Downscale:	Yes
Over IP:	No
HDBaseT:	No
RS-232:	Yes

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	4

AUDIO SUPPORT

HDMI Audio Formats:

LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X

COMPLIANCES

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2

POWER

Power Consumption:	19.68W (Max)
Power Supply:	Input: AC 100-240V 50/60Hz
	Output: DC 12V/2.5A

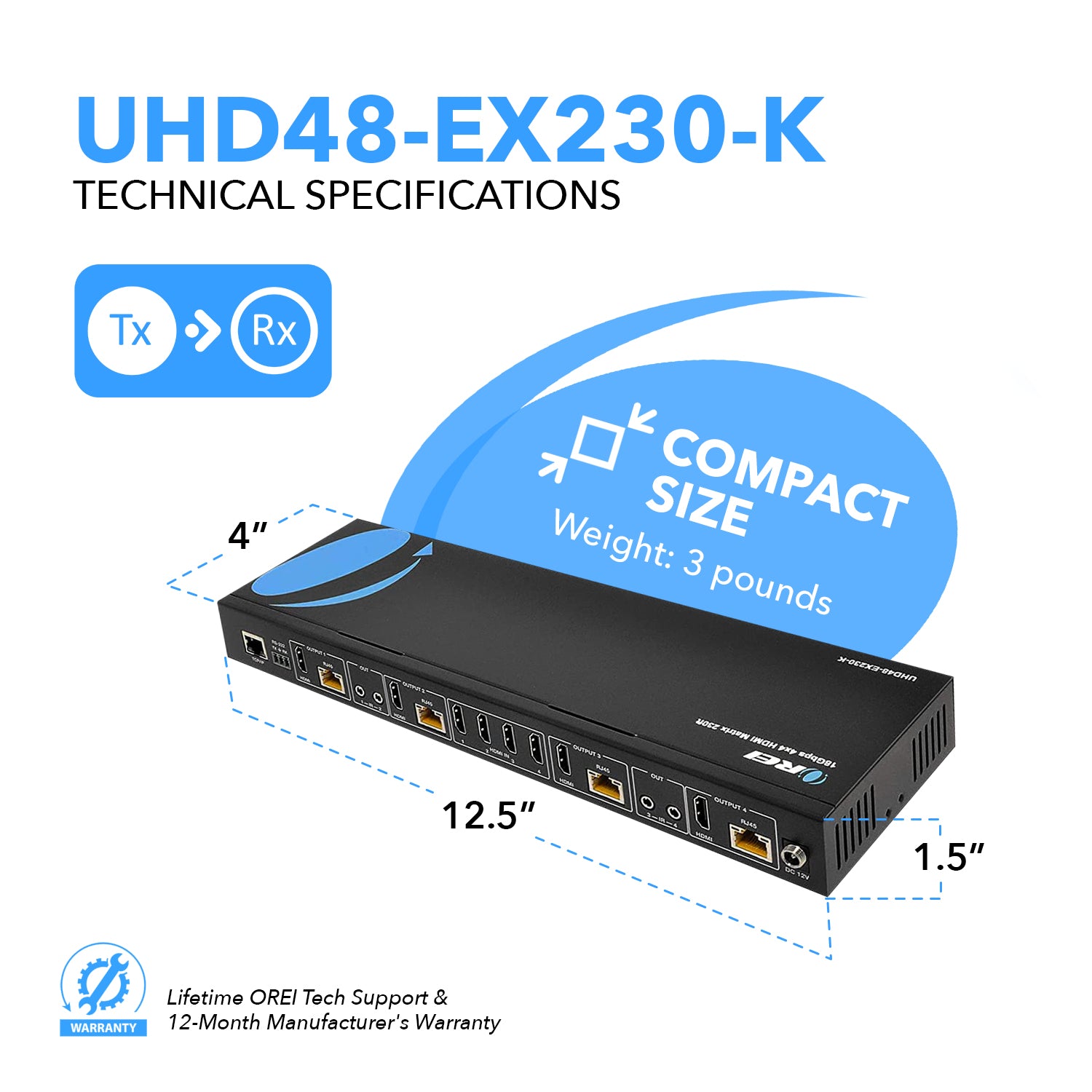

DIMENSIONS & WEIGHT

Transmitter:	Length:	320mm / 12.6in
	Width:	100mm / 3.94in
	Height:	36mm / 1.42in
	Weight:	915g / 2.01lb
Receiver:	Length:	88mm / 3.47in
	Width:	61mm / 2.4in
	Height:	18mm / 0.71in
	Weight:	155g / 5.47oz

PROPERTIES

Color:	Black
Housing:	Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

UHD48-EX230-K User Manual Download

UHD48-EX230-K RS-232 Commands

UHD48-EX230-K IR Codes

UHD48-EX230-K Control 4 Driver

UHD48-EX230-K Hex Codes

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

No, this product doesn't upscale/downscale the video resolutions.

You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

You can upgrade the firmware by connecting the PC & this device via RS-232 cable.

Please note that this product only supports the CEC function between HDMI input & HDMI output 1.

No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.

HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.

In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.

We recommend you using a shielded CAT6 cables for optimum performance.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
