4K UltraHD 1x2 HDMI Extender Splitter Over CAT6/7 Up To 100 Ft With IR Remote & Loop-Out

4K UltraHD 1x2 HDMI Extender Splitter Over CAT6/7 Up to 100 Ft with IR Remote & Loop-out (UHD12-EX100-K)

Name: 4K UltraHD 1x2 HDMI Extender Splitter Over CAT6/7 Up to 100 Ft with IR Remote & Loop-out (UHD12-EX100-K)
Brand: OREI
SKU: UHD12-EX100-K
Price: 199.99 USD
Availability: InStock

$199.99 $299.99

Shipping calculated at checkout.

SKU: UHD12-EX100-K

Supports 4K@60Hz up to 100 feet
Supports 20-60KHz IR passback frequency
Supports 4K signal up to 100 Feet and 1080p signal up to 165 Feet

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Quantity

Reseller & Installer Discounts

Add to Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

OREI UHD12-EX100-K: Ultra HD 1x2 HDMI Extender Splitter 100 Feet

Key Features:

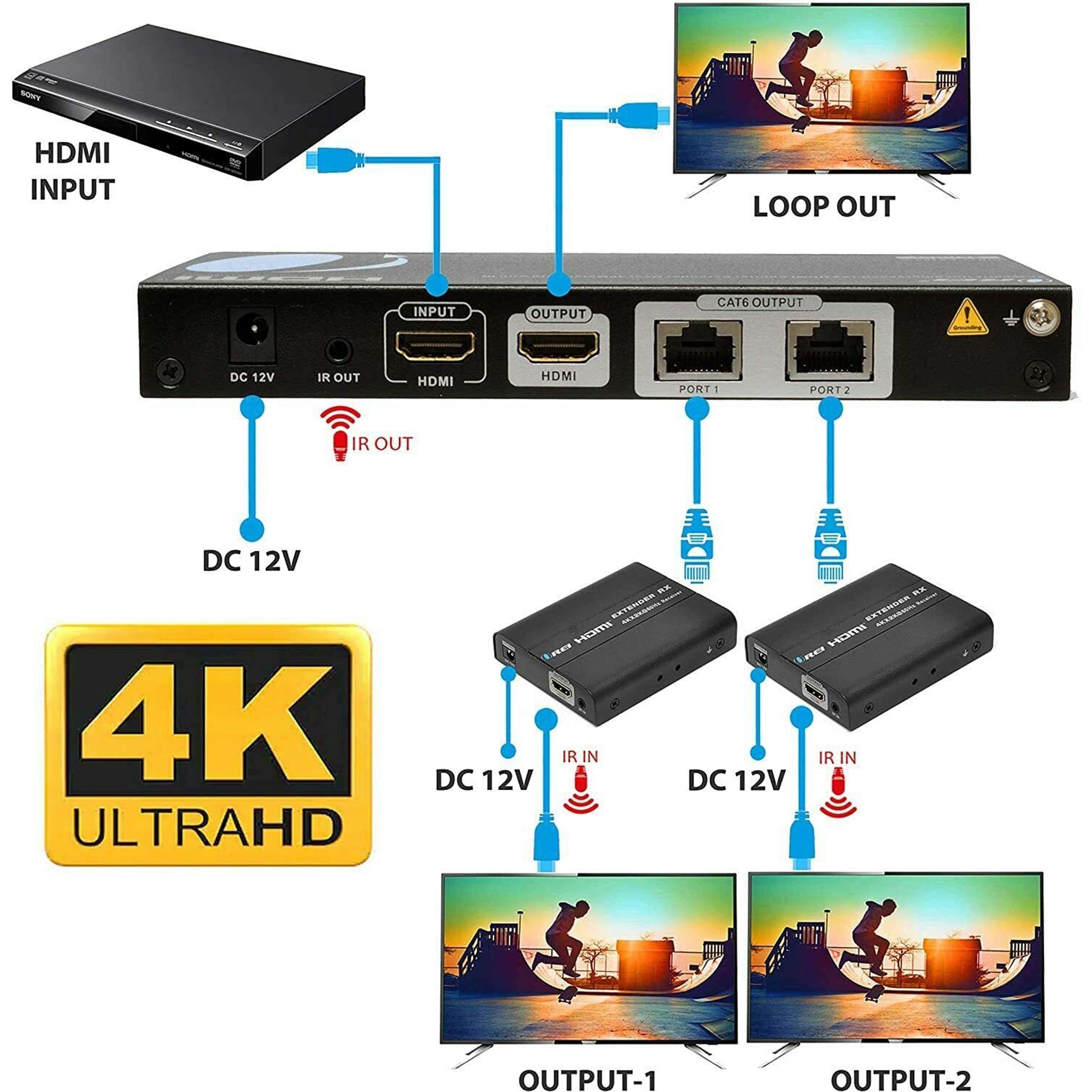

Distribute 1 HDMI source to 2 HDMI displays over LAN CAT6/7 network cable simultaneously
4K@60Hz Uncompressed Signal Over 30M (100 Feet)4K@60Hz Quality
Output 4K signal up to 100 Feet with Cat6/7 cable and 1080p signal up to 165 Feet
HDMI Transmitter is equipped with 2 Port CAT6 Output and 1 Additional HDMI Output to connect to a local display or monitor
Supports HDR, HDR10, HDR10+, Dolby Vision, HLG
Loop Out on Sender Unit
Full IR Remote Control Input
Supports 20~60Hz IR Pass Back
Control a DVD Player or Other HDMI Video Source from a Remote Location with the included IR cables that forward commands over a dedicated DDC Channel
Lossless Transmission with Minimal Latency
Compatible with CAT6/6a/7 Network Cables
The highest resolution supported is 3840x2140p@60Hz
Ideal Solution for HDMI Exhibition, Video Conference, Meeting rooms and Bars, etc.
Plug & Play Setup without any Software Installation

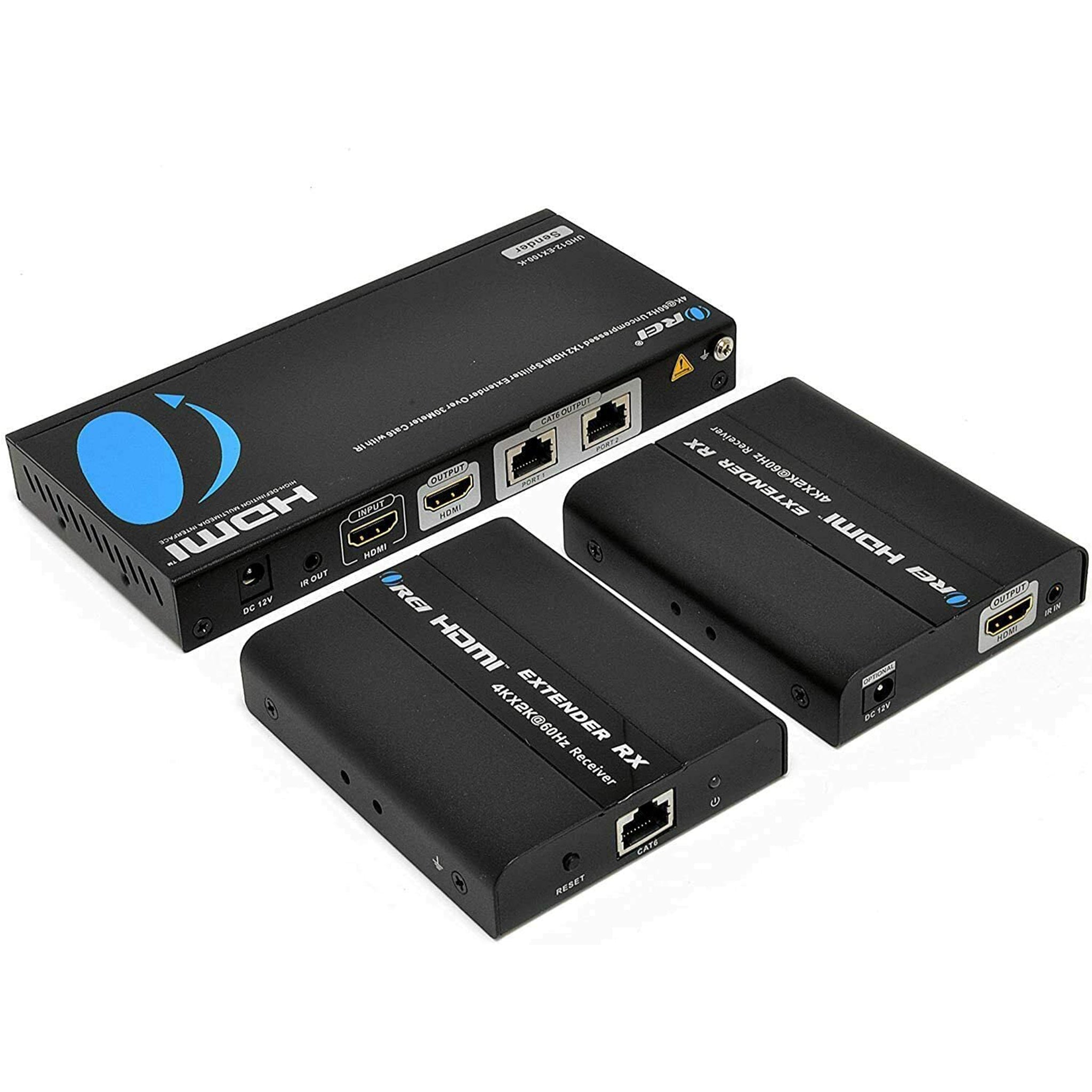

The OREI UHD12-EX100-K splitter includes one transmitter and two receivers, extend 1 HDMI source to 2 HDMI displays over a single CAT6/6a/7 cable up to 100 at 4K signal, or up to 165 Feet with 1080p. Perfect for Bars, Restaurants, in-home entertainment system.HDMI 2.0, HDCP 2.2 / 1.x and DVI 1.0 Compliant. Supports 18 Gbps Video Bandwidth. Advanced EDID Management.

Resolution Supported - 3840x2140@30/60Hz, 1080p@50/60Hz, 1080i@50/60Hz, , 720p@50/60Hz, 576p@50Hz, 576i@50Hz, 480p@60Hz, 480i@60Hz.

HDMI Audio Formats - LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD.

Coaxial Audio Formats - LPCM2.0, LPCM5.1, Dolby Digital 2/5.1CH.

Analog Audio Formats - PCM 2.0.

AUDIO AND VIDEO

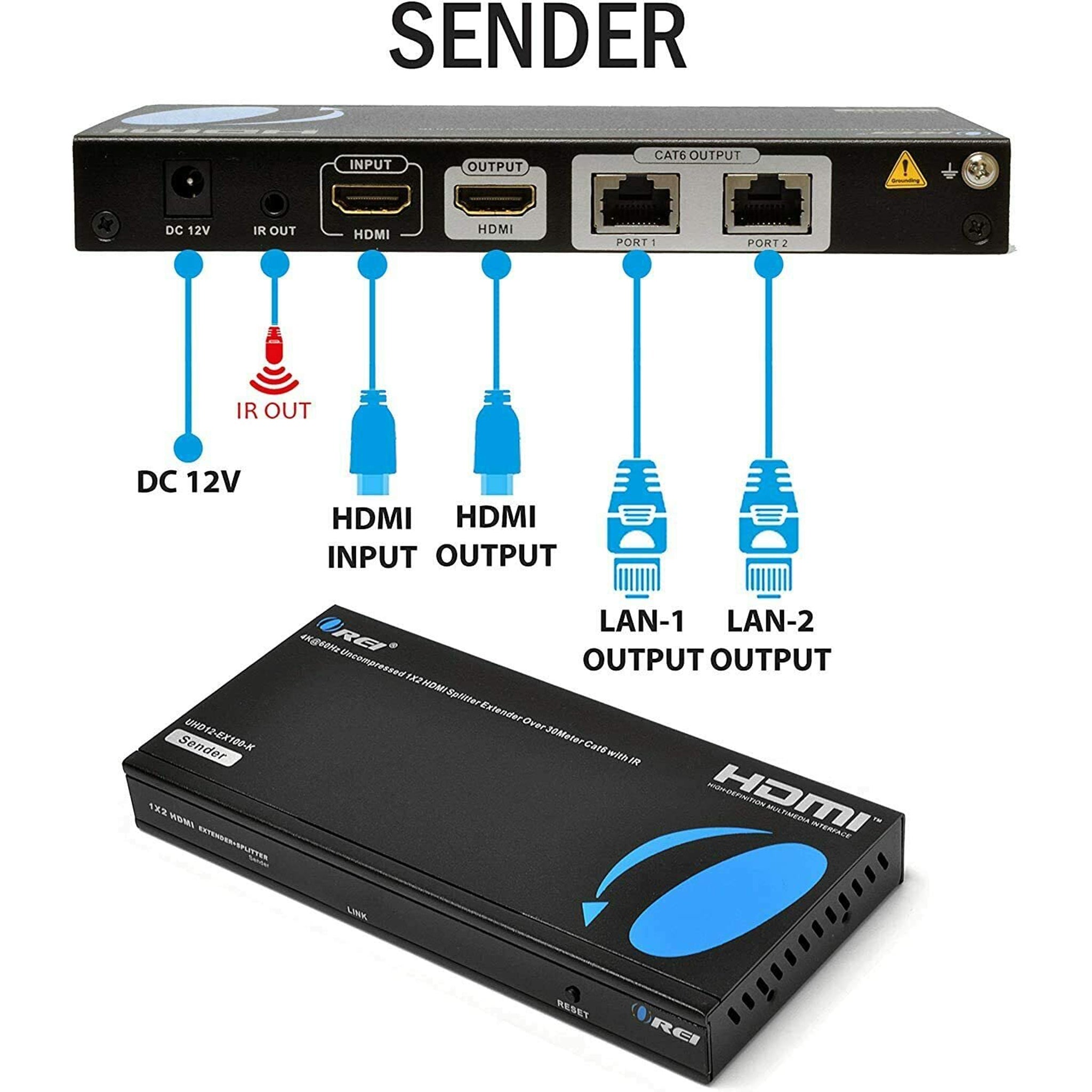

Transmitter:	INPUT PORTS:	1 × HDMI IN [Type A, 19-pin female]
	OUTPUT PORTS:	1 × HDMI OUT [Type A, 19-pin female] 2 x CAT OUT [RJ45, 8-pin female] 1 × IR OUT [3.5mm Stereo Mini-jack]

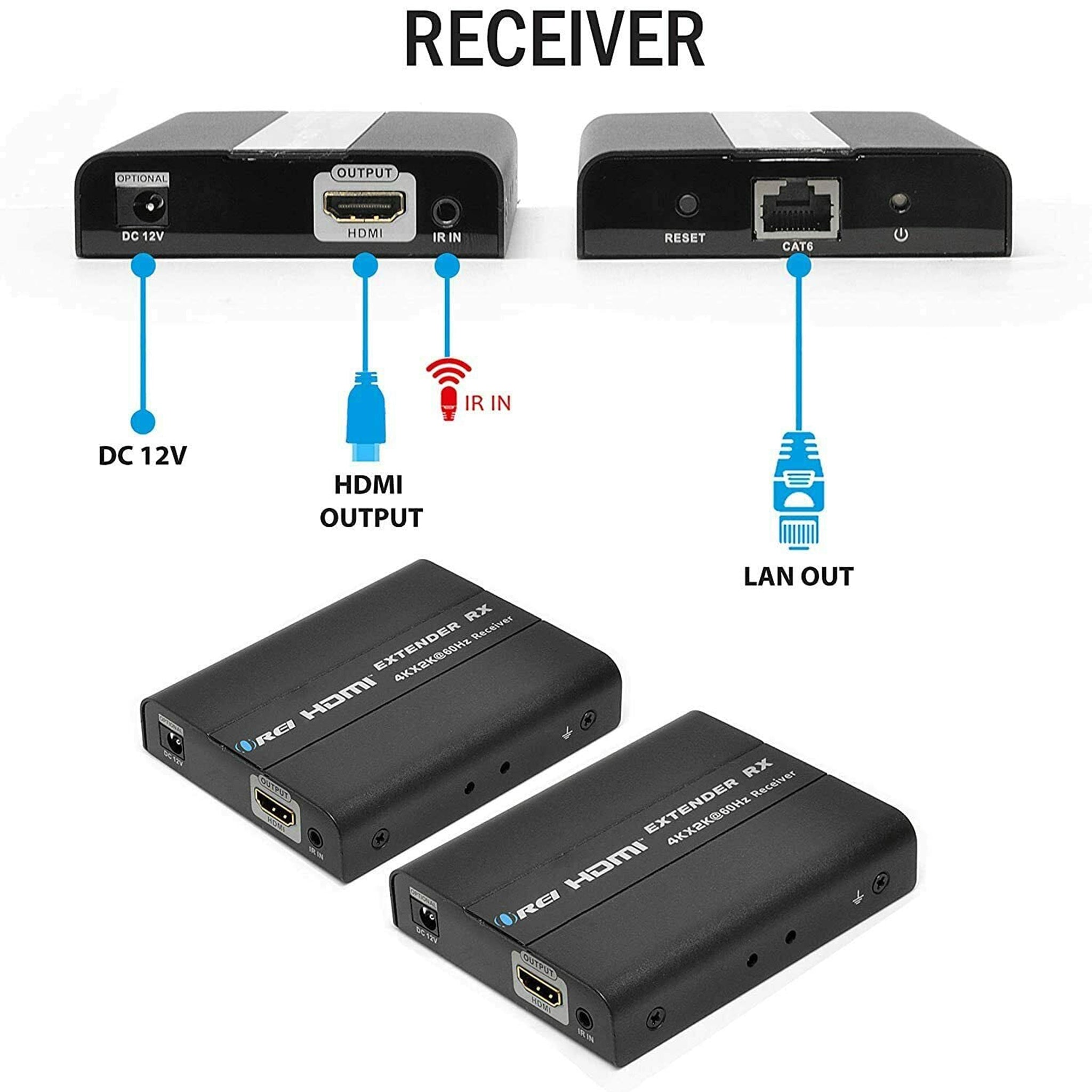

Receiver:	INPUT PORTS:	1 x CAT IN [RJ45, 8-pin female] 1 x IR IN [3.5mm Stereo Mini-jack]
	OUTPUT PORTS:	1 x HDMI OUT [Type A, 19-pin female]

COMPLIANCES

HDMI Compliance:	HDMI 2.0
HDCP Compliance:	HDCP1.4 & HDCP2.2

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@30Hz:	100 Feet
1080p@60Hz:	165 Feet

VIDEO OUTPUT

Video Bandwidth:	18Gbp/s
Video Resolutions:	480i@60Hz, 480p@60Hz, 576i@50Hz, 576@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz 3840x2140@30/60Hz
Color Space:	RGB YCbCr
Color Depth:	12bit *3

CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT

CEC Function:	No
ARC Function:	No
USB KVM Function:	No
PoC/PoE Function:	No
IR Controller:	With one way IR pass back
Downscaler Function:	No
Over Network/IP Function:	No
HDBaseT Function:	No
RS-232 Function:	No

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	1

SWITCHES

EDID Management:	No
EQ Dip Switches:	No
ARC:	No

AUDIO OUTPUT

HDMI Audio Formats:	-
SPDIF/Optical Audio Formats:	NO SPDIF/optical Audio output
L/R Audio Formats:	NO L/R audio output

SIGNALS

TMDS Signals:	3V
DDC Signals:	5V

DIMENSIONS & WEIGHT

Transmitter:	Height:	31mm
	Width:	161.6mm
	Depth:	85.31mm
	Weight:	410g
Receiver:	Height:	81.6mm
	Width:	101.1mm
	Depth:	20.6mm
	Weight:	190g

PROTECTION

Operation Temperature:	0～50℃
Storage temperature:	-20°C ~70°C
Relative Humidity:	0～90%(no condensation)
ESD Protection:	Contact Discharge 4KV, Air Discharge 8KV

RJ-45 CONNECTOR Type

POWER

Power Consumption (Max):	Transmitter:	<12W
	Receiver:	<6W

Power Supply:	DC12V/2A

PHYSICAL PROPERTIES

Color:	Black
Housing:	Metal
Processing Technology:	Uncompressed Transmission Technology
Finishing:	Grit blast

PACKAGE CONTENTS

1 x HDMI Transmitter

2 x HDMI Receiver

1 x DC12V/2A

1 x User Manual

1 x IR blaster extension cable

2 x IR receiver extension cable

Mounting Brackets

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

UHD12-EX100-K User Manual Download

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

You can extend the display devices up to 200 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
