4K HDMI Extender with HDBaseT over CAT 6/7 up to 400 feet with IR control and loopout (UHD-EXB400R-K)

Name: 4K HDMI Extender with HDBaseT over CAT 6/7 up to 400 feet with IR control and loopout (UHD-EXB400R-K)
Brand: OREI
SKU: UHD-EXB400R-K
Price: 164.99 USD
Availability: InStock

$164.99 $199.99

Shipping calculated at checkout.

SKU: UHD-EXB400R-K

Bi-directional IR control
4K@60Hz up to 400 feet
CEC pass-through

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Quantity

Reseller & Installer Discounts

Add to Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

OREI UHD-EXB400R-K: 4K HDMI Extender with HDBaseT over CAT 6/7 up to 400 feet with IR control and loop out

Key Features:

HDMI 2.0 and HDCP 2.2 compliant
Video resolutions up to 4K@60Hz and 2K@60Hz
Extend audio/video signals up to 400 feet over a single CAT 6/7 cable.
18Gbps video bandwidth
HDMI loop output on the Transmitter
Analog audio output at the Receiver
HDR 10+ and Dolby Vision pass-through

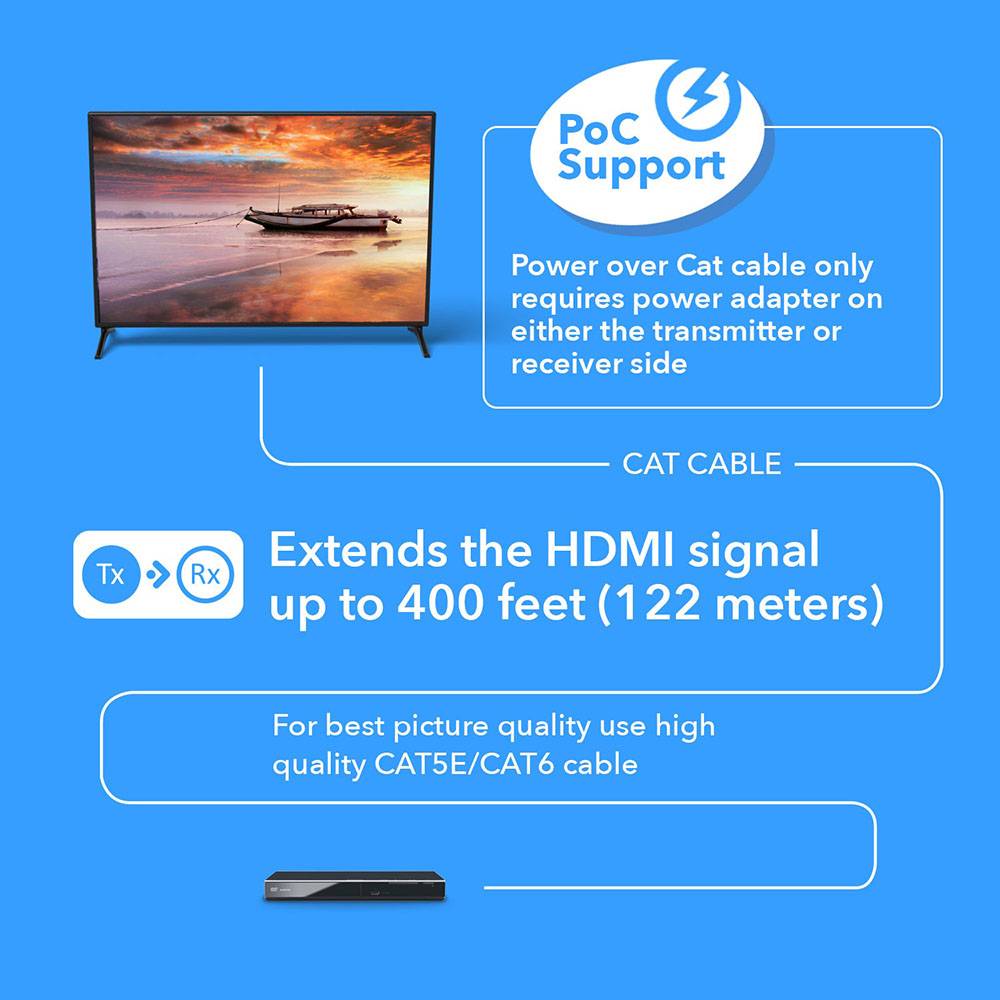

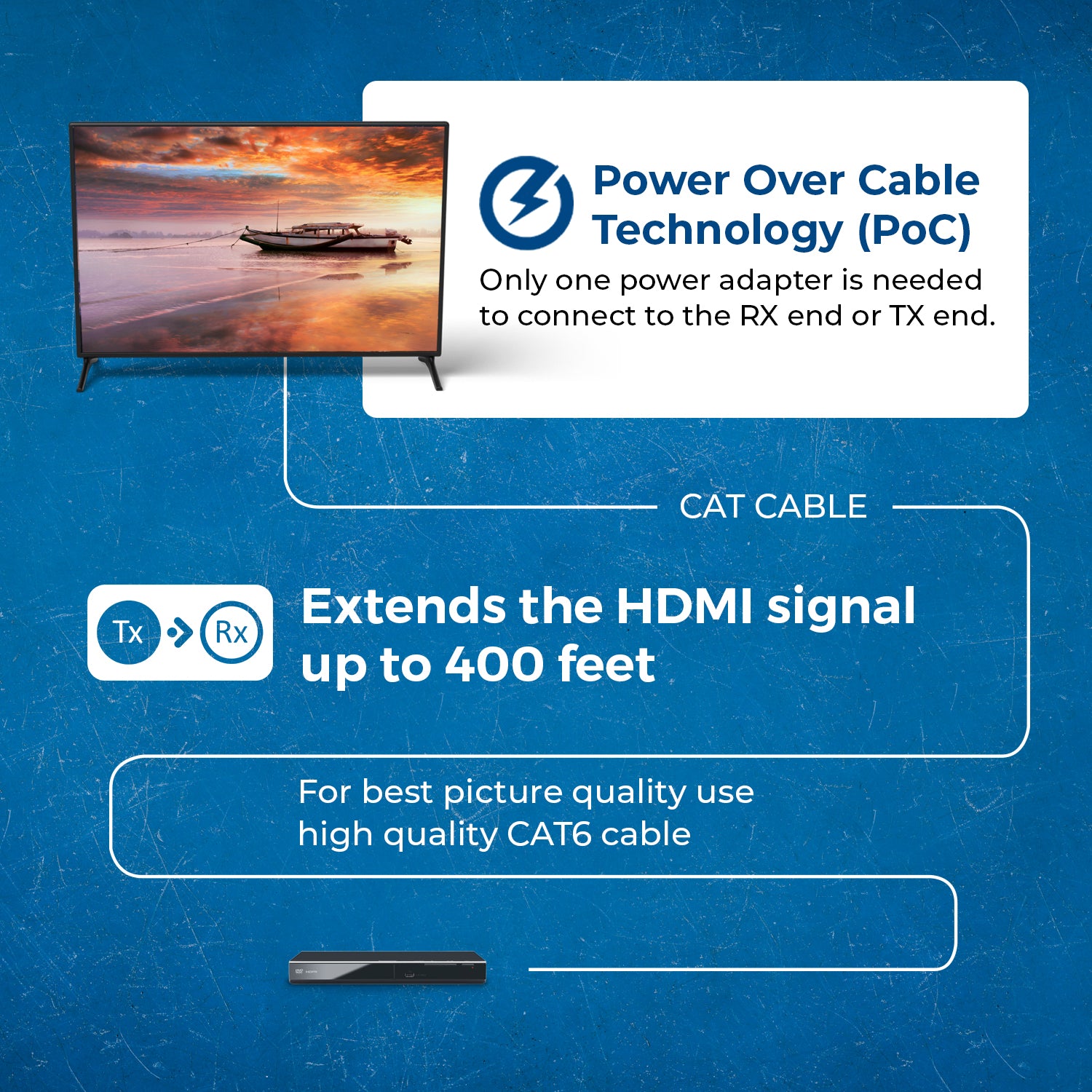

The Power over Cable function; requires only one power adapter to be connected at either end.

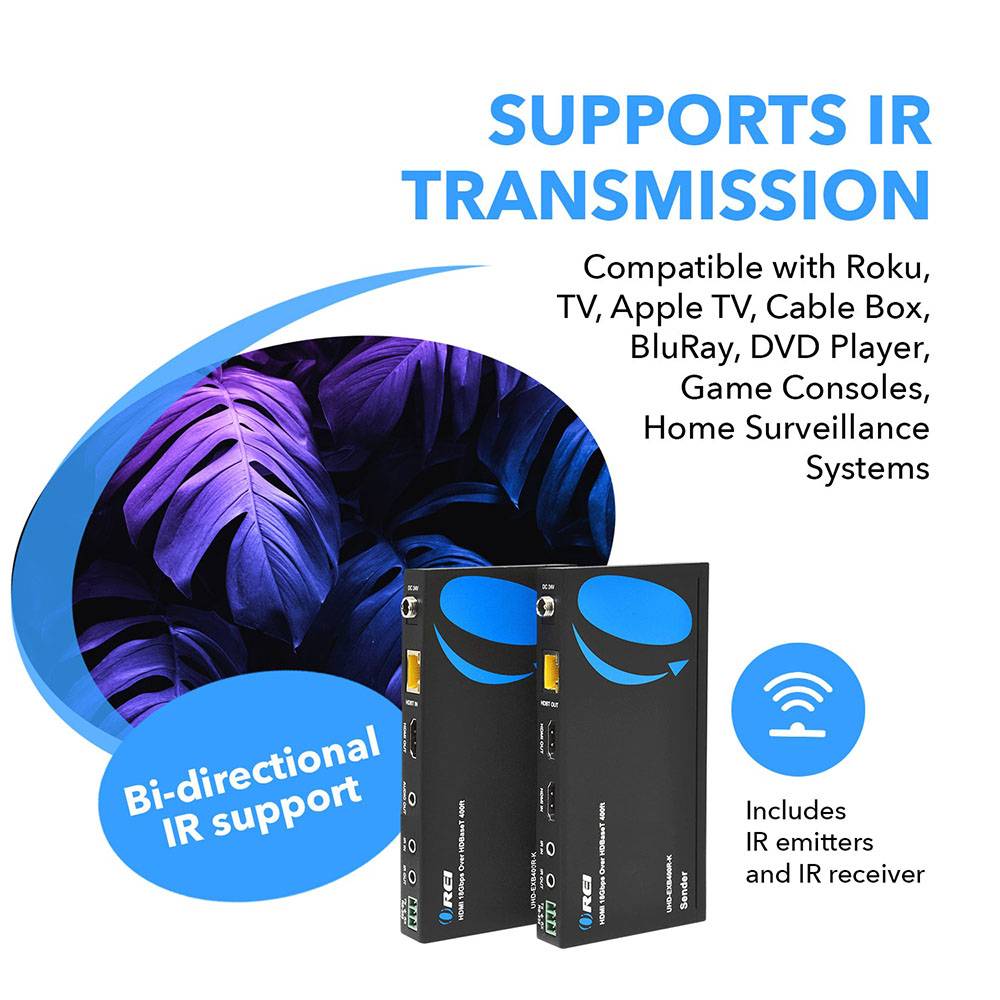

Bi-directional IR control and CEC pass-through

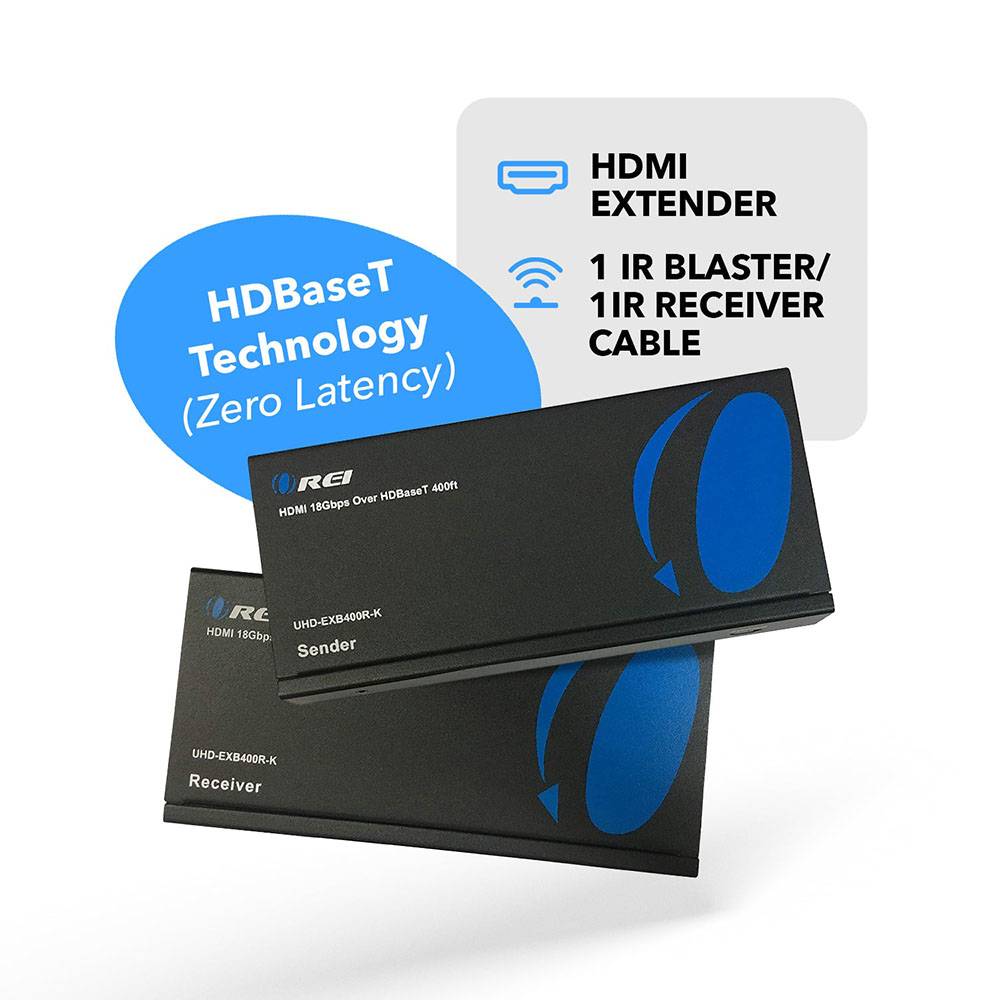

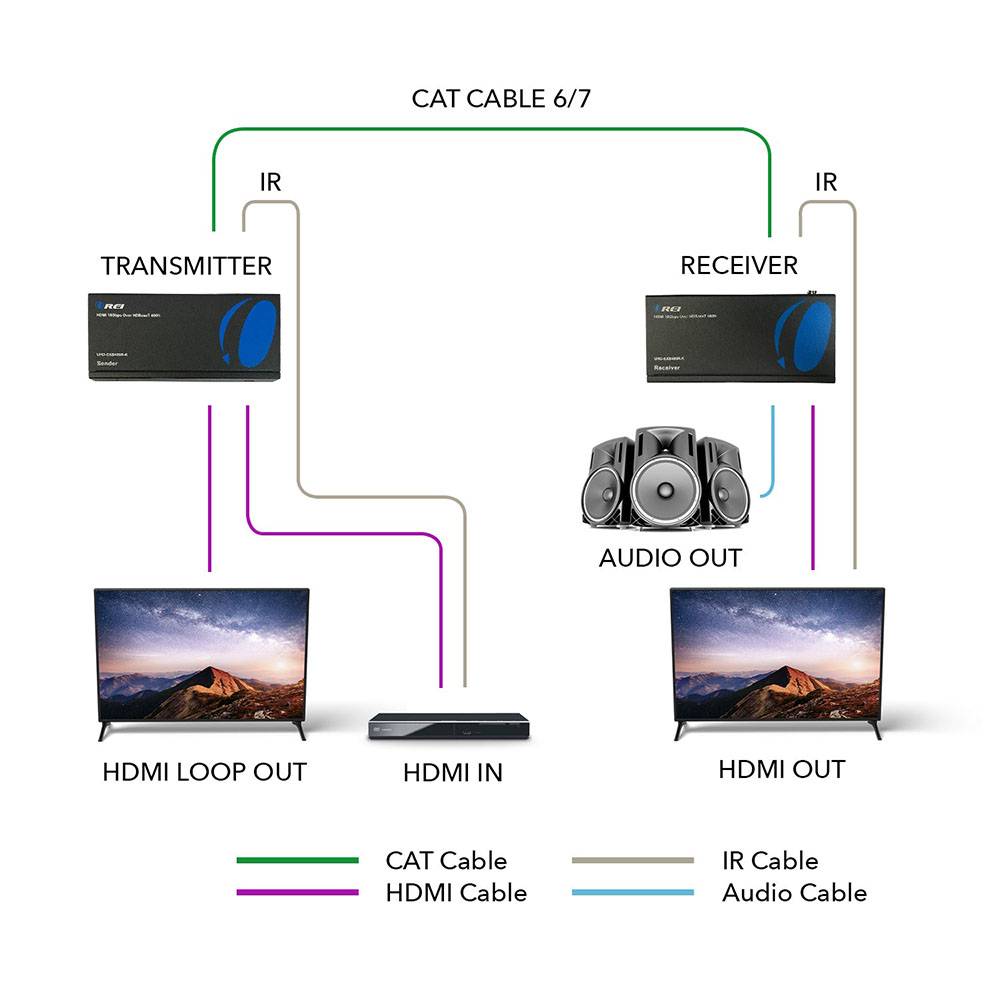

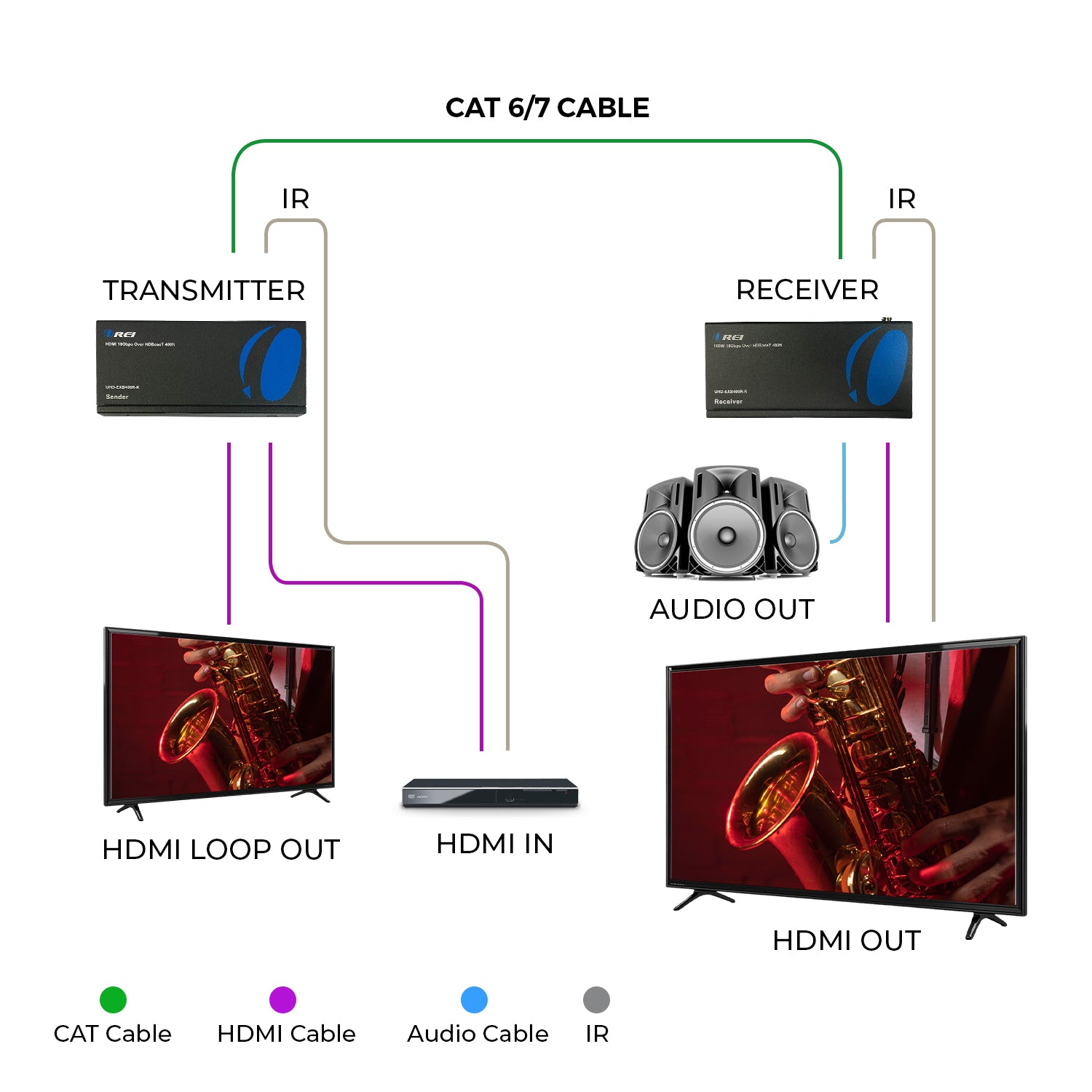

The UHD-EXB400R-K HDMI extender utilizes HDBaseT technology for extending audio/video signals up to 400 feet via a single CAT 6/7 cable. It supports resolutions up to 4K@60Hz and 2K@60Hz, with an 18Gbps video bandwidth, fully compliant with HDMI 2.0 and HDCP 2.2 standards. Additionally, it offers two-way IR control and PoE (Power Over Ethernet). It also features an HDMI Loop output on the Transmitter end to connect a local display. This device is perfect for media extension from one location to the other in both home and commercial setups.

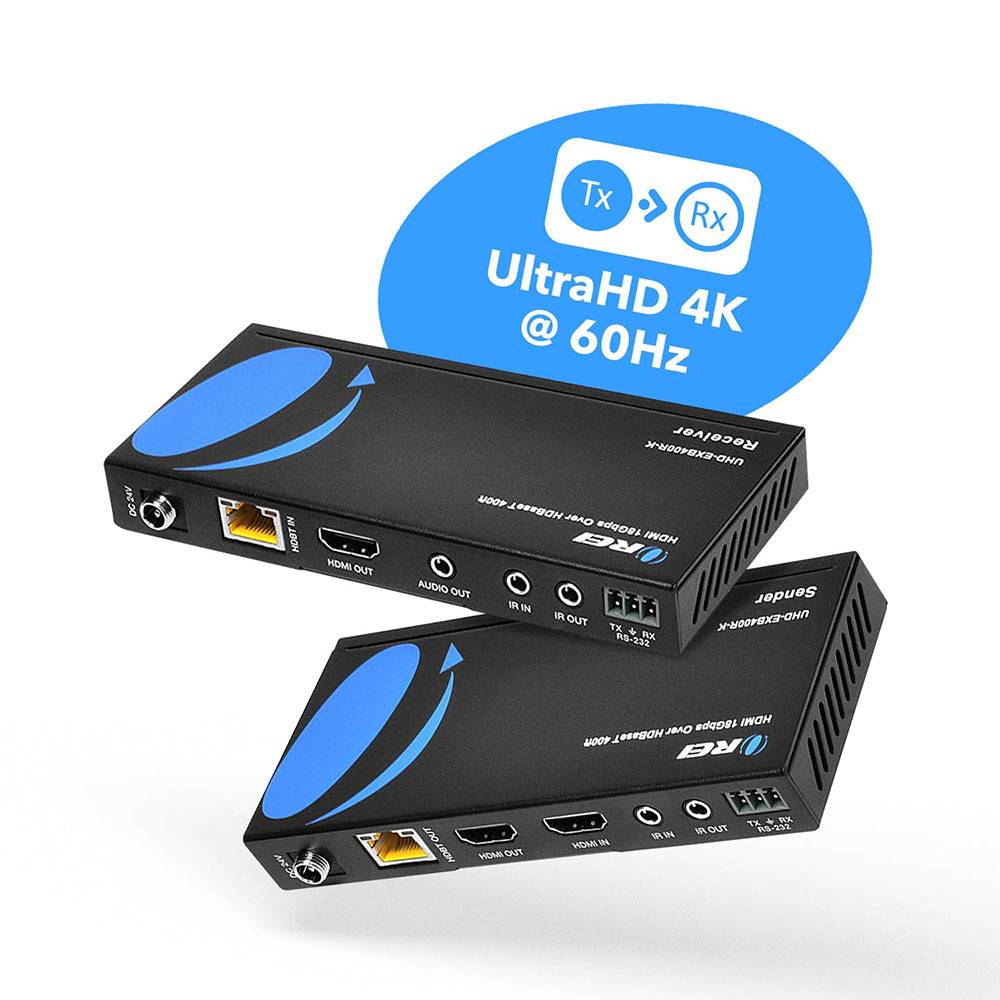

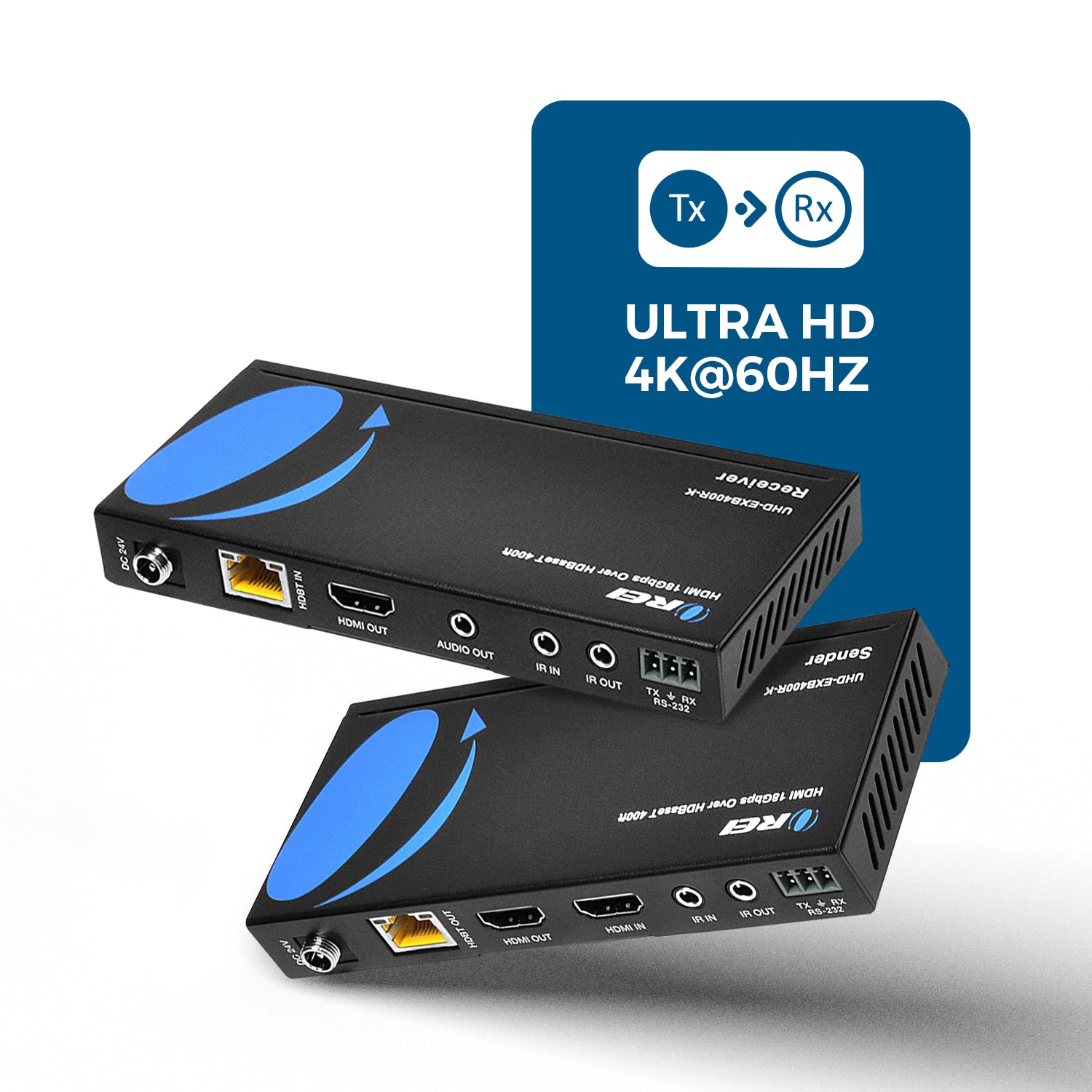

CONNECTIVITY

Transmitter:	INPUT:	1 × HDMI [Type A, 19-pin female]
	OUTPUT:	1 × HDMI [Type A, 19-pin female]
		1 × HDBT [RJ45, 8-pin female]
	CONTROL:	1 × IR IN [3.5mm Stereo Mini-jack]
		1 × IR OUT [3.5mm Stereo Mini-jack]
		1 × SERVICE [Micro USB, Update port]
Receiver:	INPUT:	1 × HDBT [RJ45, 8-pin female]
	OUTPUT:	1 × HDMI [Type A, 19-pin female]
		1 × L/R OUT [3.5mm Stereo Mini-jack]
	CONTROL:	1 × IR IN [3.5mm Stereo Mini-jack]
		1 × IR OUT [3.5mm Stereo Mini-jack]
		1 × RS-232 [3-pin Phoenix connector]
		1 × SERVICE [Micro USB, Update port]

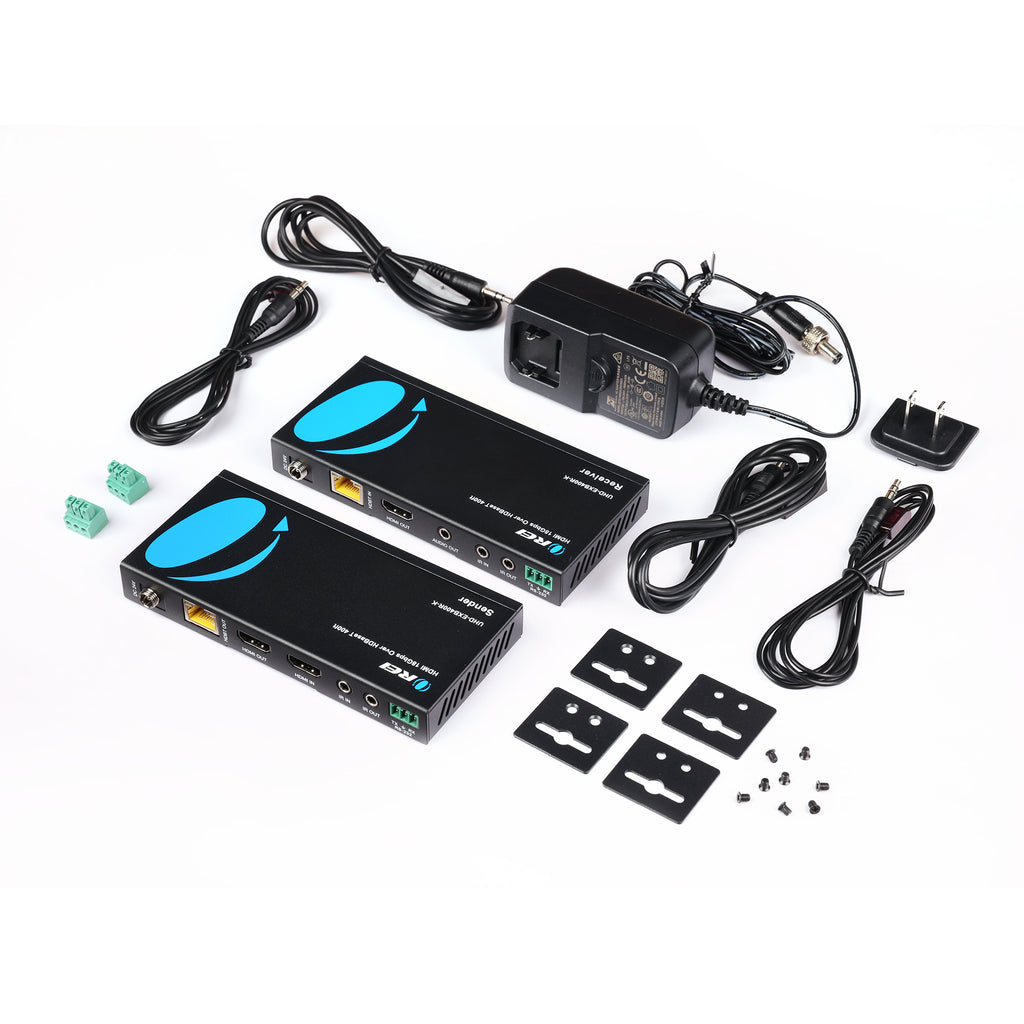

PACKAGE CONTENTS

1x Transmitter

1x Receiver

1x IR Blaster cable

1x IR Receiver cable

4x Mounting Brackets

2x RS-232 3-pin Phoenix connector

1x Power Adapter

User Manual

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@60Hz:

400 Feet

VIDEO OUTPUT

Video Bandwidth:	18Gbps
Video Resolutions:	Up to 4K@60Hz and 2K@60Hz

ADDITIONAL FEATURES

CEC:	Yes

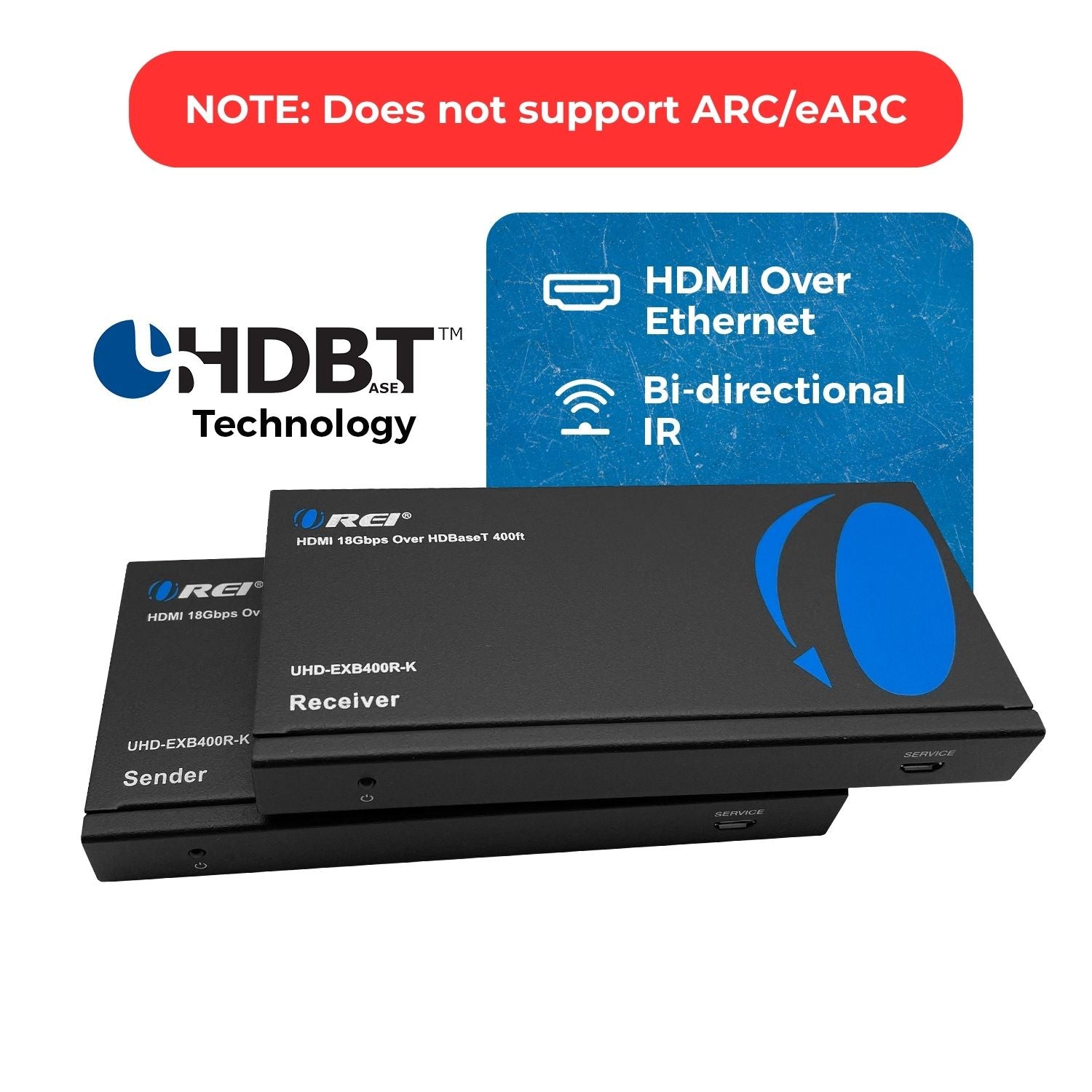

ARC:	No
USB KVM:	No
PoC/PoE:	Yes
IR Control:	Yes
Downmix:	No
Downscale:	No
Over IP:	No
HDBaseT:	Yes
RS-232:	Yes

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	1

AUDIO SUPPORT

HDMI Audio Formats:	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS HD Master Audio
3.5mm Analog:	PCM 2CH

COMPLIANCES

HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2

POWER

Power Consumption:	9.36W (Max)
Power Supply:	Input: AC 100-240V 50/60Hz
	Output: DC 24V/1A

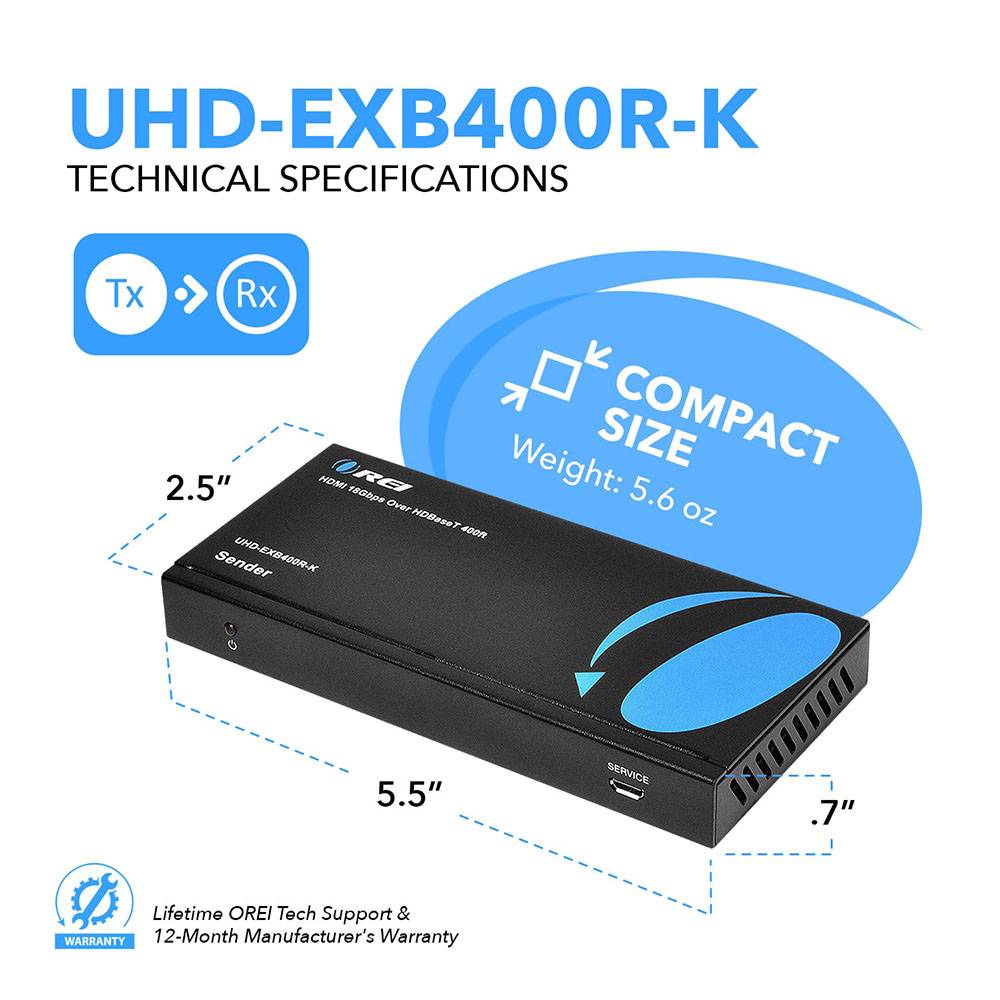

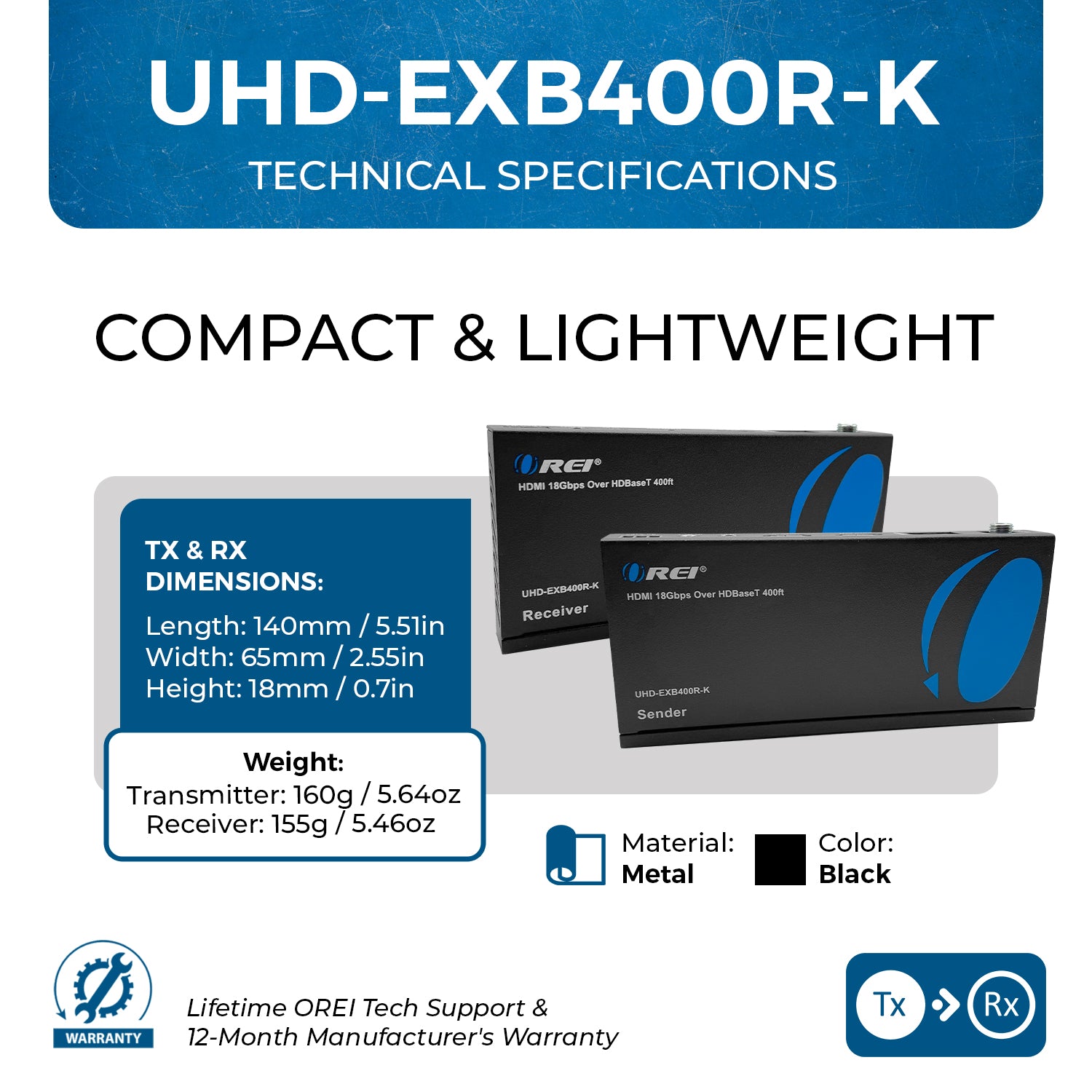

DIMENSIONS & WEIGHT

Transmitter:	Length:	140mm / 5.51in
	Width:	65mm / 2.55in
	Height:	18mm / 0.7in
	Weight:	160g / 5.64oz
Receiver:	Length:	140mm / 5.51in
	Width:	65mm / 2.55in
	Height:	18mm / 0.7in
	Weight:	160g / 5.64oz

PROPERTIES

Color:	Black
Housing:	Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

UHD-EXB400R-K User Manual Download

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

No, this product doesn't upscale/downscale the video resolutions.

You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

You can upgrade the firmware by connecting the PC & this device via RS-232 cable.

Please note that this product only supports the CEC function between HDMI input & HDMI output 1.

No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.

HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.

In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.

We recommend you using a shielded CAT6 cables for optimum performance.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
