4K HDMI Extender Over Ethernet With Audio Extraction up to 165 feet - With Bi-directional IR, RS-232, CEC and Power Over Cable:
Key Features:
HDMI 2.0 & HDCP 2.2 compliant
Video resolutions up to 4K@60Hz 4:4:4 and 2K@60Hz
18Gbps video bandwidth
Signal transmission up to 165 feet over a CAT 6/7 cable

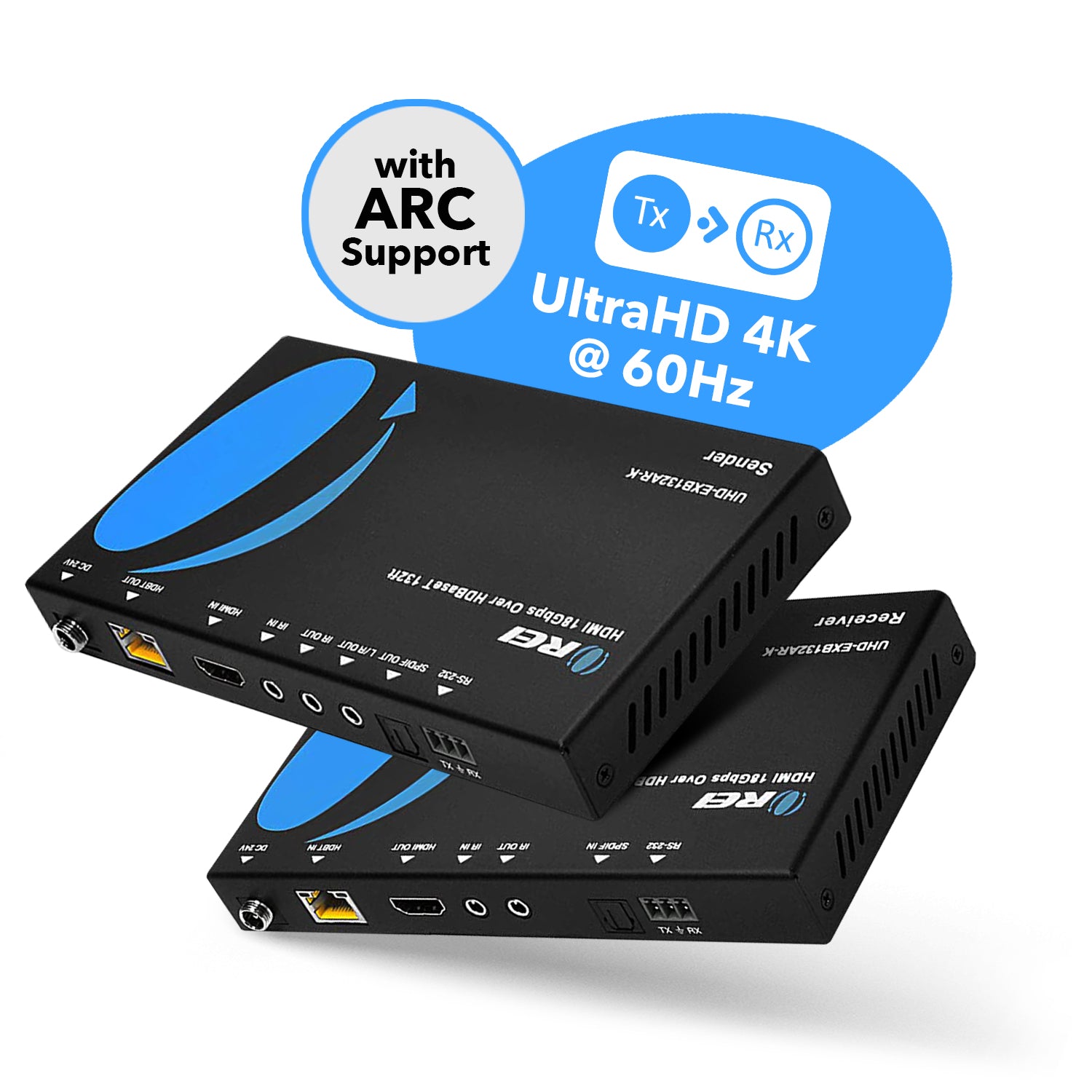

Supports audio extraction from the source or an ARC TV connected to the receiver. Audio output through L/R & optical ports.
Supports HDR and Dolby Vision pass-through

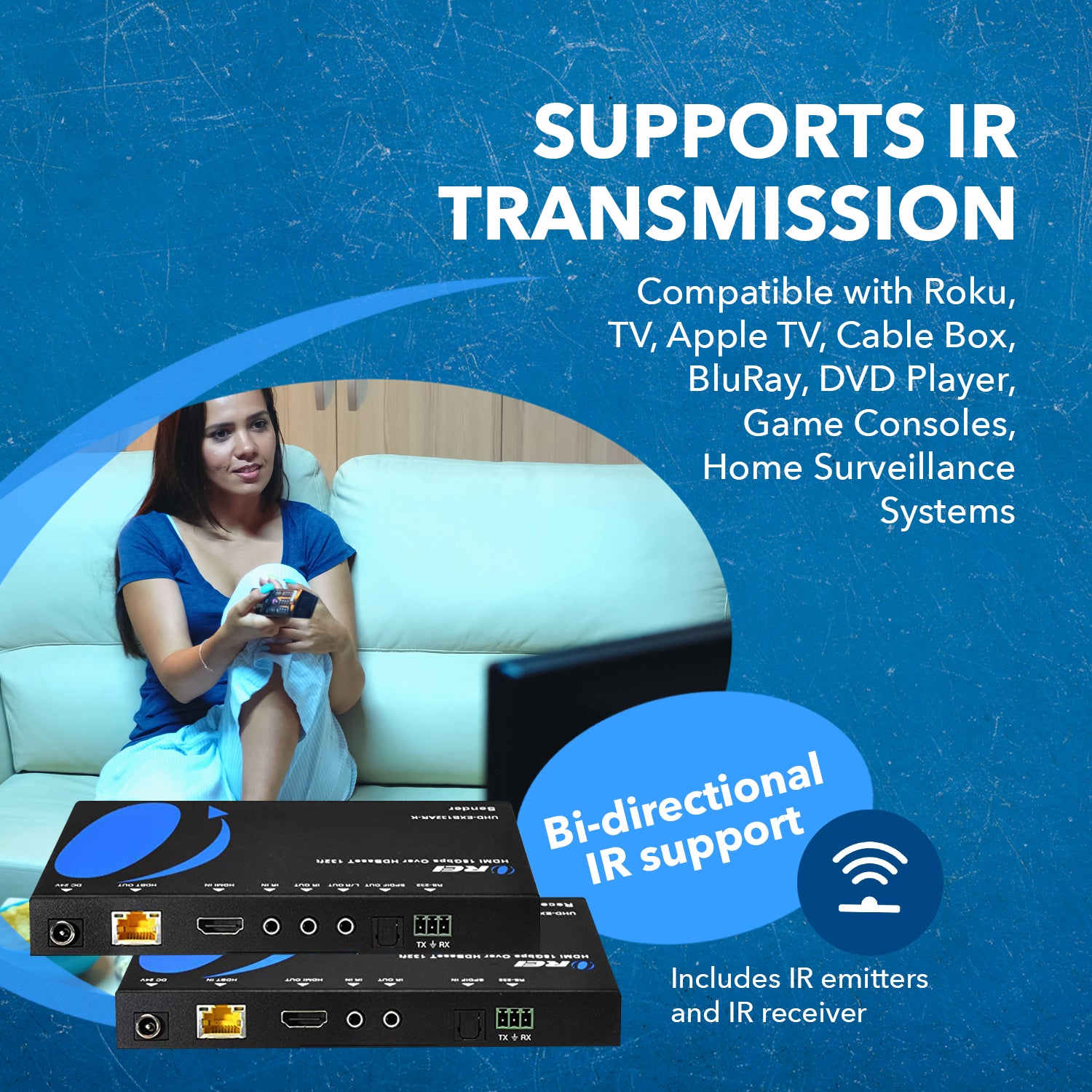

Bi-directional IR control, RS-230 pass-through, and CEC pass-through

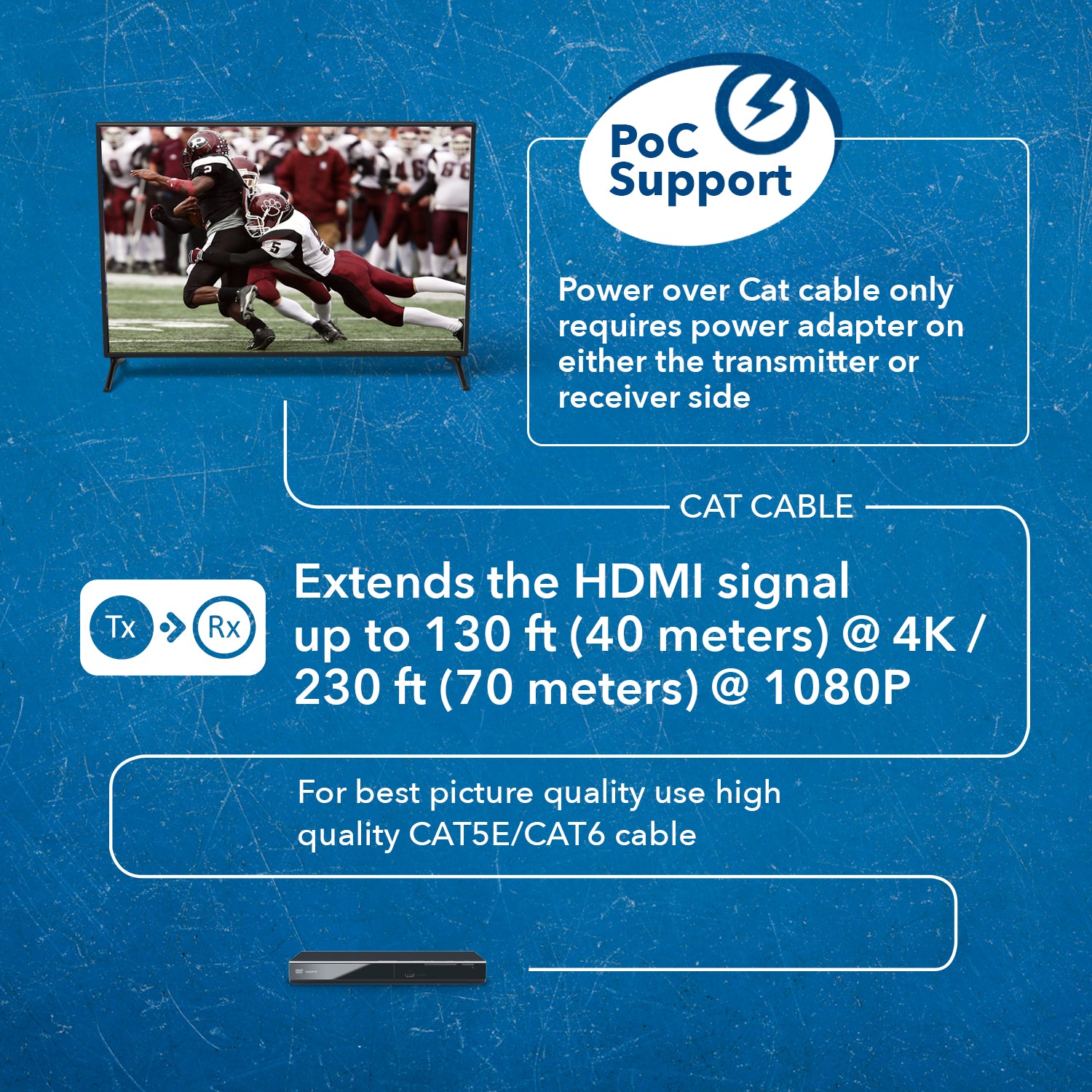

Power over Cable technology support, both the units are powered by only one power adapter connected to the transmitter or the receiver.

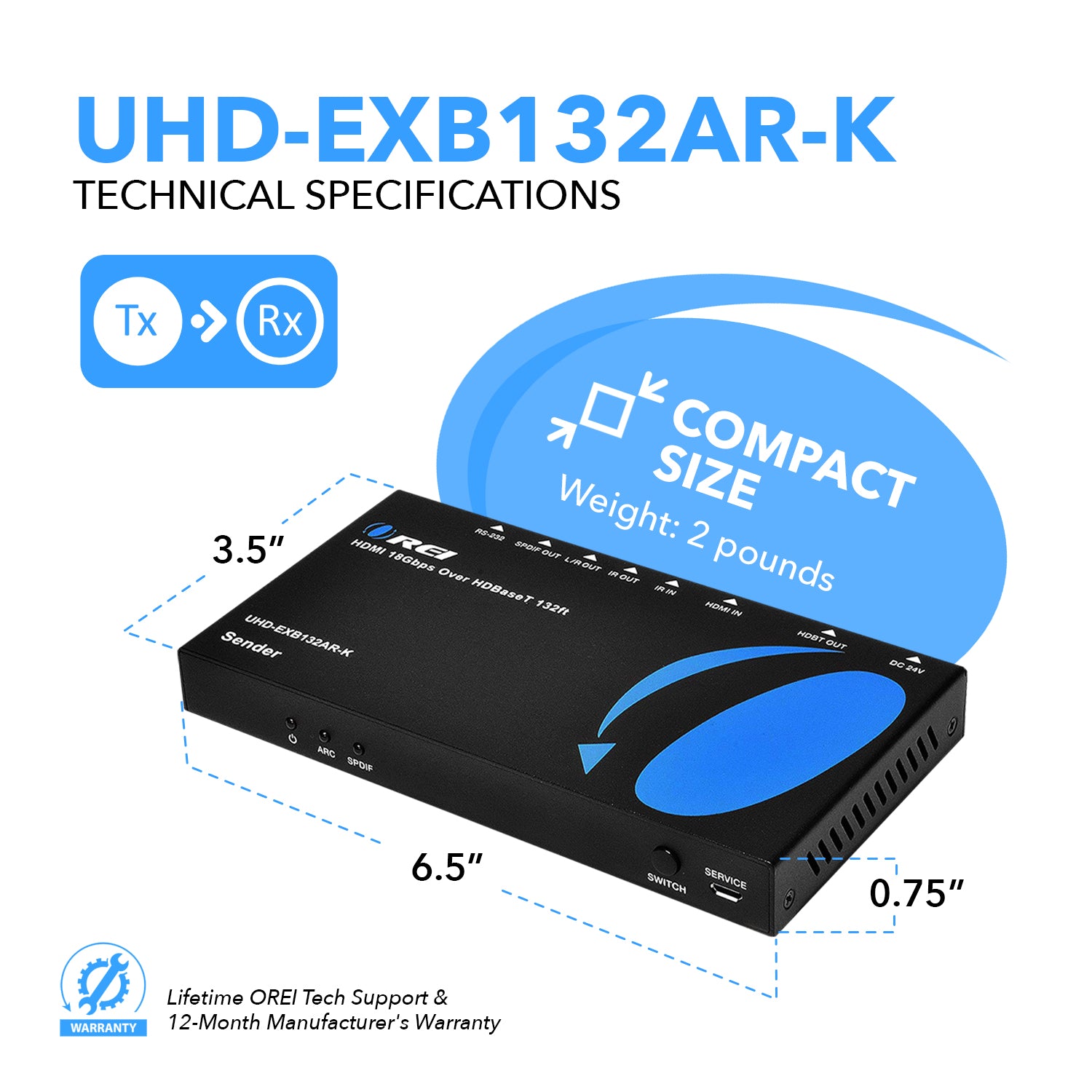

Compact design & easy installation
Perfect for personal and commercial uses

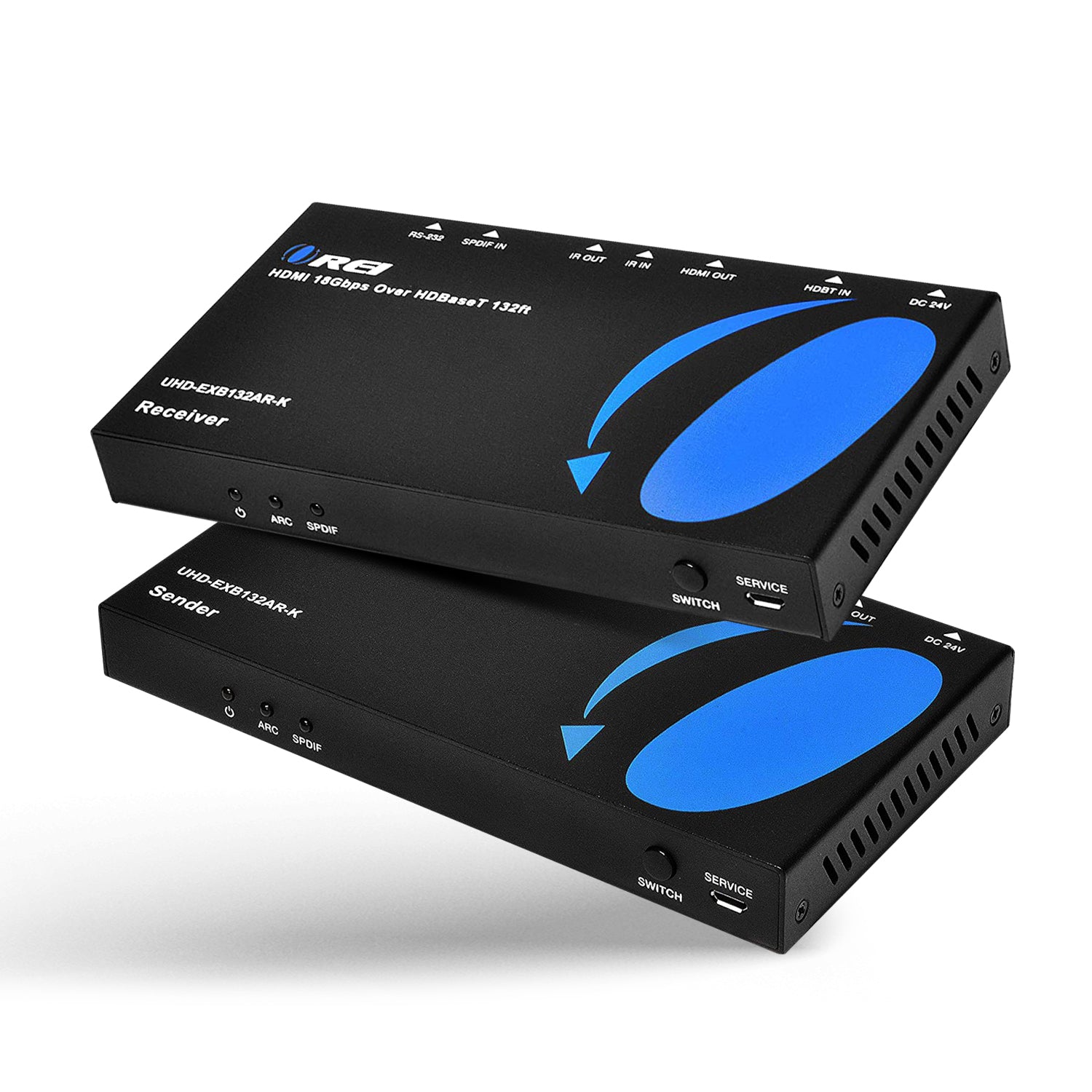

The UHD-EXB132AR-K is an HDMI extender with audio extraction, that can extend HDMI media signals up to 165 feet. It supports video resolutions up to 4K@60Hz and 2K@60Hz. It is HDMI 2.0 and HDCP 2.2 compliant, with a video bandwidth of 18Gbps, and support for HDR and Dolby Vision. This device can extract audio from the source or an ARC/eARC TV connected to the receiver unit, providing audio output through L/R and optical ports. Additionally, the device offers bi-directional IR functionality, RS-232, and CEC pass-through. With bi-directional Power over Cable technology, the setup requires only one power adapter, which can be connected to the transmitter or the receiver. Perfect for both residential and commercial setups.
CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
1 × HDBaseT [RJ45, 8-pin female]
1 × L/R [3.5mm Stereo Mini-jack]
1 x OPTICAL [S/PDIF, female]
CONTROL:
1 × IR IN [3.5mm Stereo Mini-jack]
1 × IR OUT [3.5mm Stereo Mini-jack]
1 × RS-232 [D-Sub 9]
1 x SERVICE [Micro-USB, Update port]
Receiver:
INPUT:
1 × HDBaseT[RJ45, 8-pin female]
1 x OPTICAL [S/PDIF, female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
CONTROL:
1 × IR IN [3.5mm Stereo Mini-jack]
1 × IR OUT [3.5mm Stereo Mini-jack]
1 × RS-232 [D-Sub 9]
1 x SERVICE [Micro-USB, Update port]
PACKAGE CONTENTS
1x Transmitter
1x Receiver
1x IR Blaster Cable
1x IR Receiver Cable
2x 3-Pin Phoenix Connector
4x Mounting Ears
1x Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.

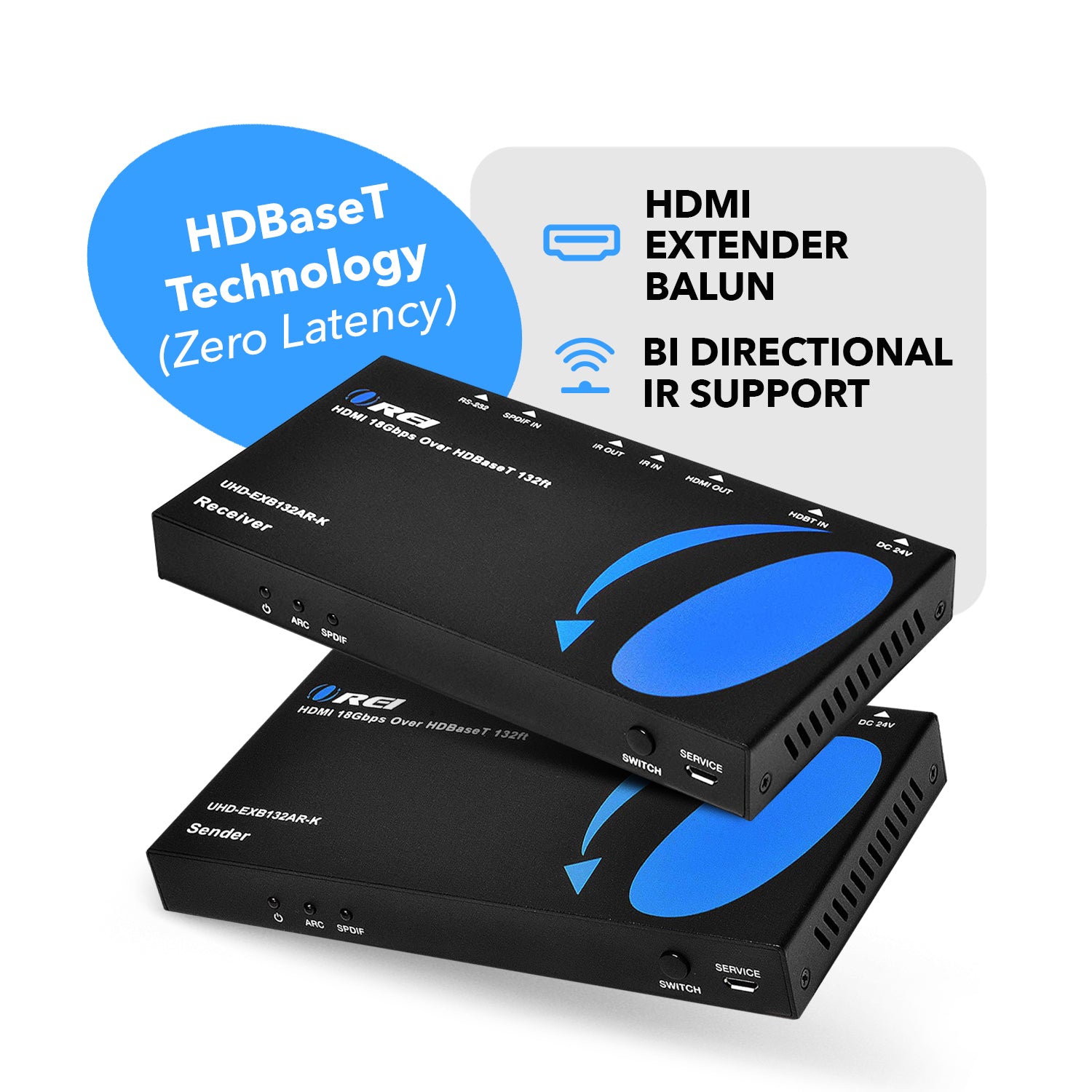

HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

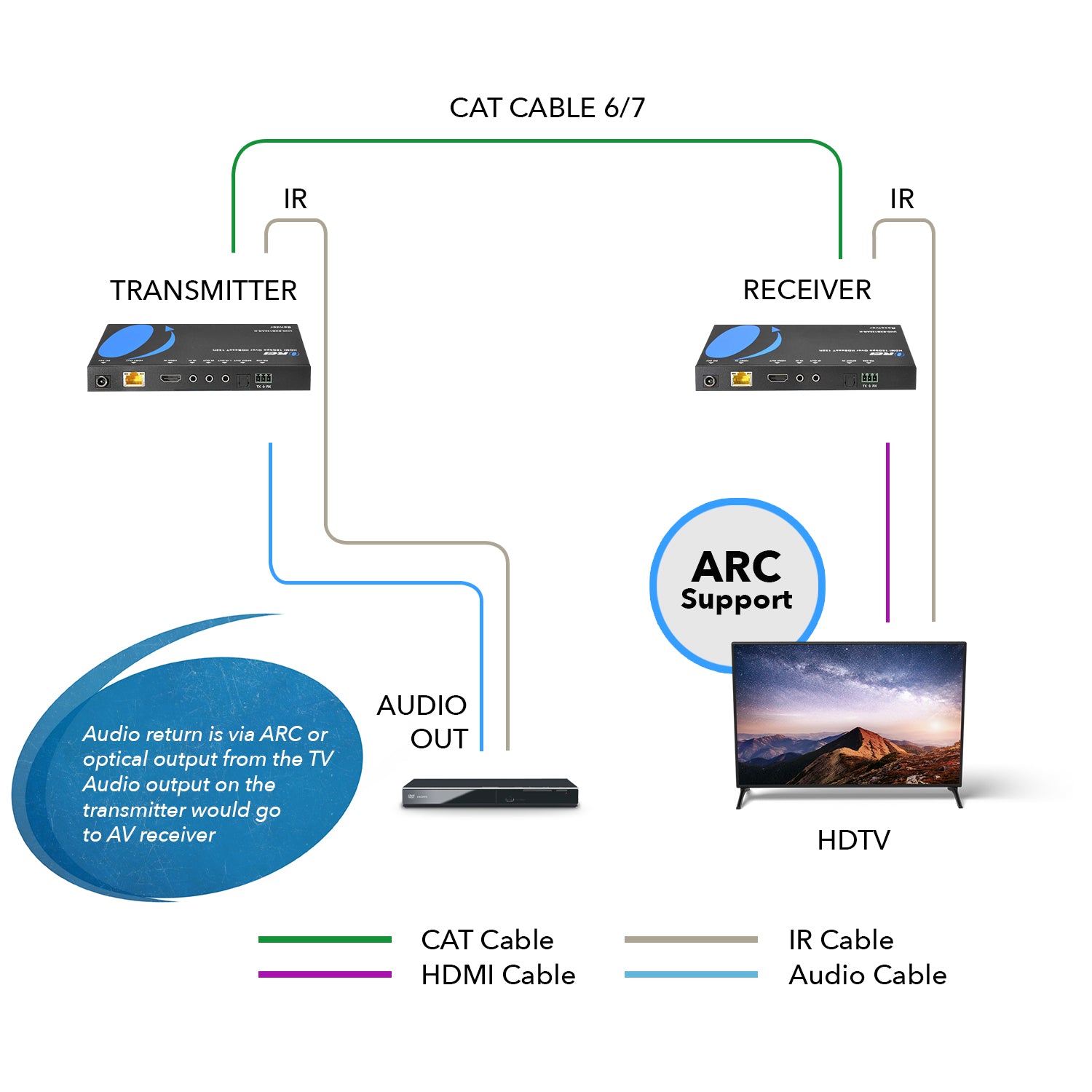

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
UHD-EXB132AR-K User Manual Download
