Receiver Only For HDMI Over IP Extender Full HD 1080P Upto 330 Ft (HD-EXM330-RX)

Receiver Only for HDMI Over IP Extender Full HD 1080P upto 330 ft (HD-EXM330-RX)

Name: Receiver Only for HDMI Over IP Extender Full HD 1080P upto 330 ft (HD-EXM330-RX)
Brand: OREI
SKU: HD-EXM330-RX
Price: 54.99 USD
Availability: InStock

$54.99 $99.99

Shipping calculated at checkout.

SKU: HD-EXM330-RX

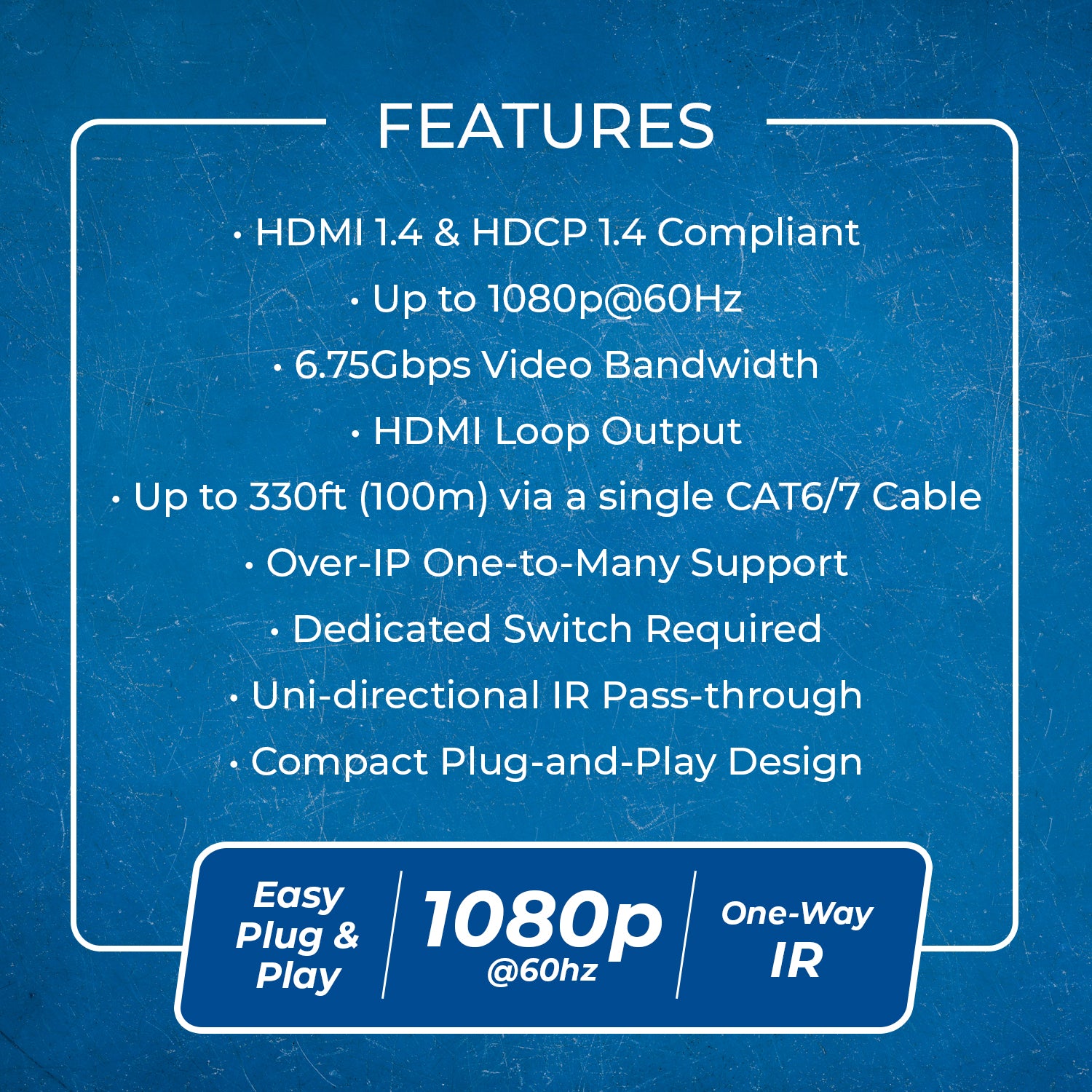

Supports 1080p@60Hz up to 330 feet
Supports Over IP function
Supports IR Remote Control

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Quantity

Reseller & Installer Discounts

Add to Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

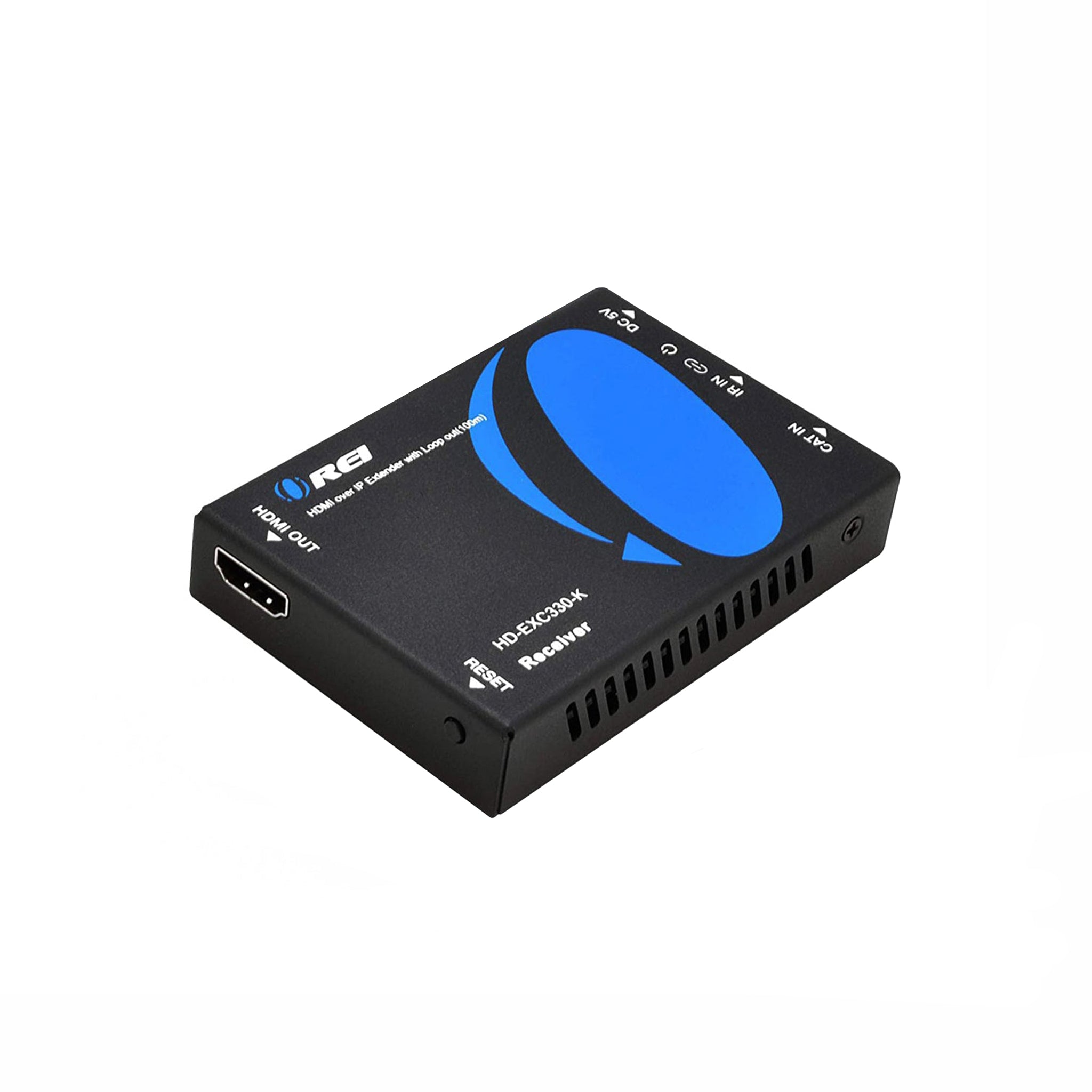

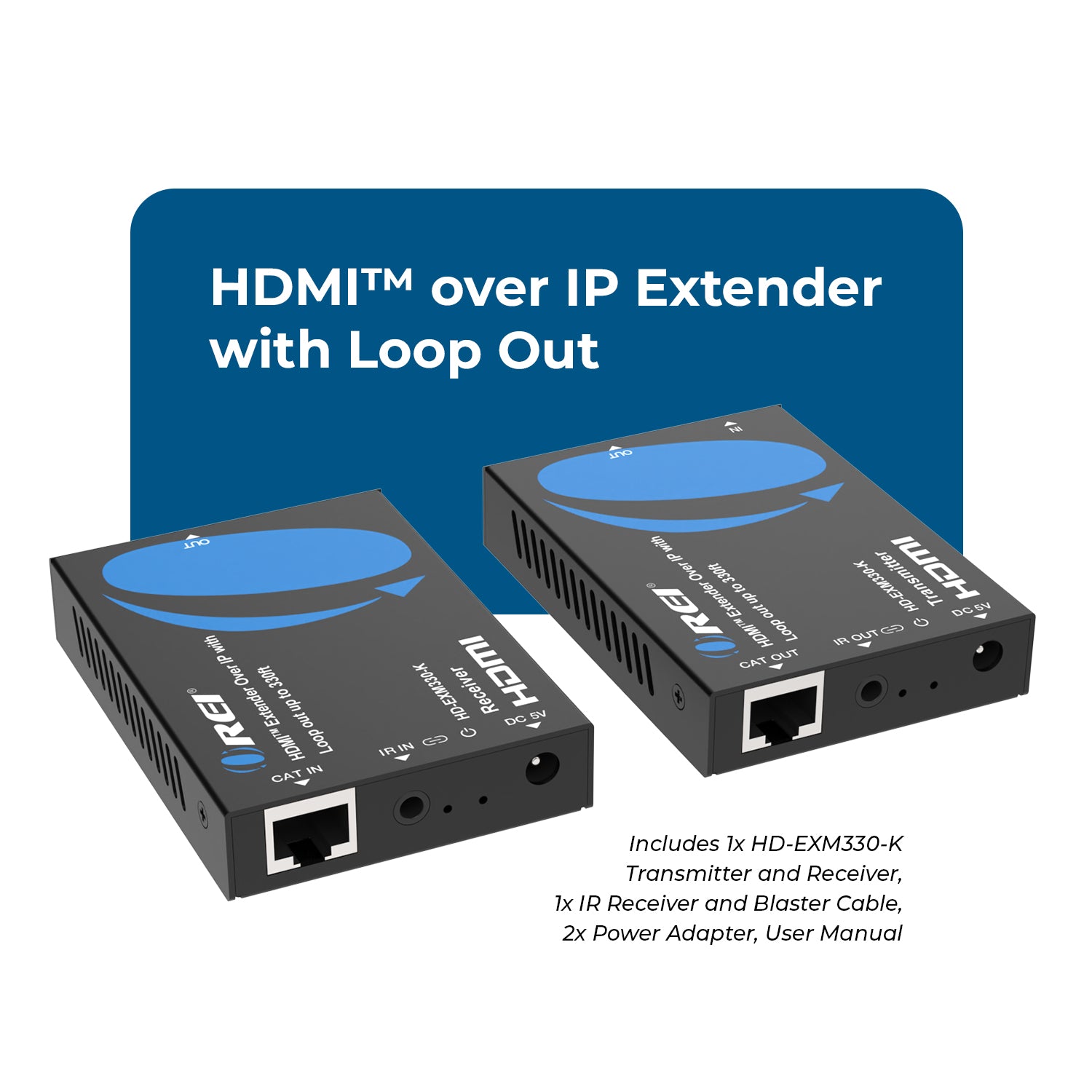

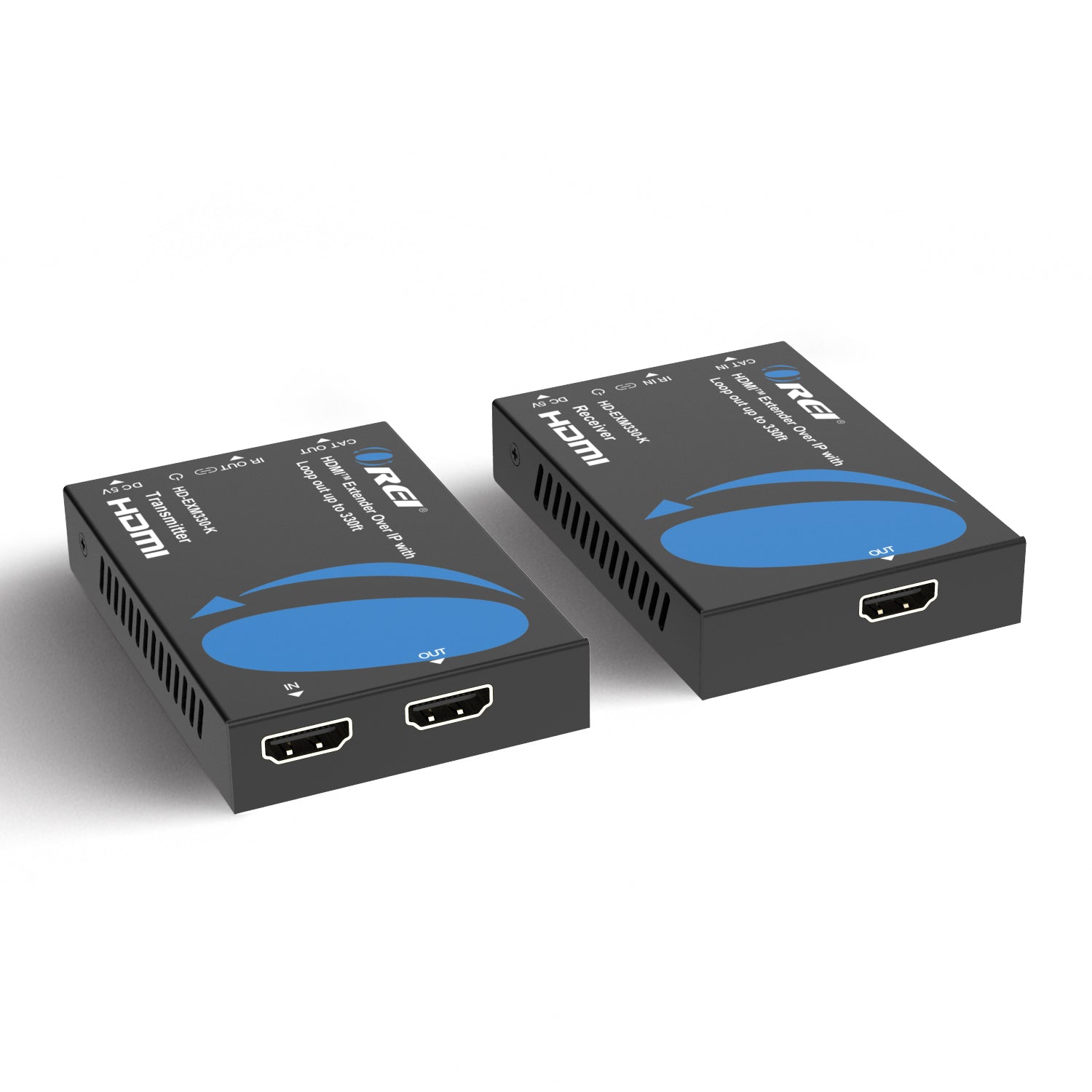

OREI HD-EXM330-RX (Receiver Only): HDMI over IP extender upto 330ft

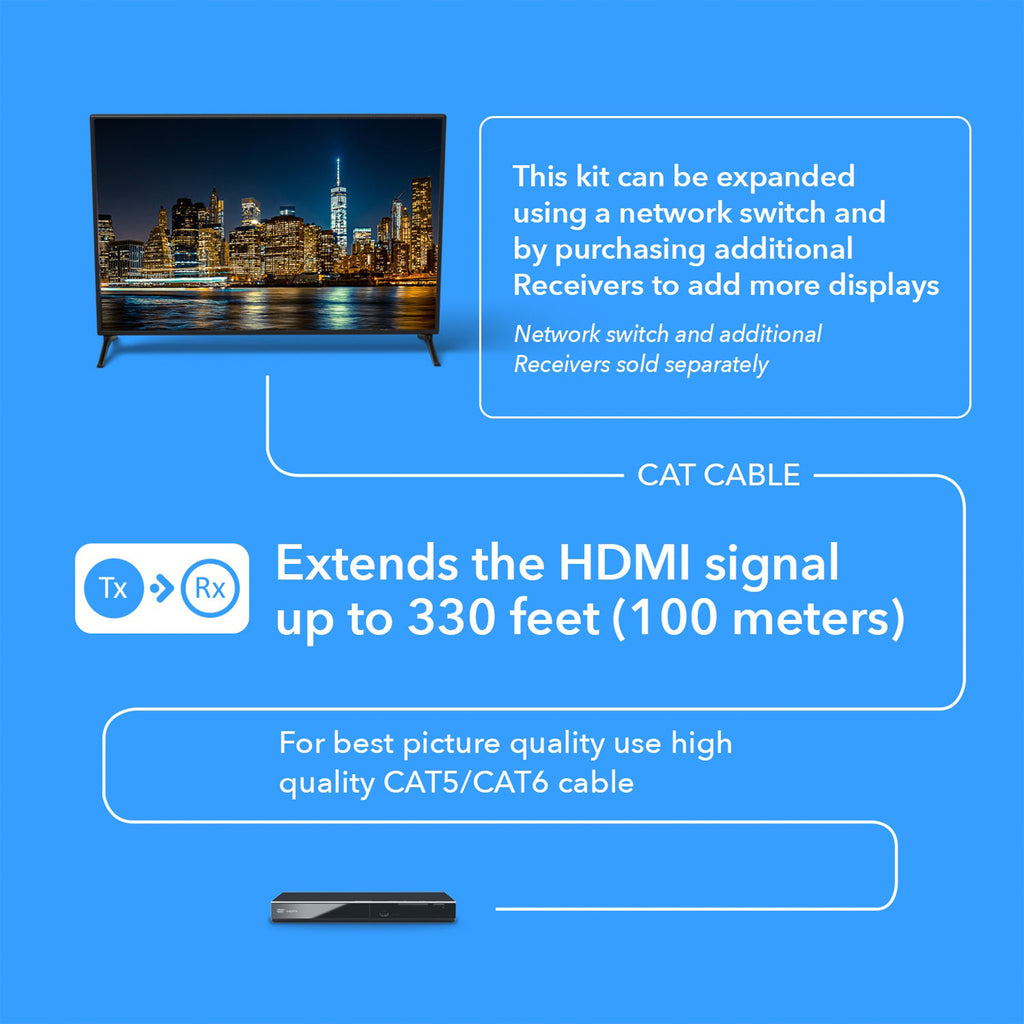

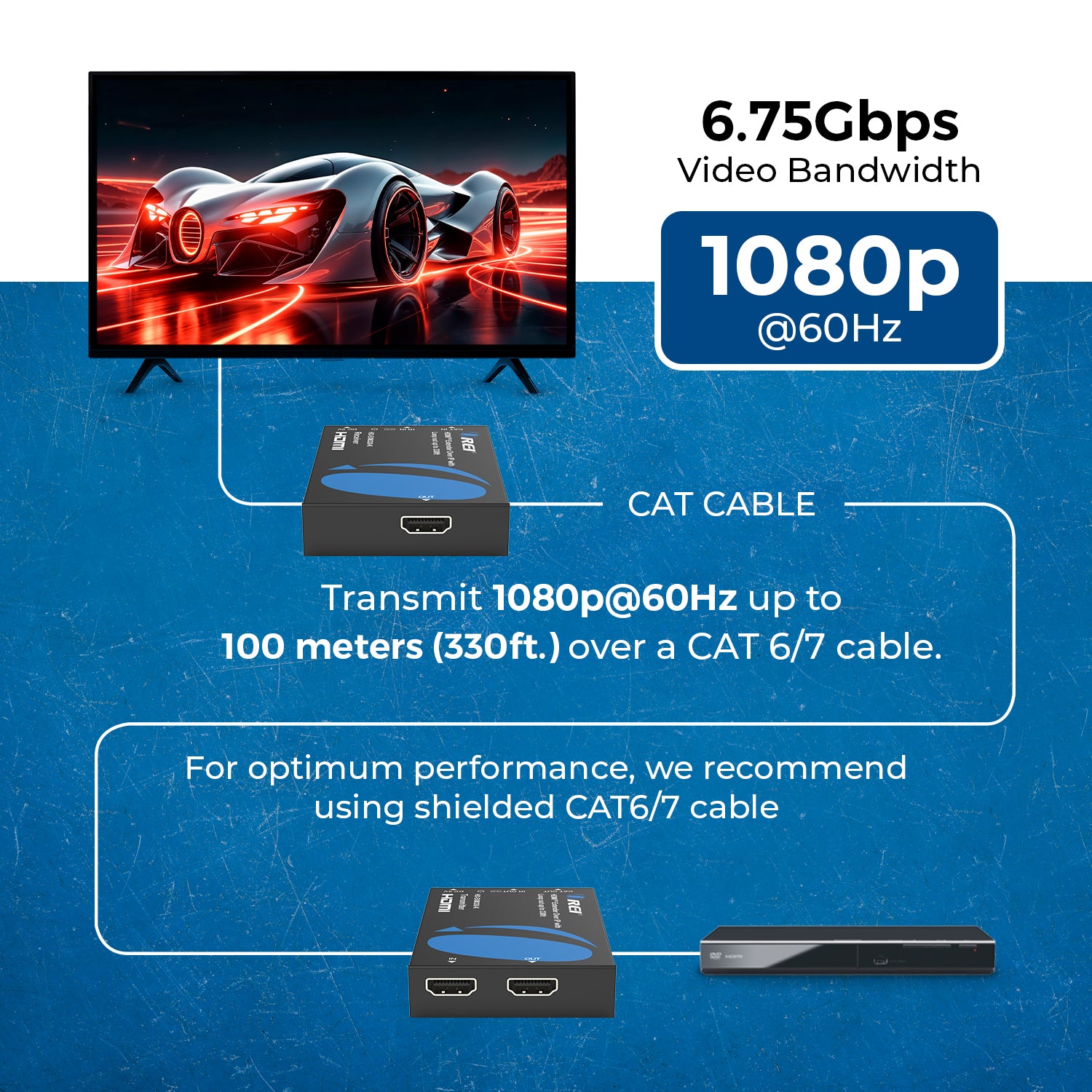

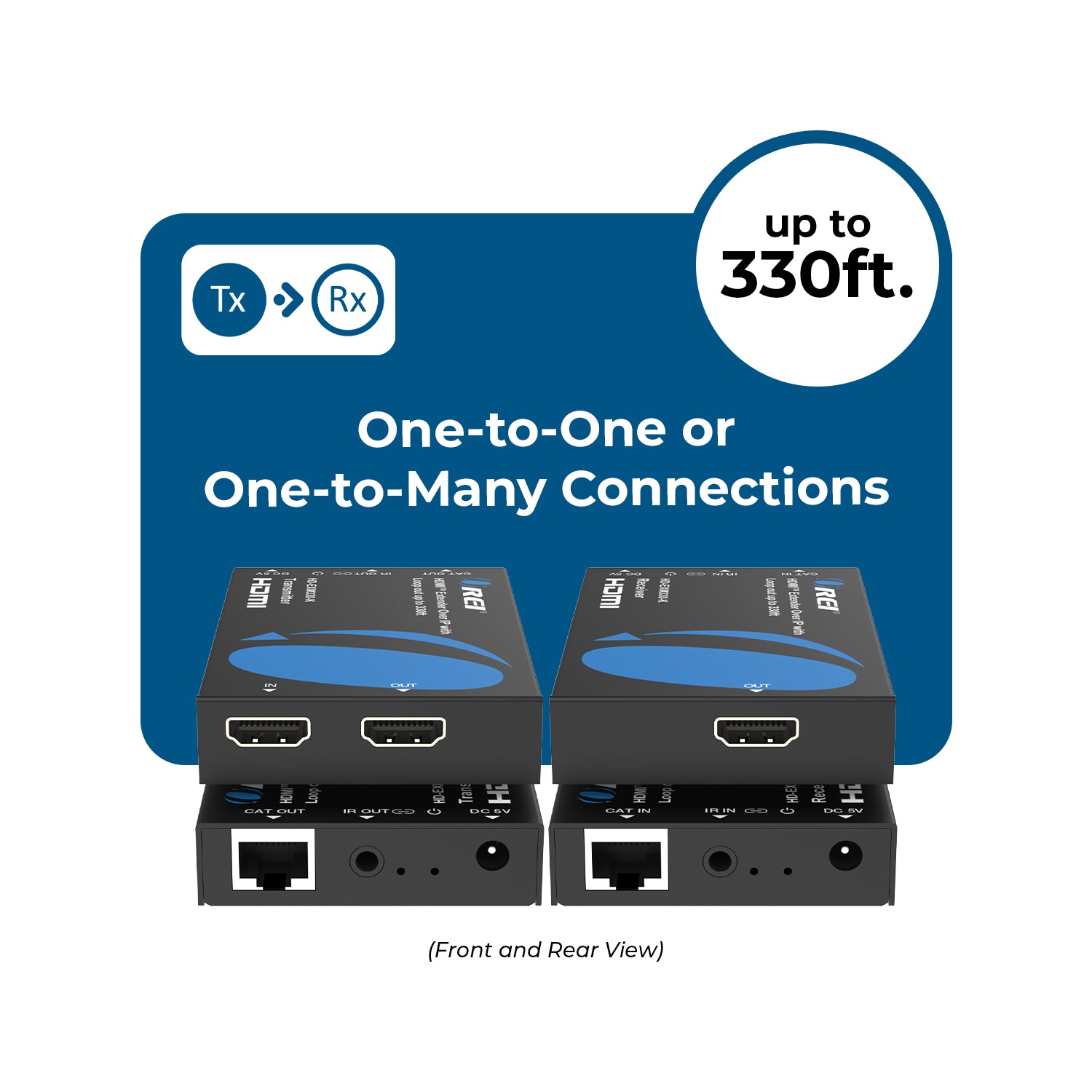

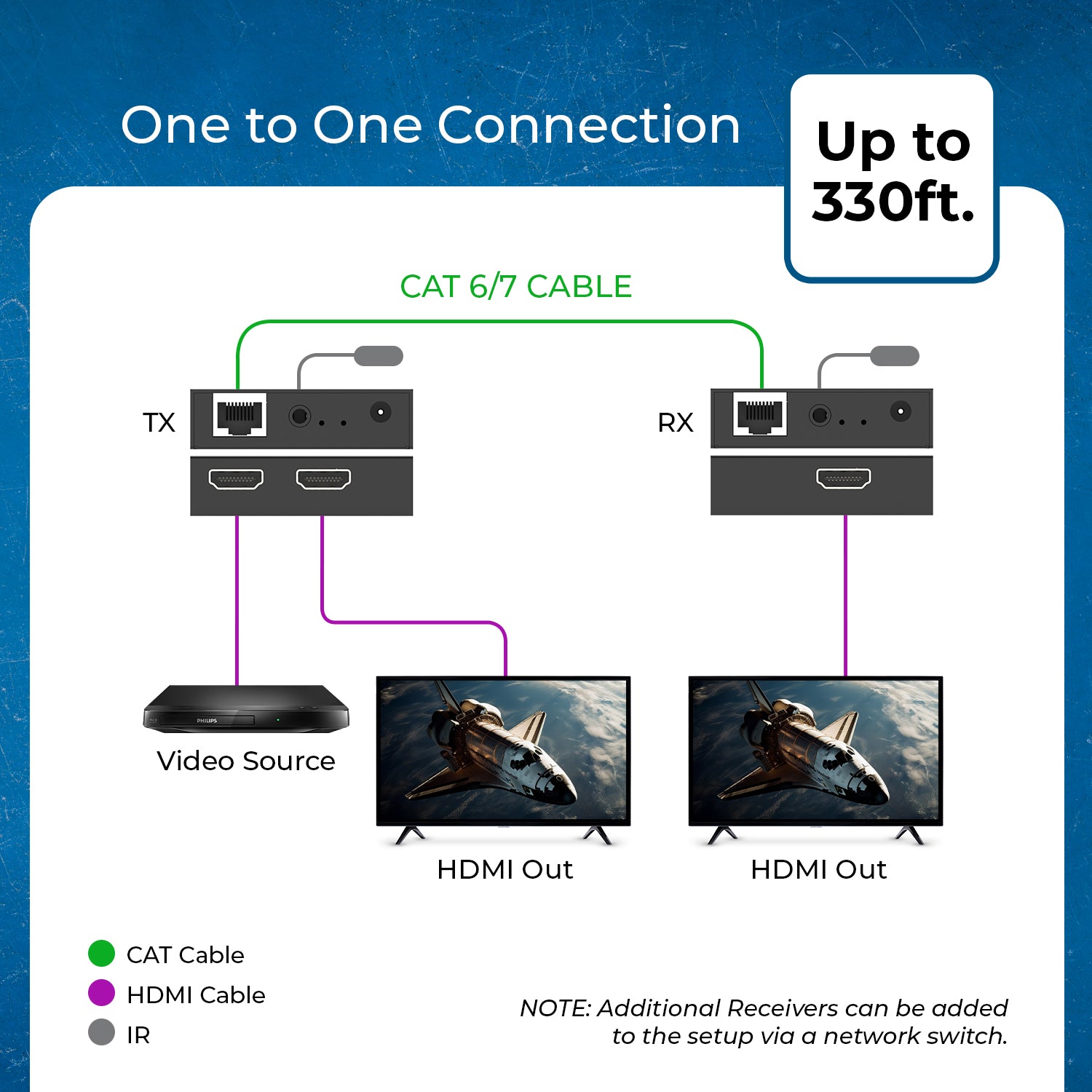

EXTEND VIDEO UP TO 330 FT: Extends HDMI signals up to 330 Feet (100 meters) at full HD 1080p by a Cat5e/Cat6 cable. Point to Point connection . It supports one to many connection (sold separately).
38 kHz frequency IR control extension: perfect for changing channels Remotely
Hdmi loop out - Additional HDMI output on the transmitter end allows you to add a local display for monitoring
Apply M-JPEG technique to process image compressing, and with little image quality loss
Zero loss - Support HDMI 480i 60Hz, 480p 60Hz, 576i 60Hz, 576 50Hz, 720p 50/60Hz, 1080i 50/60Hz, 1080p 50/60Hz; no driver installation required, convenient for your work and live. Full OREI Support - 1 year

AUDIO AND VIDEO

Receiver:	INPUT PORTS:	1×IR IN [3.5mm Stereo Mini-jack]
	OUTPUT PORTS:	1×CAT IN [RJ45 connector]
		1×HDMI Type A [19-pin female]

COMPLIANCES & PROTOCOLS

HDMI Compliance	HDMI 1.4b
HDCP Compliance	HDCP 1.4

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

1080p@60Hz:

330 Feet

VIDEO OUTPUT

Video Bandwidth:	10.2Gbps
Video Resolutions:	Up to 1920x1200@60Hz
Color Space:	RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth:	8-bit

CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT

CEC Function:	No
ARC Function:	No
USB KVM Function:	No
PoC/PoE Function:	No
IR Controller:	Yes
Downscaler Function:	No
Over Network/IP Function:	Yes
HDBaseT Function:	No
RS-232 Function:	No

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	1

Buttons

Reset Button:

It will reset the product including IP address, encoding information and EDID. The EDID will recover default status for 1920x1080p@60Hz

AUDIO OUTPUT

HDMI Audio Formats:

LPCM 2.0CH,48KHz

SIGNALS

TMDS Signals:	3.3V
DDC Signals:	5V

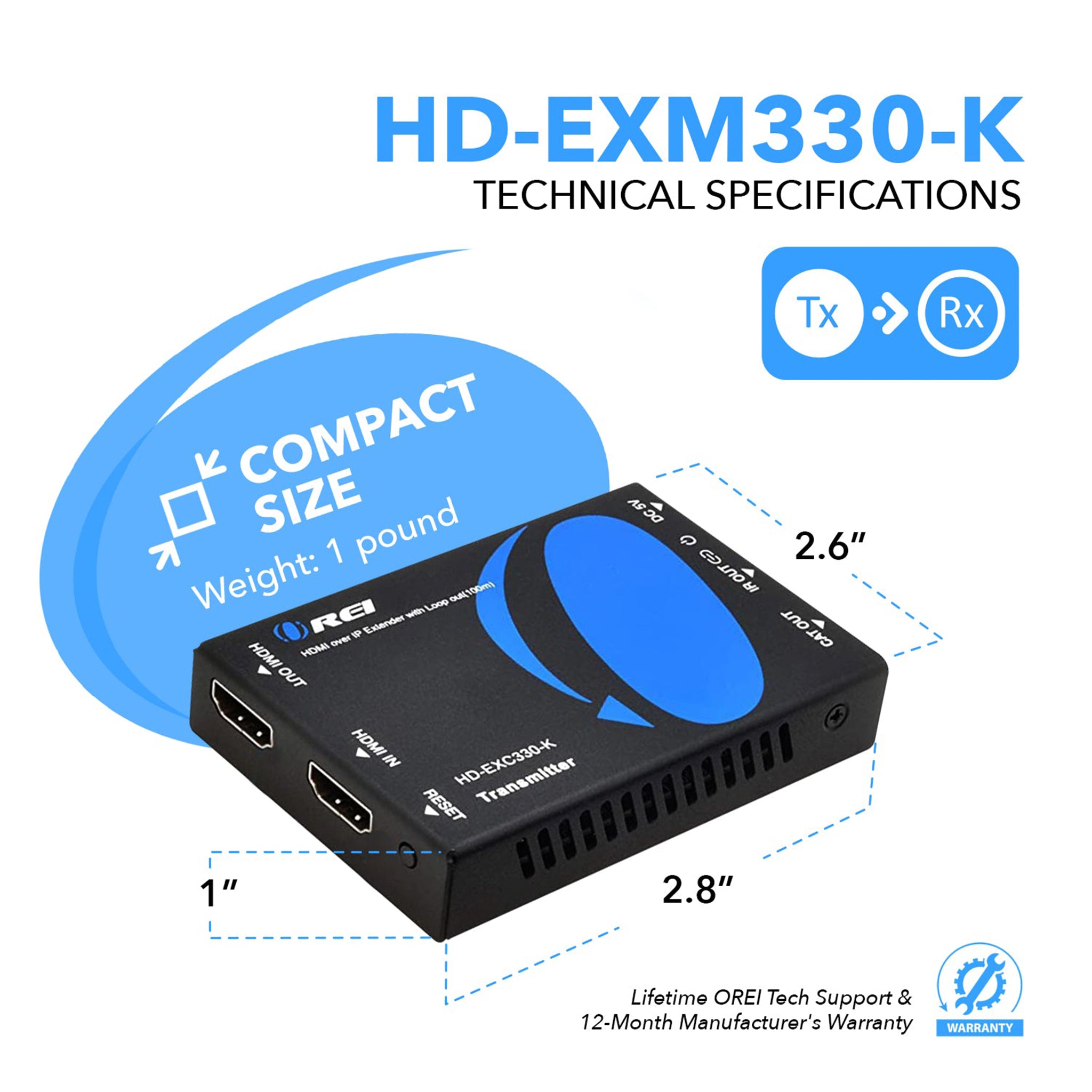

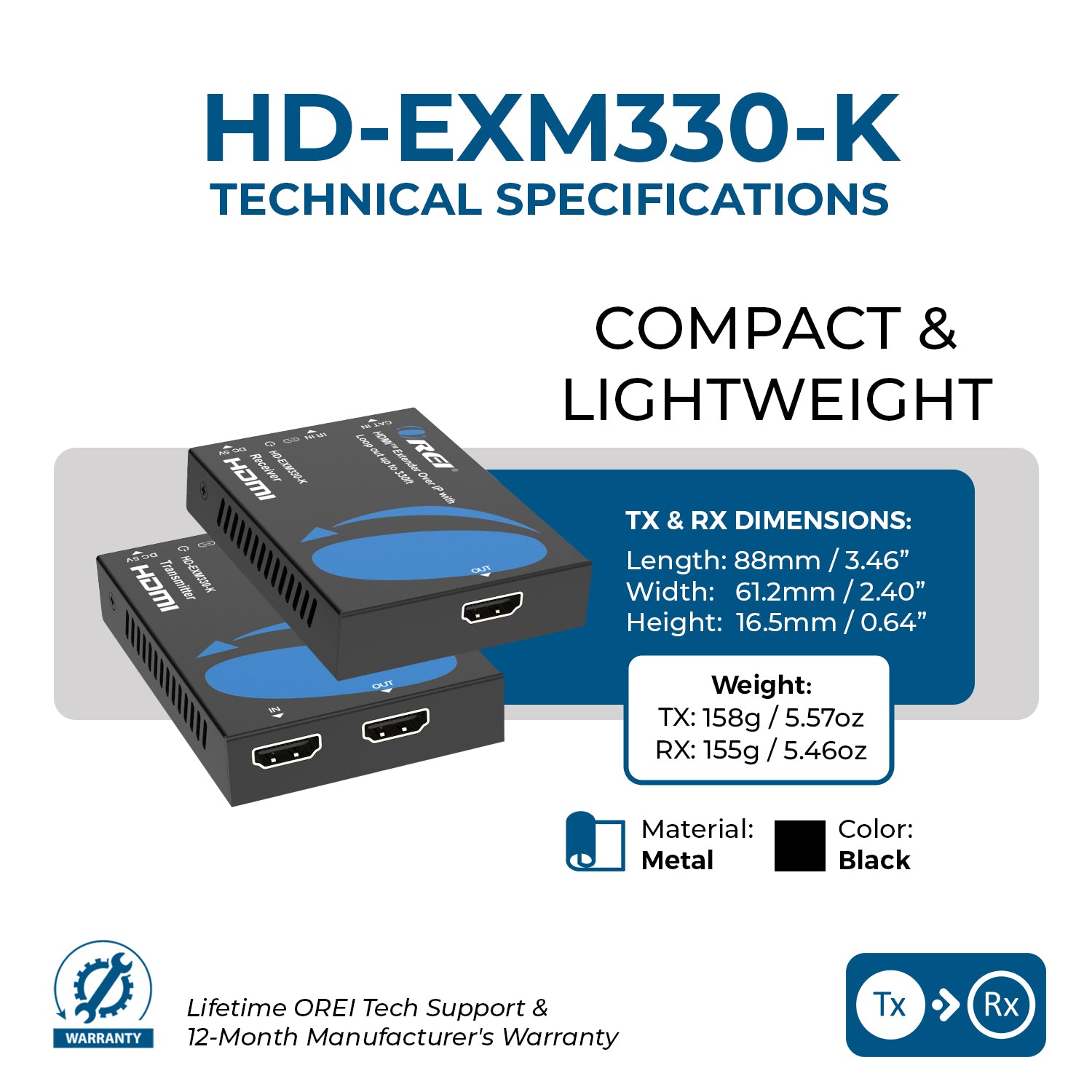

DIMENSIONS & WEIGHT

Height:	16.5 mm
Width:	88 mm
Depth:	61.2 mm
Weight:	Receiver:	150g

PROTECTION

Operation Temperature:	-10°C ~ 50°C / 14°F ~ 122°F
Storage temperature:	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity:	20~90% RH (non-condensing)
ESD Protection:	Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Electrostatic Protection of the whole Machine:	Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)

RJ-45 CONNECTOR Type

WE/SS 8P8C

POWER

Power Consumption (Max):	Receiver:	1.25W
Power Supply:	Input:	AC100 - 240V 50/60Hz
	Output:	DC 5V/1A (US/EU standards, CE/FCC/UL certified)

PHYSICAL PROPERTIES

Color:	Black
Housing:	Metal Enclosure

PACKAGE CONTENTS

1 x HDMI Receiver

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

HD-EXM330-RX User Manual Download

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

You can upgrade the firmware by connecting the PC & this device via RS-232 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

No, this product doesn't upscale/downscale the video resolutions.

You can extend the display devices up to 330 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

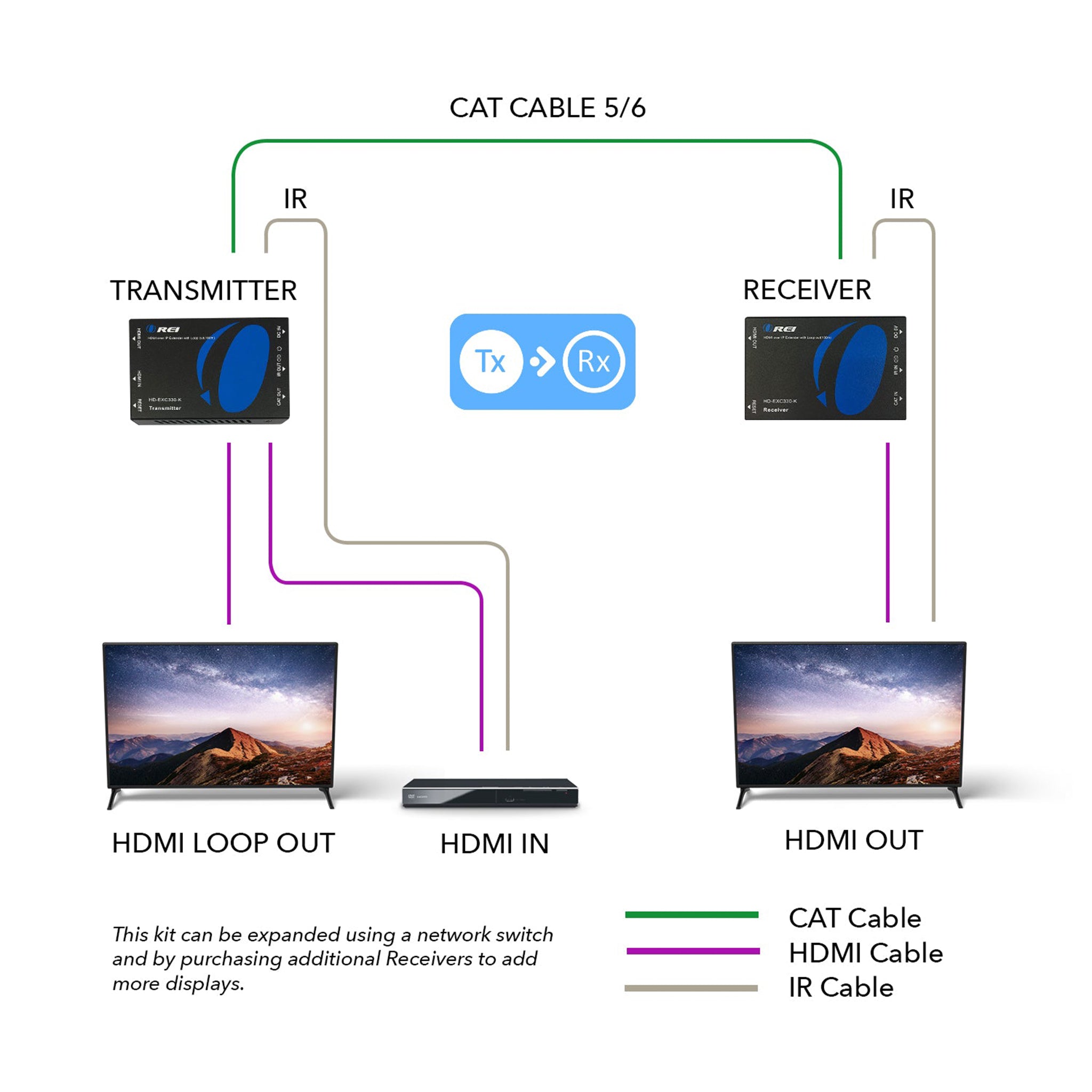

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control

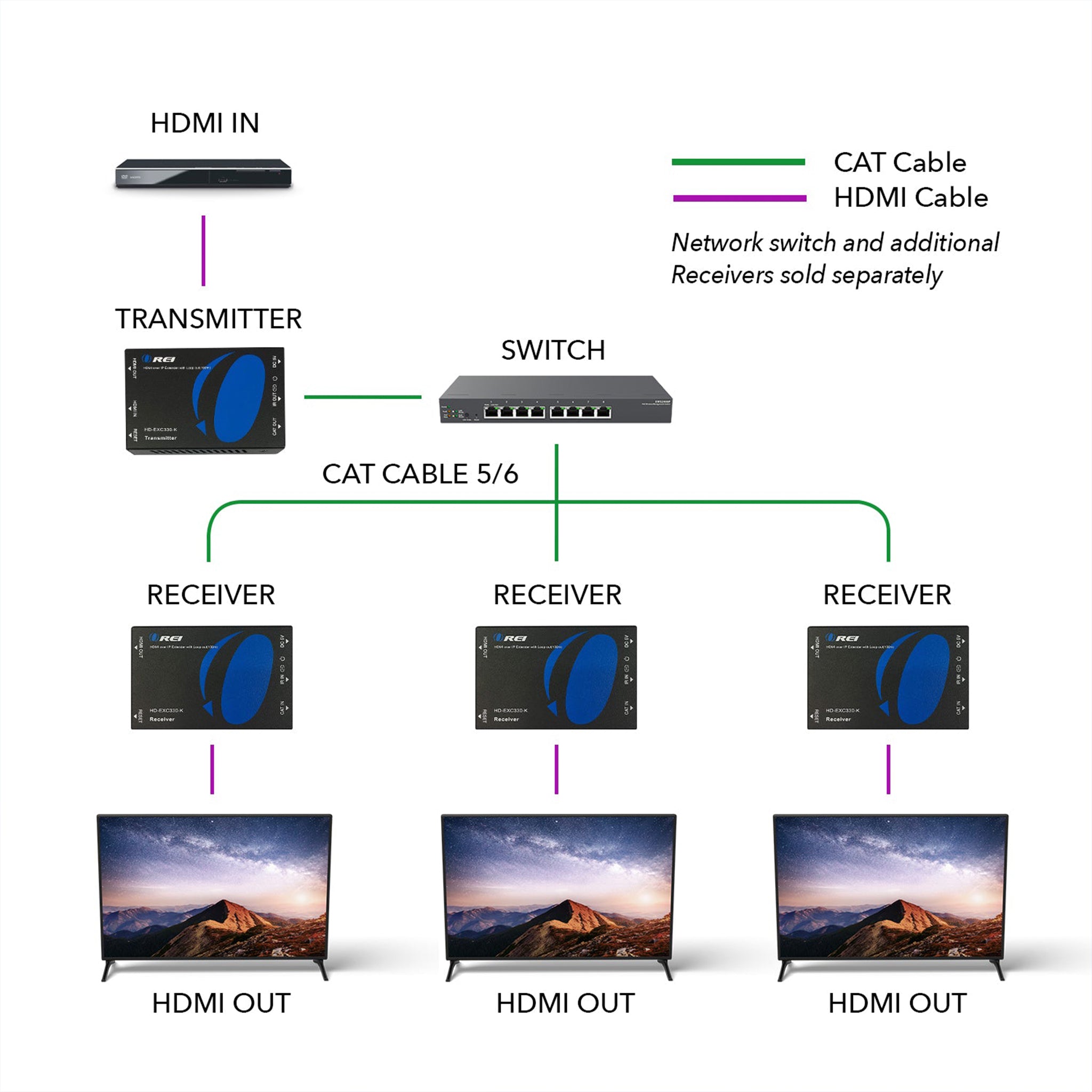

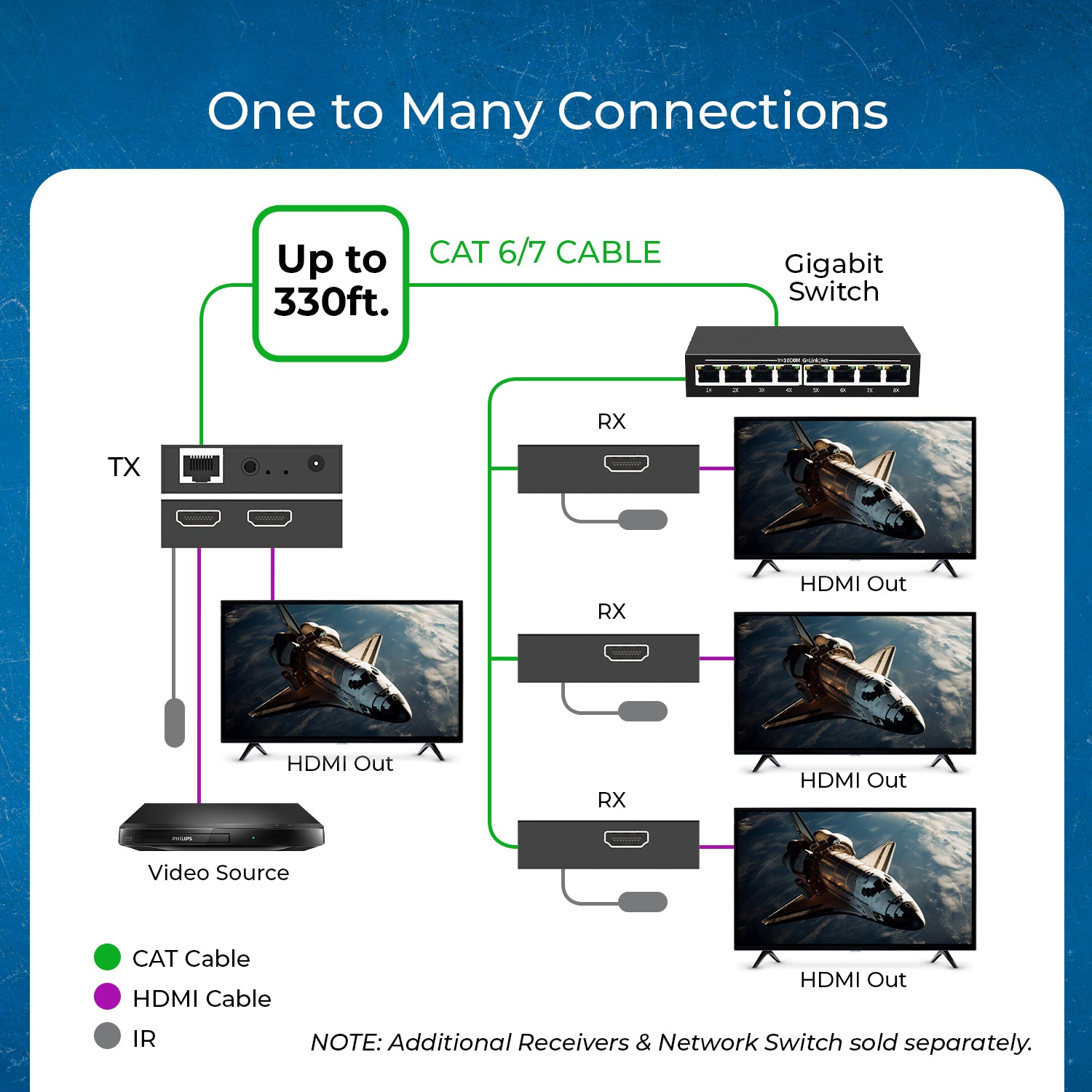

You can connect up to 253 additional receivers with this device using a network switch as a mediator.

Yes, this product supports Over IP function & you will be able to connect additional receivers via a network switch.
