BK-EXB330EAU-K: 8K HDMI & KVM Extender over HDBaseT 3.0 up to 330 feet
Key Features:
HDMI 2.1 & HDCP 2.3 compliant
40Gbps FRL & 18Gbps TMDS video bandwidth
Video resolutions up to 8K@30Hz and 4K@120Hz
HDBaseT 3.0 technology
ARC/eARC Audio Extraction
VRR, ALLM, FVA support
HDR10+, Dolby Vision, and HLG pass-through
USB 2.0 KVM function with speeds up to 350Mbps
HDMI audio formats: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
Advanced EDID management through EDID DIP switch
Bi-directional 24V POC (Power Over Cable) function

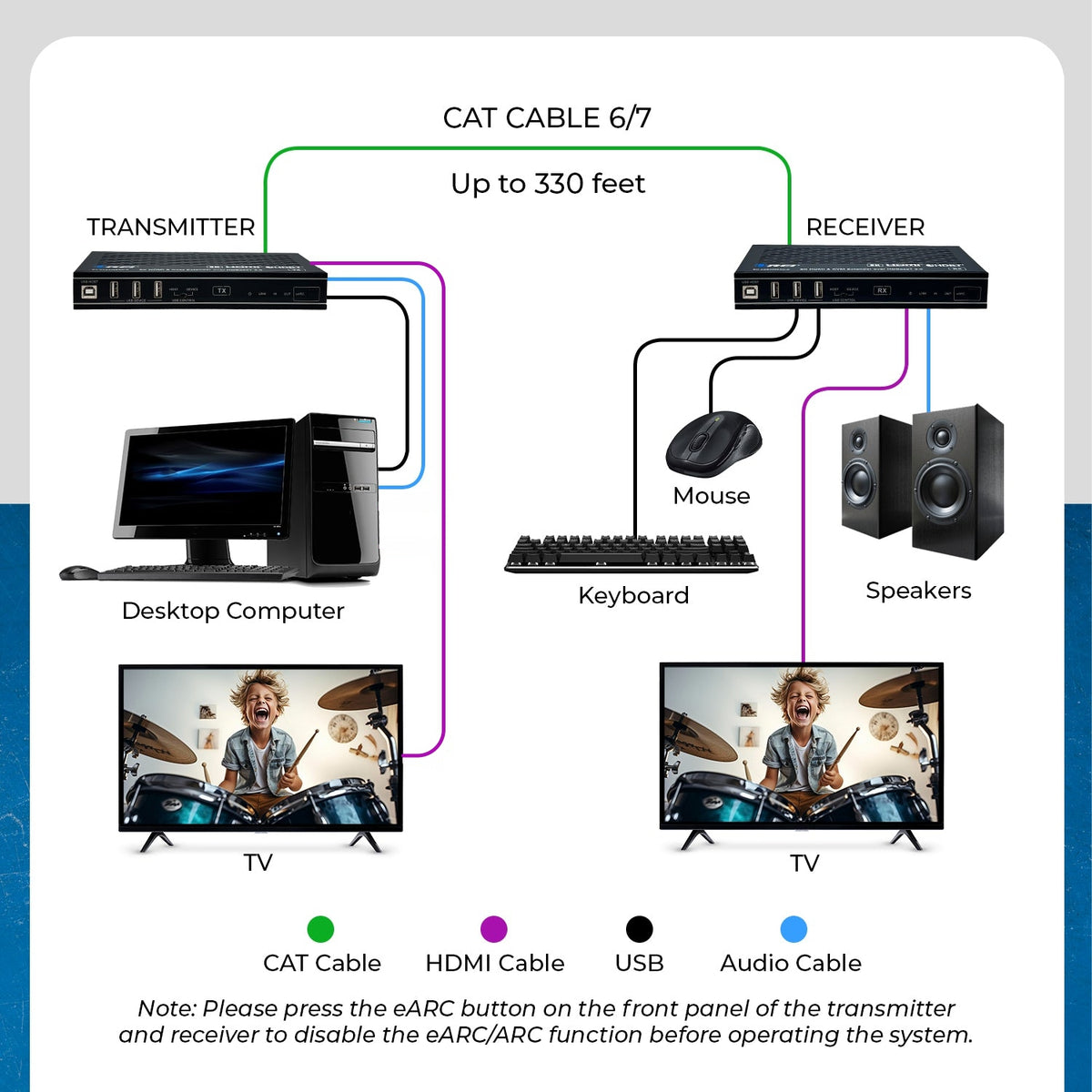

The BK-EXB330EAU-K HDMI extender is a versatile device capable of transmitting uncompressed video, audio, ARC/eARC, RS-232, and USB 2.0 signals up to 295 feet using only a single CAT 6A/7 cable. It supports video resolutions up to 8K@30Hz and 4K@120Hz featuring HDR10+, Dolby Vision, HLG pass-through, and advanced EDID management. With the ARC/eARC function, you can seamlessly connect an eARC-enabled TV with an AVR even if they are far apart. Additionally, it comes with bi-directional IR functionality and 24V Power over cable (PoC) with HDBaseT 3.0 technology, making it a perfect solution for home theater setups.
CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin female]
1 × L/R IN [3.5mm Stereo Mini-jack]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
1 × HDBaseT [RJ45, 8-pin female]
1 × L/R OUT [3.5mm Stereo Mini-jack]
CONTROL:
1 × IR IN [3.5mm Stereo Mini-jack]
1 × IR OUT [3.5mm Stereo Mini-jack]
1 × RS-232 [3pin phoenix connector]
1 × USB HOST [USB Type B]
3 × USB Devices [USB Type A]
1 × ETHERNET [RJ45]
Receiver:
INPUT:
1 × HDMI [Type A, 19-pin female]
1 × HDBaseT [RJ45, 8-pin female]
1 × L/R IN [3.5mm Stereo Mini-jack]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
1 × L/R OUT [3.5mm Stereo Mini-jack]
CONTROL:
1 × IR IN [3.5mm Stereo Mini-jack]
1 × IR OUT [3.5mm Stereo Mini-jack]
1 × RS-232 [3pin phoenix connector]
1 × USB HOST [USB Type B]
3 × USB Devices [USB Type A]
1 × ETHERNET [RJ45]
PACKAGE CONTENTS
1x Transmitter
1x Receiver
1x IR Blaster cable
1x IR Receiver cable
2x RS-232 3-pin Phoenix connector
4x Mounting Brackets
8x Screw
8x Rubber feet
1x Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
