OREI HDBaseT 4K 60Hz HDMI Extender over Cat5e/6 Ethernet LAN cable - Up to 115 Ft - IR, CEC, RS-232, PoC (EX-115UHD-K)

Name: OREI HDBaseT 4K 60Hz HDMI Extender over Cat5e/6 Ethernet LAN cable - Up to 115 Ft - IR, CEC, RS-232, PoC (EX-115UHD-K)
Brand: OREI
SKU: EX-115UHD-K
Price: 119.99 USD
Availability: InStock

$119.99 $139.99

Shipping calculated at checkout.

SKU: EX-115UHD-K

4K HDMI extender over ethernet up to 115 feet
Video resolutions up to 4K@60Hz 4:4:4
Audio extraction, Power over cable, IR pass-through, RS-232 & CEC

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Quantity

Reseller & Installer Discounts

Add to Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

OREI 4K Extender over Ethernet up to 115 feet - With Audio Extraction, Power over Cable, IR Functionality, RS-232 & CEC Pass-through (EX-115UHD-K)

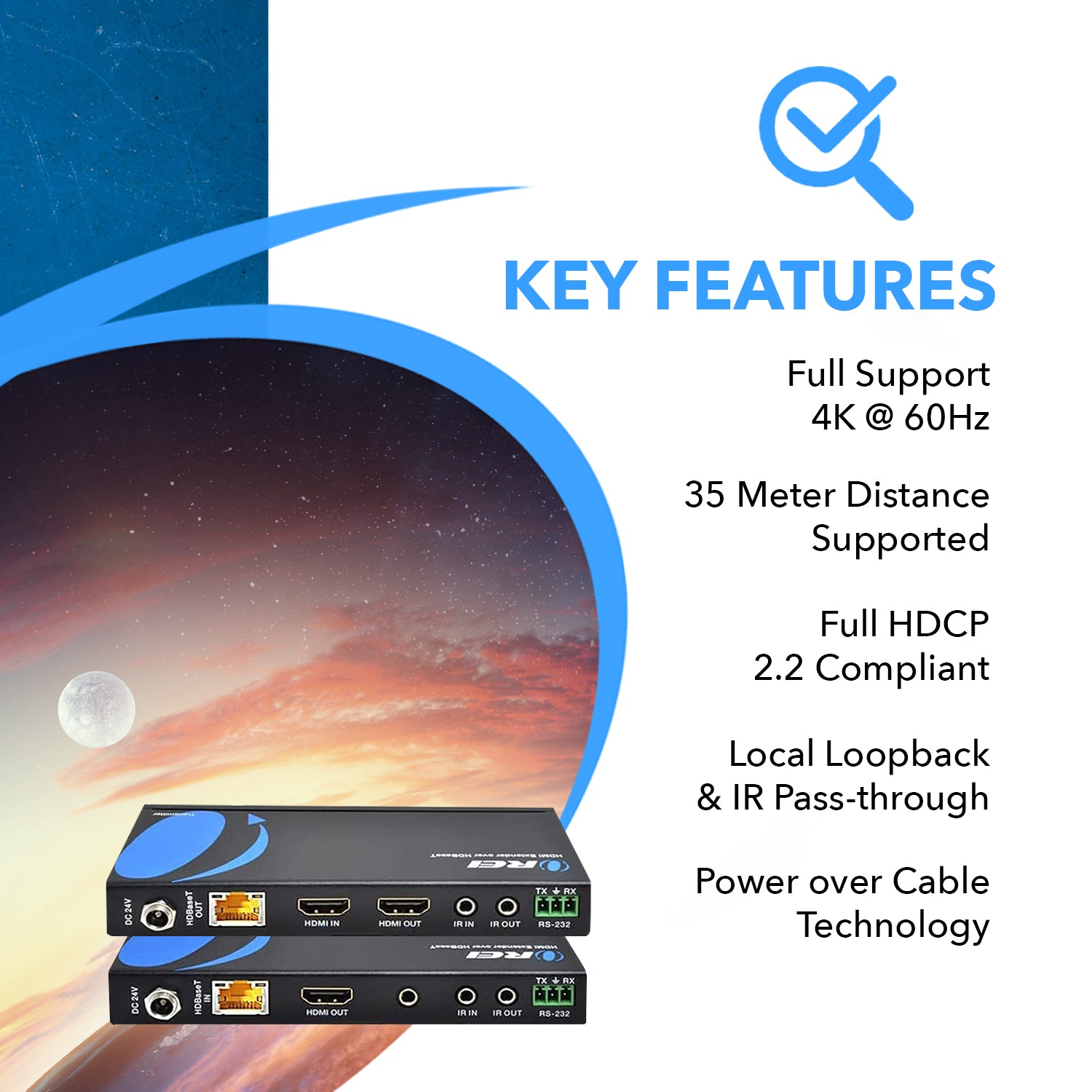

Key Features:

HDMI 2.0b & HDCP 2.2 compliant
18Gbps video bandwidth
HDMI extension up to 115ft / 40 meters at 4K@60Hz; 230ft / 70 meters at 1080P@60Hz over a CAT 6 cable
HDMI loop output port on the transmitter to connect a display at source
HDR, HDR10+, Dolby Vision and HLG function supported
Audio extraction through the L/R port on the receiver
With bi-directional IR, RS-232 and CEC pass-through
Bi-directional Power over Cable functionality
Compact design for easy and flexible installation
Perfect for personal and commercial setups

The UHD-EX115-K is an HDMI extender that transmits HDMI signals up to 115 feet / 40 meters at 4K@60Hz and 230 feet / 70 meters at 1080P@60Hz. It is HDMI 2.0b and HDCP 2.2 compliant, with an 18 Gbps video bandwidth and support for resolutions up to 4K@60Hz 4:4:4. The transmitter unit features an HDMI loop output port for a source display, and the receiver unit offers audio extraction via the L/R port. It supports HDR, HDR10+, Dolby Vision, and HLG passthrough. The device includes bi-directional IR functionality for controlling the source from the receiver’s location and vice versa. It also supports RS-232 and CEC passthrough for enhanced control. With bi-directional power over cable, only one power adapter is required, connected to either of the units. Compact design and easy plug-and-play installation. Perfect for both commercial and personal setups.

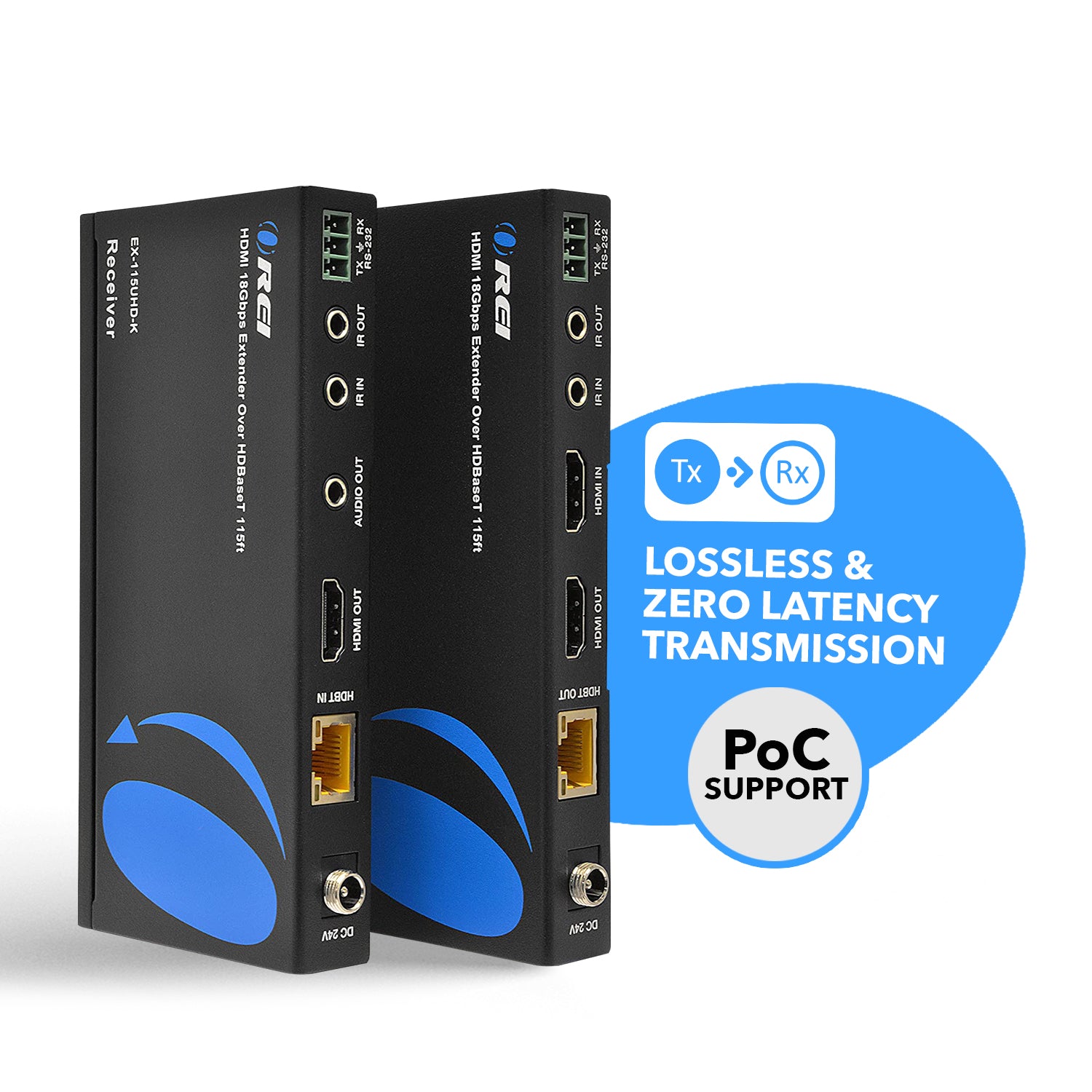

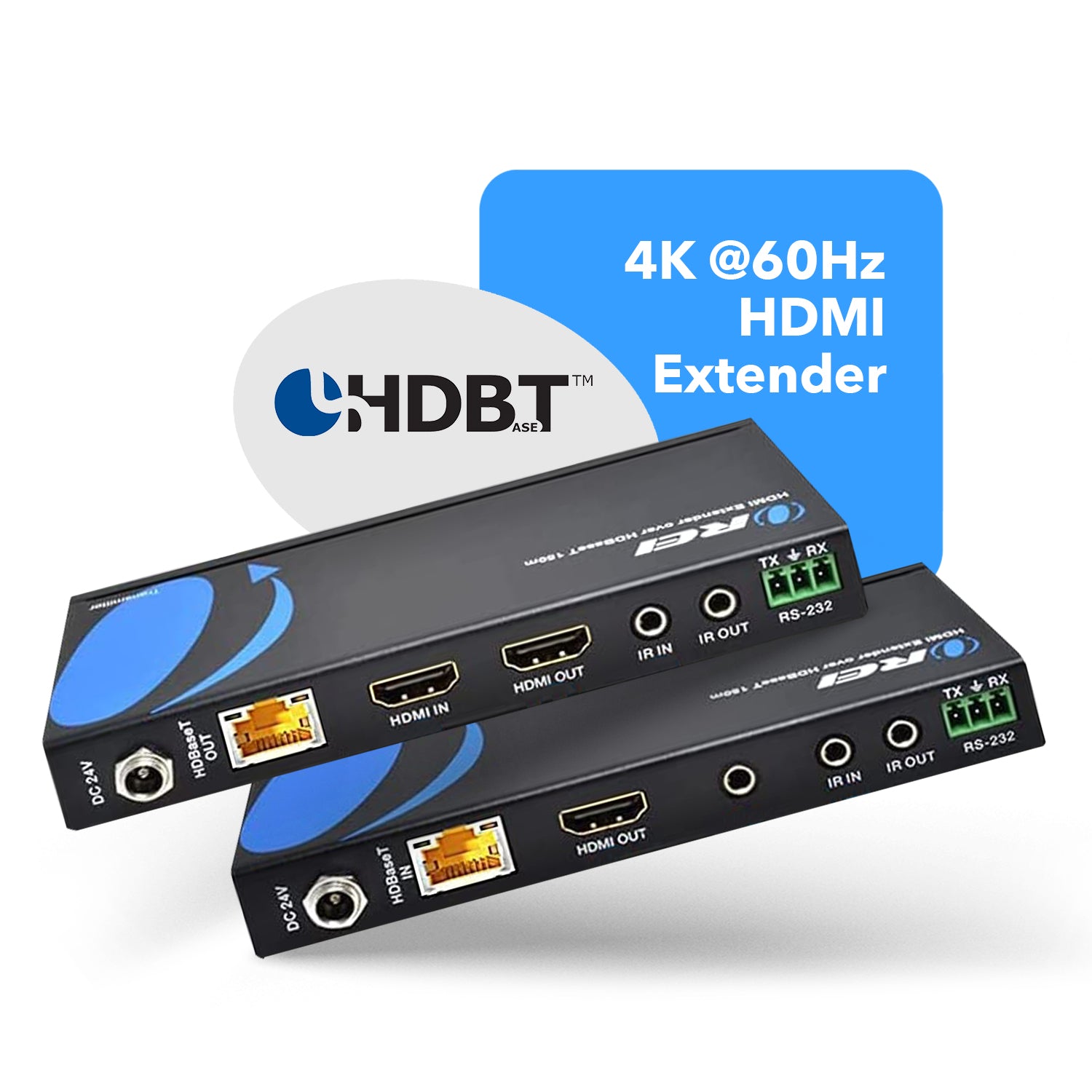

CONNECTIVITY

Transmitter:	INPUT:	1 × HDMI [Type A, 19-pin female]
	OUTPUT:	1 × HDMI [Type A, 19-pin female]
		1 × HDBaseT [RJ45, 8-pin female]
	CONTROL:	1 × I/R IN [3.5mm Stereo Mini-jack]
		1 × I/R OUT [3.5mm Stereo Mini-jack]
		1 × RS-232 [3-pin Phoenix connector]
		1 × SERVICE [Micro USB, Update port]
Receiver:	INPUT:	1 × HDBaseT [RJ45, 8-pin female]
	OUTPUT:	1 × HDMI [Type A, 19-pin female]
		1 × L/R [3.5mm Stereo Mini-jack]
	CONTROL:	1 × I/R IN [3.5mm Stereo Mini-jack]
		1 × I/R OUT [3.5mm Stereo Mini-jack]
		1 × RS-232 [3-pin Phoenix connector]
		1 × SERVICE [Micro USB, Update port]

PACKAGE CONTENTS

1x Transmitter

1x Receiver

1x IR Blaster cable

1x IR Receiver cable

4x Mounting ears

2x 3-pin phoenix connector

1x Power Adapter

User Manual

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@60Hz:	115 Feet
1080P@60Hz:	230 Feet

VIDEO OUTPUT

Video Bandwidth:	18Gbps
Video Resolutions:	Up to 4K@60Hz 4:4:4

ADDITIONAL FEATURES

CEC:	Yes
ARC:	No
USB KVM:	No
PoC/PoE:	Yes
IR Control:	Yes
Downmix:	No
Downscale:	Yes
Over IP:	No
HDBaseT:	Yes
RS-232:	Yes

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	1

AUDIO SUPPORT

HDMI Audio Formats:	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X

COMPLIANCES

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2

POWER

Power Consumption:	9.36W (Max)
Power Supply:	Input: AC 100-240V 50/60Hz
	Output: DC 24V/1A

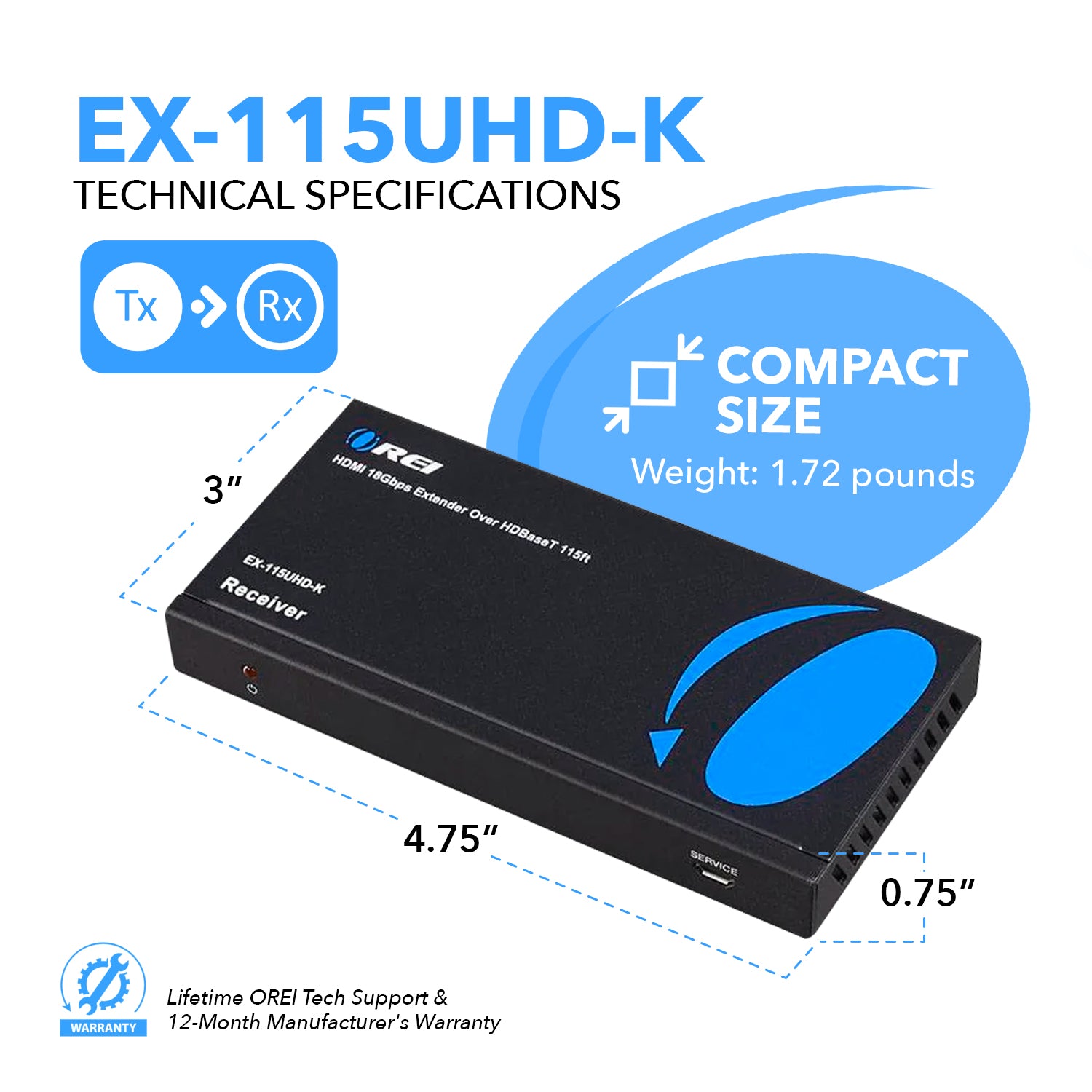

DIMENSIONS & WEIGHT

Transmitter:	Length:	140mm / 5.51in
	Width:	65mm / 2.56in
	Height:	18mm / 0.71in
	Weight:	160g / 5.64oz
Receiver:	Length:	140mm / 5.51in
	Width:	65mm / 2.56in
	Height:	18mm / 0.71in
	Weight:	155g / 5.47oz

PROPERTIES

Color:	Black
Housing:	Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

EX-115UHD-K User Manual Download

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

No, this product doesn't upscale/downscale the video resolutions.

You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

You can upgrade the firmware by connecting the PC & this device via RS-232 cable.

Please note that this product only supports the CEC function between HDMI input & HDMI output 1.

No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.

HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.

In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.

We recommend you using a shielded CAT6 cables for optimum performance.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

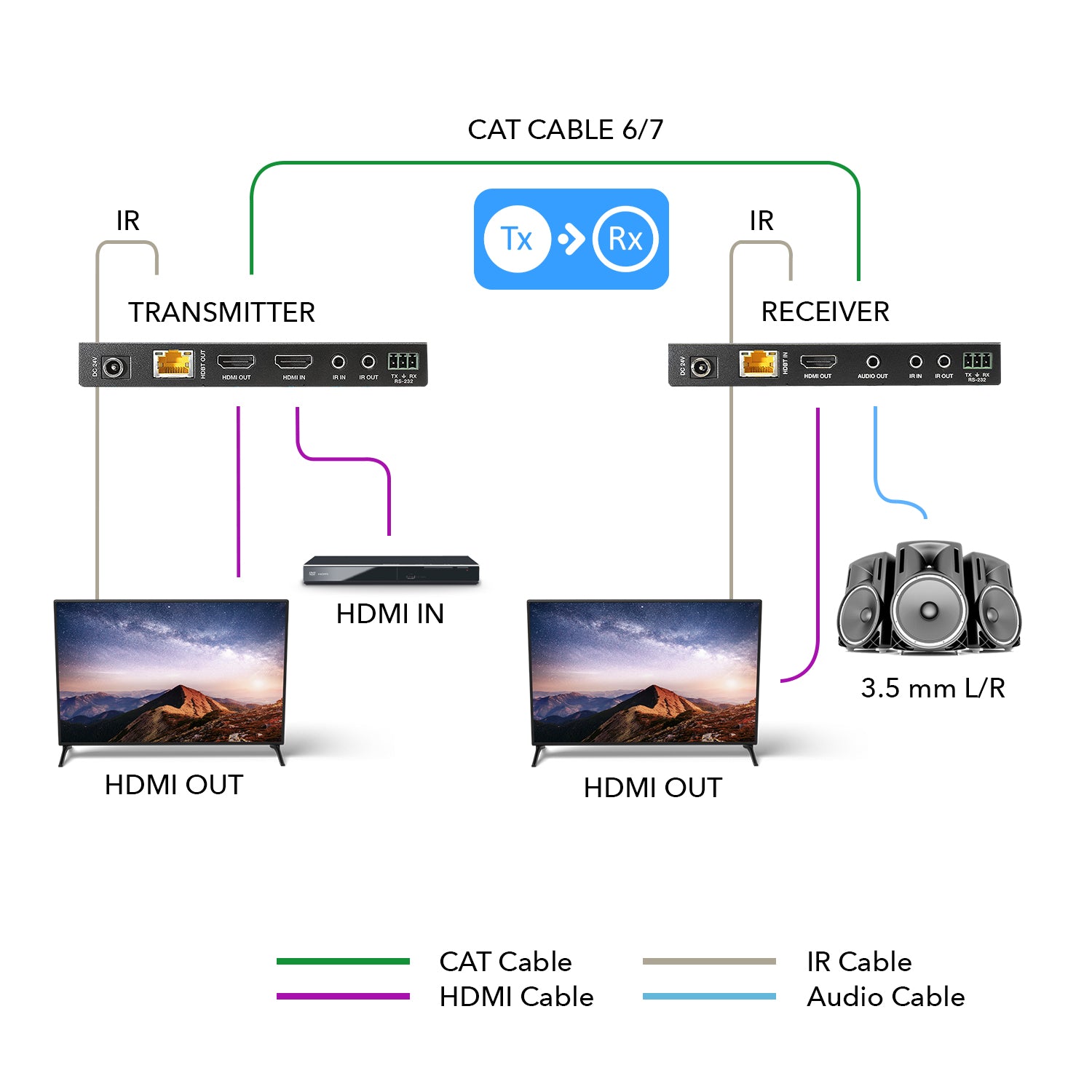

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
