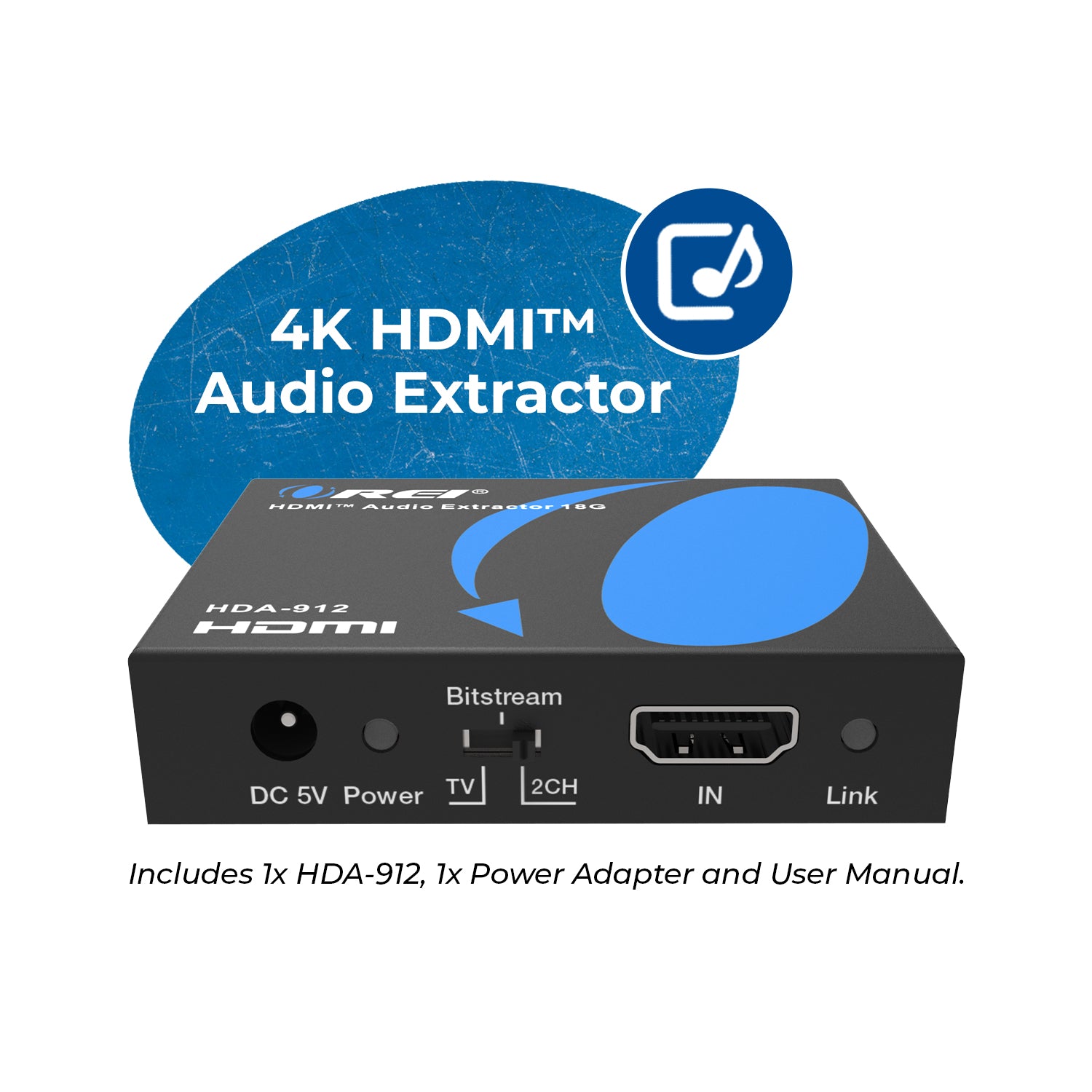

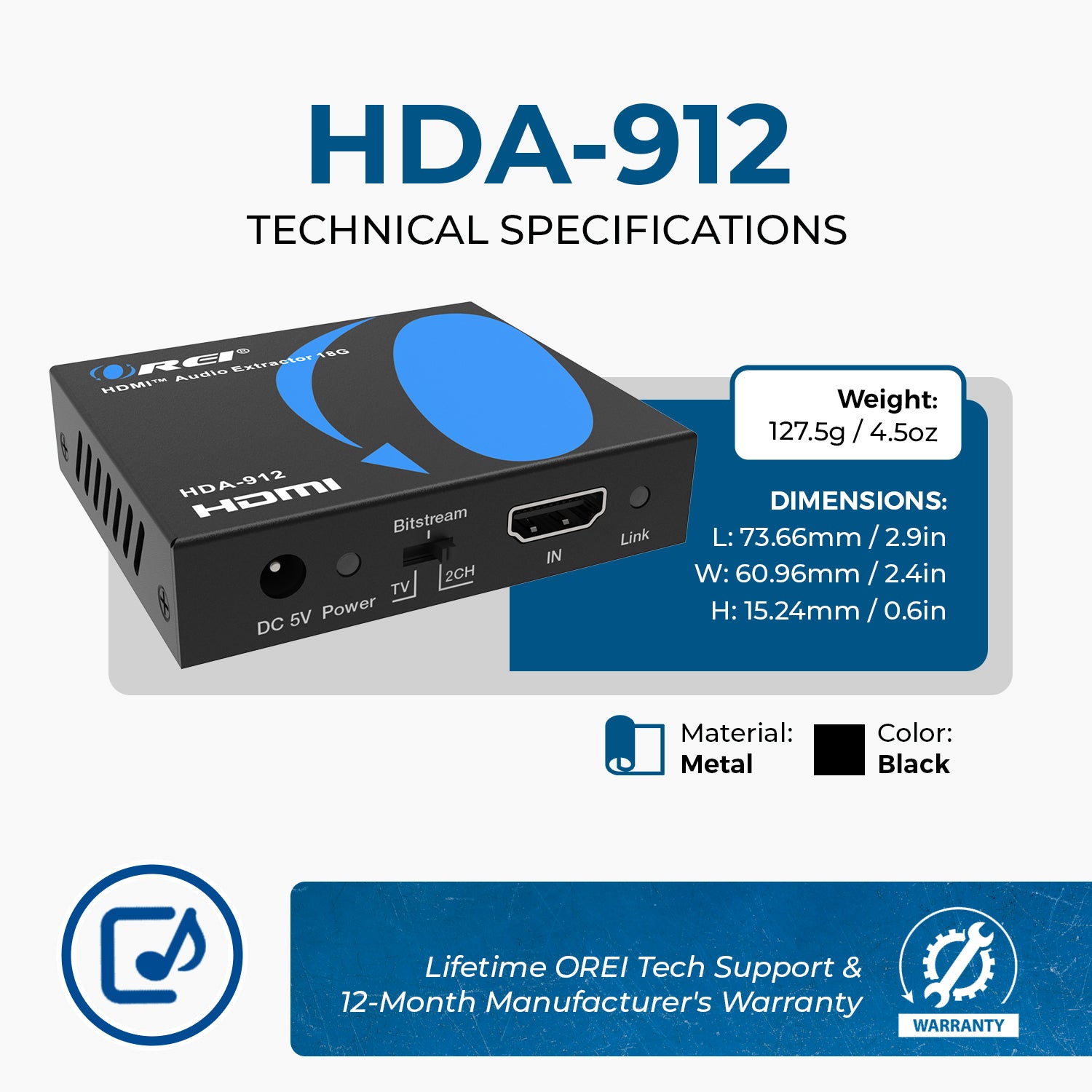

OREI HDA-912: HDMI Audio Extractor Converter

• HDMI 2.0b & HDCP 2.2 Compliant.
• 18Gbps video Bandwidth.
• Video resolution up to 4K@60hz 4:4:4 12bit and 2k@60Hz.
• 10bit HDR pass-through for enhanced color quality

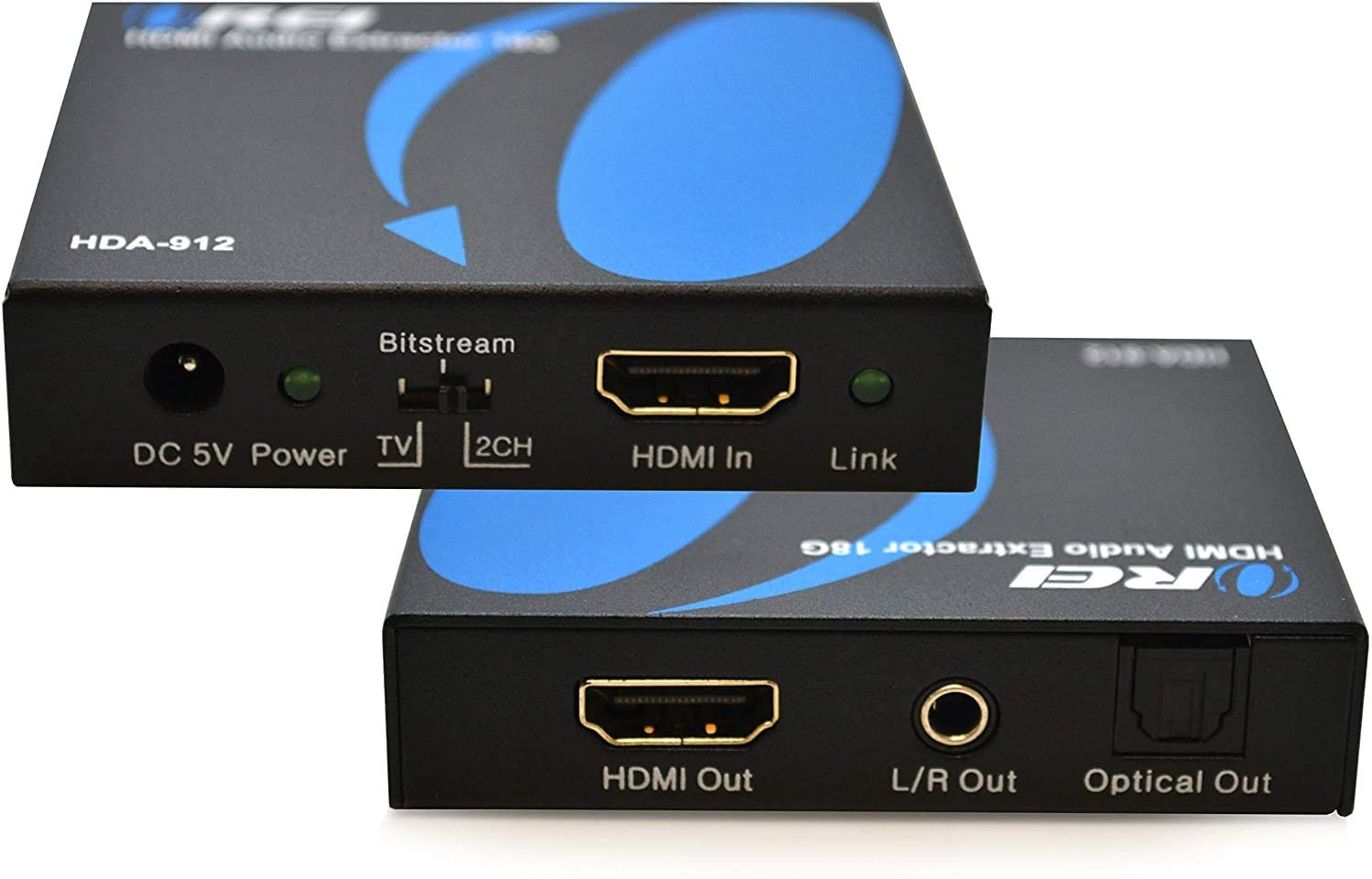

• Digital and Analog audio output through Optical and Analog ports.
• High bit rate HDMI audio pass-through
• Audio sampling rates up to 192kHz

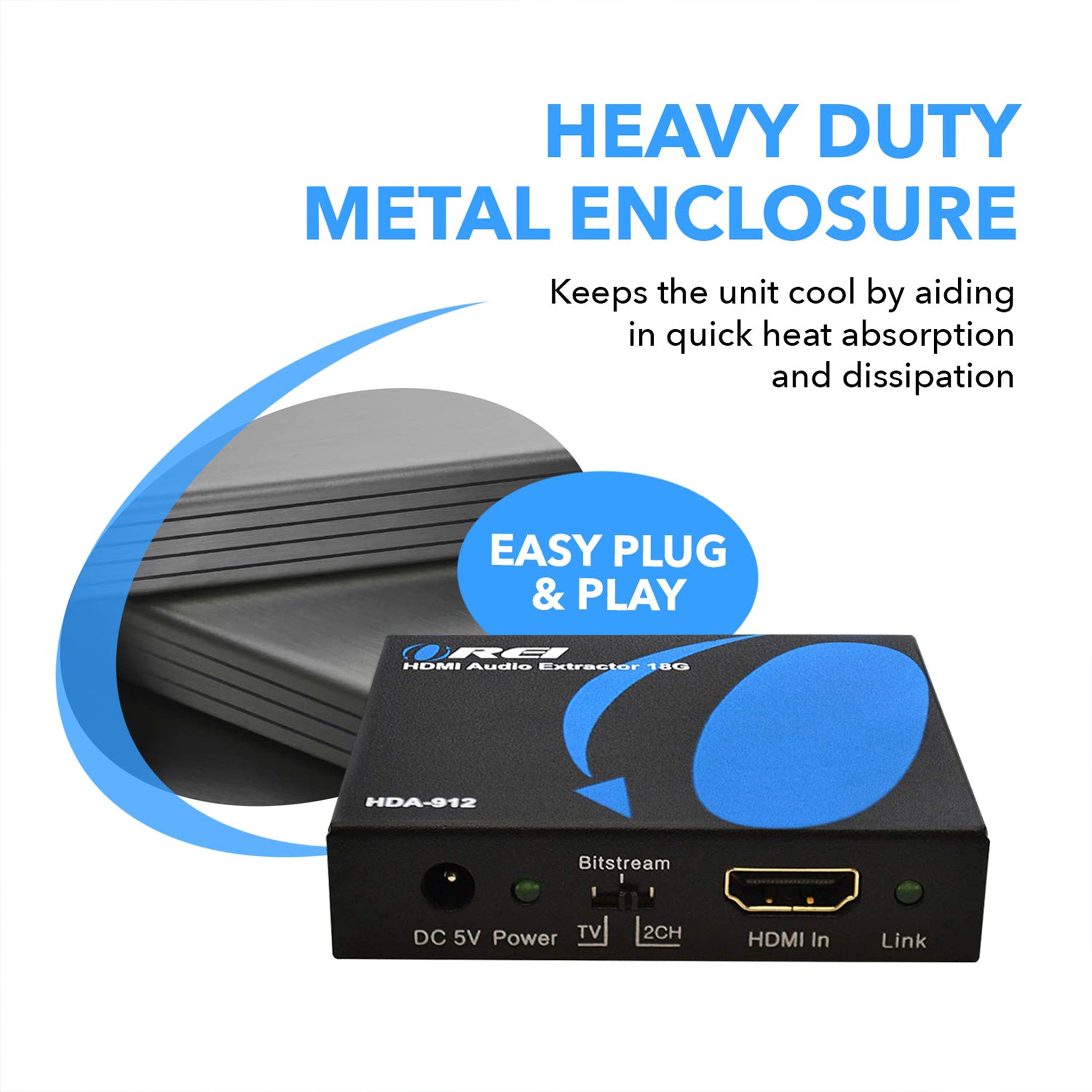

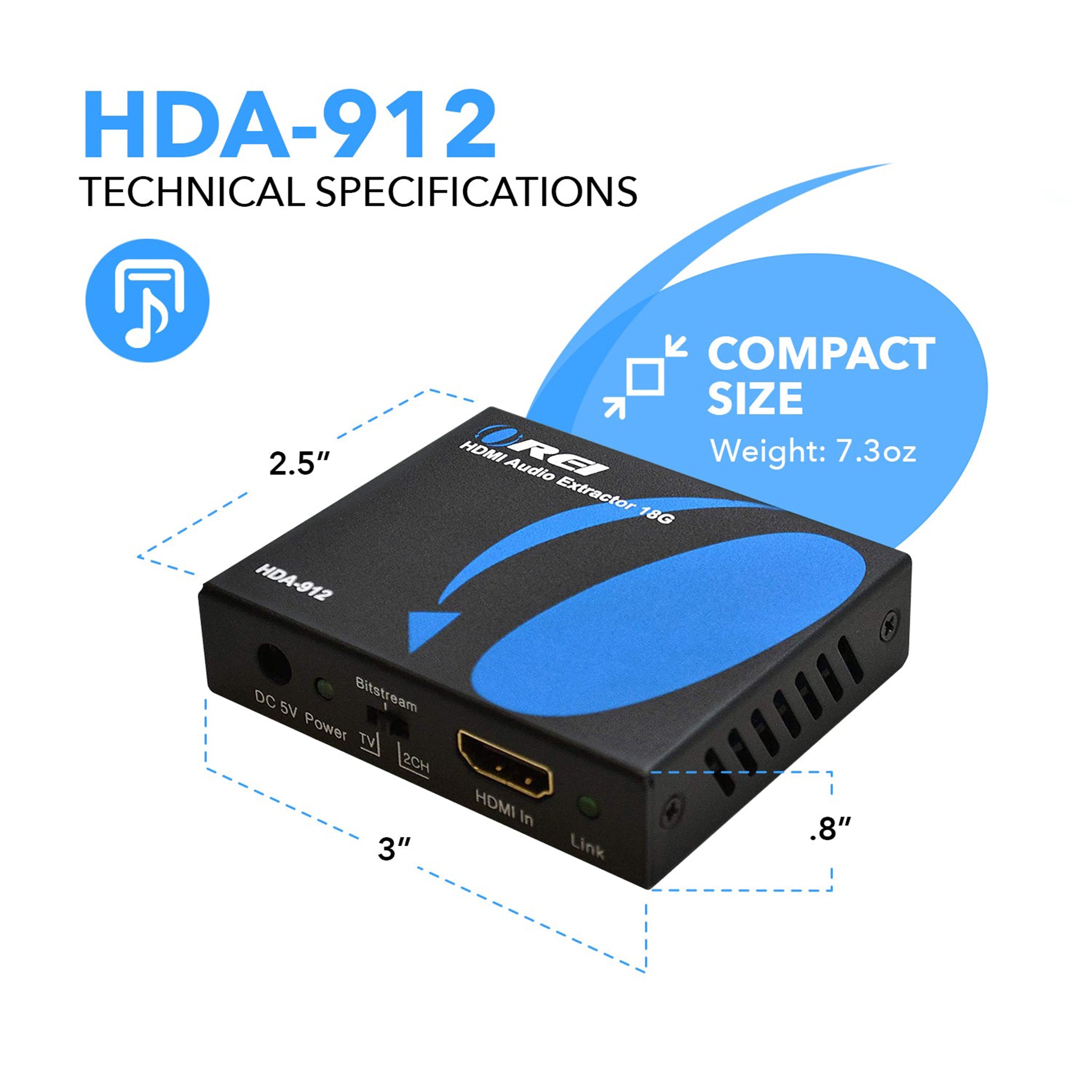

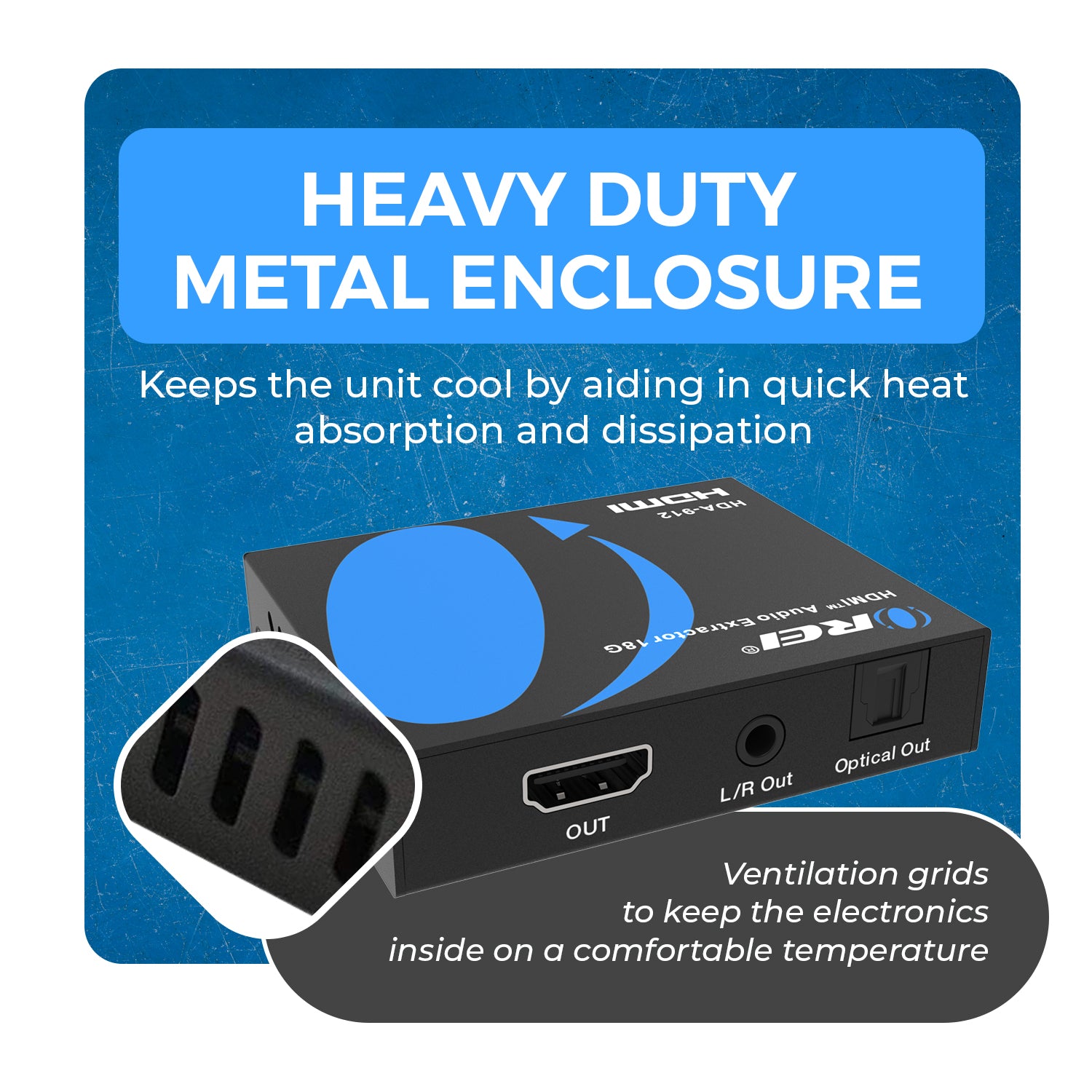

• Compact and robust design

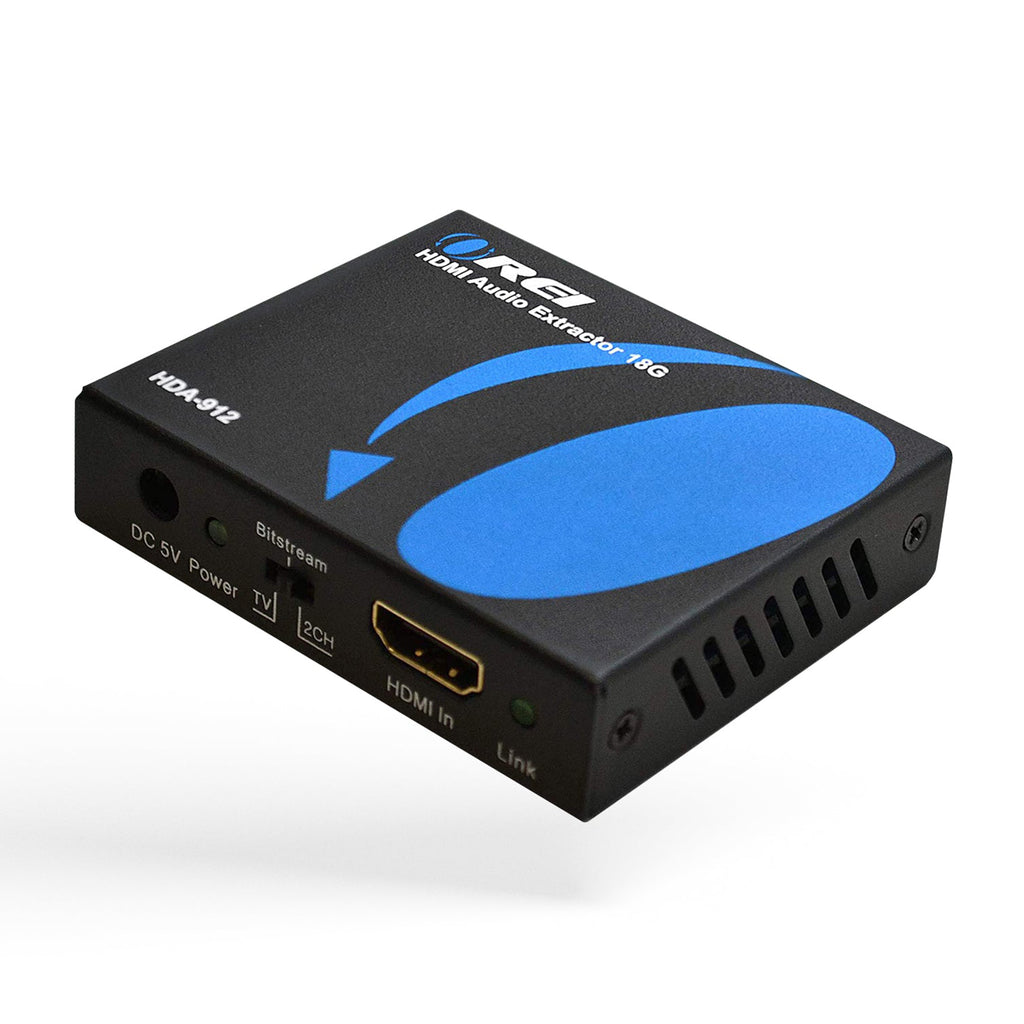

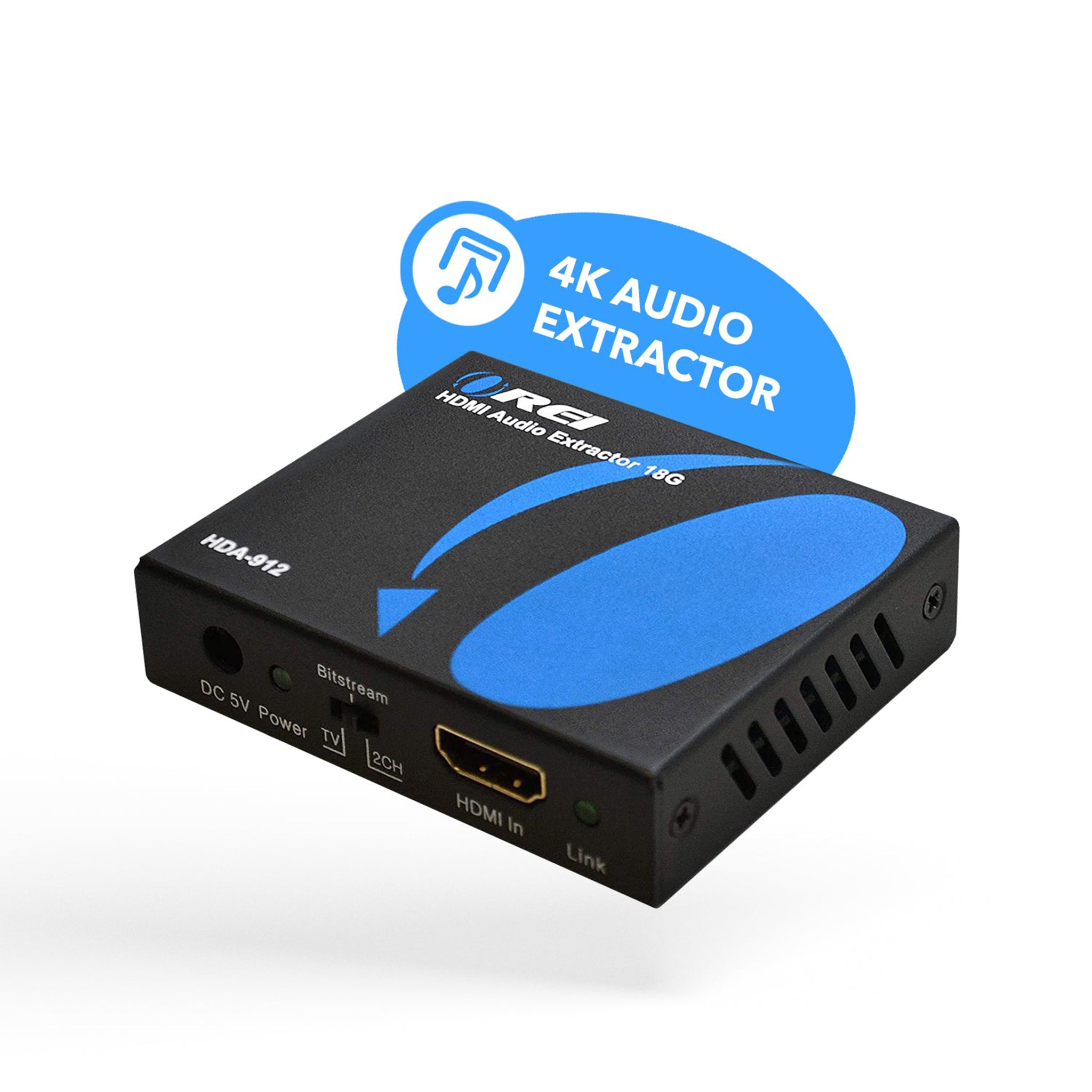

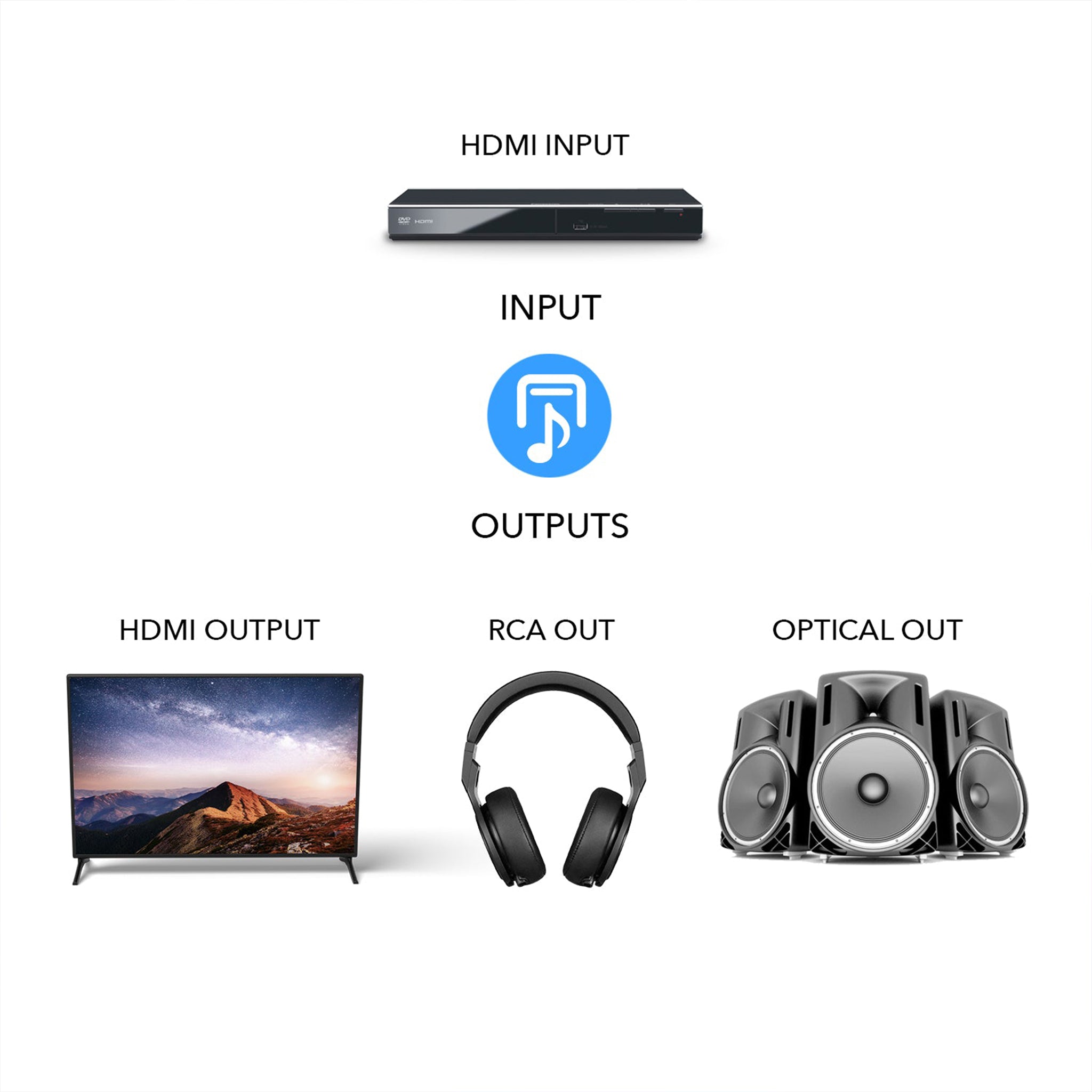

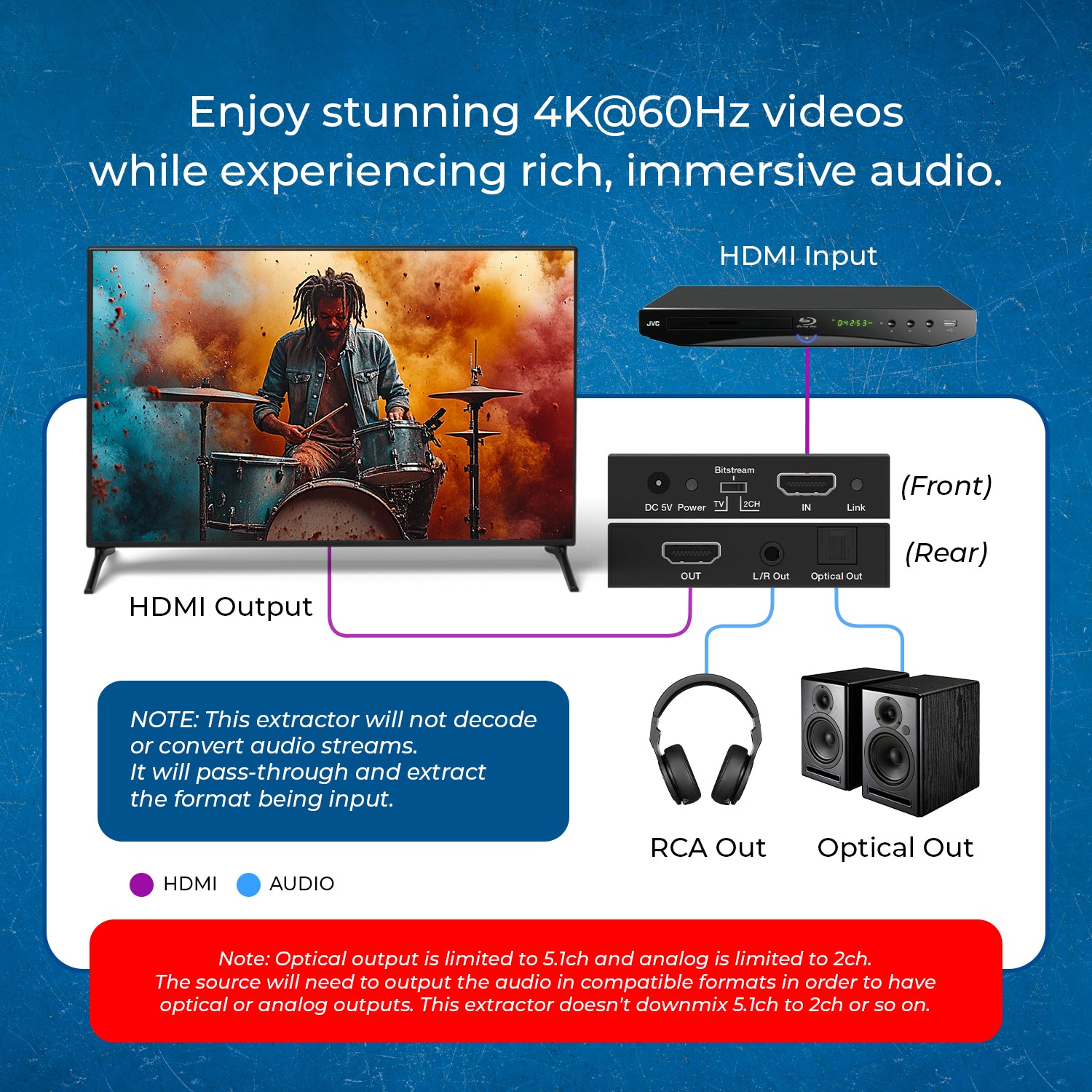

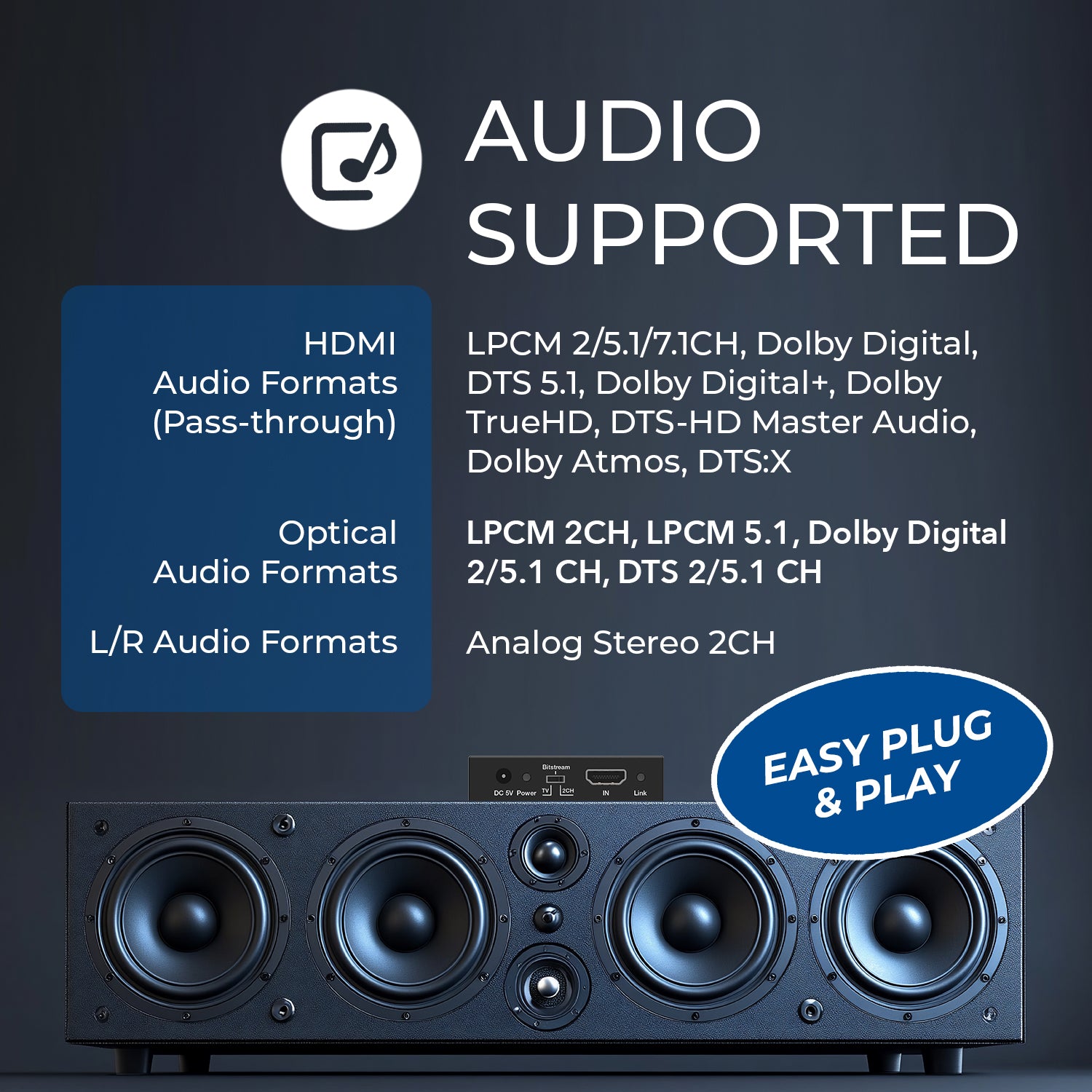

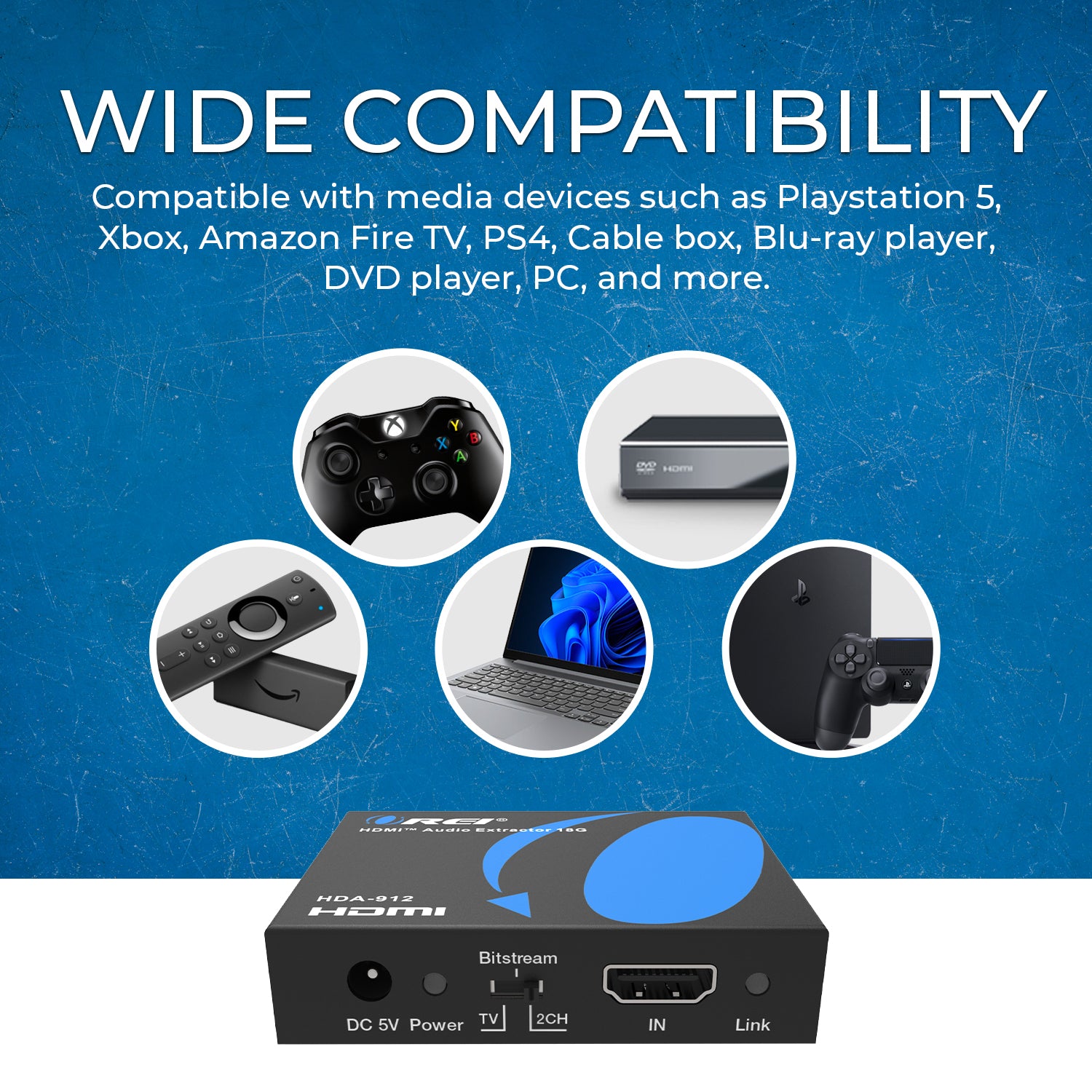

The HDA-912 is an HDMI audio extractor that extracts audio from any HDMI-compliant source, such as a media box or set-top box and provides digital and analog output via optical and L/R ports. This audio extractor supports pass-through for video resolutions up to 4K@60Hz and 2k@60Hz. The optical port supports LPCM 2CH, Dolby Digital 2/5.1CH, and DTS 2/5.1CH audio formats, while the L/R port supports analog stereo 2CH audio format. It features 10-bit HDR pass-through and audio sampling rates up to 192kHz. Compact design, perfect for both commercial and personal setups.

Surge protection device recommended
This product contains sensitive electricals components that may be damaged by
electrical spikes, surges, electric shocks, lightning strikes, etc. Use of surge protection
systems is highly recommended to protect and extend the life of your equipment.

HDA-912 User Manual Download
