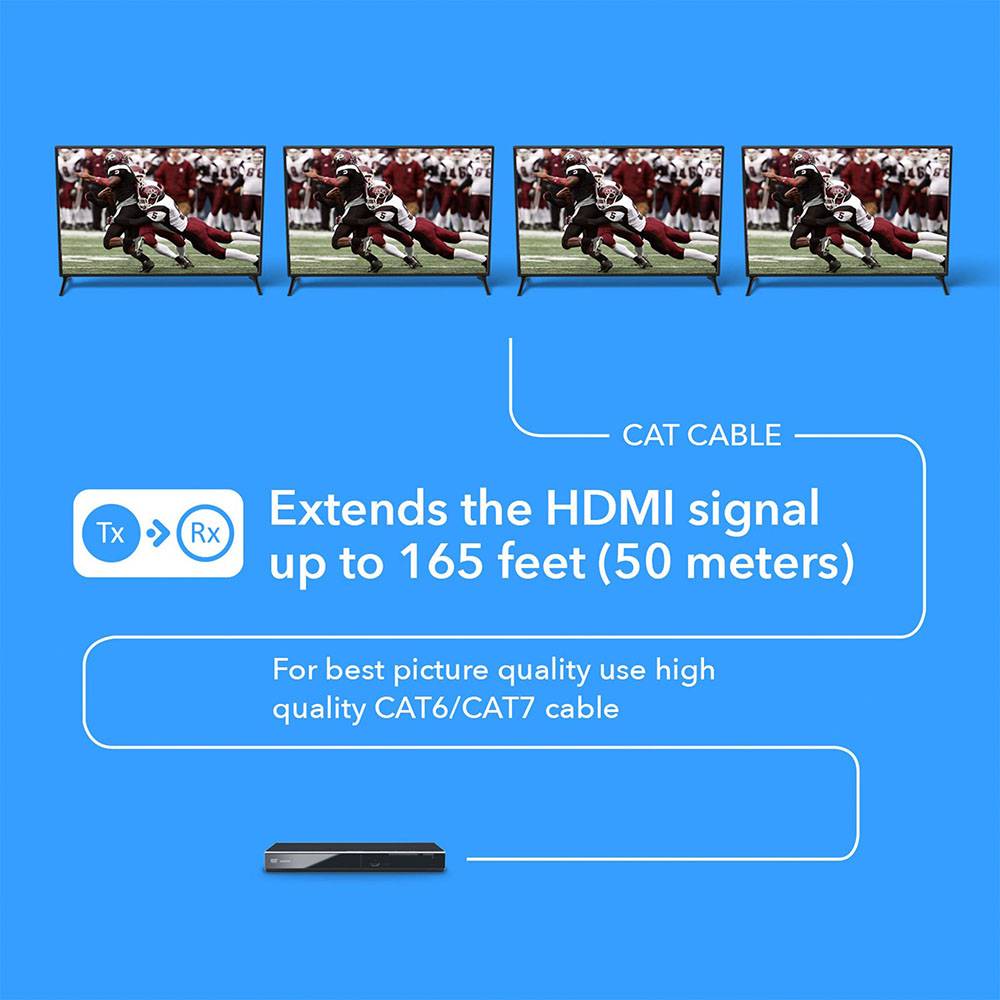

Extend the signal up to 131 feet at 4K@30Hz, or 230 feet at 1080P@60Hz via a single CAT6 cable
The transmitter comes with 1 HDMI IN, 1 HDMI OUT, 1 IR out & 4 CAT OUT ports
The receiver comes with 1 CAT IN, 1 IR IN & 1 HDMI OUT
Advanced EDID management
Support 12V POC function (only from transmitter to receiver)
Compact design for easy and flexible installation
The HD14-EX165-K efficiently splits one HDMI source signal to up to 4 display devices. Compliant with HDMI 1.4 and HDCP 1.4 standards it supports video resolutions up to 4K2K@30Hz 4:4:4. The extender unit features 1 HDMI input, 1 HDMI loop output, 1 IR OUT port, and 4 CAT outputs, while the receiver unit includes 1 CAT input, 1 IR IN port, and 1 HDMI output. The product supports one-way POC functionality. HDMI signal extension up to 131 feet at 4K@30Hz or 230 feet at 1080P@60Hz using a single CAT6 cable. Additionally, it facilitates one-way IR control signal pass-through and advanced EDID management. Perfect for a range of applications, from home entertainment setups to professional AV environments.
CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin female]
1 x DC 12V/2.5A IN [Power Input]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
4 x CAT OUT [RJ45, 8-pin female]
CONTROL:
1 × IR OUT [3.5mm Stereo Mini-jack]
1 x EDID DIP switch [4-pin]
1 x UPDATE [Micro USB]
Receiver:
INPUT:
1 x IR IN [3.5mm Stereo Mini-jack]
1 x CAT IN [RJ45, 8-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
PACKAGE CONTENTS

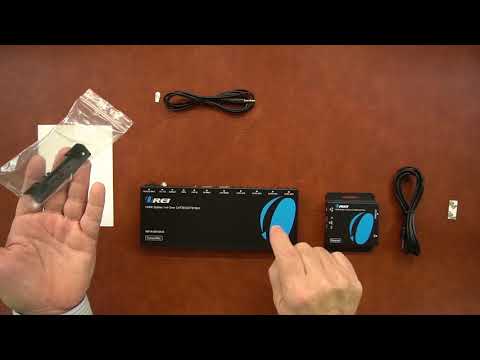

1x Transmitter
4x Receivers
1x IR Blaster cable
4x IR Receiver cable
2x Mounting Ear
8x Machine Screw (KM3*4)
1x Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@30HZ:
130 Feet
1080P@60Hz:
230 Feet
VIDEO OUTPUT
Video Bandwidth:
10.2Gbps
Video Resolutions:
Up to 4K@30Hz 4:4:4
ADDITIONAL FEATURES
CEC:
No
ARC:
No
USB KVM:
No
PoC/PoE:
Yes
IR Control:
Yes
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
No
RS-232:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
Yes
Number of Loop out ports:
1
AUDIO SUPPORT
HDMI Audio Formats:
LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
HD14-EX165-K User Manual Download
