1 Input 4 Output HDMI Splitter with EDID management (HD-104)

Name: 1 Input 4 Output HDMI Splitter with EDID management (HD-104)
Brand: OREI
SKU: HD-104
Price: 19.99 USD
Availability: InStock

$19.99 $29.99

Shipping calculated at checkout.

SKU: HD-104

Mirror content to 4 displays
Resolutions up to 4K@30Hz
EDID management

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Quantity

Reseller & Installer Discounts

1 Input 4 Output HDMI Splitter with EDID management (HD-104) is backordered and will ship as soon as it is back in stock.

Add to Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

OREI HD -104: 1 Input 4 Output HDMI Splitter with EDID management

Key Features:

HDMI 1.4 and HDCP 1.4 compliant
Video resolution up to 4K@30Hz
2.97Gbps video bandwidth
Audio formats - LPCM 7.1, Dolby TrueHD, DTS-HD, and DSD
3D video support at 1080p@60Hz
EDID management
Small size and plug-and-play setup

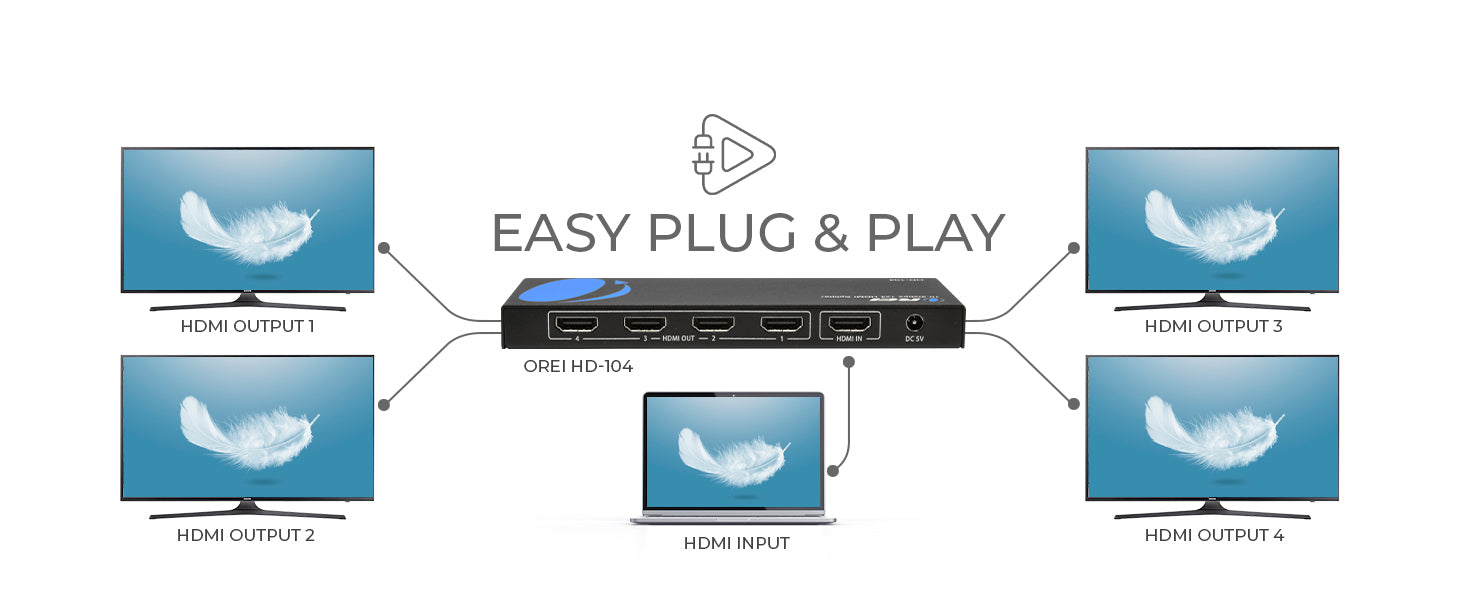

The OREI HDS-104 HDMI splitter is a reliable device for splitting an audio/video signal to 4 outputs. It supports video resolutions up to 4K@30Hz while being HDMI 1.4 and HDCP 1.4 compliant. It also supports 2.97Gbps video bandwidth while also supporting audio formats such as DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD. It features dip switches for EDID management. The device is perfect for a commercial or residential setup requiring the duplication of content onto 4 screens.

CONNECTIVITY

INPUT:	1 × HDMI [Type A, 19-pin female]
OUTPUT:	4 × HDMI [Type A, 19-pin female]
CONTROL:	1 × SERVICE port [5-pin, Mini USB-B]

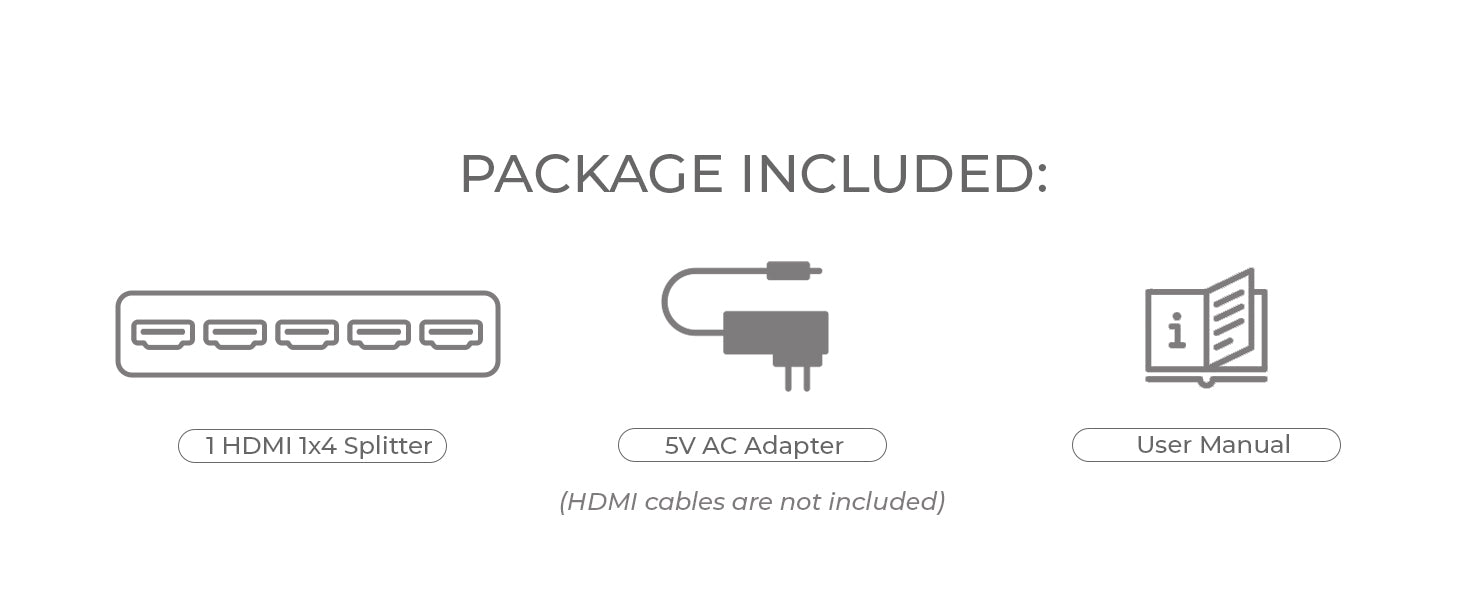

PACKAGE CONTENTS

1x HD-104 HDMI Splitter

1x Power Adapter

User Manual

SUPPORTED HDMI CABLES

HDMI 2.0/2.1

We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance

EXTENDING DISTANCE

4K@30Hz:

30 Feet

VIDEO OUTPUT

Video Bandwidth:	10.2Gbps
Video Resolutions:	Up to 4K@30Hz 4:4:4

ADDITIONAL FEATURES

CEC:	No
ARC:	No
USB KVM:	No
PoC/PoE:	No
IR Control:	No
Downmix:	No
Downscale:	No
Over IP:	No
HDBaseT:	No
RS-232:	No

LOOP-OUT/LOCAL PORT

Has loop out port:	No
Number of Loop out ports:	0

AUDIO SUPPORT

HDMI Audio Formats:

LPCM 7.1, Dolby-true-HD, DTS-HD, DTS, Dolby-AC3, DSD

COMPLIANCES

HDMI Compliance	HDMI 1.4a
HDCP Compliance	HDCP 1.4

POWER

Power Consumption:	5W (Max)
Power Supply:	Input: AC 100-240V 50/60Hz
	Output: DC 5V/1A

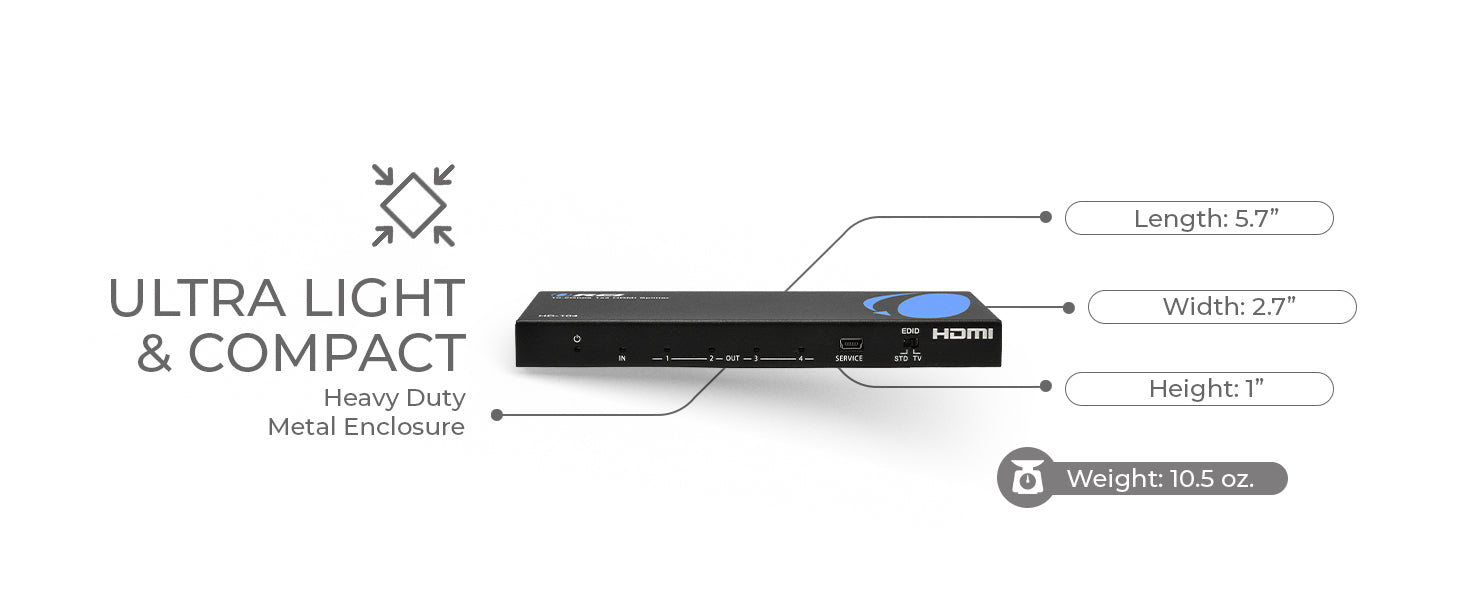

DIMENSIONS & WEIGHT

	Length:	145mm / 5.71in
	Width:	70mm / 2.76in
	Height:	25mm / 0.98in
	Weight:	300g / 10.58oz

PROPERTIES

Color:	Black
Housing:	Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

HD-104 User Manual Download

FAQs

Our splitters will not work with capture cards due to the HDCP encryption on the output

Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously

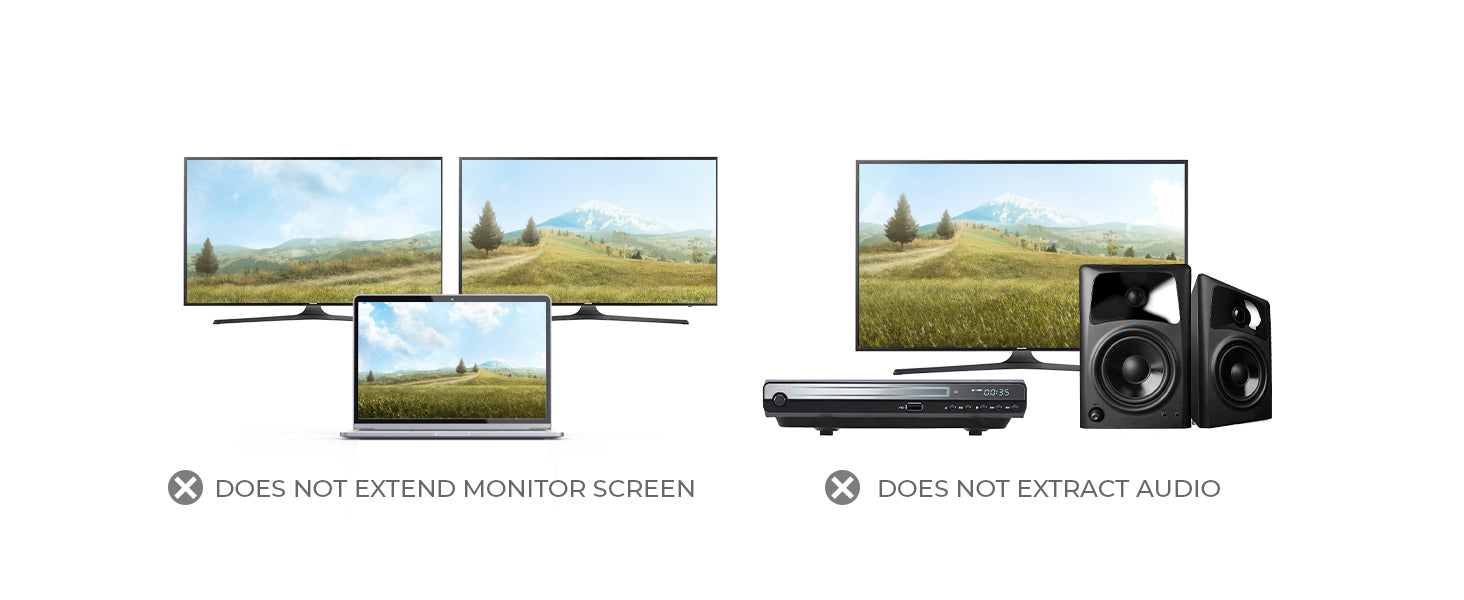

Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture

Yes, the power adapter does support 220V

You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.

However, you can use fiber optic active HDMI cables up to 200 feet. If it's not a high-quality cable then you may lose the signal in some instances.

No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned on.
