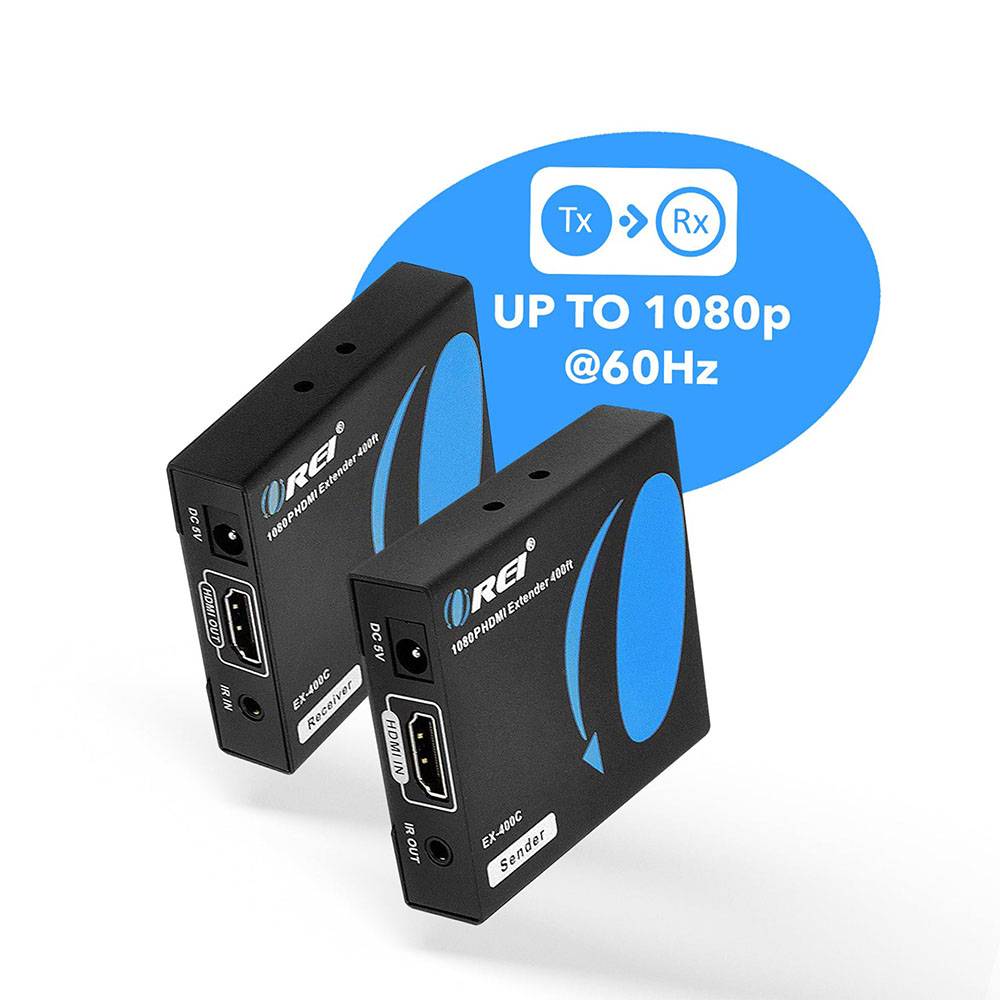

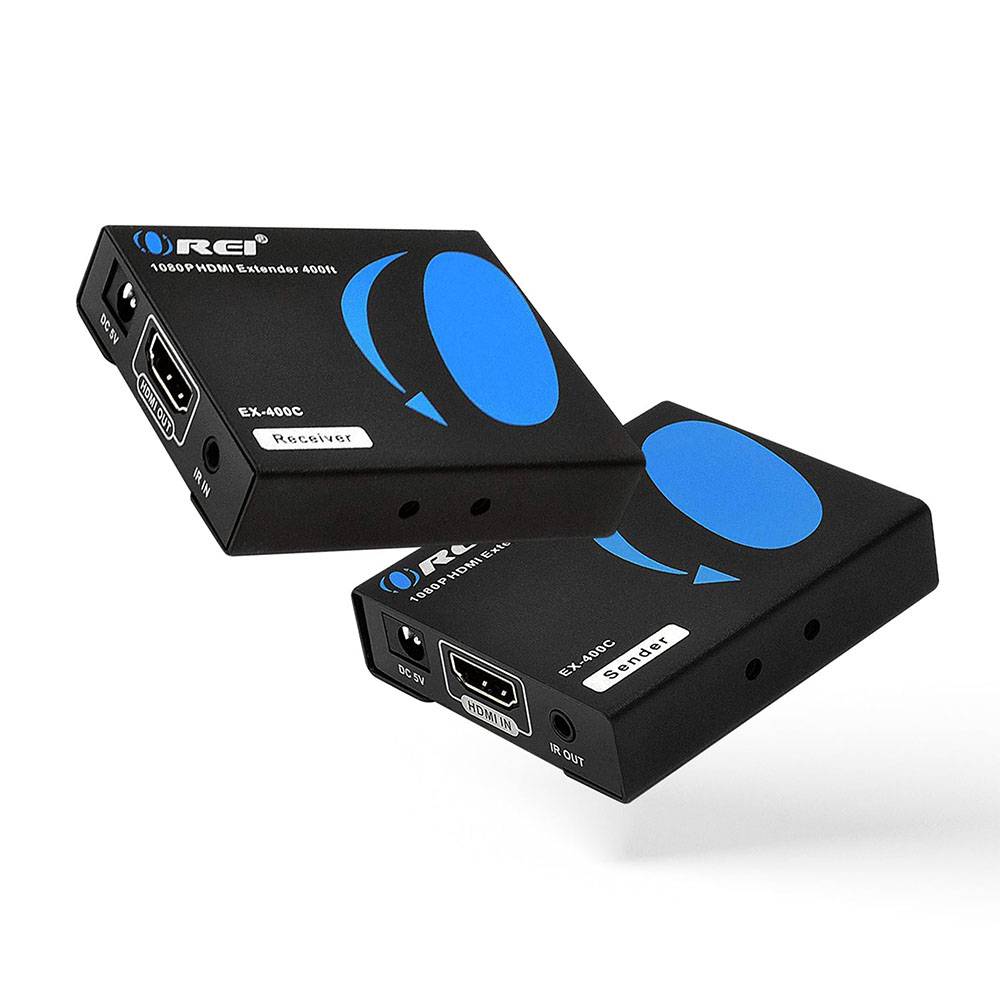

1080p HDMI Extender Over CAT6/7 upto 400 ft - IR (EX-400C)

Name: 1080p HDMI Extender Over CAT6/7 upto 400 ft - IR (EX-400C)
Brand: OREI
SKU: EX-400C
Price: 74.99 USD
Availability: OutOfStock

$74.99 $99.99

Shipping calculated at checkout.

SKU: EX-400C

Supports 1080p@60Hz up to 400 feet
Uncompressed zero latency video signals
Supports IR Remote Control

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

OREI EX-400C: HDMI Balun upto 400 ft

Key Features:

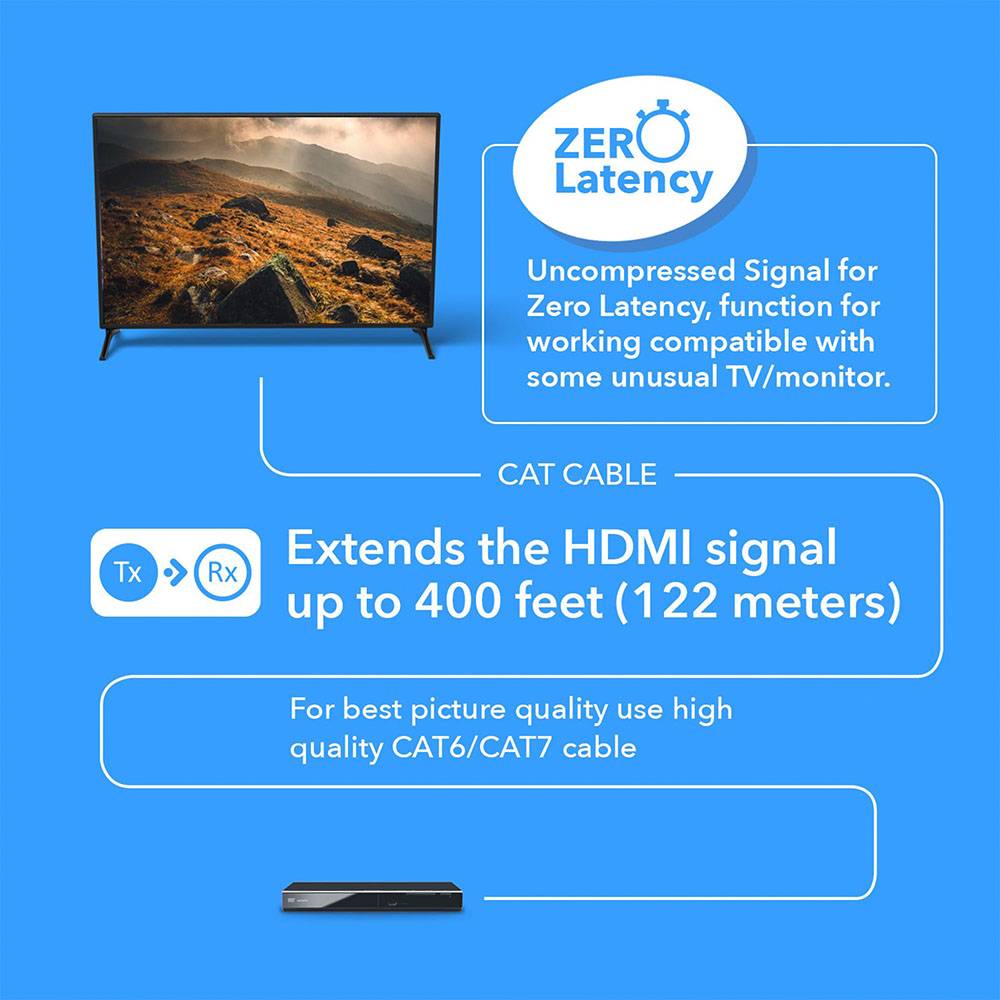

Extend Full HD upto 1080p 60Hz Signal upto 400 Feet via High quality CAT6/CAT7 Cable or 250 Feet Via Cat5e Cable
Supports HDMI 1.3/1.4, HDCP 1.4
Uncompressed Signal for Zero Latency
Function for working compatible with some unusual TV/monitor
Supports 3D andLPCM,Dolby-AC3, DTS7.1, DSD/Dolby /DTS-HD master audio, Essentially all available audio options are supported
Compatible with HDMI units such PC, Roku, TV, Amazon Fire TV, Ultra Projector, Xbox, Apple TV, HDMI LCD, Cable box, Blu-ray player, DVD player, PC, STB and more
Plug & Play Setup without any Software Installation

Extend Full HD upto 1080p 60Hz Signal upto 400 Feet via High quality CAT6/CAT7 Cable or 250 Feet Via Cat5e Cable, Supports HDMI 1.3b, HDCP 1.2, 3D Uncompressed Signal for Zero Latency,function for working compatible with some unusual TV/monitor. Works with all HDMI 1.3 and 1.4: Supports 3D andLPCM,Dolby-AC3, DTS7.1, DSD/Dolby /DTS-HD master audio, Essentially all available audio options are supported.

Compatible with HDMI units such PC, Roku, TV, Amazon Fire TV, Ultra Projector, Xbox, Apple TV, HDMI LCD, Cable box, Blu-ray player, DVD player, PC, STB and more Plug & Play Setup without any Software Installation.

AUDIO AND VIDEO

Transmitter:	INPUT PORTS:	1x HDMI
	OUTPUT PORTS:	1x RJ45
Receiver:	INPUT PORTS:	1x RJ45
	OUTPUT PORTS:	1x HDMI

COMPLIANCES

HDMI Compliance:	HDMI 1.3
HDCP Compliance:	HDCP I.4

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

1080p@60Hz:

262 Feet Over CAT5, 328 Feet Over CAT5E and 393 Feet Over CAT6

VIDEO OUTPUT

Video Bandwidth:	4.95Gbps
Video Resolutions:	720x576@50Hz, 720x480@60Hz, 1280x720@60Hz, 1920x1080@60Hz, 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1440x900@60Hz, 1680x1050@60Hz
Color Space:	24bit
Color Depth:	8bit

CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT

CEC Function:	No
ARC Function:	No
USB KVM Function:	No
PoC/PoE Function:	No

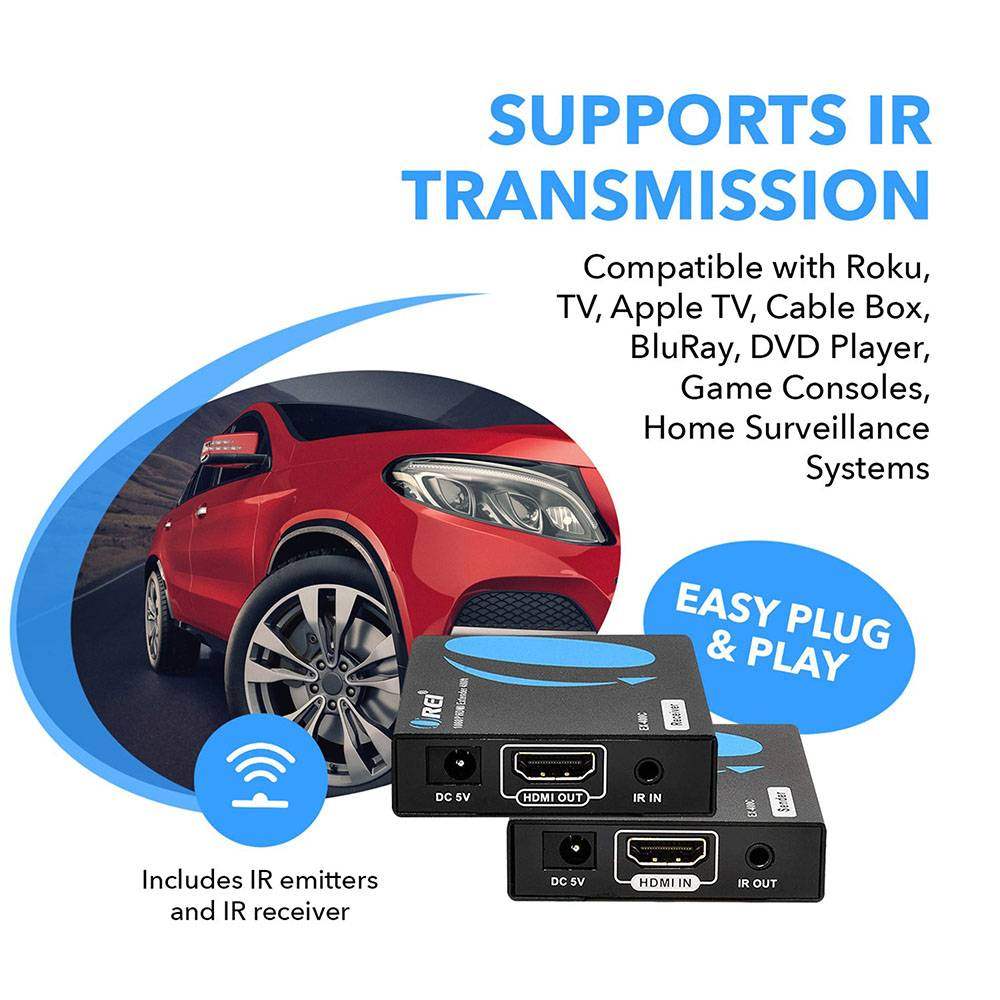

IR Controller:	With One Way IR Pass Back
Downscaler Function:	No
Over Network/IP Function:	No
HDBaseT Function:	No
RS-232 Function:	No

LOOP-OUT/LOCAL PORT

Has loop out port:

SWITCHES

EDID Management:	No
EQ Dip Switches:	No
ARC:	No

AUDIO OUTPUT

HDMI Audio Formats:	Stereo L/R Audio
SPDIF/Optical Audio Formats:	No SPDIF Audio
L/R Audio Formats:	No L/R Audio Port

SIGNALS

TMDS Signals:	0.5 ~ 1.5Vp-p(TMDS)
DDC Signals:	5Vp-p(TTL)

PERFORMANCE & INTERFACE

Transmission Type:	Over CAT5 cable
Transfer Method:	Uncompressed transmission Over CAT5e
Latency:	Zero Latency
Transmission Distance:	262 Feet Over CAT5, 328 Feet Over CAT5E and 393 Feet Over CAT6

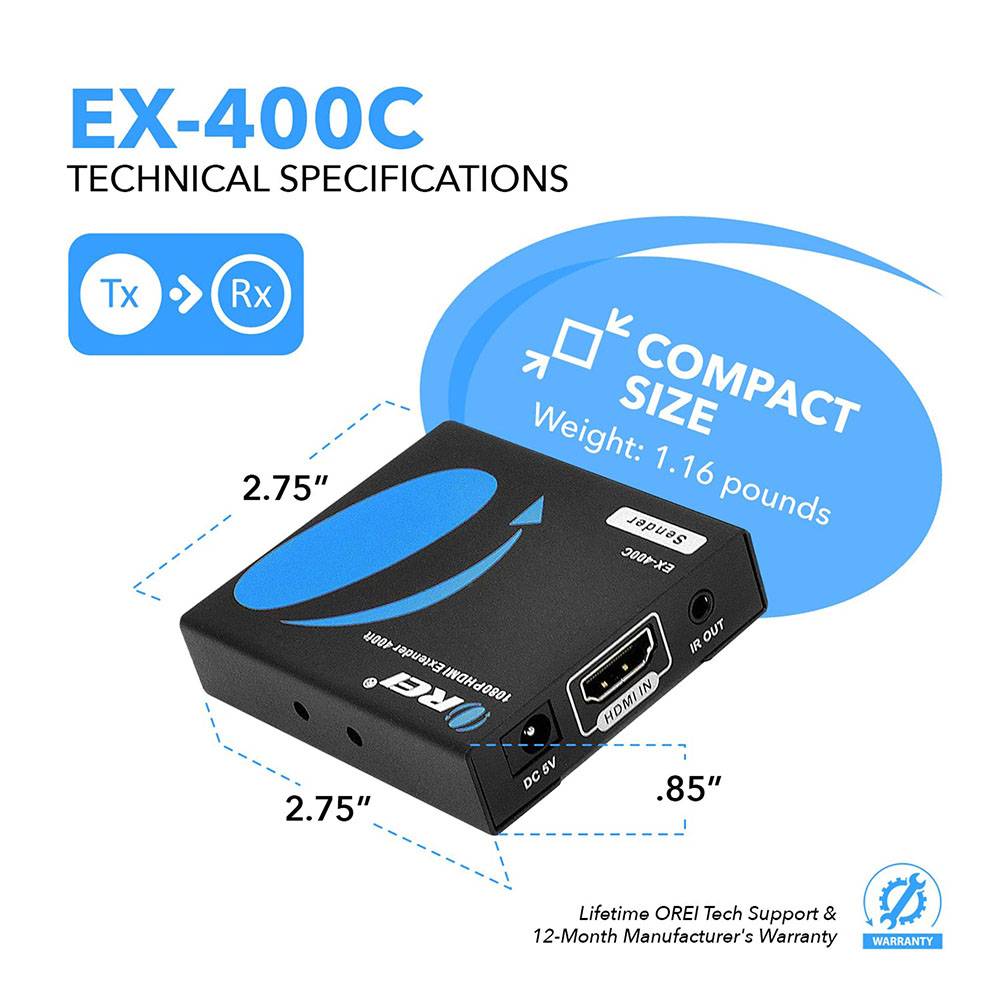

DIMENSIONS & WEIGHT

Transmitter:	Height:	16.10mm
	Width:	58.8mm
	Depth:	69.57mm
	Weight:	70g
Receiver:	Height:	16.10mm
	Width:	58.8mm
	Depth:	69.57mm
	Weight:	70g

PROTECTION

Operation Temperature:	0～50℃
Storage temperature:	-10 ~ 70°C
Relative Humidity:	0 ~ 90%
Electrostatic Protection of the whole Machine:	1a contact discharge level 3, 1b air discharge level 3, implementation of the standard: IEC61000-4-2

RJ-45 CONNECTOR Type

WE/SS 8P8C

POWER

Power Consumption (Max):	Transmitter:	2W
	Receiver:	<2W
Power Supply	Input:	110-220V
	Output:	DC5V 1A

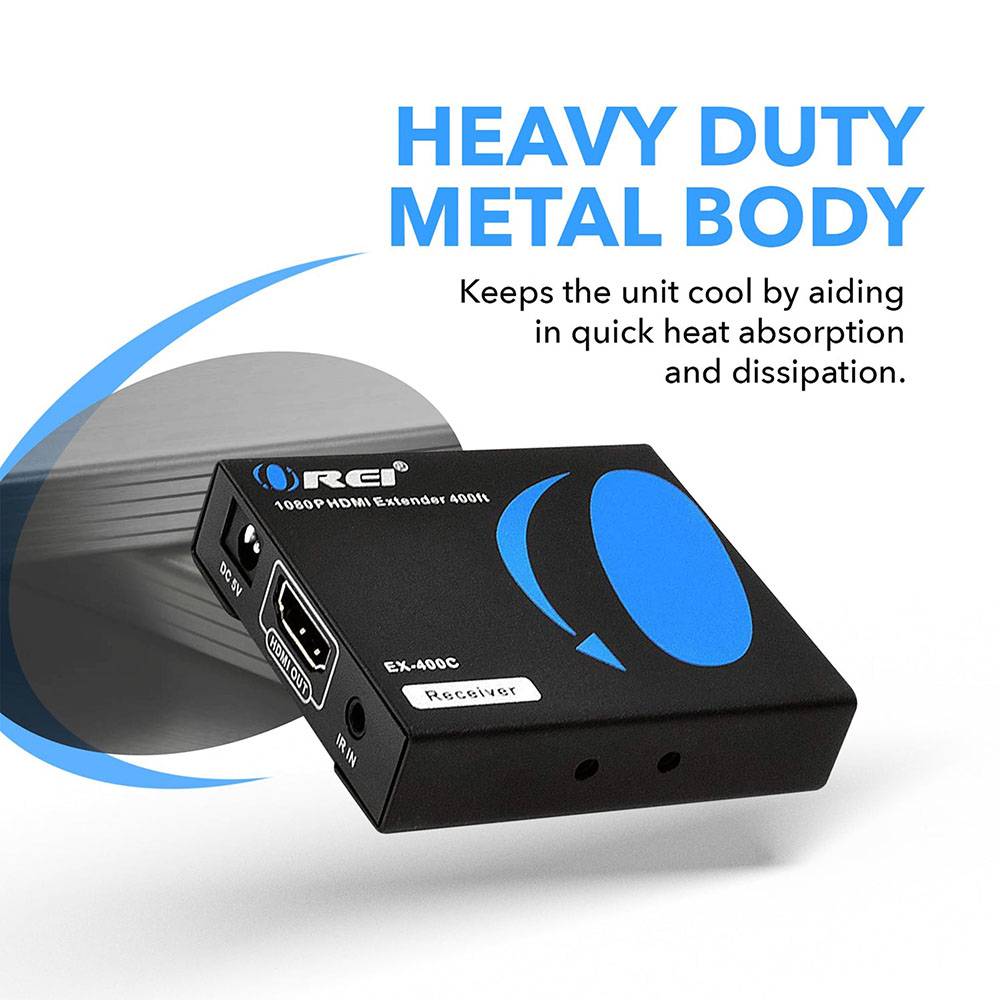

PHYSICAL PROPERTIES

Color:	Black
Processing Technology:	Aluminum
Finishing:	Grit blast

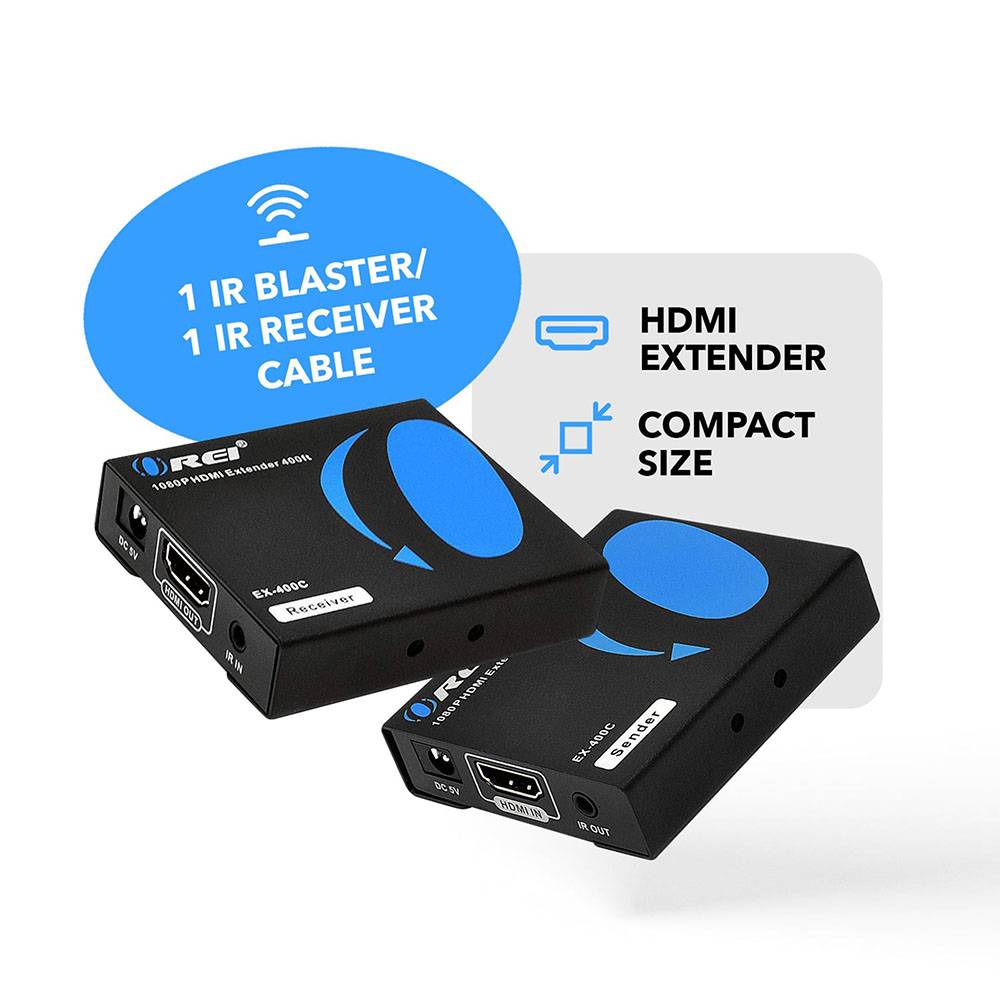

PACKAGE CONTENTS

1x HDMI Transmitter

1x HDMI Receiver

1x IR Blaster Extension Cable

1x IR Receiver Extension Cable

1x User Manual

2x Power Supply

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

EX-400C User Manual Download

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

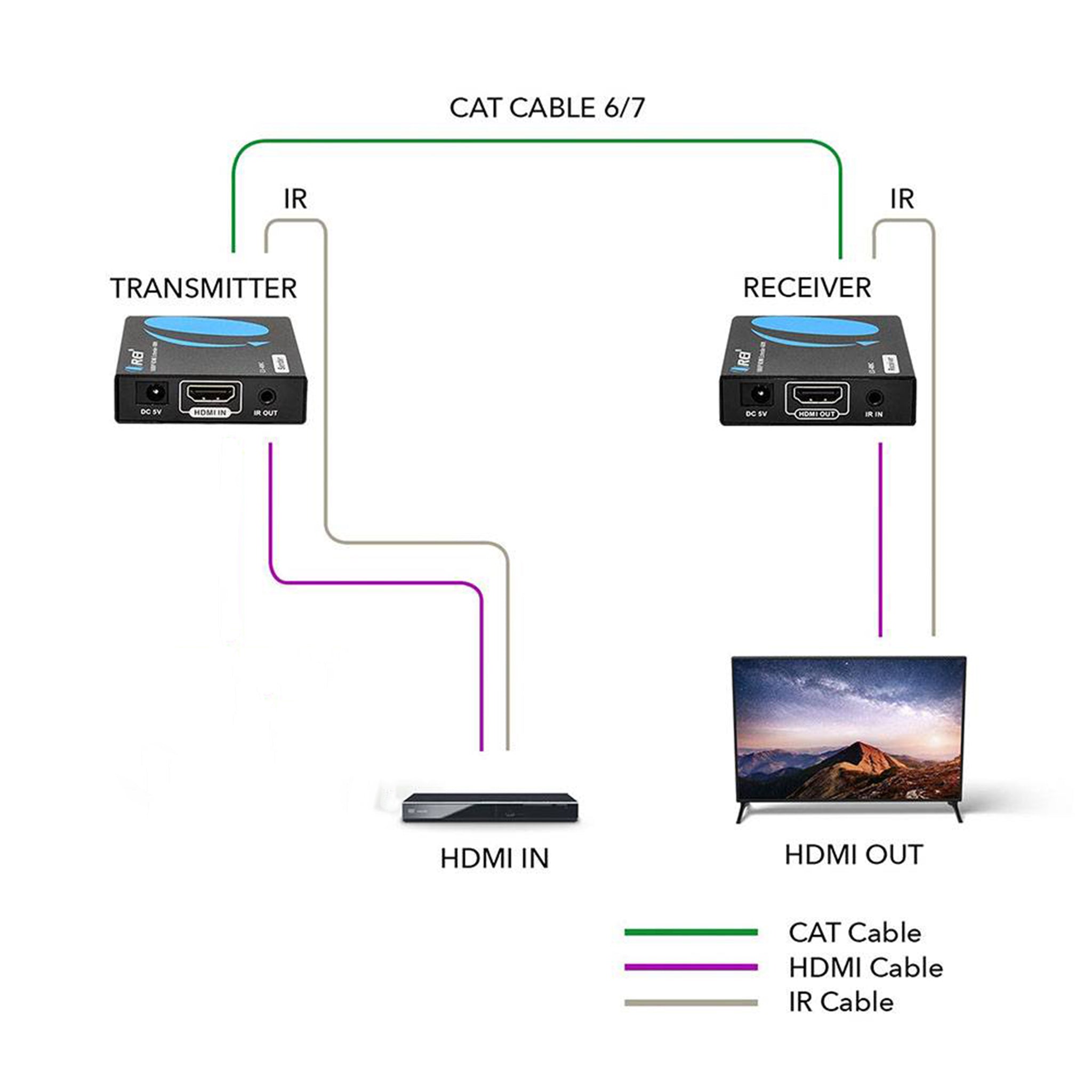

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
