eARC 4K@60Hz Audio Extractor Converter 18G HDMI 2.0 ARC Support (HDA-927)

Name: eARC 4K@60Hz Audio Extractor Converter 18G HDMI 2.0 ARC Support (HDA-927)
Brand: OREI
SKU: HDA-927
Price: 49.99 USD
Availability: InStock

$49.99 $69.99

Shipping calculated at checkout.

SKU: HDA-927

Supports video resolution up to 4K@60Hz with 24bit RGB/YCBCR 4:4:4
Supports eARC/ARC audio extraction from TV to HDMI audio output
Supports CEC function and advanced EDID management

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Quantity

Reseller & Installer Discounts

Add to Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

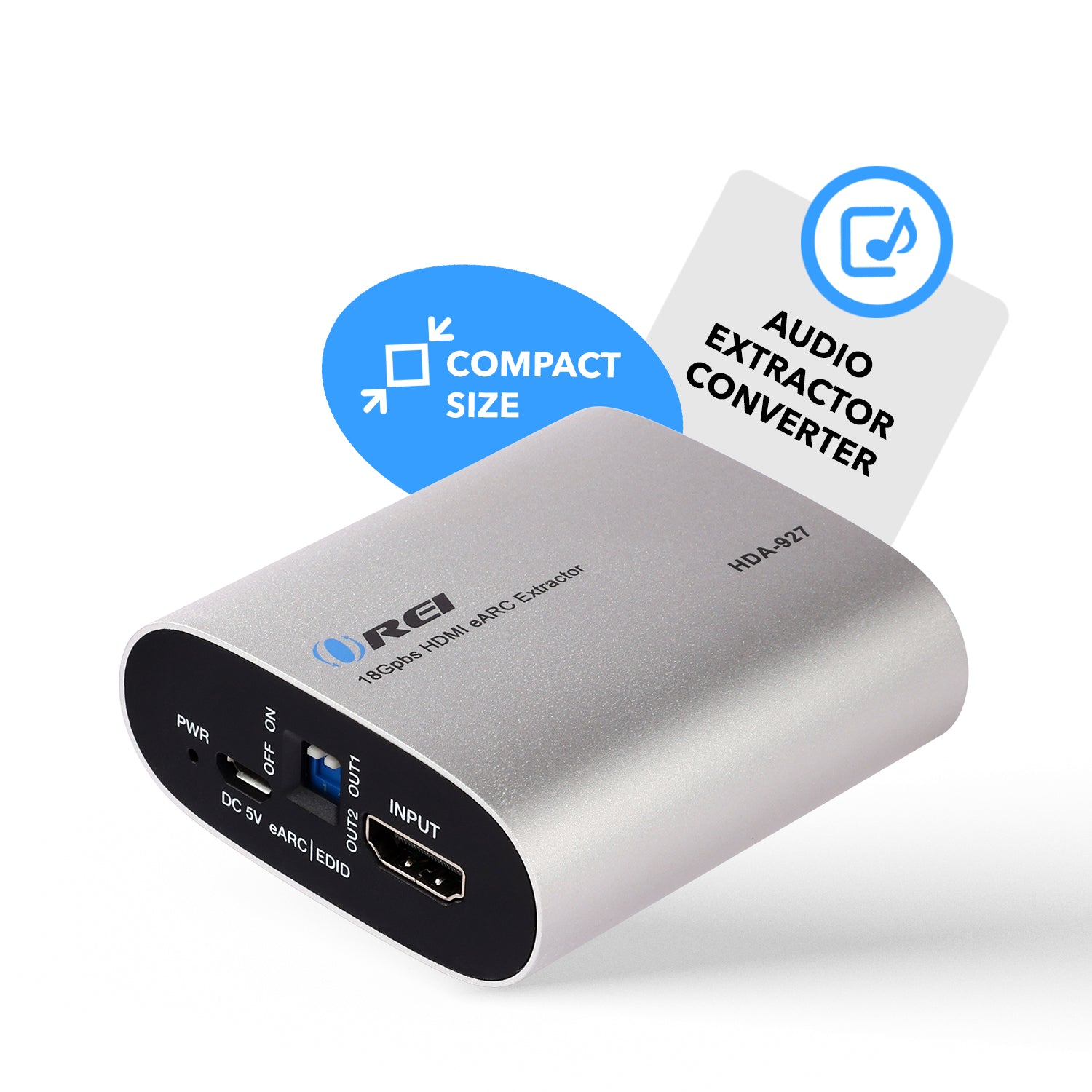

OREI HDA-927: eARC HDMI Audio Extractor Converter

Key Features:

Extract Full HDMI audio from any HDMI source signal and pass-through 4K or HDR the video to a compatible display/TV and output HDMI Audio to AV Receiver with HDMI input
HDMI 2.0 (18Gbps)
HDCP 2.3 compliant
Supports resolutions up to 4K@50/60Hz (YUV 4:4:4), HDR
eARC Mode Support
Support CEC function and advanced EDID management
Built-in Equalizer, Retiming and Driver
Support VESA format up to QSXGA@60Hz
Extract the audio return from ARC or eARC port on TV/Display and send HDMI audio only to a non-ARC AV Receiver for the full audio experience
Dedicated HDMI Audio only output to connect to an AV Receiver
Supports Dolby True HD, Dolby Digital, Dolby Atmos, DTS Digital, DTS HD Master, Dolby/DTS 7.1&5.1CH, PCM7.1&5.1&2.0 stereo audio)
Simple plug & play setup

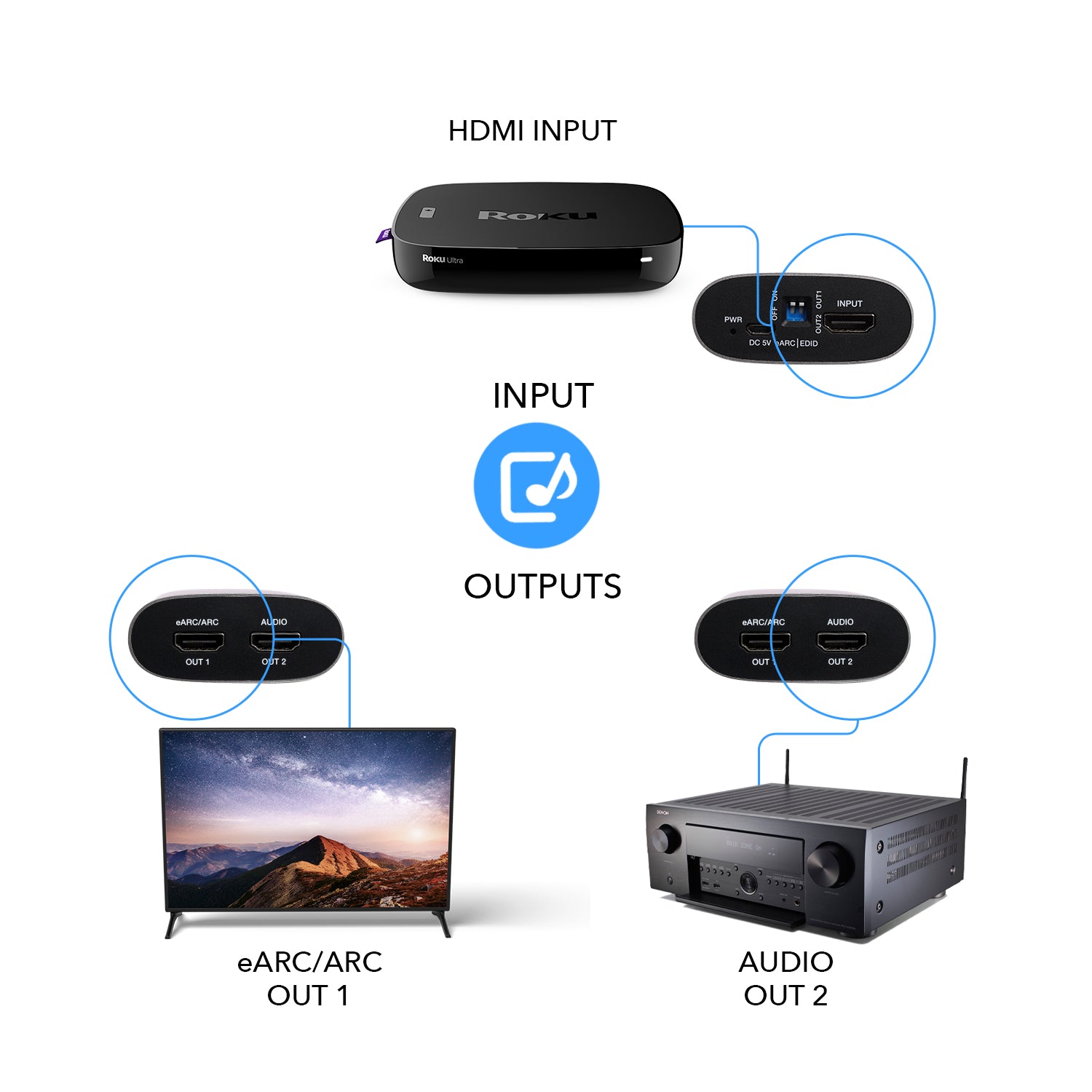

The OREI HDA-927 audio extractor allows you to extract full HDMI audio from any HDMI source signal and pass through 4K or HDR the video to a compatible display/TV and output HDMI Audio to AV Receiver with HDMI input.

You can also use this to split your audio & video in its full resolution to your display and home theater receiver with HDMI outputs including ARC/eARC support. Designed to meet the latest HDMI 2.0 standards with HDCP 2.3 compliance.

HDA-927 supports video resolutions up to 4K@60Hz YUV 4:4:4 with HDR and CEC bypass.

AUDIO AND VIDEO

INPUT PORTS:	1x HDMI Type A [19-pin female]
OUTPUT PORTS:	2x HDMI Type A [19-pin female]

COMPLIANCES

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.3 / 1.x

VIDEO OUTPUT

Video Bandwidth:	18 Gbps
Video Resolutions:	4k@60Hz 4:4:4
Color Space:	RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
Color Depth:	8-bit, 10-bit, 12-bit (1080p@60Hz), 8-bit (4K2K@60Hz YUV4:4:4), 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)

CEC & EARC SUPPORT

CEC:	CEC commands will only work between HDMI input and HDMI output 1
eARC/ARC:	Yes

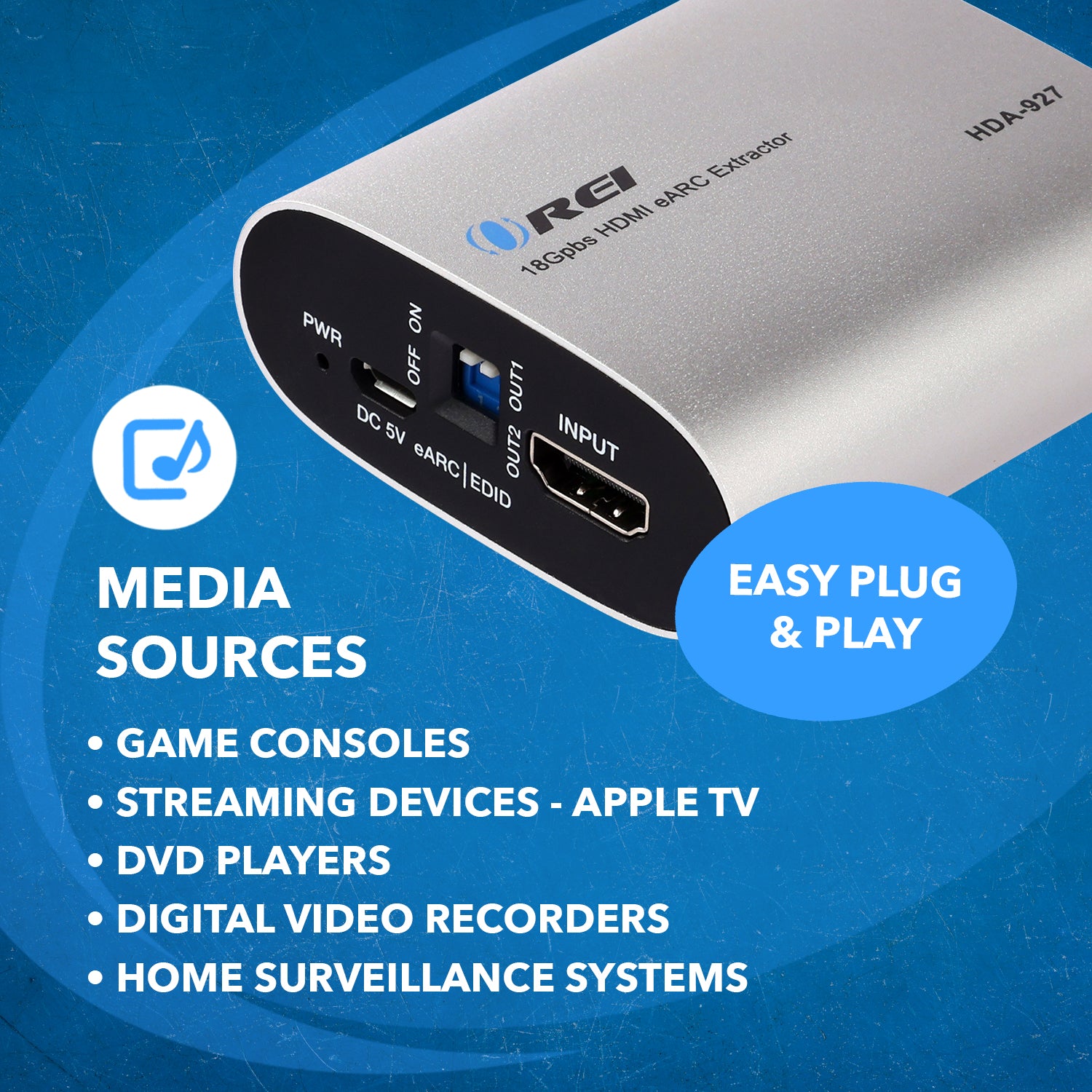

SWITCHES

EDID:	The EDID switch is used to select EDID settings. Switch to “OUT1” / “OUT2” position, HDA-927 will copy the corresponding EDID from the device connected to OUT1 / OUT2 port. If the copy fails, it will use the internal EDID of the default 1080p 2Ch.
eARC/ARC:	The eARC/ARC switch is used to turn ON/OFF the eARC function. Switch to “ON” position, the AUDIO OUT2 port will output the eARC/ARC audio, Switch to “OFF” position, the AUDIO OUT2 port will output the audio from HDMI IN port

AUDIO OUTPUT

HDMI Audio Formats:

PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X

DIMENSIONS & WEIGHT

Height:	27mm
Width:	65mm
Depth:	70mm
Weight:	83g

PROTECTION

Operation Temperature:	32 - 104°F / 0 - 40°C
Storage temperature:	-4 - 140°F / -20 - 60°C
Relative Humidity:	20 - 90% RH (no condensation)
ESD Protection:	Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)

POWER

Power Consumption (Max):	1.75W

Power Supply	USB 5V

PHYSICAL PROPERTIES

Color:	Silver
Housing:	Aluminium Enclosure

PACKAGE CONTENTS

1x HDMI Audio Extractor

1x USB Cable (USB-A to Micro USB)

1x User Manual

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

HDA-927 User Manual Download

FAQs

No, in order to extract the sound, your soundbar should have an HDMI input port. If your soundbar doesnt have an HDMI input port then this product will not work for your requirements & wont be able to extract the sound.

No, this product doesn't support the feature of downscaling or upscaling the audio signals. Whatever the audio signals that you're inputting, you will get that audio signal as an output.
