8x8 4K Seamless Matrix with Video Wall (UHDS-808VW)

UHDS-808VW: 4K@60Hz 4x4 Seamless Matrix with Video Wall

Key Features:

• 1. HDCP 2.2 compliant
• Video resolutions up to 4K@60Hz, 2K@60Hz
• Video bandwidth up to 18Gbps
• Seamless switching
• Optical and 5-pin phoenix Analog outputs for audio extraction
• Support for LPCM, Dolby Digital Plus, Dolby TrueHD, DTS High Res, and DTS HD Master Audiothrough HDMI
• Bezel adjustment, Audio Matrixing and EDID management
• Horizontal and Vertical mirror function to rotate the image 180 degrees
• Power off memory function allows you to recall the previous setup
• CEC control through WebGUI

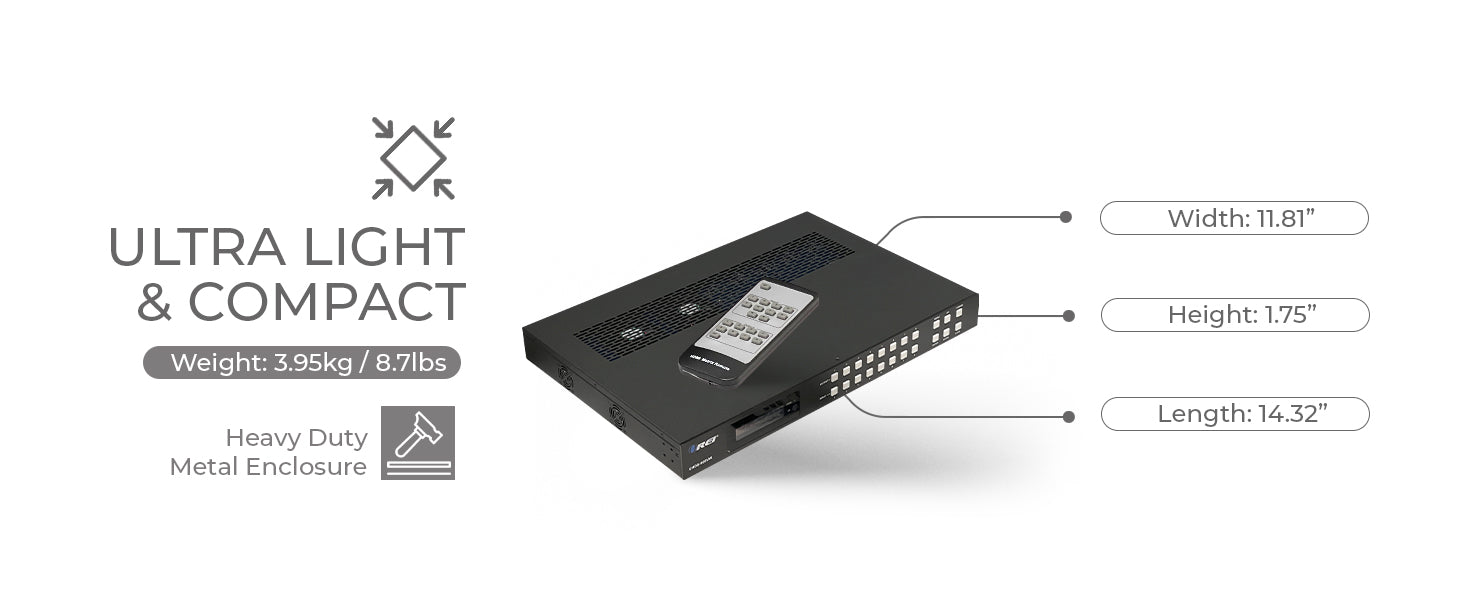

• Compact design for easy installation

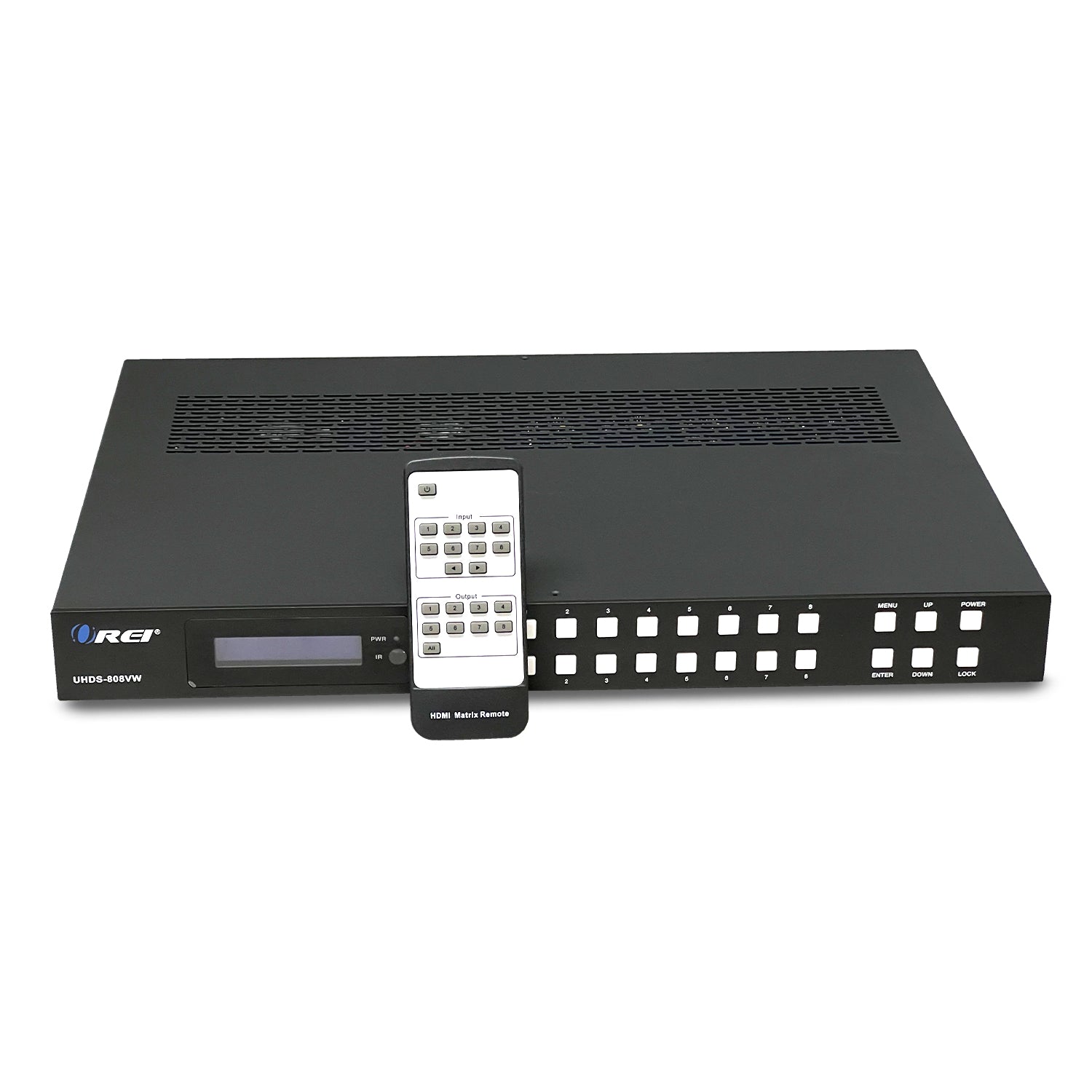

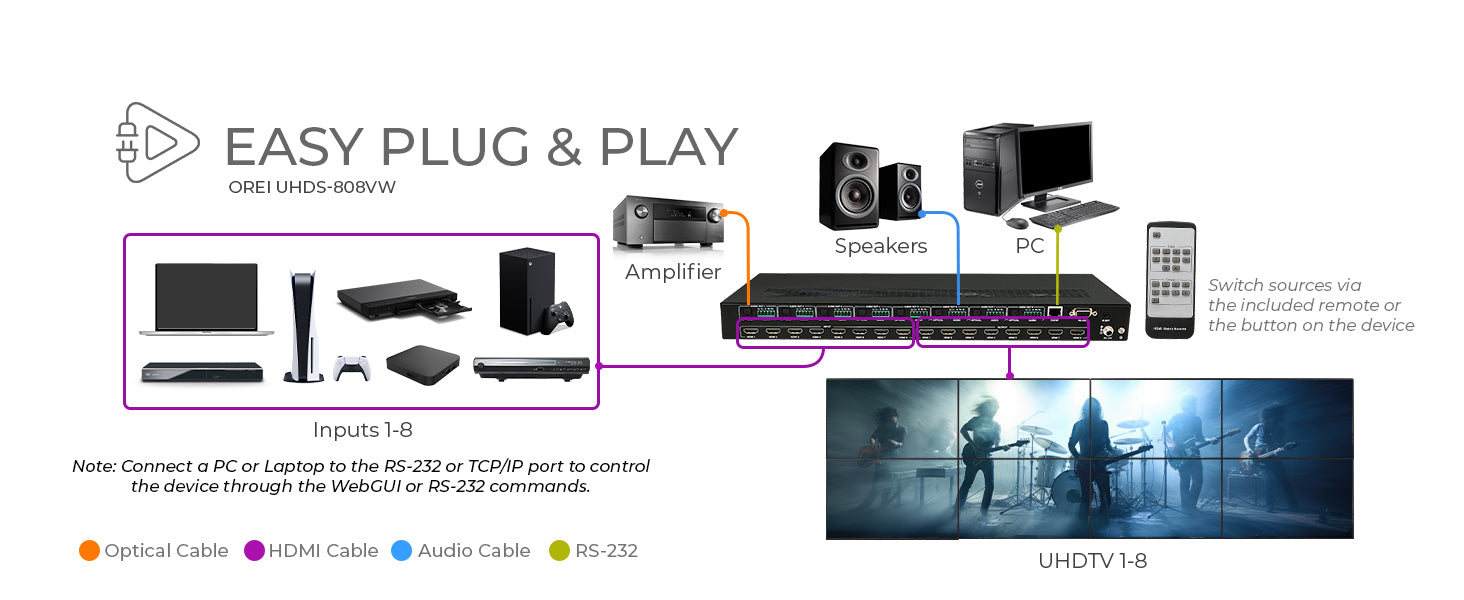

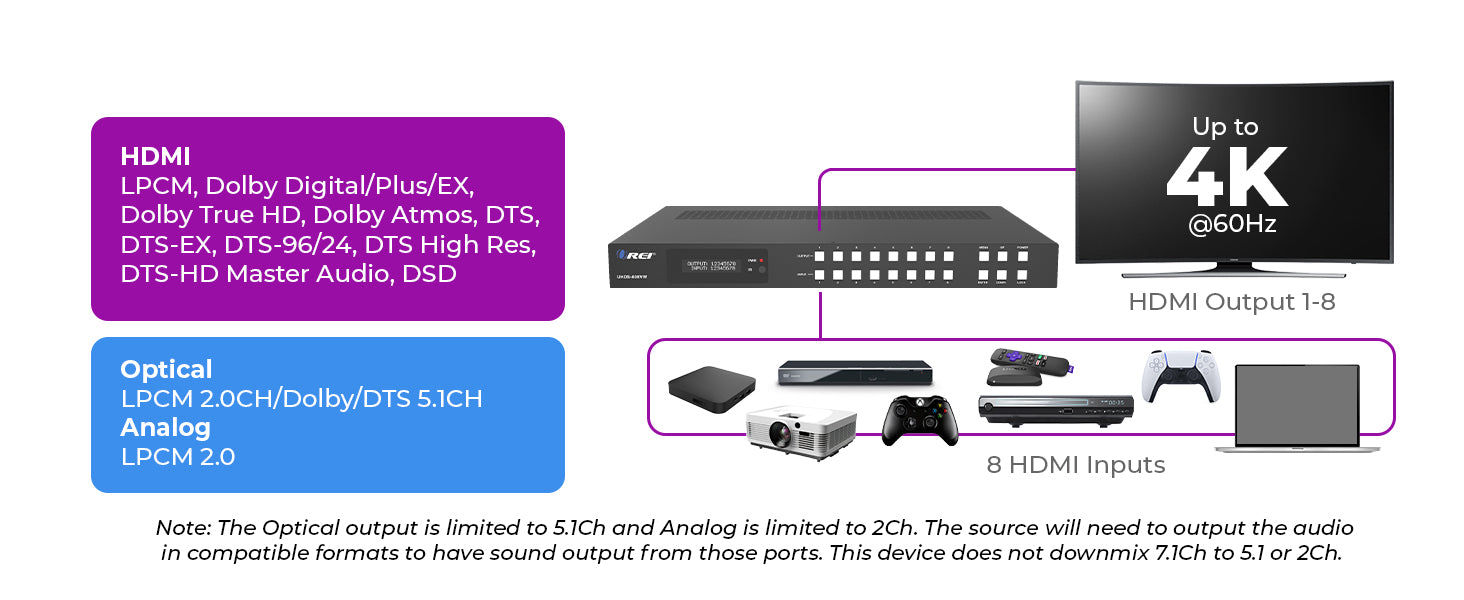

The UHDS-808VW is an 8x8 Matrix that allows you to switch between 8 media sources and output them on 8 displays. It features 8 HDMI inputs and outputs, supporting video resolutions up to4K@60Hz and 2K@60Hz with an 18Gbps video bandwidth and HDCP 2.2 compliance. The device offers seamlesswitching and features Optical and 5-pin phoenix Analog audio outputs for audio extraction. Additionally, it functions as a video wall controller, enabling various setups like 4x2, 2x2, 8x1, etc. It offers horizontal and vertical mirror options to flip the image 180 degrees for bezel adjustment. TheWebGUI provides full control, including CEC control, video wall configuration, and audio matrixing.

UHDS-808VW User Manual Download
