8K 8x8 HDMI Matrix Switch With Audio Extraction, HDR, Downscaling, RS-232 & EDID (BK-808)

8K 8x8 HDMI Matrix Switch With Audio Extraction

Key Features:

• HDMI 2.1 & HDCP 2.3 compliant
• Video resolutions up to 8K@60Hz 4:2:0, 8K@30Hz 4:4:4 and 4K@120Hz 4:4:4
• 48Gbps video bandwidth
• 8 × HDMI inputs, that can be independently routed to 8 × HDMI outputs
• HDR/10/10+, and Dolby Vision pass-through
• Downscaling support for 8K->4K or 8K/4K->1080p, for each output port
• VRR, ALLM, QMS, QFT, and SBTM are supported
• Features Optical and balanced analog audio outputs for Audio Extraction
• Advanced EDID management
• Control via front panel buttons, IR remote, RS-232, and Web GUI
• Robust built and an easy plug and play installation
• Perfect for commercial and personal setups

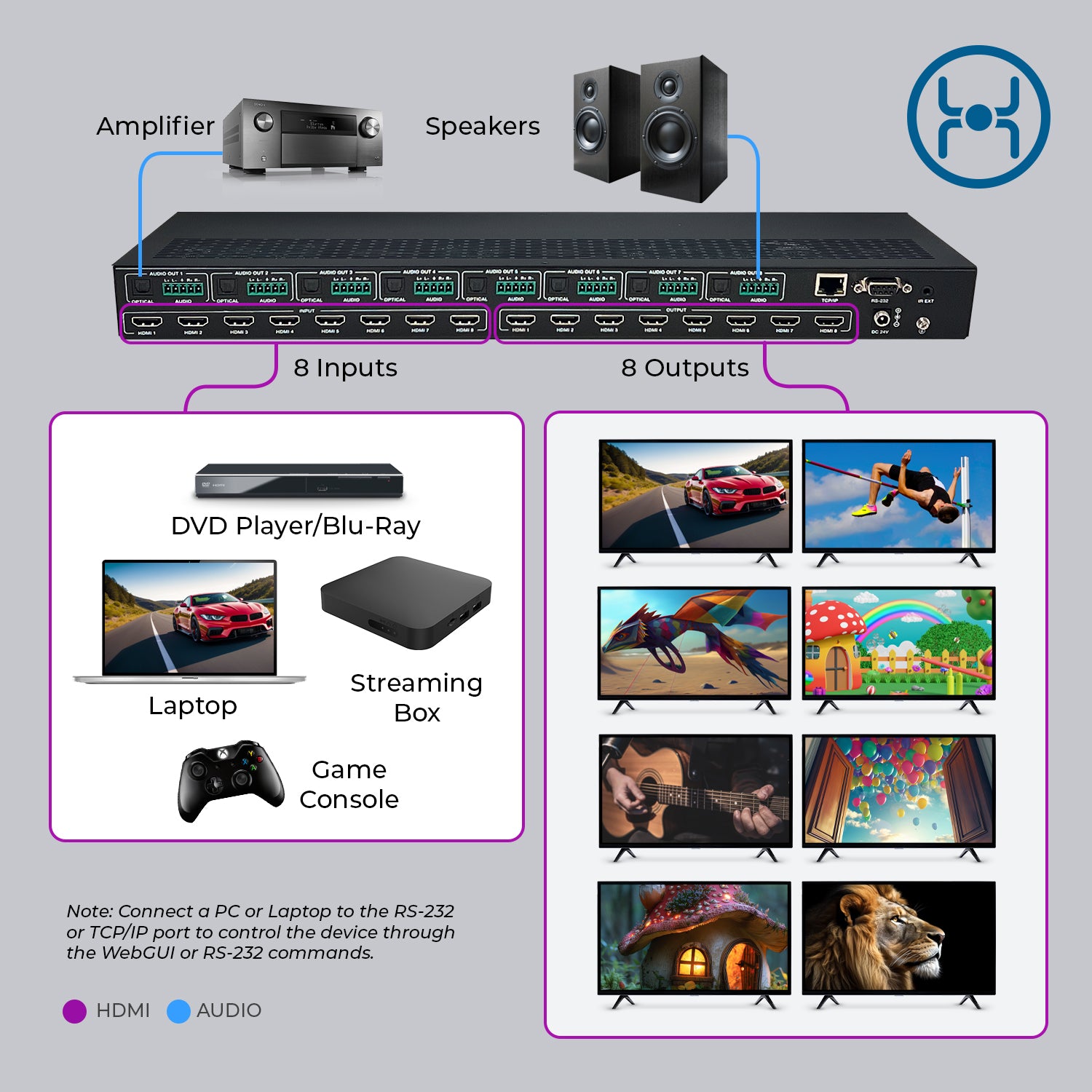

The BK-808 is an 8 In 8 Out HDMI Matrix designed for switching or splitting between various sources and displays. It supports video resolutions up to 8K@60Hz 4:2:0 12bit and 4K@120Hz 4:4:4 12bit, with a video bandwidth of up to 48Gbps. The device includes Optical and Analog audio outputs for audio extraction and can be controlled via an included remote, front panel buttons, RS-232, or TCP/IP commands. It offers downscaling options, allowing you to downscale 8K to 4K or 8K/4K to 1080p on each output port. Additionally, the BK-808 supports HDMI 2.1 features like VRR, ALLM, QFT, QMS, and SBTM, ensuring advanced compatibility with modern displays. Robust build and easy plug-and-play installation. Perfect for both commercial and personal setups.

BK-808 User Manual Download

FAQs

What is the maximum length of HDMI outputs?

What would happen if we use 50ft HD cable instead of the optic cable?

Can we use the Elgato Capture Card to capture the output of HDMI Switcher?

Does the power adapter support 220V input?

From where can we purchase the replacement remote control?
