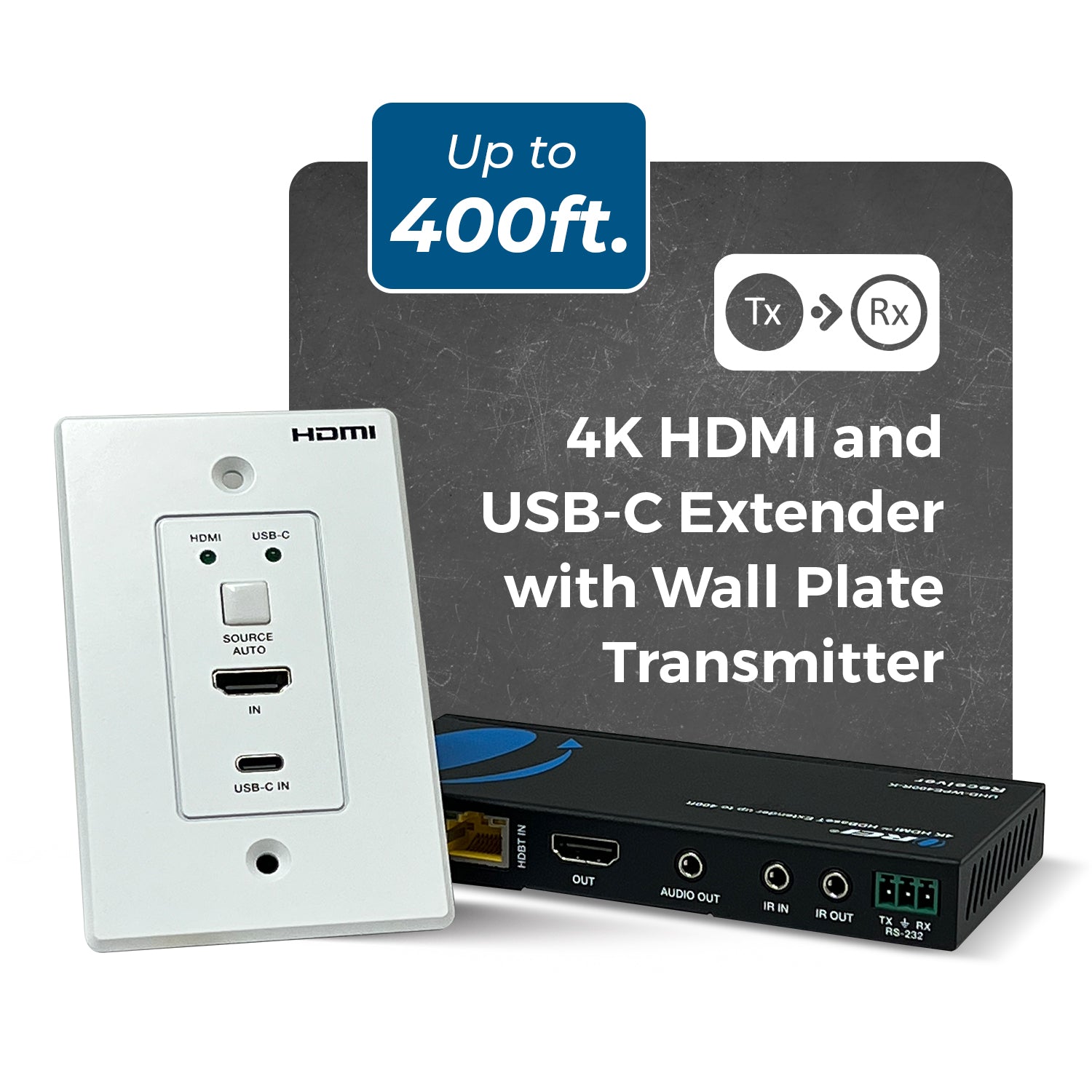

4K Wall Plate HDMI Extender over CAT 6/7 upto 400 feet with HDBaseT(UHD-WPE400R-K)

Name: 4K Wall Plate HDMI Extender over CAT 6/7 upto 400 feet with HDBaseT(UHD-WPE400R-K)
Brand: OREI
SKU: UHD-WPE400R-K
Price: 229.00 USD
Availability: InStock

$229.00 $279.99

Shipping calculated at checkout.

SKU: UHD-WPE400R-K

Bi-directional IR control
4K@60Hz up to 400 feet
Wall Plate Transmitter

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Quantity

Reseller & Installer Discounts

Add to Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

UHD-WPE400R-K: 4K Wall Plate HDMI Extender over CAT 6/7 up to 400 feet with HDBaseT

Key Features:

HDCP 2.2 and DP 1.4 compliant
Video resolutions up to 4K@60Hz
18Gbps video bandwidth
Extend media signals up to 400 feet over a CAT 6/7 cable
HDR, Dolby Vision and HLG support
USB C input to connect Laptops and PCs
Bi-directional IR, RS-232 & CEC for versatile control

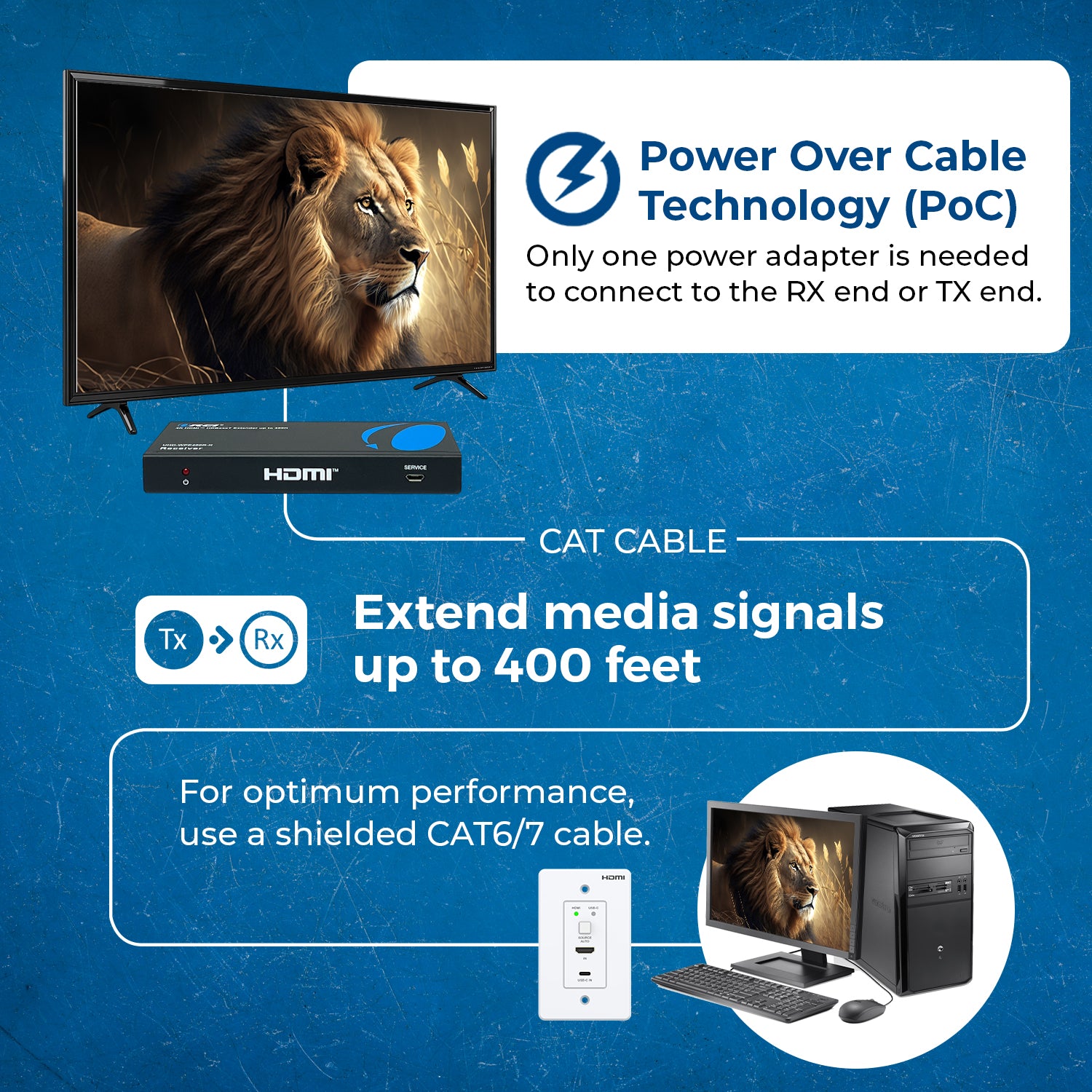

Power over Cable technology; allows powering the setup from either end
Ideal for clean installations in commercial or personal setups

The UHD-WPE400R-K is an HDMI Extender with a Wall Plate Transmitter that extends media signals up to 400 feet. Compliant with HDMI 2.0b, HDCP 2.2, and DP 1.4, it supports up to 4K@60Hz resolution with 18Gbps bandwidth, and video formats like HDR, Dolby Vision, and HLG. It features a USB C input to connect and send media from a laptop or PC that supports video output through USB C. It supports Bi-directional IR, RS-232, and CEC for versatile control, along with Power over Cable technology, requiring just one power adapter. Ideal for commercial or personal setups, it’s perfect for presentations or clean home theater installations

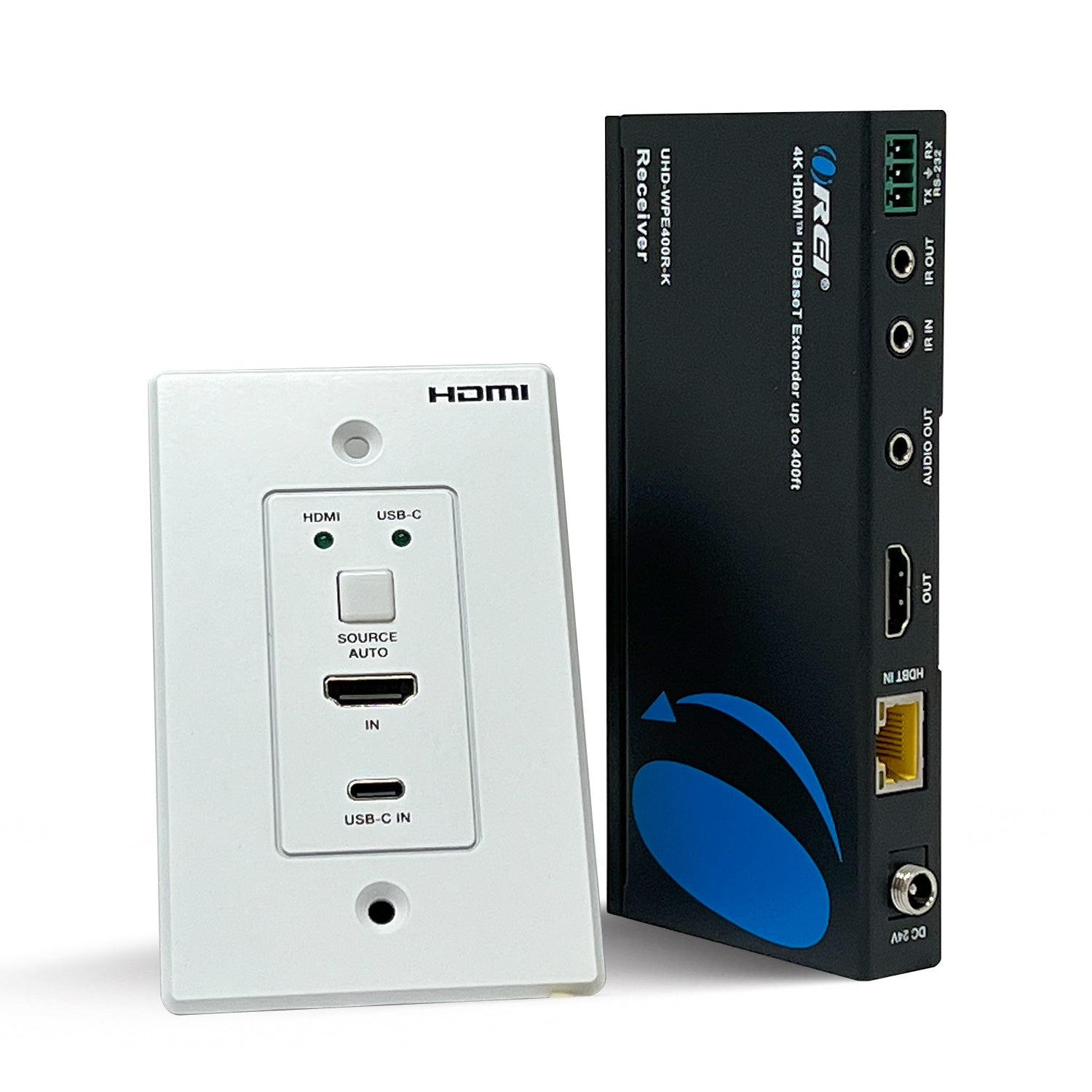

CONNECTIVITY

Transmitter:	INPUT:	1 × HDMI [Type A, 19-pin female]
	OUTPUT:	1 × HDBT [RJ45, 8-pin female]
		1 × IR IN / OUT [3-pin Phoenix connector]
	CONTROL:	1 × RS-232 [3-pin Phoenix connector]
Receiver:	INPUT:	1 × HDBT [RJ45, 8-pin female]
	OUTPUT:	1 × HDMI [Type A, 19-pin female]
	CONTROL:	1 × IR IN [3.5mm Stereo Mini-jack]
		1 × IR OUT [3.5mm Stereo Mini-jack]
		1 × RS-232 [3-pin phoenix connector]

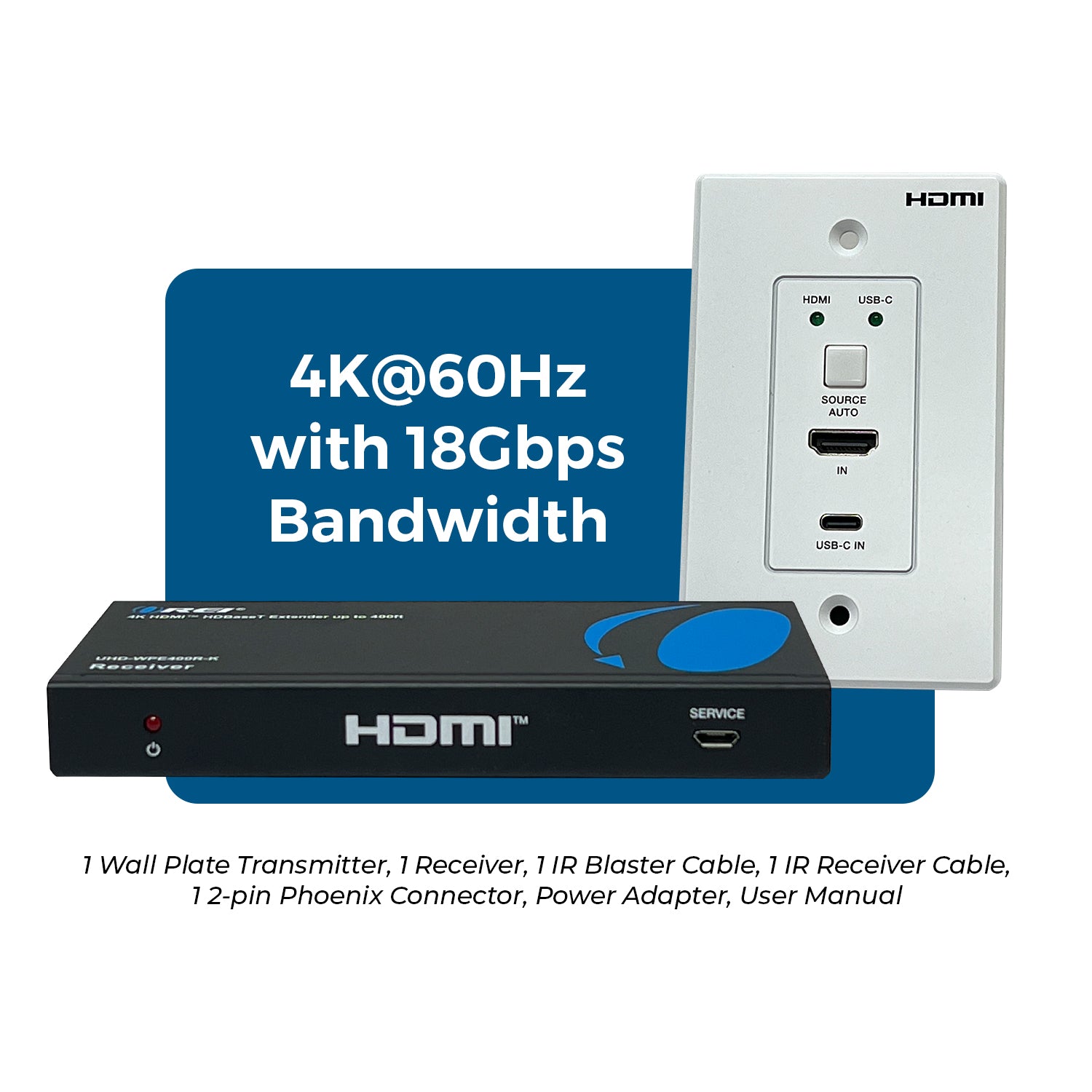

PACKAGE CONTENTS

1x UHD-WPE400R-K (Wall Plate Transmitter)

1x UHD-WPE400R-K (Receiver)

1x IR Blaster Cable (1.5m)

1x IR Receiver Cable (1.5m)

1x 2-pin 3.5mm Phoenix Connector (Male)

2x 3-pin 3.5mm Phoenix Connector (Male)

1x 3-pin 3.81mm Phoenix Connector (Male)

2x Mounting Ear

4x Machine Screw (KM3*4)

1x Power Adapter

User Manual

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@60Hz:

400 Feet

VIDEO OUTPUT

Video Bandwidth:	18Gbps
Video Resolutions:	Up to 4K@60Hz and 2K@60Hz

ADDITIONAL FEATURES

CEC:	No
ARC:	No
USB KVM:	No
PoC/PoE:	Yes
IR Control:	Yes
Downmix:	No
Downscale:	No
Over IP:	No
HDBaseT:	Yes
RS-232:	Yes

LOOP-OUT/LOCAL PORT

Has loop out port:	No
Number of Loop out ports:	0

AUDIO SUPPORT

HDMI Audio Formats:

LPCM 2.0/5.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS HD Master Audio

COMPLIANCES

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2

POWER

Power Consumption:	9W (Max)
Power Supply:	Input: AC 100-240V 50/60Hz
	Output: DC 24V/1A

DIMENSIONS & WEIGHT

Transmitter:	Length:	103.5mm / 4.07in
	Width:	46mm / 1.81in
	Height:	30mm / 1.18in
	Weight:	163g / 5.74oz
Receiver:	Length:	115mm / 4.52in
	Width:	65mm / 2.55in
	Height:	17mm / 0.6in
	Weight:	207g / 7.3oz

PROPERTIES

Color:	Black (Receiver), White (Transmitter)
Housing:	Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

UHD-WPE400R-K User Manual Download

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

No, this product doesn't upscale/downscale the video resolutions.

You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

You can upgrade the firmware by connecting the PC & this device via RS-232 cable.

Please note that this product only supports the CEC function between HDMI input & HDMI output 1.

No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.

HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.

In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.

We recommend you using a shielded CAT6 cables for optimum performance.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

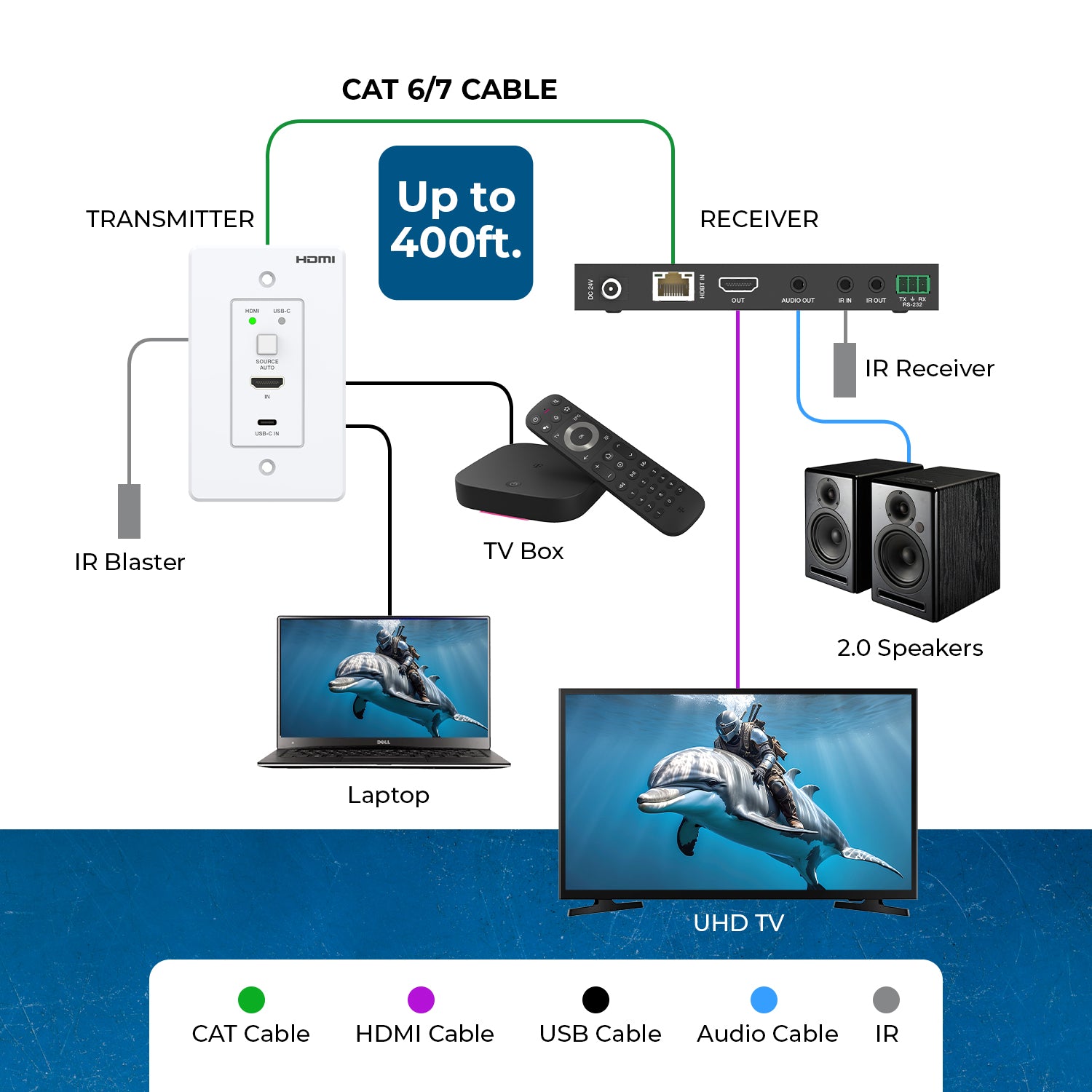

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
