OREI 4K Over IP KVM Extender Up To 500 Feet- With RS-232
Key Features:

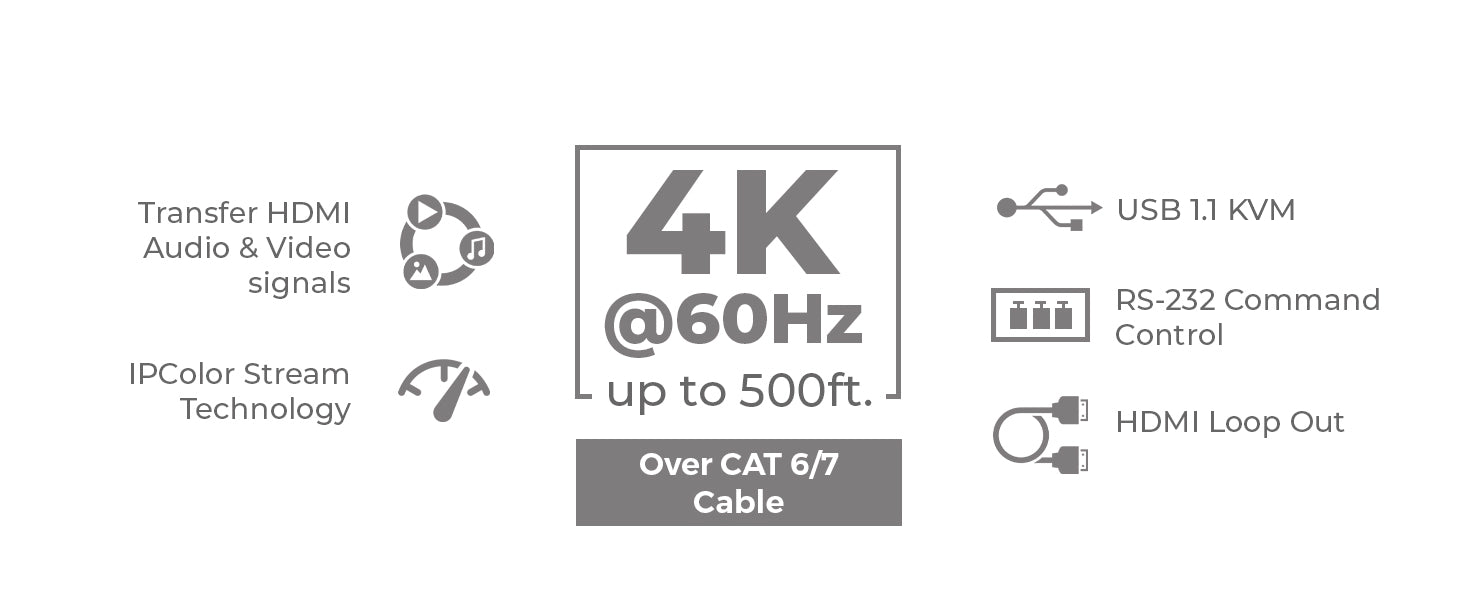

HDMI 2.0 and HDCP 2.2 compliant
Video resolutions up to 4K@60Hz 4:4:4
18 Gbps Video Bandwidth
Loop output port on the transmitter to connect a display at the source

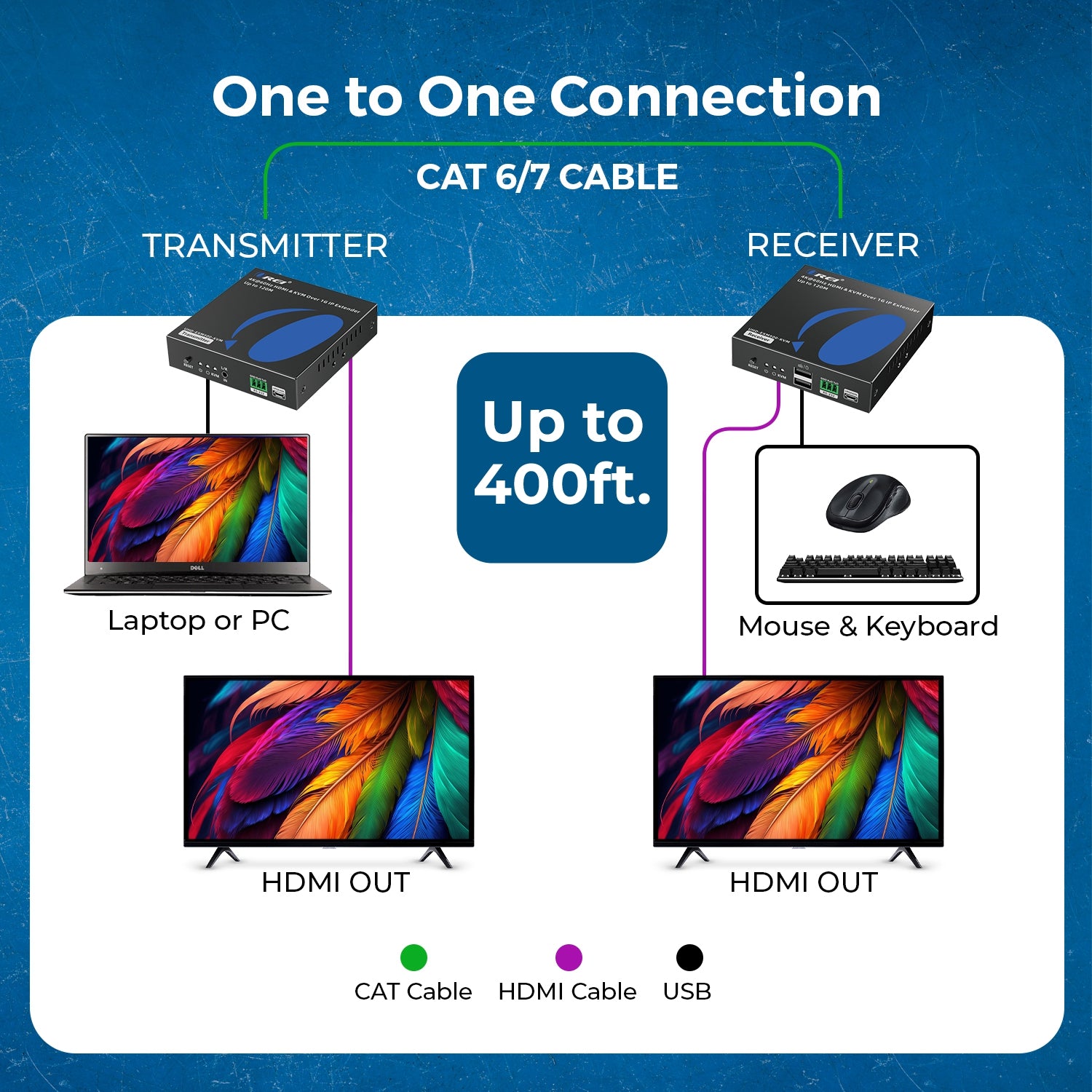

It extends HDMI & USB KVM signals to up to 500 Feet
This device can function with one to one or one to many configurations
Use a standard network switch for one to many configuration
Please note that this device will not work over your existing network switch, it requires a dedicated switch
2 USB A ports on the receiver for connecting keyboard-mouse and 1 USB A port on the transmitter for connecting to the host device.
RS-232 pass-through for easy control using the RS-232 commands
Compact design for easy and flexible installation
Perfect for commercial and personal uses.

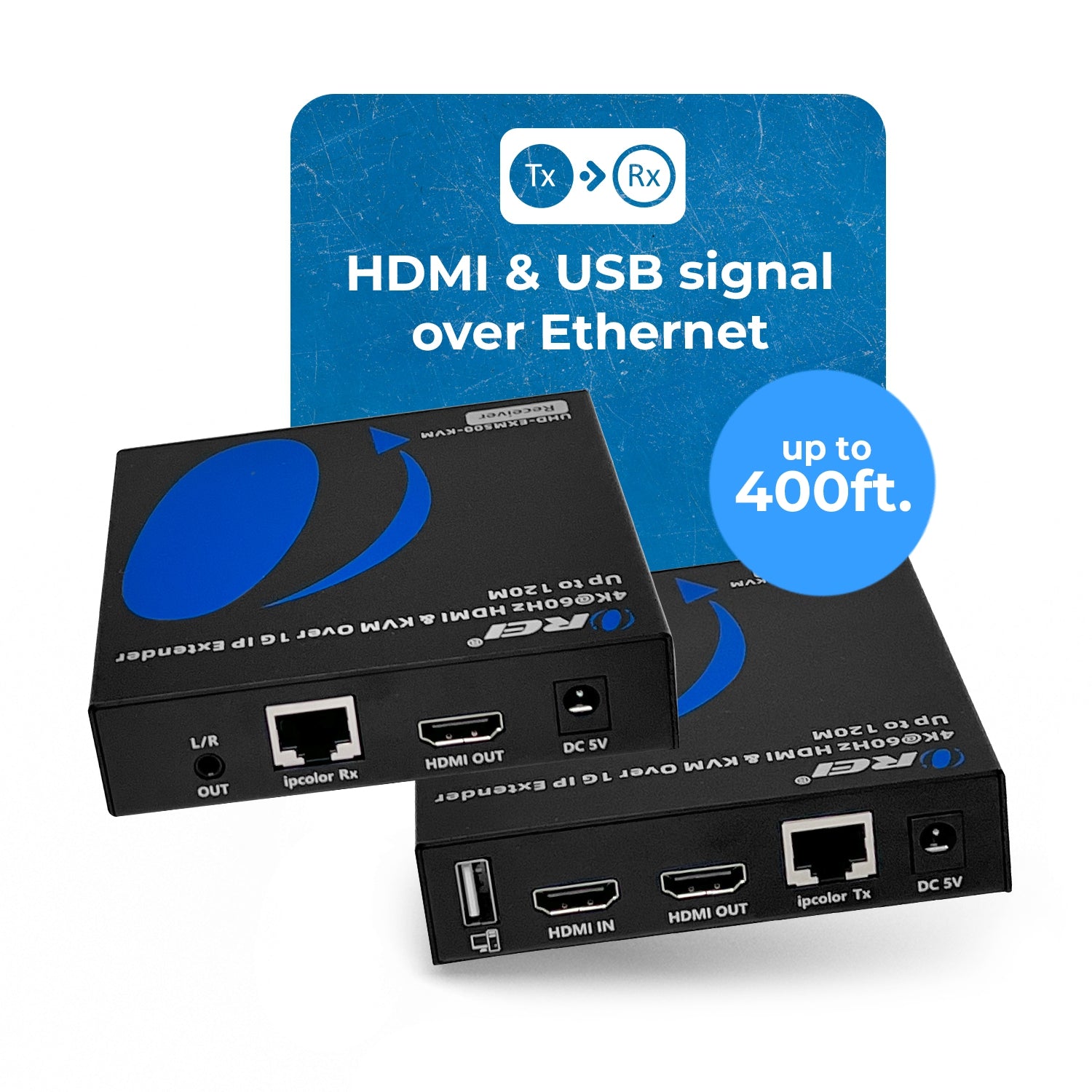

The UHD-EXM500-KVM is an over IP HDMI and KVM extender that extends HDMI and KVM signals up to 500 feet over a CAT cable. It supports one-to-one and one-to-many configurations using a dedicated network switch. Please note that this device will not work over your existing network switch it requires a dedicated network switch. It is compliant with HDMI 2.0 and HDCP 2.2 standards, with a video bandwidth of up to 18Gbps. It supports video resolutions up to 4K@60Hz 4:4:4. The transmitter has 1 USB 2.0 port for connecting the host, while the receiver has 2 USB 2.0 ports for a keyboard and mouse. The device features an HDMI loop output port to connect a display and a 3.5mm AUX port on the receiver for audio extraction. RS-232 pass-through for easy control via the RS-232 commands. Compact design with an easy installation. Perfect for commercial and personal setups.
CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin female]
1 × L/R IN [3.5mm Stereo Mini-jack]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
1 × CAT [RJ45, 8-pin female]
CONTROL:
1 x USB - B port [Host device]
1 × RS-232 [3-Pin Phoenix Connector]
1 × SERVICE [Micro-USB]
Receiver:
INPUT:
1 × CAT [RJ45, 8-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
1 × L/R IN [3.5mm Stereo Mini-jack]
CONTROL:
1 × RS-232 [3-Pin Phoenix Connector]
2×USB [USB Type A]
1 × SERVICE [Micro-USB]
PACKAGE CONTENTS
1x Transmitter
1x Receiver
10 x Screws
1x Grounding screws
1x USB Cable
2x 3-pin Phoenix Connector
4 x Mounting Ear
2x Power adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use round shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
UHD-EXM500-KVM User Manual Download
