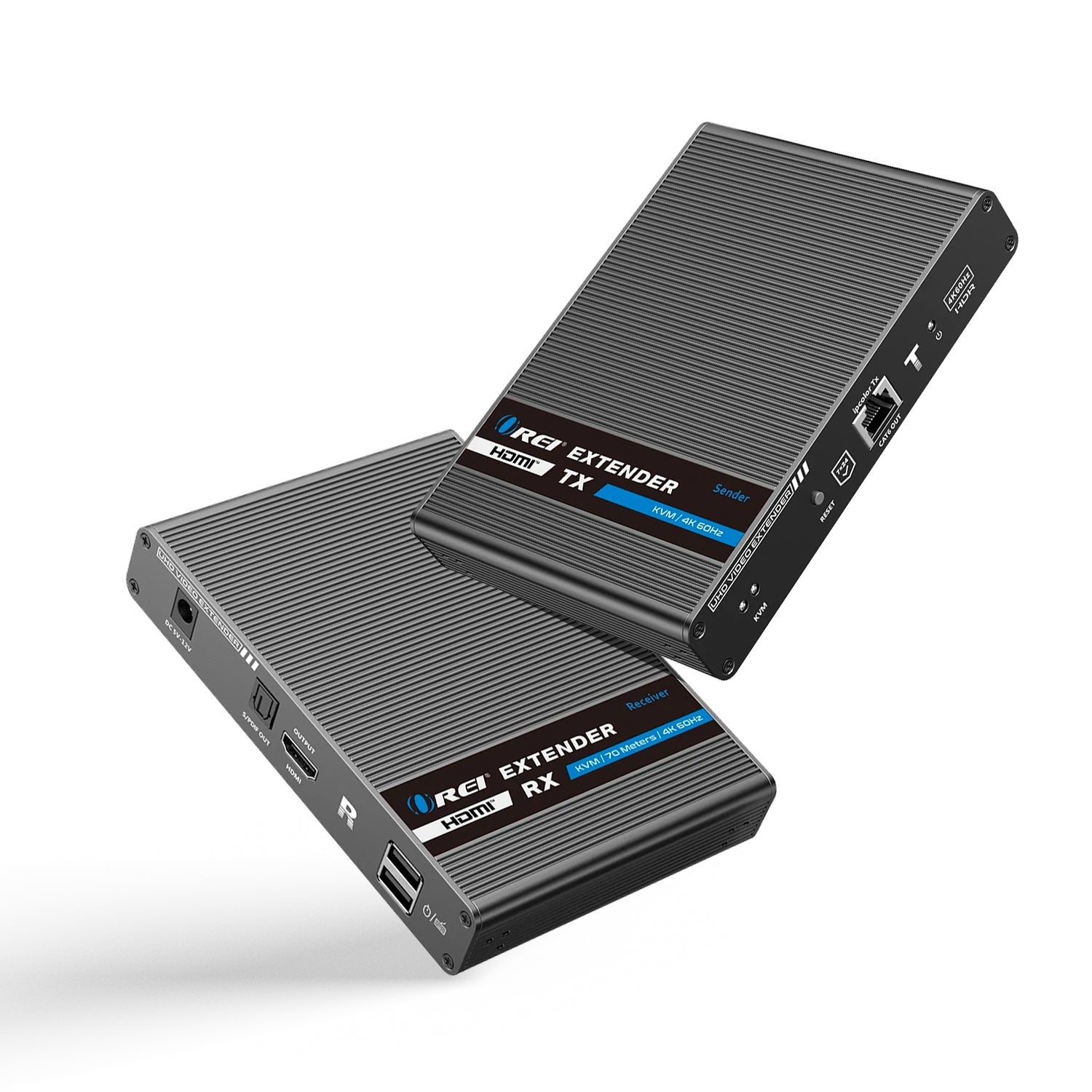

4K KVM HDMI Extender Over CAT6/CAT7 Cable Up to 230 Ft Keyboard & Mouse Over Network (UHD-IPC230-KVM)

Name: 4K KVM HDMI Extender Over CAT6/CAT7 Cable Up to 230 Ft Keyboard & Mouse Over Network (UHD-IPC230-KVM)
Brand: OREI
SKU: UHD-IPC230-KVM
Price: 159.99 USD
Availability: OutOfStock

$159.99 $199.99

Shipping calculated at checkout.

SKU: UHD-IPC230-KVM

Supports KVM function
Able to extract the audio via S/PDIF port
Supports HDR (YUV 4:4:4), EDID pass back

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

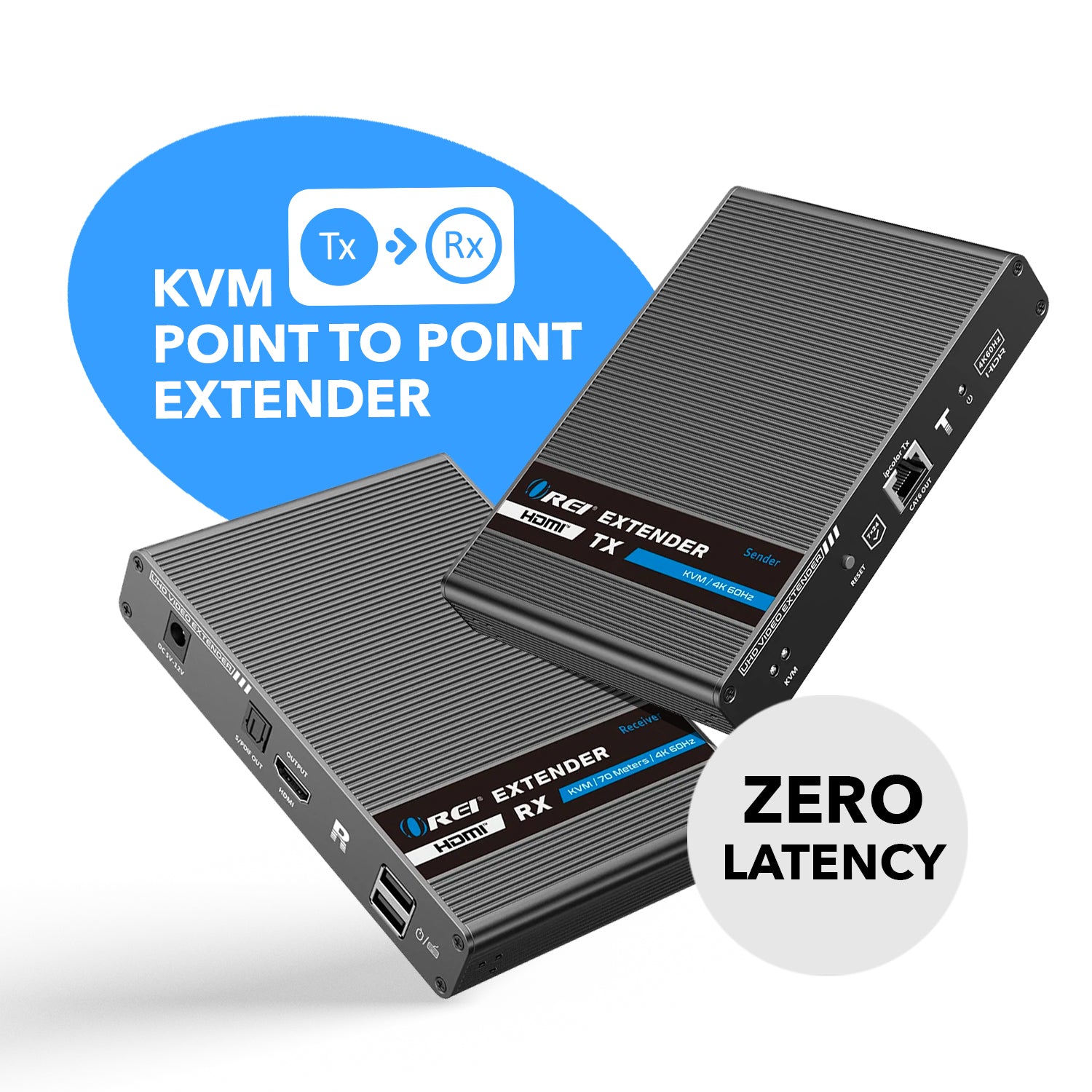

OREI UHD-IPC230-KVM 4K KVM HDMI Extender Over LAN up to 230Ft

Key Features:

Transfers the 4K UHD video resolutions at zero latency

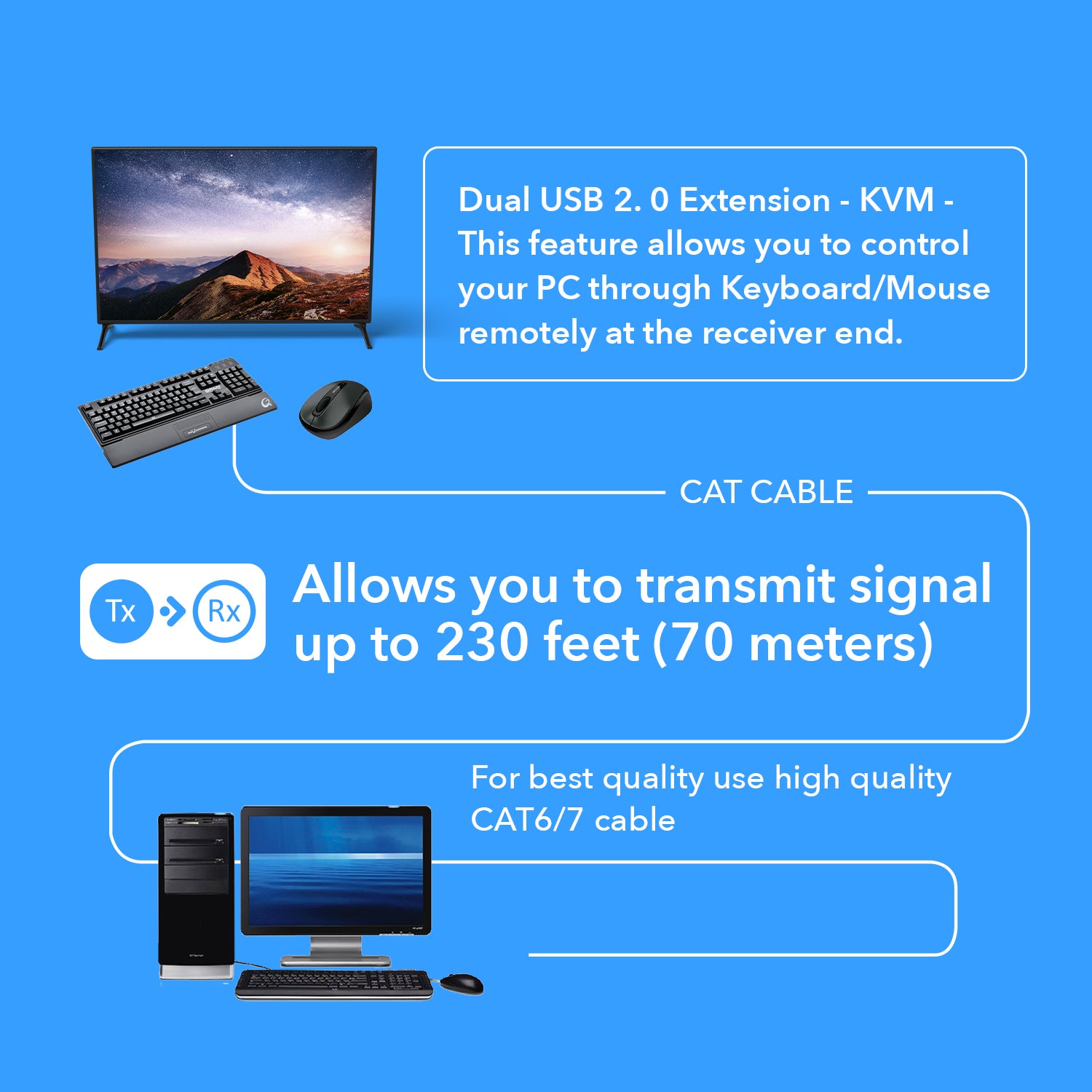

Supports KVM (keyboard, video and mouse) function
Supports ipcolor technology
HDMI 2.0 & HDCP 2.2 compliant
Extends 4K@60Hz signal up to 230 feet via shielded CAT6/7 cable
Supports HDR (YUV 4:4:4), EDID pass back
Supports LPCM, DTS-HD, DTS-Audio, Dolby Digital 5.1 Ch audio formats
The receiver can extract the digital audio from the transmitter through the S/PDIF port
Transmitter supports one HDMI loop out port
Lightning protection, surge protection, ESD protection
Plug & play setup

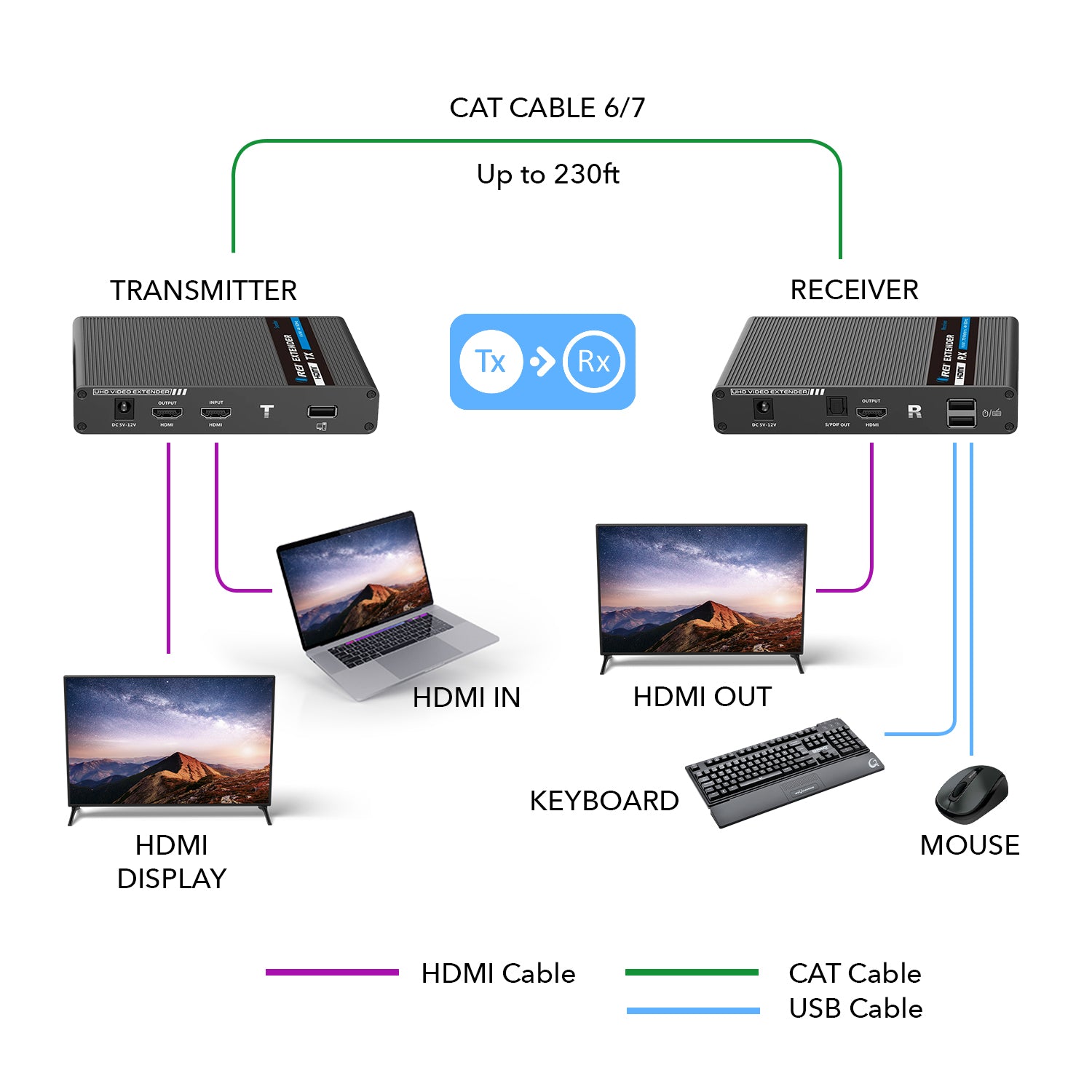

UHD-IPC230-KVM is a 4K UHD KVM HDMI Extender, allows HDMI signal to be transmitted up to 230 feet at 4K@60Hz resolution using a round shielded CAT6/7 network ethernet cable.

Compatible with HDMI units such PC, Roku, TV, Amazon Fire TV, Ultra Projector, Xbox, Apple TV, HDMI LCD, Cable box, Blu-ray player, DVD player, PC, STB and more. It is perfect for outdoor advertising, video clips, monitor system, home entertainment, conference etc.

AUDIO AND VIDEO

Transmitter:	INPUT PORTS:	1x HDMI Input
		1x USB
	OUTPUT PORTS:	1x Optical Output
		1x RJ45 Output
Receiver:	INPUT PORTS:	1x RJ45 Input
	OUTPUT PORTS:	1x HDMI Output
		2x USB

COMPLIANCES

HDMI Compliance:	HDMI 2.0
HDCP Compliance:	HDCP 2.2

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@60Hz:

Up to 230 feet

VIDEO OUTPUT

Video Bandwidth:	18Gbps
Video Resolutions:	480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@60Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1360x768, 1366x768, 1600x900, 1024x768, 800x600

CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT

CEC Function:	No
ARC Function:	No
USB KVM Function:	Yes
PoC/PoE Function:	No
IR Controller:	No
Downscaler Function:	No
Over Network/IP Function:	No
HDBaseT Function:	No
RS-232 Function:	No

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	1

AUDIO OUTPUT

HDMI Audio Formats:	LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1 Ch.
SPDIF/Optical Audio Formats:	Up to 5.1Ch.

SIGNALS

TMDS Signals:	0.7-1.2Vp-p(TMDS)
DDC Signals:	5Vp-p(TTL)

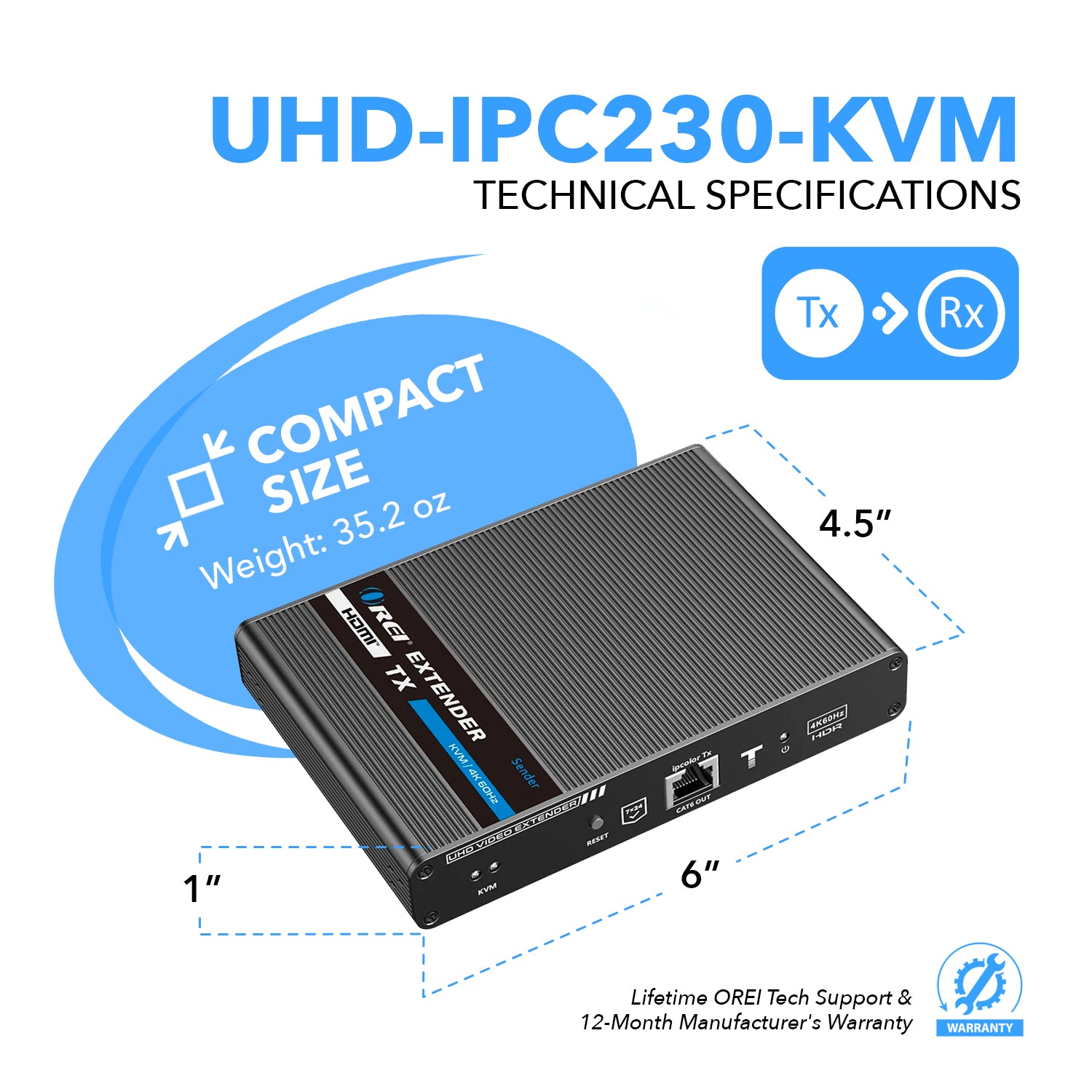

DIMENSIONS & WEIGHT

Height:	28.4mm
Width:	107mm
Depth:	150mm
Weight:	Transmitter:	260g
	Receiver:	260g

PROTECTION

Operation Temperature:	-20 ~ 60°C
Storage temperature:	-30 ~ 70°C
Relative Humidity:	0 ~ 90% RH
Electrostatic Protection of the whole Machine:	1a Contact discharge level 3 1b Air discharge level 3 Implementation of the standard: IEC61000-4-2

RJ-45 CONNECTOR Type

WE/SS 8P8C

POWER

Power Consumption (Max):	Transmitter:	4W
	Receiver:	4W
Power Supply:	DC5V/2A

PHYSICAL PROPERTIES

Color:	Black
Housing:	Aluminium Alloy Material + Crystal Panel
Treatment Process:	Grit Blast
Input Cable Length:	<=8m(AWG24)
Output Cable Length:	<=8m(AWG24)

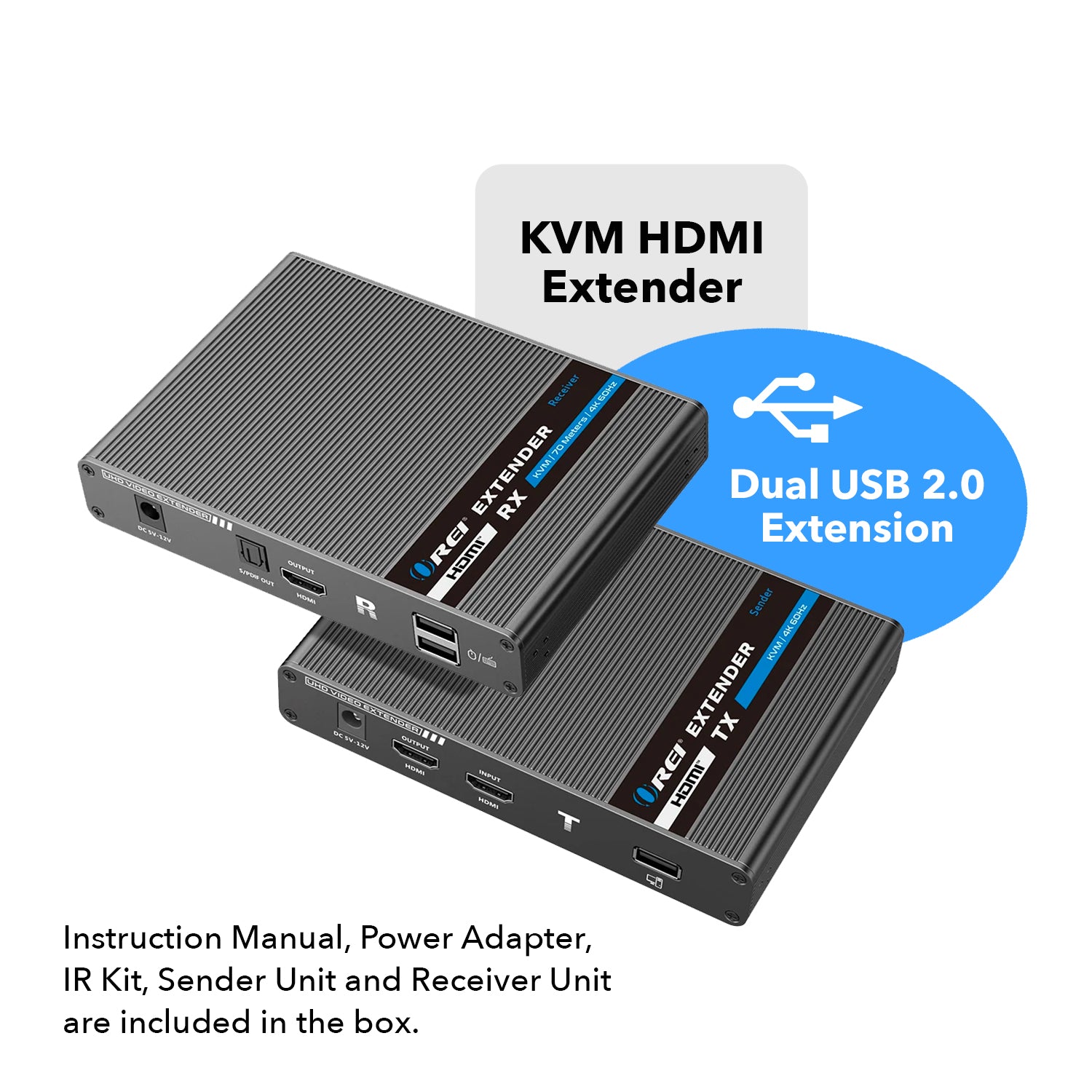

PACKAGE CONTENTS

1x HDMI Transmitter

1x HDMI Receiver

2x DC5V/2A Power Adapter

1x USB Cable

8x Mounting Brackets

18x Screw

1x User Manual

WARRANTY

1 - Year Manufacturer's Warranty

Quick Setup & Installation guide

UHD-IPC230-KVM User Manual Download

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

You can extend the display devices up to 230 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.
