4K HDMI Extender Over CAT6/7 With KVM & HDMI Loop-Out 4K@60Hz Up To 230 Ft (UHD-EX230-KVM)

Name: 4K HDMI Extender Over CAT6/7 With KVM & HDMI Loop-Out 4K@60Hz Up To 230 Ft (UHD-EX230-KVM)
Brand: OREI
SKU: UHD-EX230-KVM
Price: 129.99 USD
Availability: InStock

$129.99 $149.99

Shipping calculated at checkout.

SKU: UHD-EX230-KVM

KVM and HDMI extender over ethernet up to 230 feet
Video resolutions up to 4K@60Hz 4:4:4
Audio extraction & Bi-directional Power over cable

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Quantity

Reseller & Installer Discounts

Add to Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

OREI 4K KVM Extender over Ethernet up to 230 feet - With Audio extraction & Bi-directional Power over Cable

Key Features:

HDMI 2.0b & HDCP 2.2 Compliant
Features USB 1.1 Protocol
4K@60Hz transmission up to 230ft
Zero latency transmission using CAT6/6A/7 cables.
KVM functionality to control a PC remotely.
HDR10, HLG, and Dolby Vision pass-through
Audio extraction through the receiver’s L/R port
Bi-directional power over cable functionality; only requires one power adapter to power up both units.
EDID copy pass-through function between the source device and display device
Compact build with easy installation.
Perfect for both personal and commercial uses.

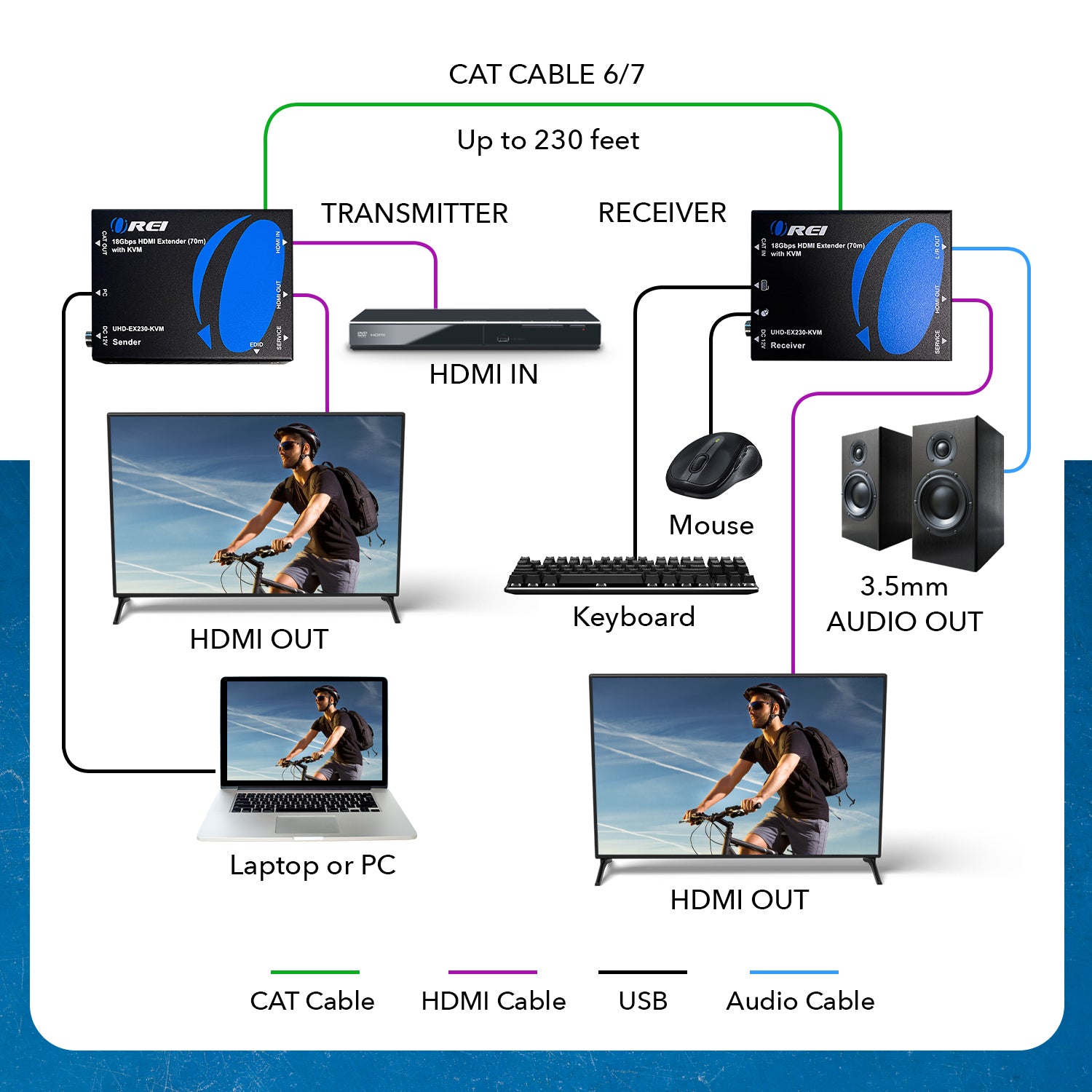

The UHD-EX230-KVM HDMI Extender supports resolutions up to 4K@60Hz and can extend HDMI and KVM signals up to 70m/230ft over a CAT6/6A/7 cable. It is HDMI 2.0b, HDCP 2.2, and USB 1.1 compliant. The device can extract audio from the source and output it through the L/R port on the receiver unit. It supports pass-through for HDR, Dolby Vision, and HLG. It requires a point-to-point connection and also supports KVM functionality, allowing a keyboard and mouse at the receiver end to control the PC or laptop at the source. The bi-directional power-over-cable technology requires only one power adapter to power both devices, adding flexibility to the setup. It also features an EDID copy pass-through function between the source and display devices. With a robust metal build and compact size, it ensures easier installation. Compact design with easy plug-and-play installation. Perfect for commercial and personal uses.

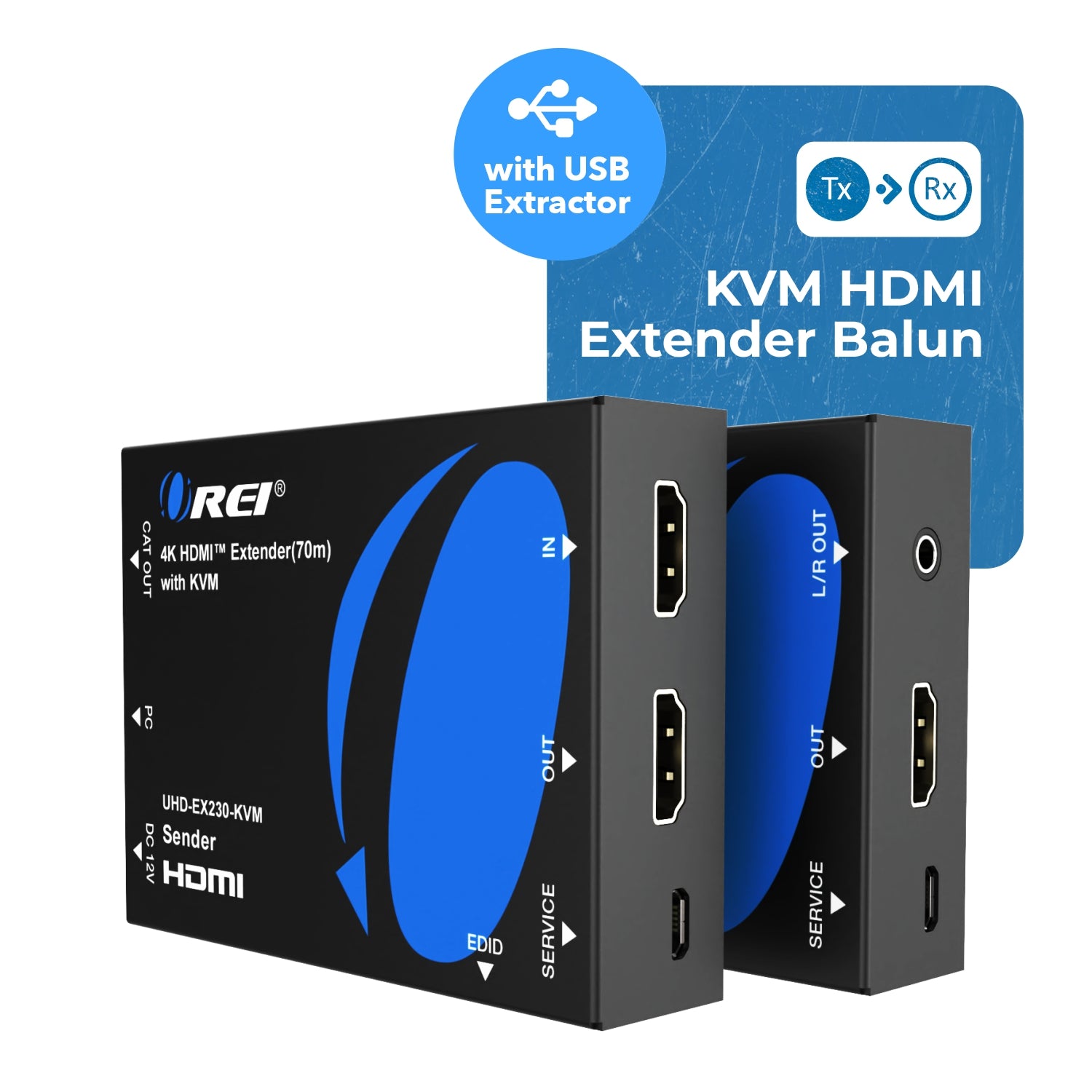

CONNECTIVITY

Transmitter:	INPUT:	1 × HDMI [Type A, 19-pin female]
	OUTPUT:	1 × HDMI [Type A, 19-pin female]
		1 × CAT [RJ45, 8-pin female]
	CONTROL:	1 × SERVICE [Micro USB, Update port]
		1 x USB - B port [Host device]
Receiver:	INPUT:	1 × CAT [RJ45, 8-pin female]
	OUTPUT:	1 × HDMI [Type A, 19-pin female]
		1 × L/R OUT [3.5mm Stereo Mini-jack]
	CONTROL:	2×USB [USB Type A]
		1 × SERVICE [Micro USB, Update port]

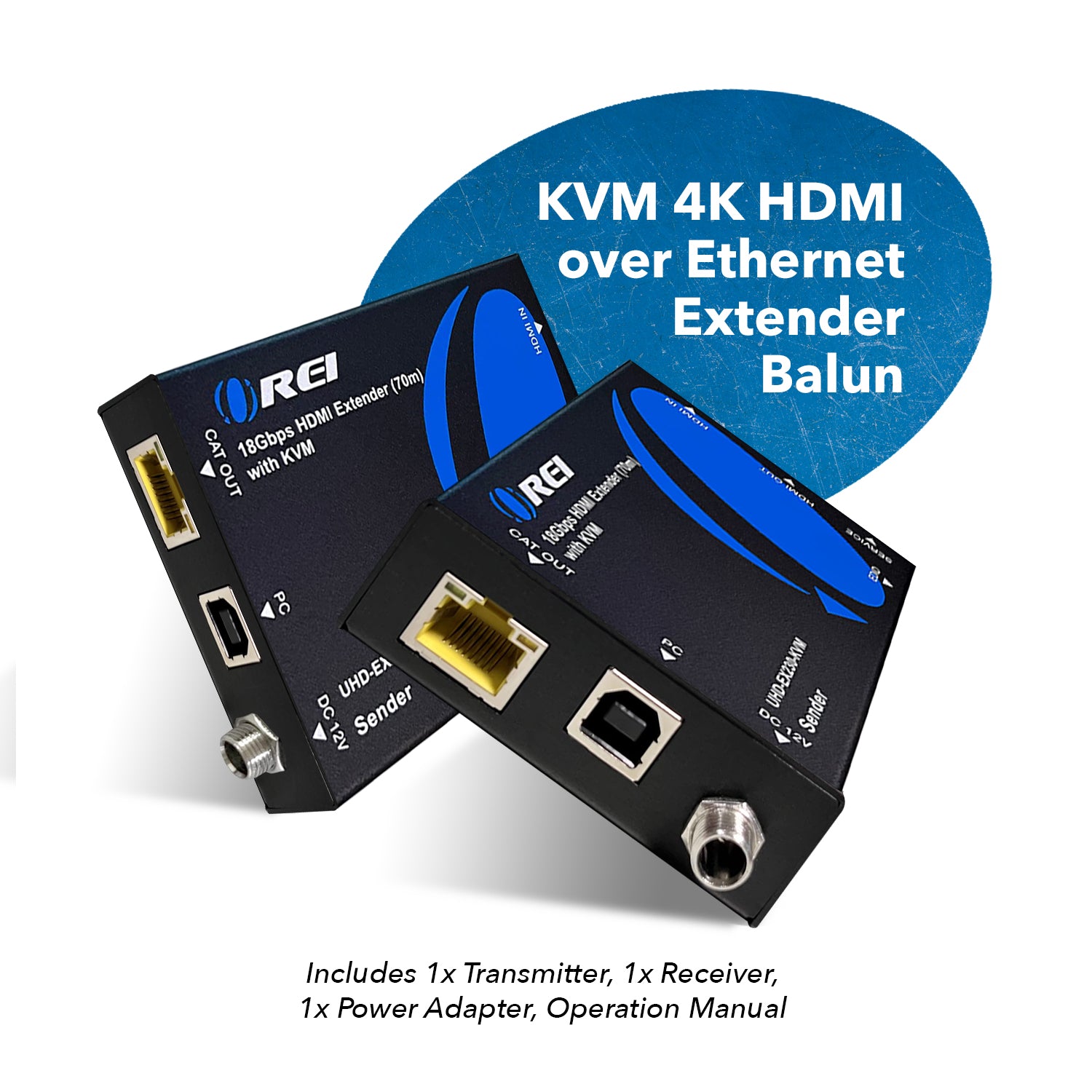

PACKAGE CONTENTS

1x Transmitter

1x Receiver

1x USB Cable

4x Mounting ears

8x Screws

1x Power Adapter

User Manual

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@60Hz:

230 Feet

VIDEO OUTPUT

Video Bandwidth:	18Gbps
Video Resolutions:	Up to 4K@60Hz 4:4:4

ADDITIONAL FEATURES

CEC:	No
ARC:	No
USB KVM:	Yes
PoC/PoE:	Yes
IR Control:	No
Downmix:	No
Downscale:	No
Over IP:	No
HDBaseT:	No
RS-232:	No

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	1

AUDIO SUPPORT

HDMI Audio Formats:

LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+)

COMPLIANCES

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2

POWER

Power Consumption:	4.2W (Max)
Power Supply:	Input: AC 100-240V 50/60Hz
	Output: DC 12V/1A

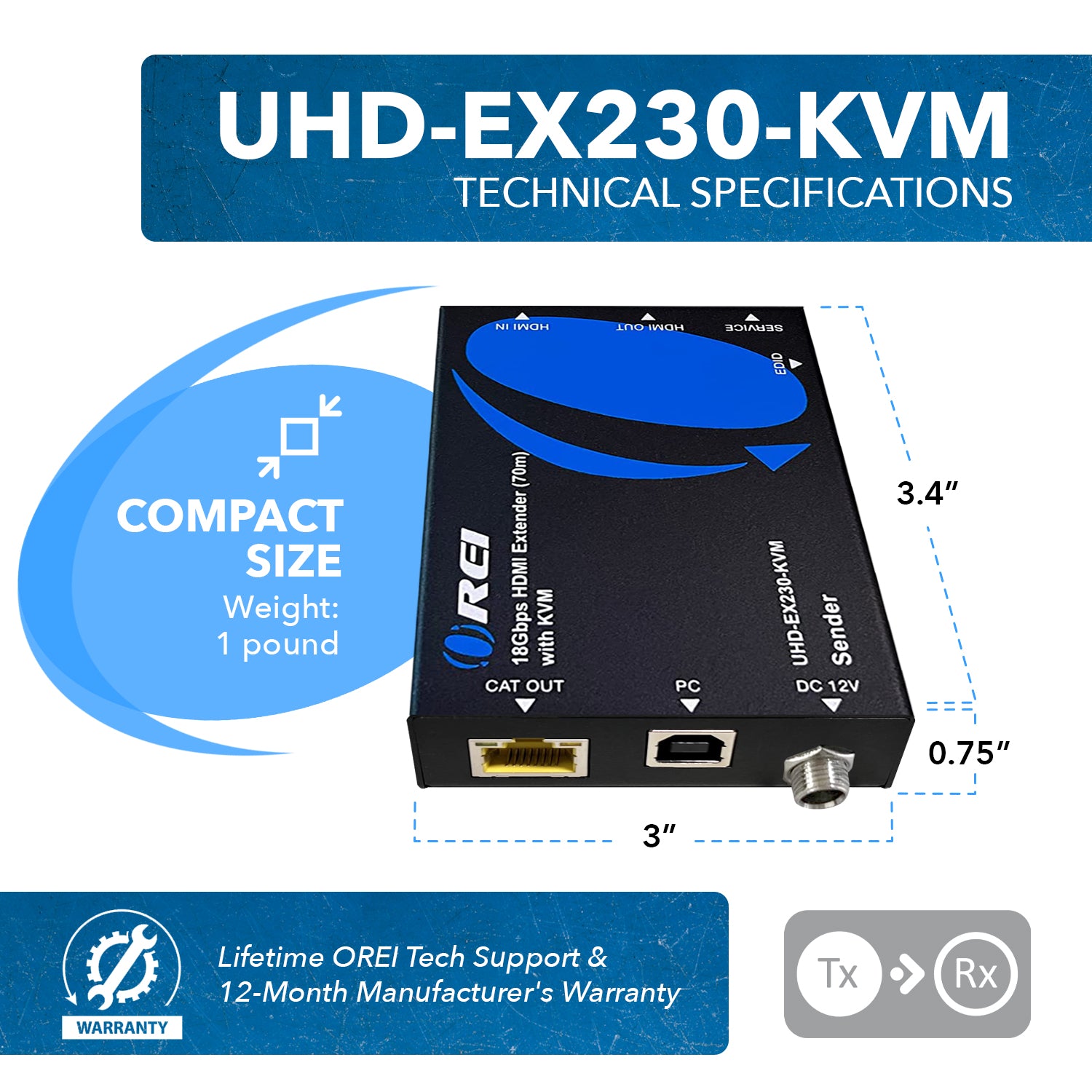

DIMENSIONS & WEIGHT

	Length:	90mm / 3.54in
	Width:	68mm / 2.68in
	Height:	22mm / 0.87in
	Weight:	170g / 6oz
	Length:	90mm / 3.54in
	Width:	68mm / 2.68in
	Height:	22mm / 0.87in
	Weight:	169g / 5.96oz

PROPERTIES

Color:	Black
Housing:	Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

UHD-EX230-KVM User Manual Download

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

No, this product doesn't upscale/downscale the video resolutions.

You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

You can upgrade the firmware by connecting the PC & this device via RS-232 cable.

Please note that this product only supports the CEC function between HDMI input & HDMI output 1.

No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.

HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.

In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.

We recommend you using a shielded CAT6 cables for optimum performance.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
