4K HDMI Extender Balun by OREI Upto 165 Feet - UltraHD 4K @ 60Hz 4:4:4 Over Single CAT6/7 (UHD-IPC165-K)

Name: 4K HDMI Extender Balun by OREI Upto 165 Feet - UltraHD 4K @ 60Hz 4:4:4 Over Single CAT6/7 (UHD-IPC165-K)
Brand: OREI
SKU: UHD-IPC165-K
Price: 89.99 USD
Availability: InStock

$89.99 $119.99

Shipping calculated at checkout.

SKU: UHD-IPC165-K

HDMI Matrix extender over ethernet up to 230 feet
Video resolutions up to 4K@30Hz 4:4:4
With Audio extraction Bi-directional IR & Uni-directional Power over cable

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Quantity

Reseller & Installer Discounts

Add to Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

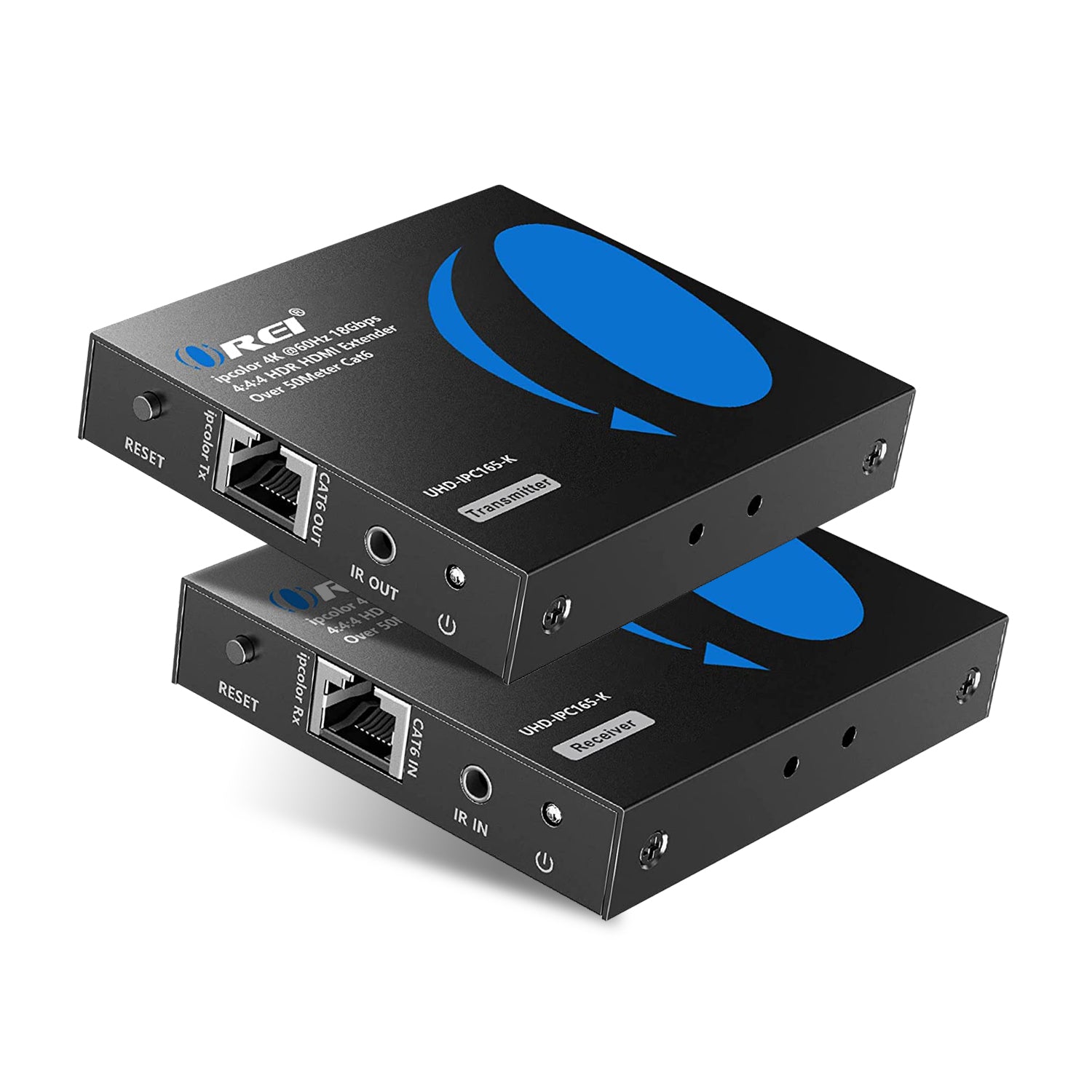

4K Extender over Ethernet up to 165 feet - With Audio Extraction & IR Functionality (UHD-IPC165-K)

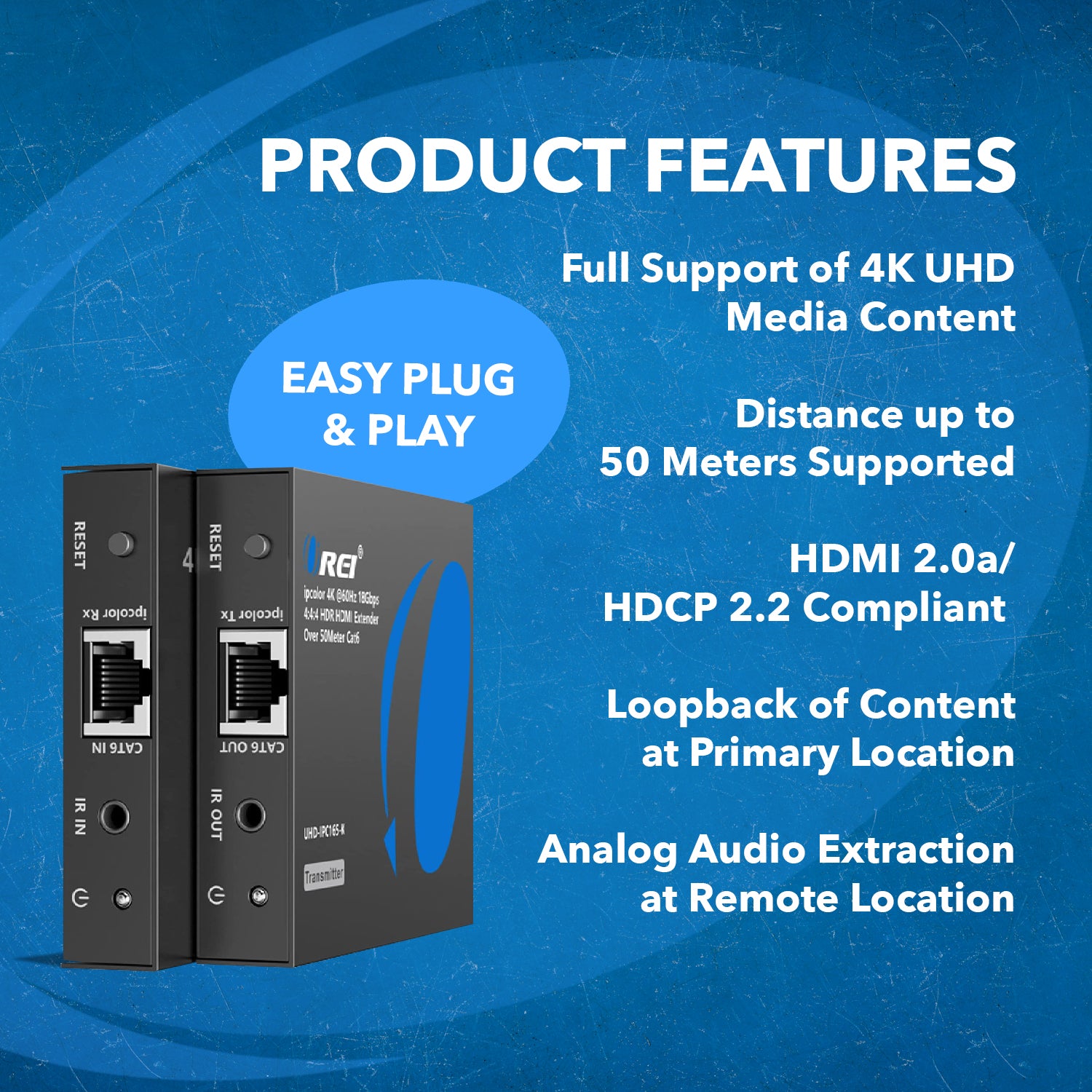

Key Features:

HDMI 2.0 & HDCP 2.2 Compliant
Video bandwidth of 18Gbps

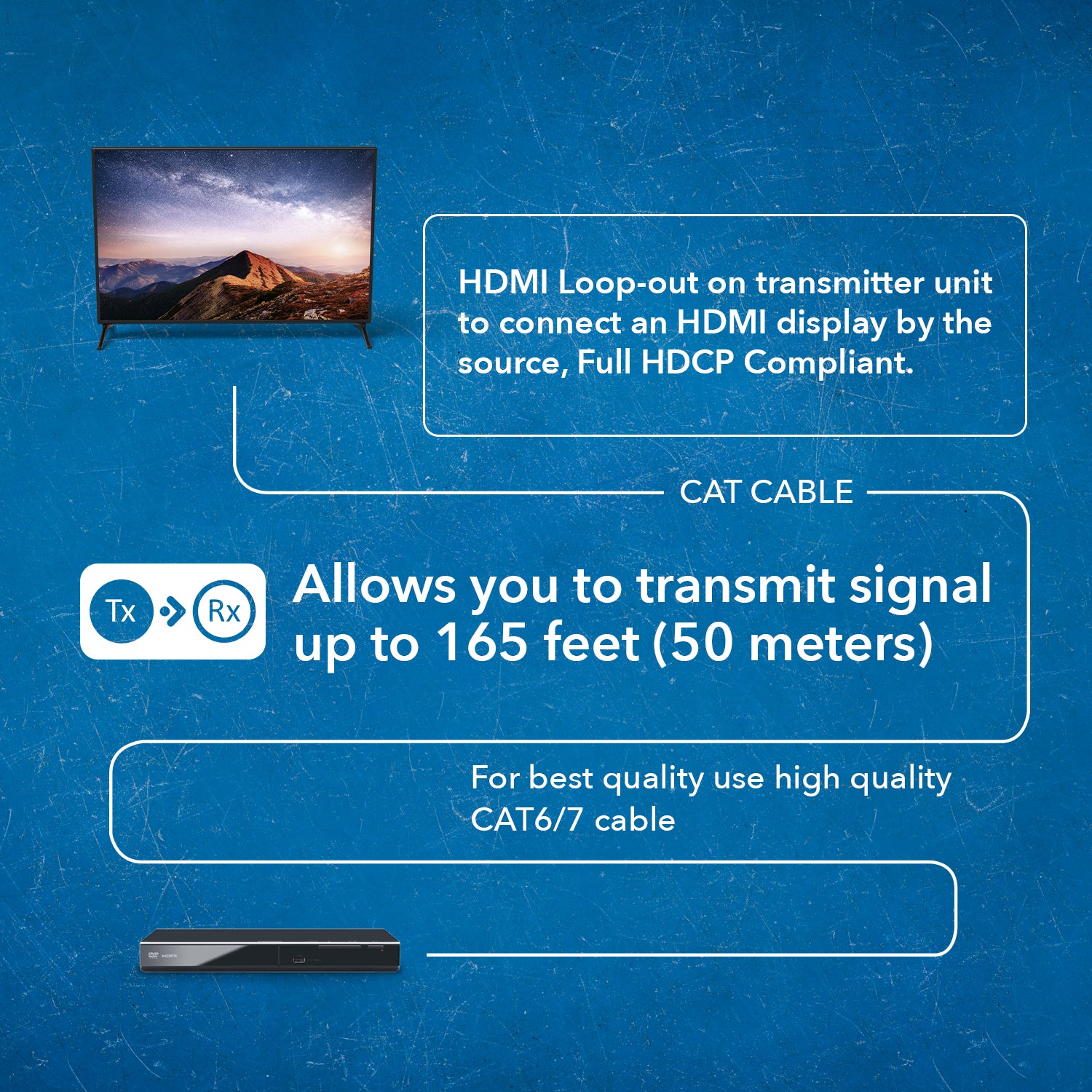

HDMI loop output port to connect a display at source
4K@60Hz 4:4:4 transmission up to 50m / 165ft
Extension can reach up to 230 feet with shielded CAT6/6a/7 cables
HDR10 passthrough for enhanced color quality
Uni-directional IR functionality for source control from the location of the receiver
Audio extraction through the L/R port on the receiver unit
Advanced EDID Management
Compact build with easy plug-and-play installation.
Perfect for both personal and commercial uses.

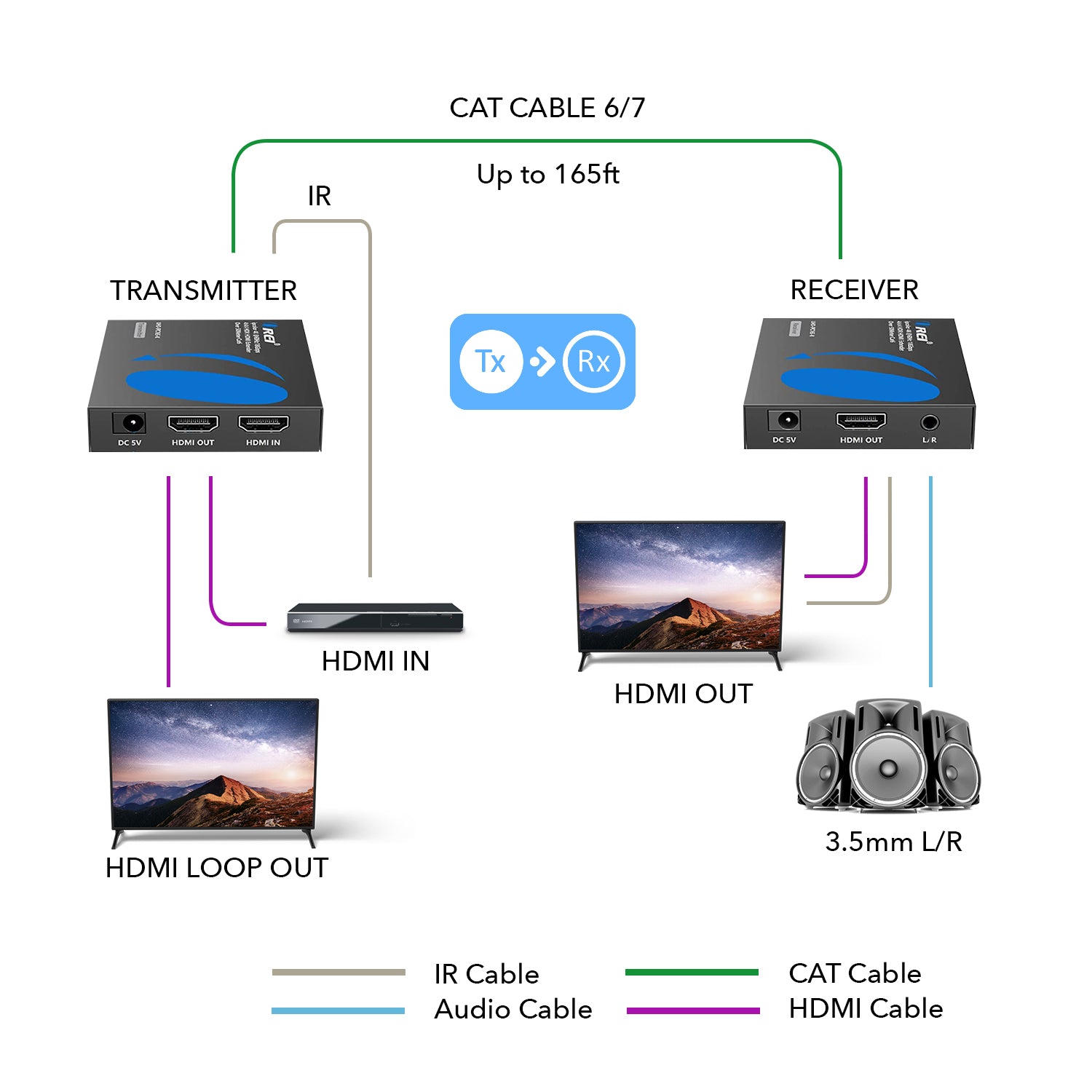

The UHD-IPC165-K HDMI extender transmits HDMI signals up to 165 feet away (maximum 230 feet with shielded CAT6/6a/7 cables). Video resolutions up to 4K@60Hz 4:4:4. HDMI 2.0 and HDCP 2.2 compliant with an 18Gbps video bandwidth, supporting HDR passthrough. The transmitter unit features an HDMI loop output port to connect a display at the source. Audio extraction through the L/R port on the receiver unit. It includes uni-directional IR pass-through for controlling the HDMI source from the receiver’s location. The device can copy EDID settings from the transmitter to the receiver and supports auto downscaling. Compact design and easy plug-and-play installation. Perfect for personal and commercial setups.

CONNECTIVITY

Transmitter:	INPUT:	1 × HDMI [Type A, 19-pin female]
	OUTPUT:	1 × HDMI [Type A, 19-pin female]
		1 × CAT [RJ45, 8-pin female]
	CONTROL:	1 × I/R OUT [3.5mm Stereo Mini-jack]
Receiver:	INPUT:	1 × CAT [RJ45, 8-pin female]
	OUTPUT:	1 × HDMI [Type A, 19-pin female]
		1 × L/R [3.5mm Stereo Mini-jack]
	CONTROL:	1 × I/R IN [3.5mm Stereo Mini-jack]

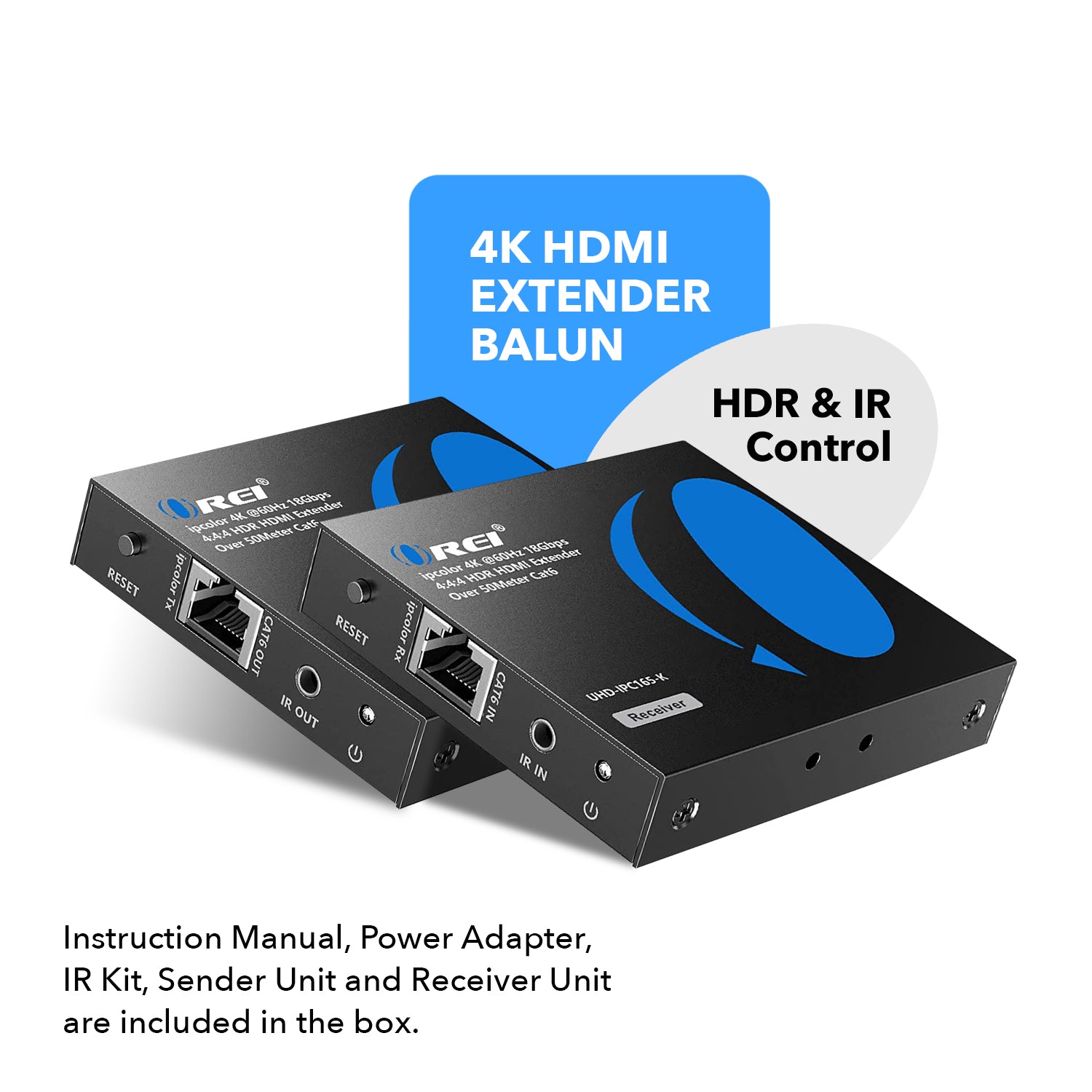

PACKAGE CONTENTS

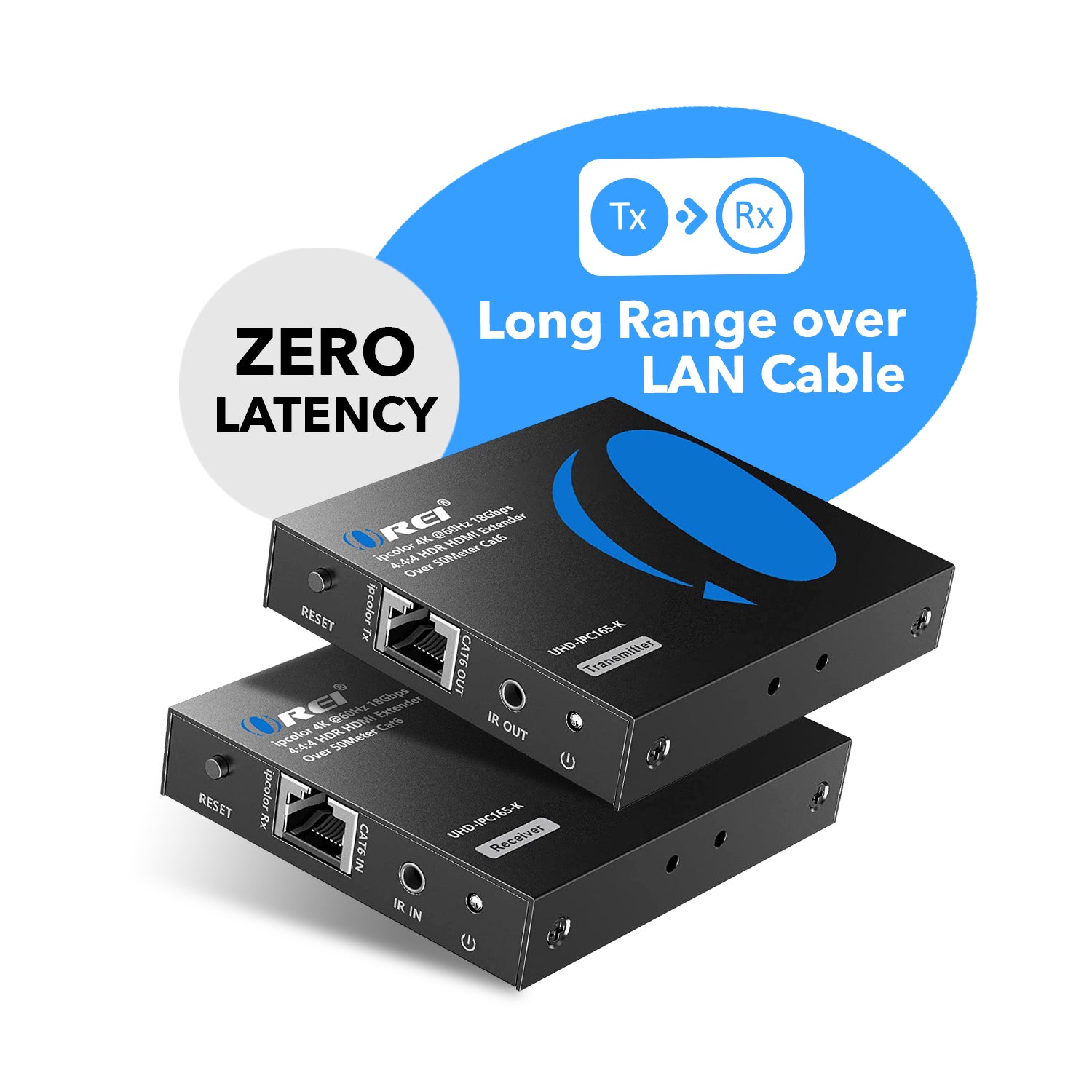

1x Transmitter

1x Receiver

1x IR Blaster cable

1x IR Receiver cable

4x Mounting ears

10x Screws

2x Power Adapter

User Manual

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@60Hz:

165 Feet

VIDEO OUTPUT

Video Bandwidth:	18Gbps
Video Resolutions:	Up to 4K@60Hz 4:4:4

ADDITIONAL FEATURES

CEC:	No
ARC:	No
USB KVM:	No
PoC/PoE:	No
IR Control:	Yes
Downmix:	No
Downscale:	Yes
Over IP:	No
HDBaseT:	No
RS-232:	No

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	1

AUDIO SUPPORT

HDMI Audio Formats:

LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos

COMPLIANCES

HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2

POWER

Power Consumption:	TX: 3W (Max) & RX: 3W (Max)
Power Supply:	Input: AC 100-240V 50/60Hz
	Output: DC 5V/1A

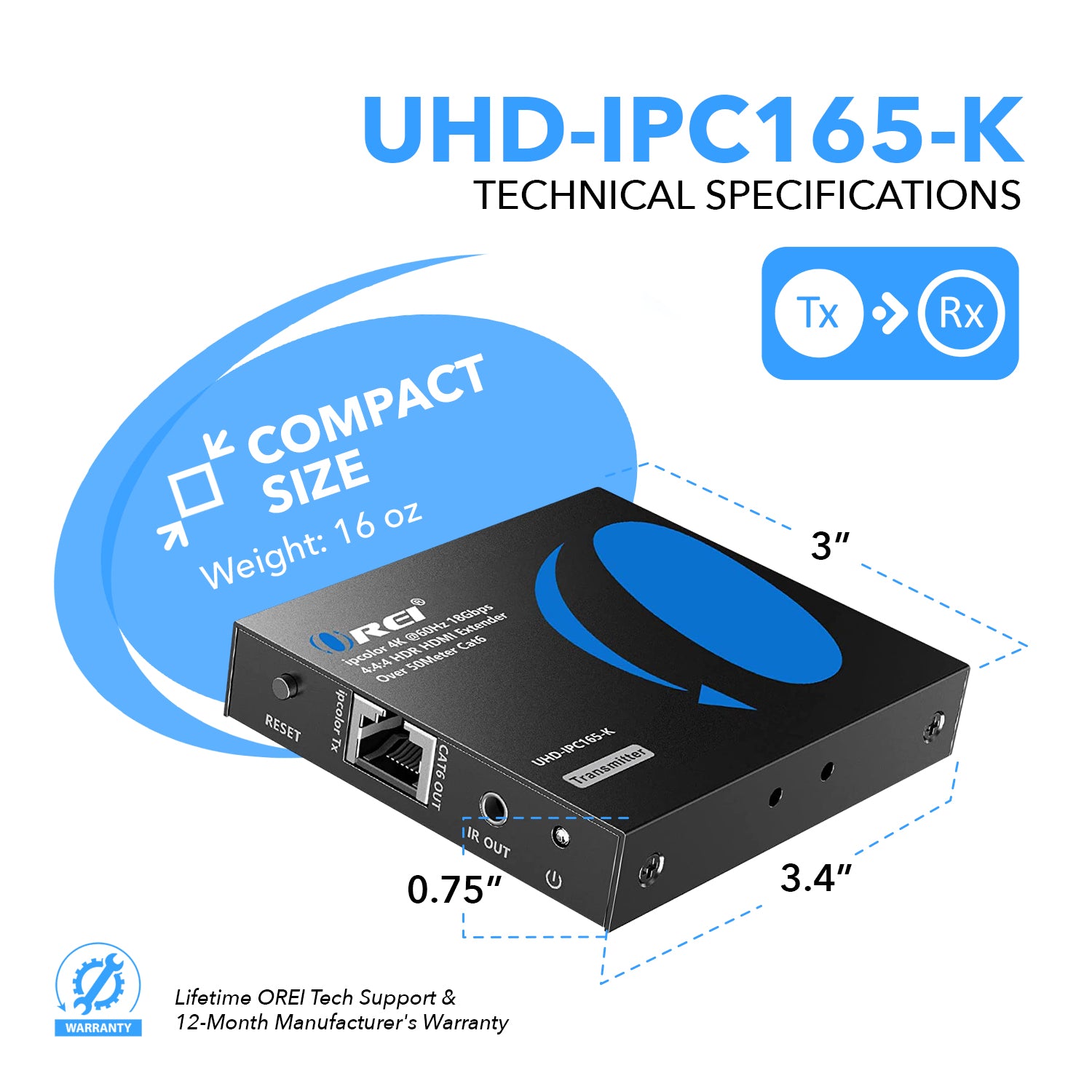

DIMENSIONS & WEIGHT

Transmitter:	Length:	85mm / 3.35in
	Width:	75.5mm / 2.97in
	Height:	16.5mm / 0.65in
	Weight:	140g / 4.94oz
Receiver:	Length:	85mm / 3.35in
	Width:	75.5mm / 2.97in
	Height:	16.5mm / 0.65in
	Weight:	140g / 4.94oz

PROPERTIES

Color:	Black
Housing:	Metal Enclosure

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

UHD-IPC165-K User Manual Download

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

No, this product doesn't upscale/downscale the video resolutions.

You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

You can upgrade the firmware by connecting the PC & this device via RS-232 cable.

Please note that this product only supports the CEC function between HDMI input & HDMI output 1.

No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.

HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.

In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.

We recommend you using a shielded CAT6 cables for optimum performance.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
