1x4 4K HDMI Extender Splitter Over Single CAT6/7 Up To 230 Ft - Ipcolor Technology – 18 Gbps, Bi-Directional IR, RS-232, EDID (UHD14-IPC230-K)

1x4 4K HDMI Extender Splitter Over Single CAT6/7 Up to 230 Ft - ipcolor Technology 18 Gbps, Bi-directional IR, RS-232, EDID (UHD14-IPC230-K)

Name: 1x4 4K HDMI Extender Splitter Over Single CAT6/7 Up to 230 Ft - ipcolor Technology 18 Gbps, Bi-directional IR, RS-232, EDID (UHD14-IPC230-K)
Brand: OREI
SKU: UHD14-IPC230-K
Price: 319.99 USD
Availability: InStock

$319.99

Shipping calculated at checkout.

SKU: UHD14-IPC230-K

Supports ipcolor technology
Supports 18Gbps video bandwidth
Supports Bi-directional IR, RS-232 Control & Advance EDID

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Quantity

Reseller & Installer Discounts

Add to Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

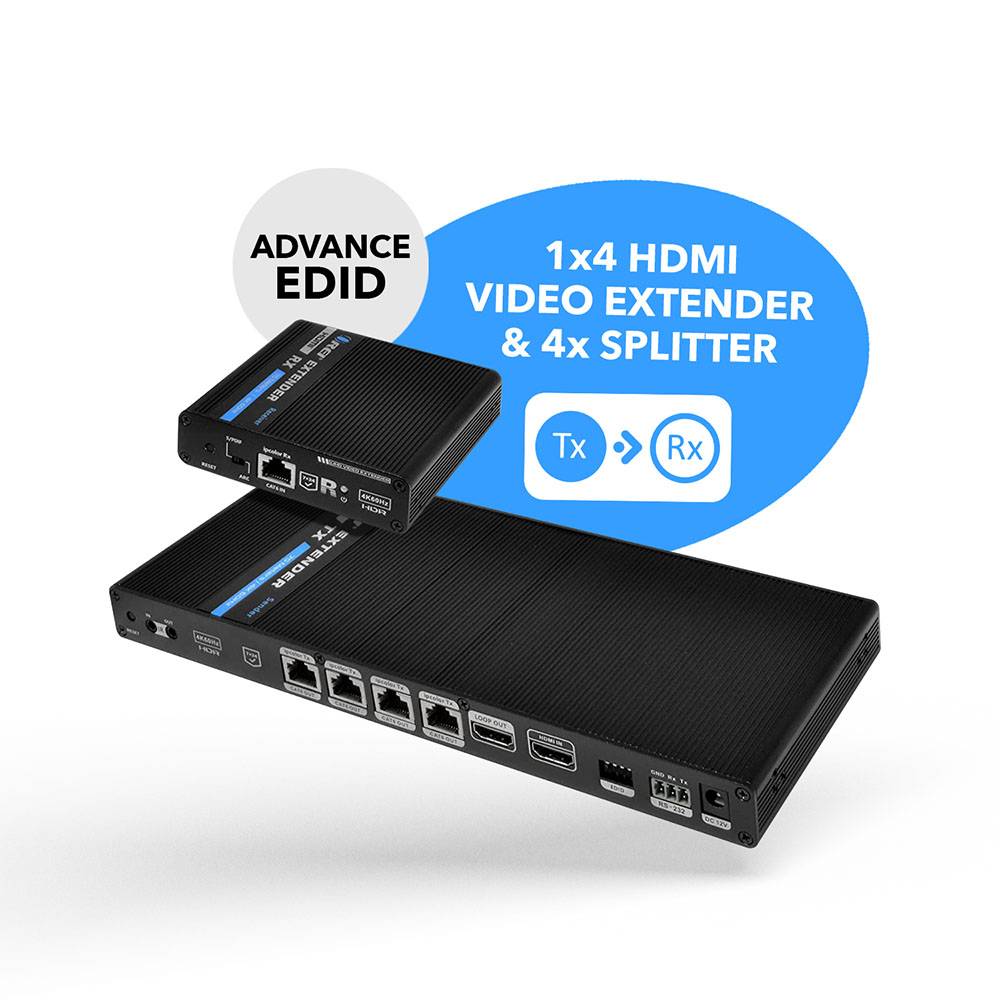

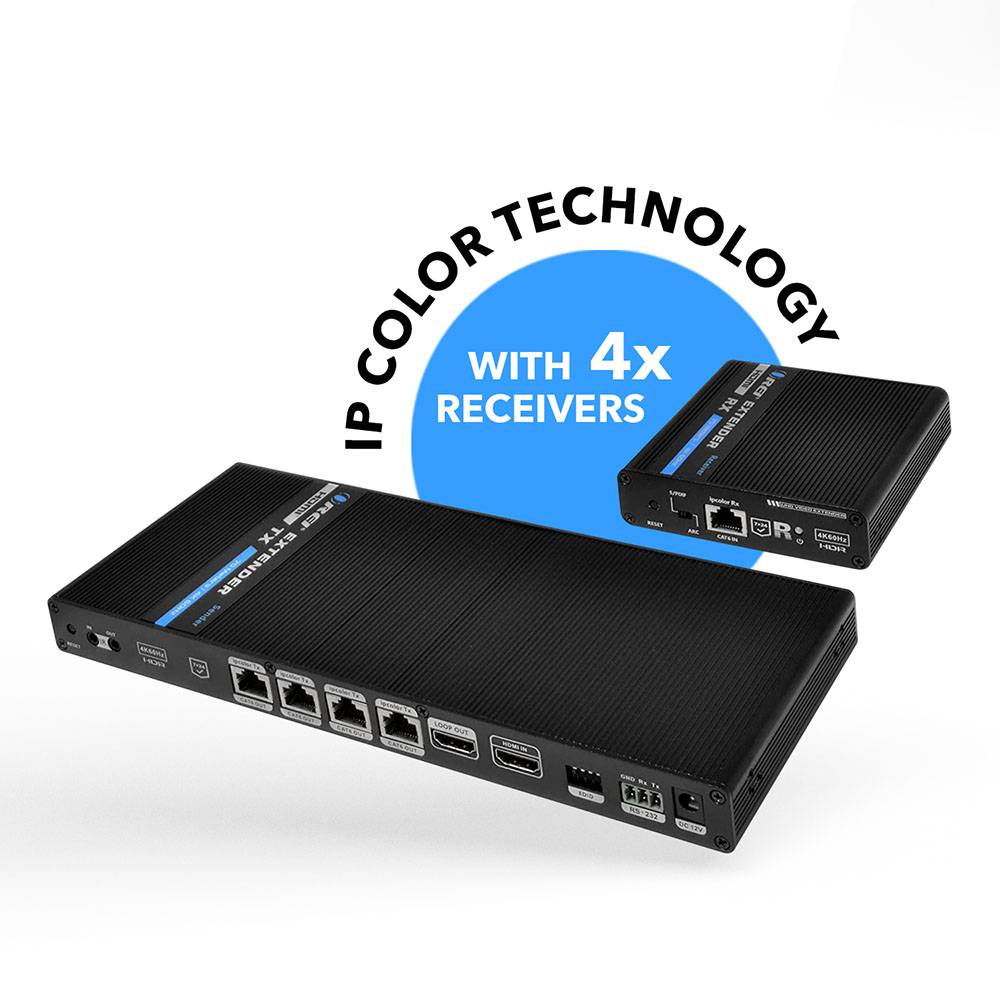

OREI UHD14-IPC230-K 4K HDMI Extender Splitter up to 230Ft

Key Features:

Zero latency transmission of video signals
Can split and extend one HDMI input signal to four output devices
Support up to 4K@60Hz resolutions
Transmission is up to 230 feet by using shielded CAT6/7 cables
Supports bi-directional IR
Supports Advance EDID control settings
Has an HDMI loop out port on the transmitter
The receiver can output the digital audio of the TV or the source device from the S/PDIF port
Supports RS-232 command control
Surge Protection, Lightning Protection, ESD Protection
Equipped with rack mount ears

Description:

UHD14-IPC230-K is 1 Input 4 Outputs Extender Splitter Kit, which integrates the functions of distribution and extension. You can enjoy seamless videos with zero latency.

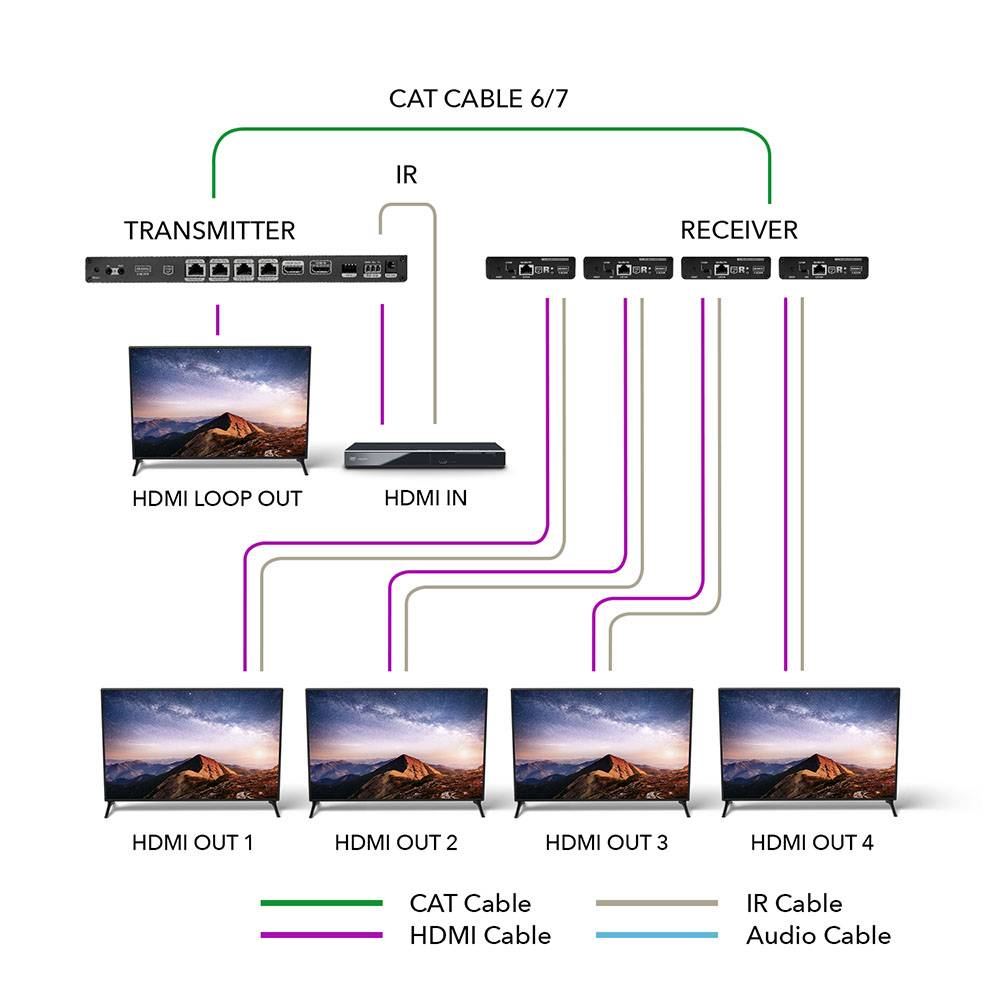

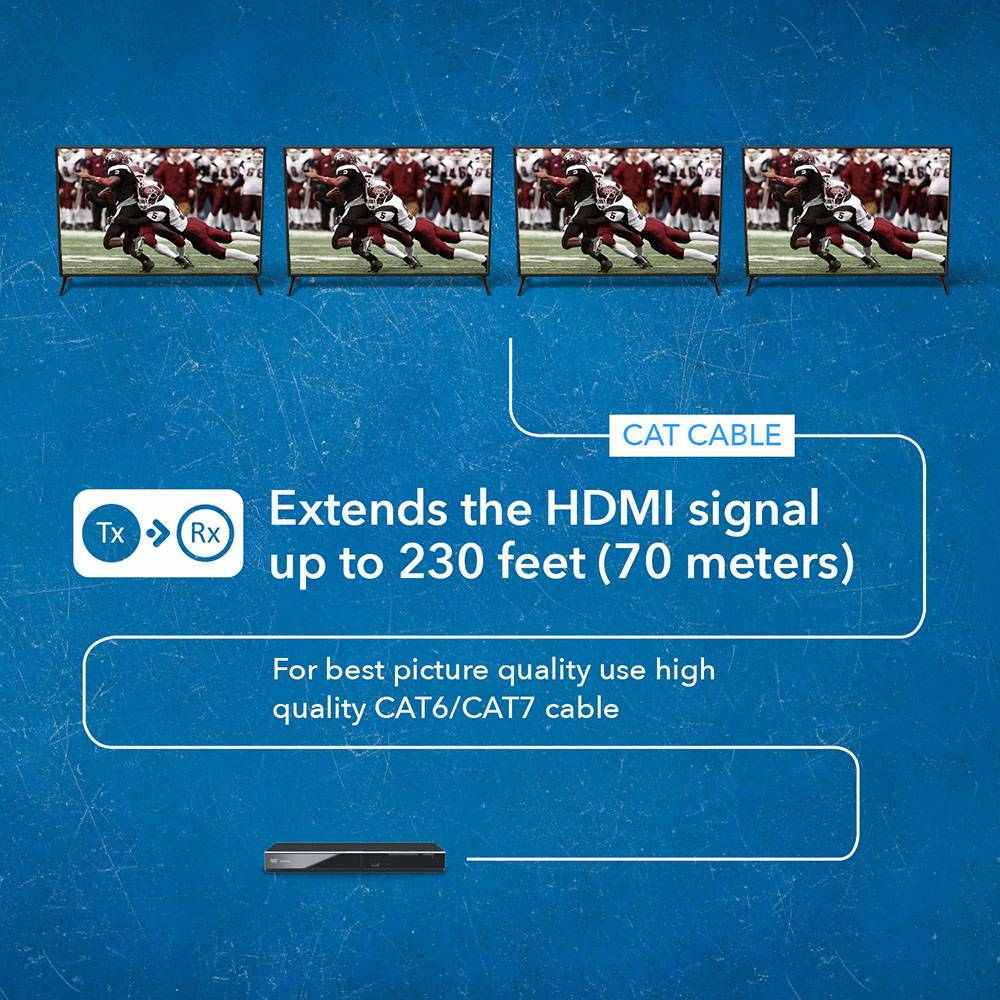

It distributes 1 HDMI input signal to 4 identical signal outputs, extends these signals up to 230 feet, and supports 18 Gbps video bandwidth 4K@60Hz resolution with ipcolor technology.

It also supports bi-directional IR pass back, RS-232 control and advance EDID control settings.

This product has an HDMI loop out port so that you can connect a local display to the transmitter & enjoy the video.

It is suitable for studios, multimedia classrooms, rail transit, etc.

We recommend you using shielded CAT6 cables & high-quality HDMI cables for optimum performance.

AUDIO AND VIDEO

Transmitter:	INPUT PORTS:	1x HDMI INPUT
	OUTPUT PORTS:	4x RJ45 OUTPUT
		1x HDMI OUTPUT
Receiver:	INPUT PORTS:	1x RJ45 INTPUT
	OUTPUT PORTS:	1x HDMI OUTPUT

COMPLIANCES

HDMI Compliance:	HDMI 2.0
HDCP Compliance:	HDCP 2.2
Transmission Protocol:	Ipcolor

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@60Hz:

Up to 230 Feet

VIDEO OUTPUT

Video Bandwidth:	18 Gbps
Video Resolutions:	Up to 4K@60Hz
Color Space:	RGB YCbCr4::4:4 YCbCr4::4:2 YCbCr4::2:0
Color Depth:	8bit

CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT

CEC Function:	No
ARC Function:	Yes
USB KVM Function:	No
PoC/PoE Function:	No
IR Controller:	Bi-Directional IR
Downscaler Function:	No
Over Network/IP Function:	No
HDBaseT Function:	No
RS-232 Function:	Yes

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	1

SWITCHES

EDID Management:	Supports Advance EDID Management Control
ARC:	Supports ARC from the TV (receiver end)
S/PDIF:	Supports from the source device

AUDIO OUTPUT

HDMI Audio Formats:	LPCM/DTS-HD/DTS-Audio/ Dolby Digital 5.1CH
SPDIF/Optical Audio Formats:	Up to 5.1Ch

SIGNALS

TMDS Signals:	0.7~1.2Vp-p
DDC Signals:	5Vp-p

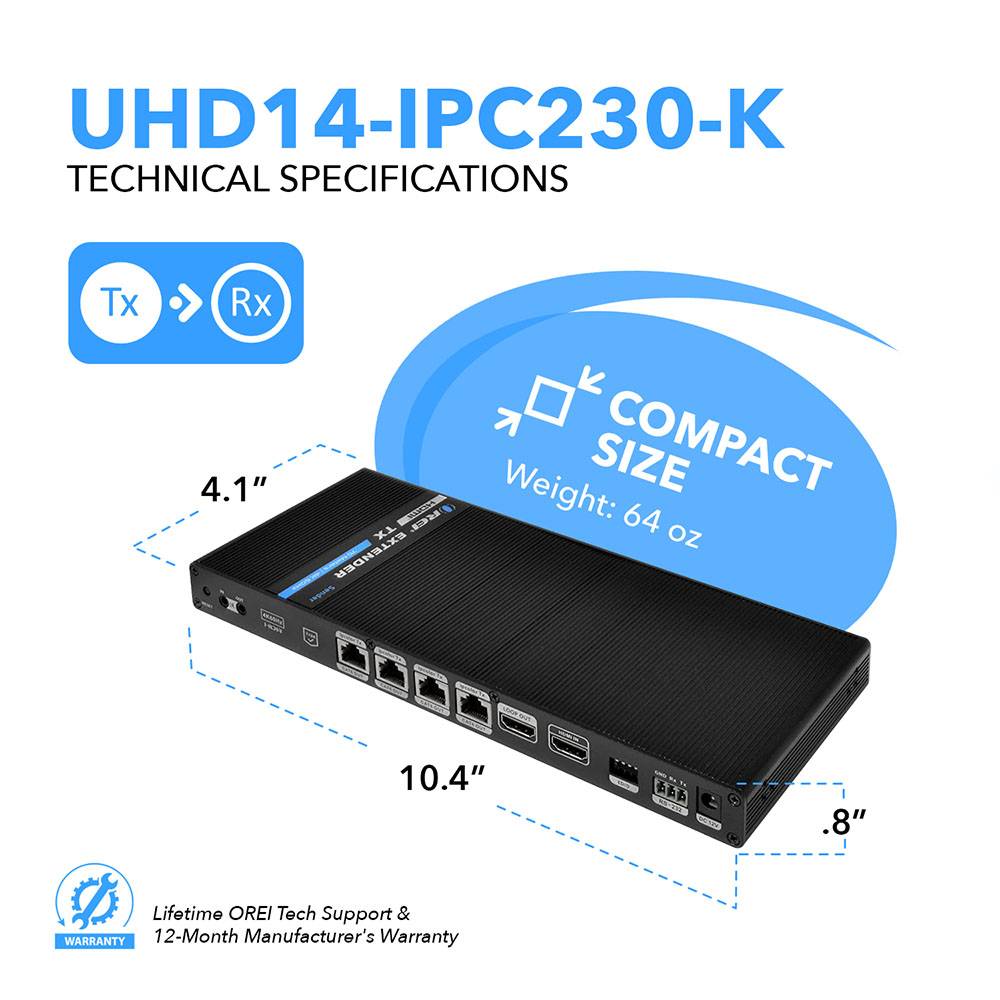

DIMENSIONS & WEIGHT

Transmitter:	Height:	23.5mm
	Width:	104mm
	Depth:	264mm
	Weight:	640g
Receiver:	Height:	26.2mm
	Width:	99mm
	Depth:	106mm
	Weight:	210g

PROTECTION

Operation Temperature:	-20 - 60°C
Storage temperature:	-30 - 70°C
Relative Humidity:	0 - 90% RH
ESD Protection:	1a Contact discharge level 3, 1b Air discharge level 3, implementation of the standard: IEC61000-4-2
Electrostatic Protection of the whole Machine:	IEC61000-4-2
Lightning Protection:	Yes
Surge Protection:	Yes

RJ-45 CONNECTOR Type

8P8C connector

POWER

Power Consumption (Max)	Transmitter:	13W
	Receiver:	4W
Power Supply	Input:	DC 12V/2A
	Output:	DC 5V/2A

PHYSICAL PROPERTIES

Color:	Black
Housing:	Aluminium Alloy Material + Crystal Panel
Processing Technology:	Ipcolor transmission technology
Finishing:	Grit blast

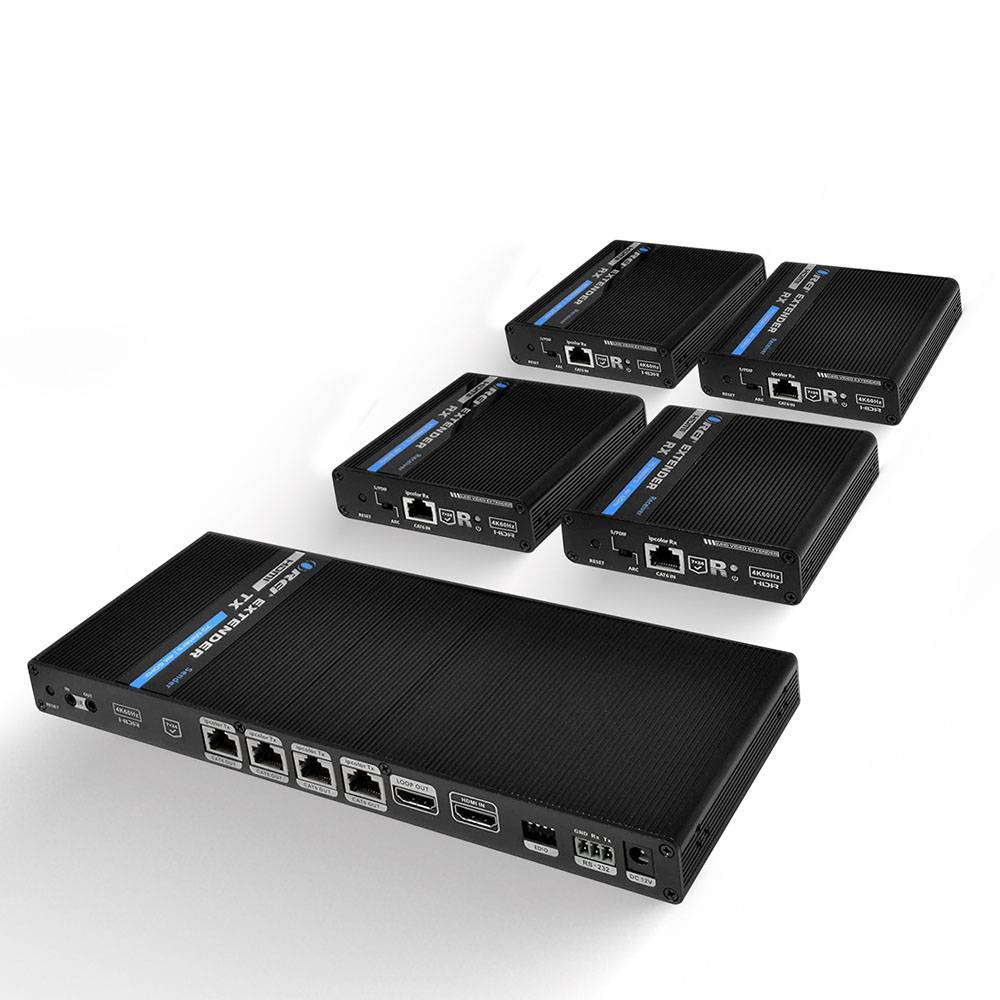

PACKAGE CONTENTS

1x HDMI Transmitter

4x HDMI Receivers

1x DC 12V/2A Power Adapter

4x DC 5V/2A Power Adapter

1x Terminal Block (RS-232)

1x IR Blaster Extension Cable

4x IR Receiver Extension Cable

20x Mounting Brackets

40x Screw

WARRANTY

1 - Year Manufacturer's Warranty

Quick Setup & Installation guide

UHD14-IPC230-K User Manual Download

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

You can extend the display devices up to 230 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.
