OREI 1080p HDMI Extender Over Cat6/7 Ethernet LAN Cable – Up to 165 ft (50m) – IR Signal (EX-165C)

OREI 165-Feet HDMI Over CAT5/CAT6 Extender with Power Over Cable with IR (EX-165C)
OREI 165-Feet HDMI Over CAT5/CAT6 Extender with Power Over Cable with IR (EX-165C) with cables
OREI 165-Feet HDMI Over CAT5/CAT6 Extender with Power Over Cable with IR (EX-165C)
OREI 165-Feet HDMI Over CAT5/CAT6 Extender with Power Over Cable with IR (EX-165C)
Availability: In Stock
$49.99
Product description


Key Features:

  • Extends 1080p HDMI audio/video signals over Cat6/7 cable up to 165 feet (50m) with EDID Management | IR control enables source device to recognize remote commands from the remote display, Lossless transmission with Zero Latency
  • Supported resolution: up to 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz & Supported Audio: LPCM, Dolby-AC3, DTS7.1, DSD/Dolby TrueHD/DTS-HD master audio, essentially all available audio options are supported
  • HDMI Loop-out on transmitter unit to connect an HDMI display by the source, EDID Management – option to Copy the EDID signal from the loop-out display on transmitter end or the remote display on receiver end, HDCP 2.0 and HDMI 1.4 Compliant
  • Heavy-duty cool metal enclosure protects the insides and keeps the unit cool by aiding in quick heat absorption and dissipation; Compact in size for easy plug & play installation
  • Includes 100-240 50/60 Hz auto switching power supply for use anywhere in the world, IR Kit, Lifetime OREI Tech Support & 12-Month Manufacturer's Warranty

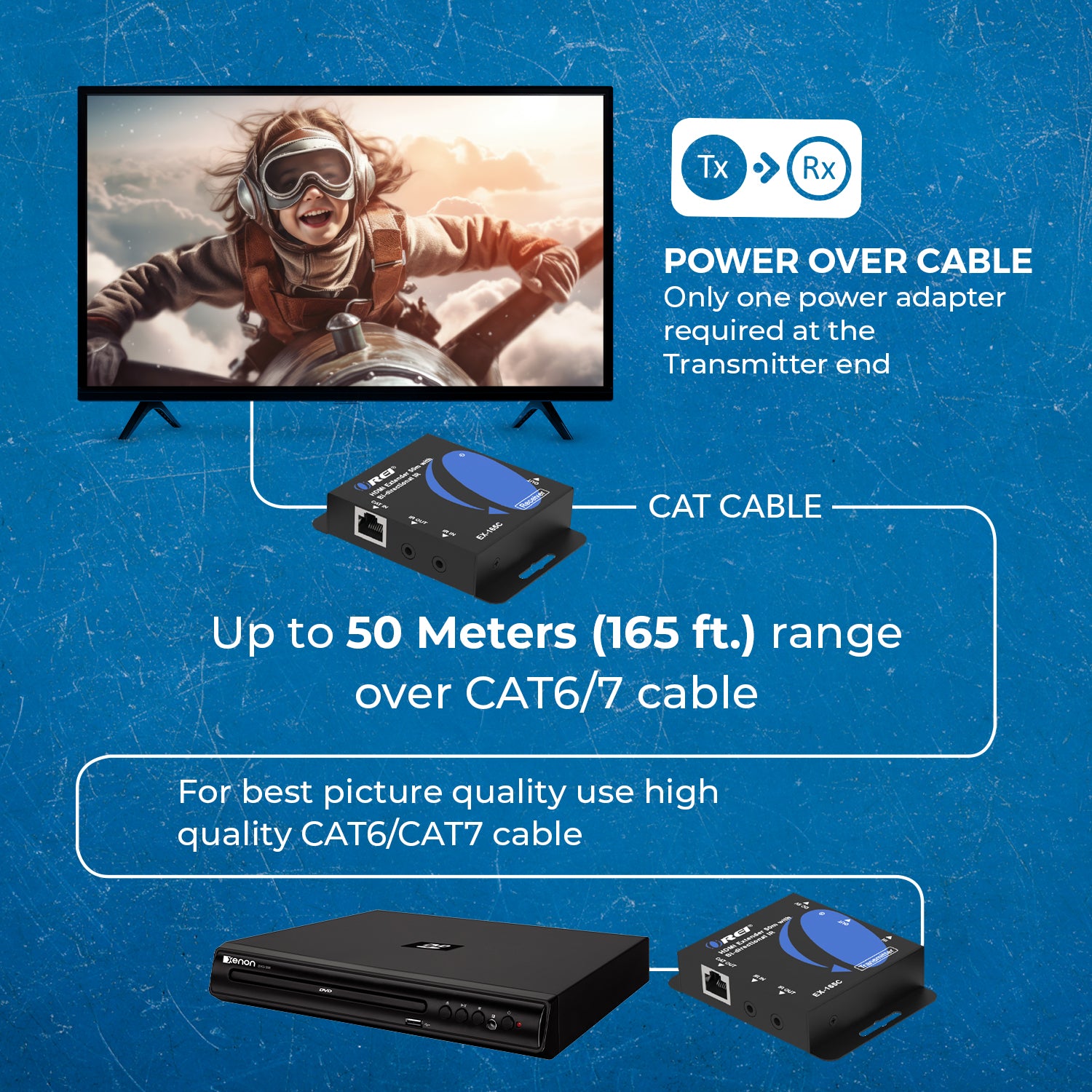

The OREI EX-165C HDMI extender allows you to transmit HDMI audio/video signals over Cat6/7 cable with zero latency along with maintaining original audio/video quality. It supports up to 1080p resolution and extends the transmission distance up to 165 feet (50 meters).

Compact, durable and easy to setup and operate. Ideal for home, businesses, test bench facilities, data centers, and help desks.

You can also operate a set-top box or a Blu-ray player using its remote when at the remote monitor and vice versa.

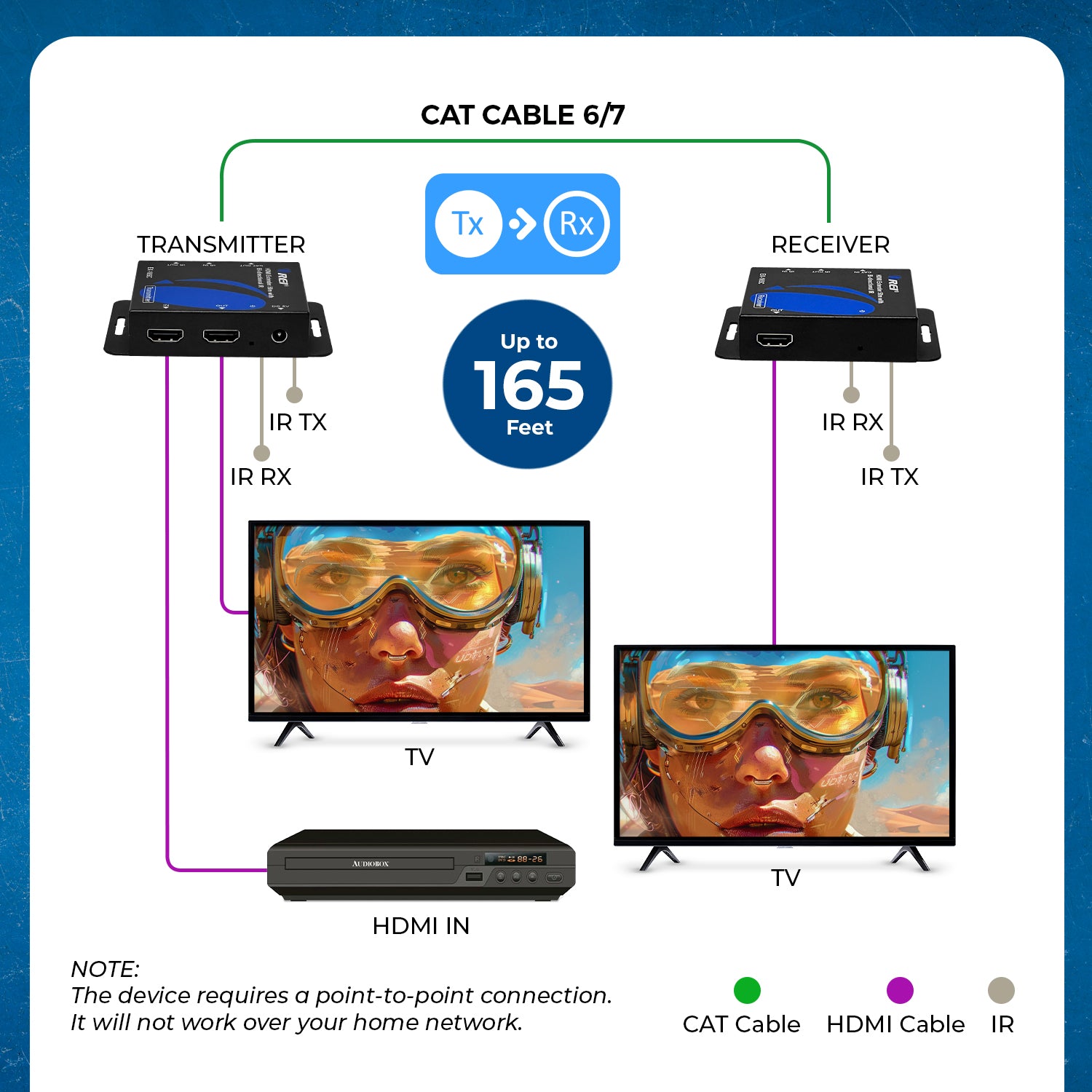

HDMI Loop-out - Connect HDMI display to the transmitter for an output to local display at the source.

IR control - enables source device to recognize remote commands from remote display

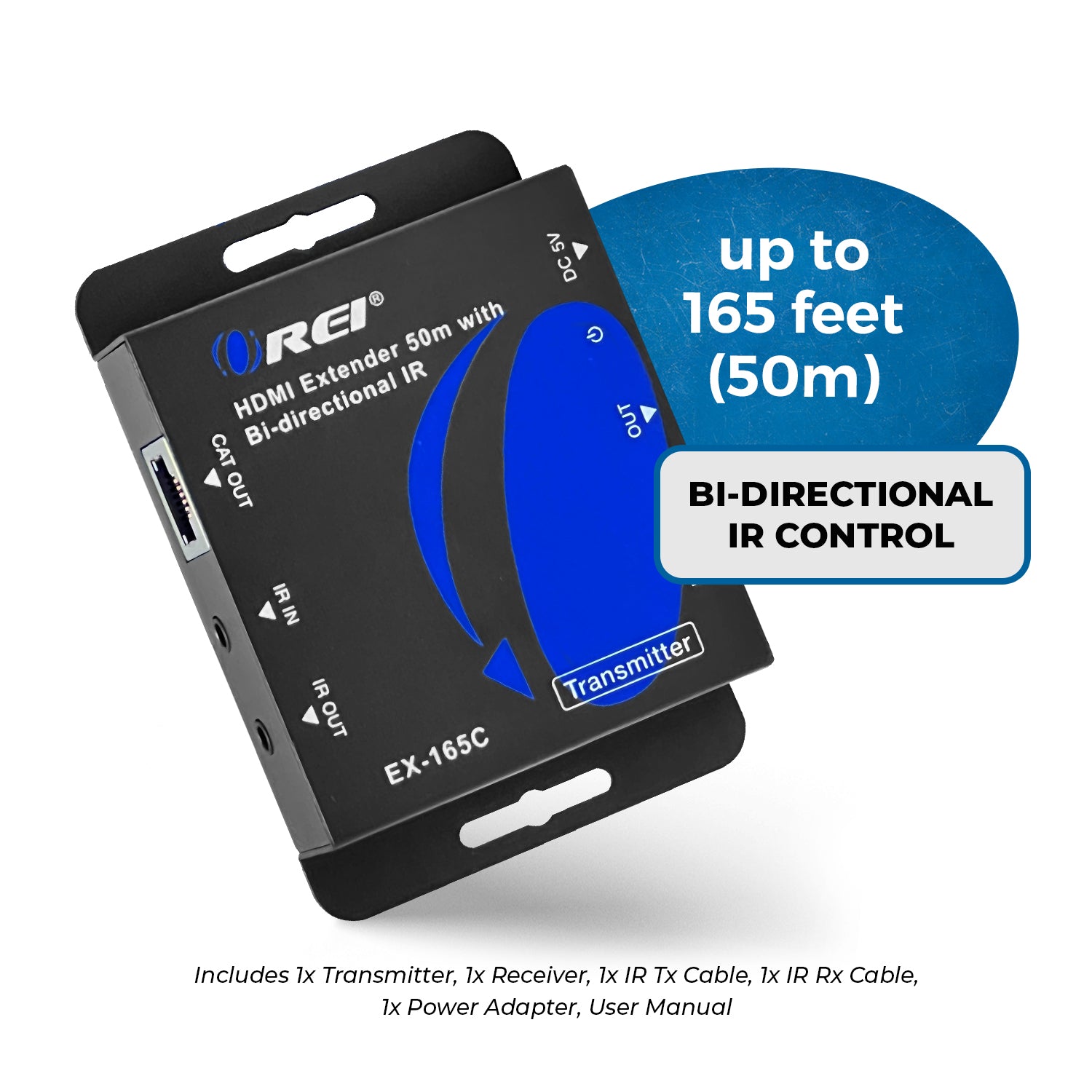

The package includes Orei EX-165C HDMI Extender (Transmitter & Receiver Units), IR Cable, power adapter & user manual.

Technical specification
  • Transmitter:
    • Input Ports:
      • 1 x HDMI Cable of Setup Box
    • Output Ports:
      • 1 x HDMI Cable of TV
  • Receiver:
    • Input Ports:
      • 1 x HDMI Cable of TV
  • Input TMDS Signal: 3.3 volts
  • Input DDC Signal: 5.0 volts/P-P
  • Video Support: 480i/480p/720p/1080i/1080p @60
  • Audio Support: Surround Sound (up to 7.1 ch) or stereo digital audio
  • Transmission Range: HD [1080p 24-bit color] – up to 50m [164ft]
  • HDMI connector: Type A 19 pin female
  • RJ-45 connector: WE/SS 8P8C
  • 3.5mm connector: (TX and RX) IR Receiver/IR Blaster
  • Operation temperature: 32~104 °F
  • Storage temperature: -4 ~140 °F
  • ESD Protection - Human Body model: +/- 8 kV(air-gap discharge), +/- 4 kV (contact discharge)
  • Relative humidity: 20~90 % RH (no condensation)
  • Video Bandwidth: Single-link 165Mhz [ 4.95Gbps]
  • Dimensions: 127mm [W] x 51mm [D] x 127mm [H]
  • Power Supply: (1) 5V1A DC
  • Power consumption: 1.5 watts (TX); 1.0 watts (RX)
  • Housing: Metal
  • Color: Black
