4K HDMI Audio Extractor Switch With ARC/eARC and EDID management (HDA-934)

OREI HDA-934: Dual HDMI eARC HDMI Audio Extractor

• HDMI 2.0b and HDCP 2.2 compliant
• Video resolutions up to 4K@60Hz RGB/YCbCr 4:4:4
• 18Gbps video bandwidth
• 3D, HDR, HDR10, HDR10+, and Dolby Vision pass-through
• Connect up to 3 input sources with 1 HDMI ARC/eARC soundbar to a display
• This device supports audio formats up to Dolby Atmos and DTS:HD.
• Features auto/manual switching mode for input sources

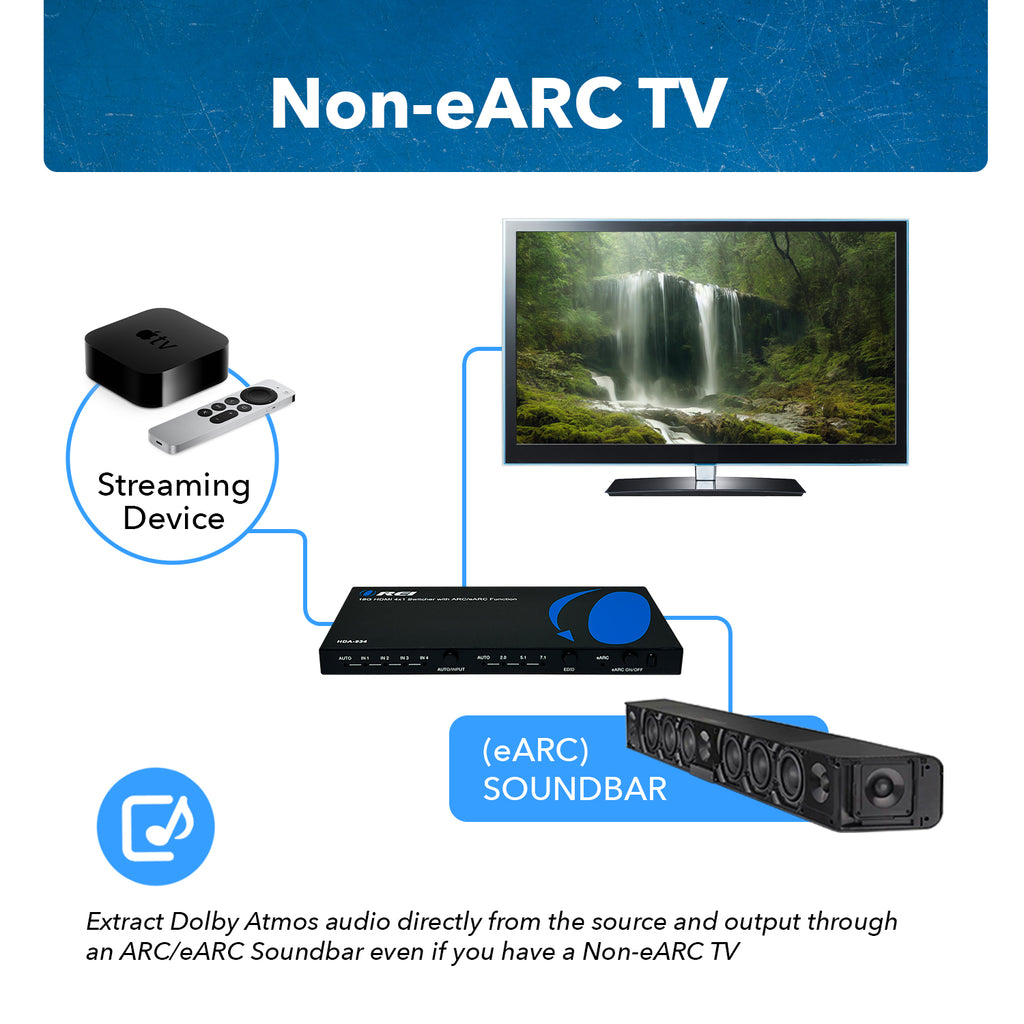

• Extract audio directly from the source to an ARC/eARC Soundbar
• Advanced EDID management (AUTO/2.0CH/5.1CH/7.1CH selectable)
• Please note that in order to extract audio from the TV, it must be compatible with ARC/eARC.
• Flexible control via front panel buttons or IR remote control
• Compact design perfect for commercial and personal setups

The HDA-934 is an ARC/eARC HDMI audio extractor switch with 1 HDMI ARC/eARC soundbar port, 3 HDMI input ports, and 1 HDMI ARC/eARC output port. This device can extract audio from the HDMI sources or an ARC/eARC TV, providing ARC/eARC audio output directly to the soundbar. It is HDMI 2.0b and HDCP 2.2 compliant, supporting a video bandwidth of up to 18Gbps. It supports video resolutions up to 4K@60Hz 4:4:4 with HDR10+ and Dolby Vision pass-through. Please note that in order to extract audio from TV’s internal apps, the TV must be compatible with ARC/eARC. Only HDMI input 1 can connect to a soundbar, others are non-ARC/eARC standard HDMI ports to connect HDMI sources to connect to the TV. Control options include control via front panel buttons or IR remote. Advanced EDID management to select the settings (AUTO/2.0/5.1/7.1). Compact design, perfect for commercial or personal setups.
