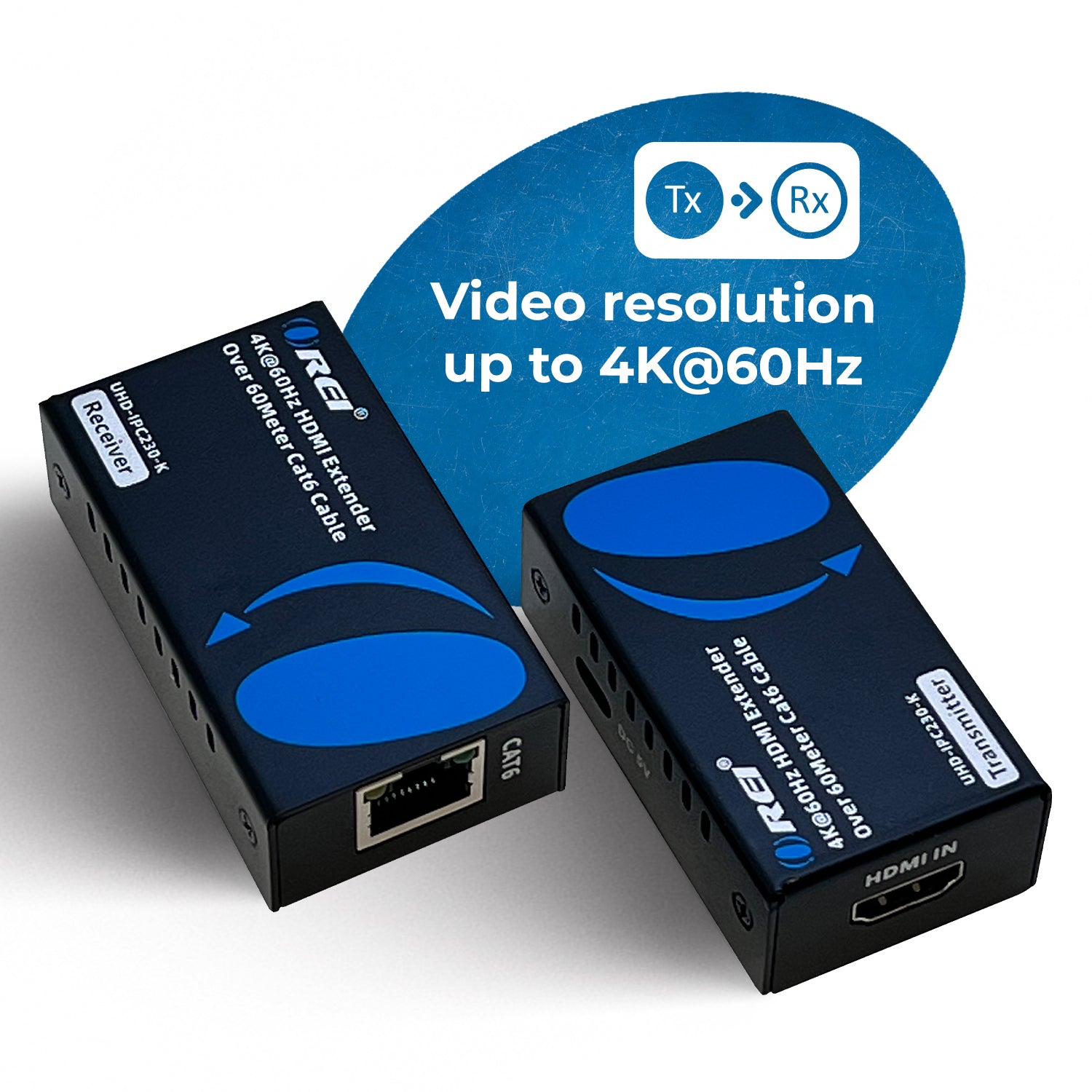

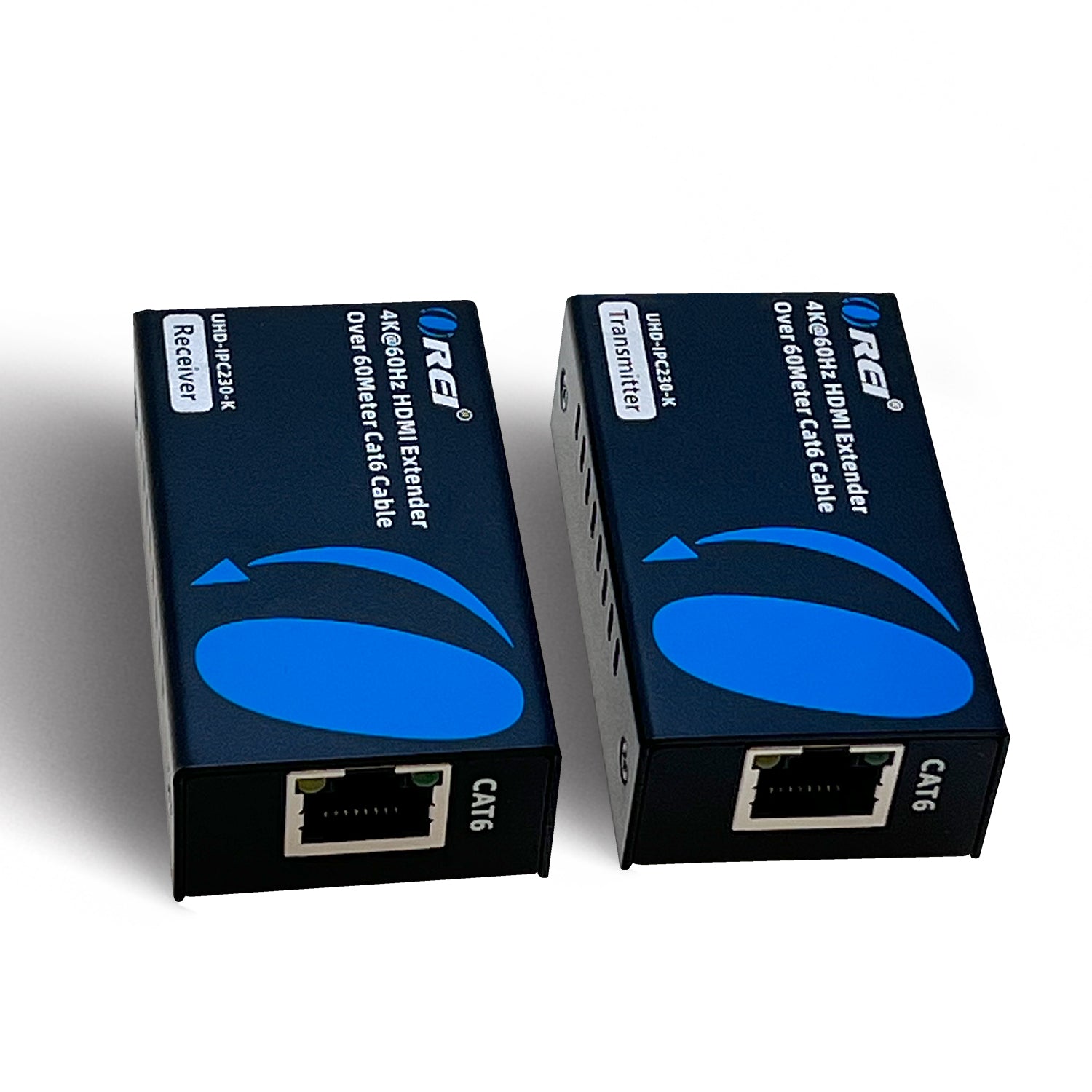

4K HDMI Extender Over CAT6/7 -230 ft -IR Blaster & Audio Extraction (UHD-IPC230-K)

Name: 4K HDMI Extender Over CAT6/7 -230 ft -IR Blaster & Audio Extraction (UHD-IPC230-K)
Brand: OREI.COM
SKU: UHD-IPC230-K
Price: 119.99 USD
Availability: OutOfStock

$119.99

Shipping calculated at checkout.

SKU: UHD-IPC230-K

Supports 4K@60Hz up to 230 feet YUV 4:4:4
Supports one-way PoC function & bi-directional IR signal transmission
Supports Dolby audio

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

OREI UHD-IPC230-K: UltraHD 4K HDMI Extender upto 230ft

Key Features:

4K HDMI Extender Balun - Long Range Over LAN Cable up to 230 feet
With High-Quality CAT6/7 get zero latency
Supports HDR, HDR10+, 18Gbps bandwidth
4K@60Hz HDMI signal can be transmitted 70 meters through a CAT6/6A/7 network cable.
The receiver can extract the digital audio from the transmitter through the S/PDIF port.
Supports Dolby audio(Dolby Digital Plus/Dolby TrueHD/Dolby Digital)
Supports HDR(YUV4:4:4), EDID passback.
Transmitter support one HDMI loop-out.
Support bi-directional IR passback function (20 - 60KHz).
One receiver can be powered by the transmitter via network cable.
Lightning Protection, Surge Protection, ESD Protection.

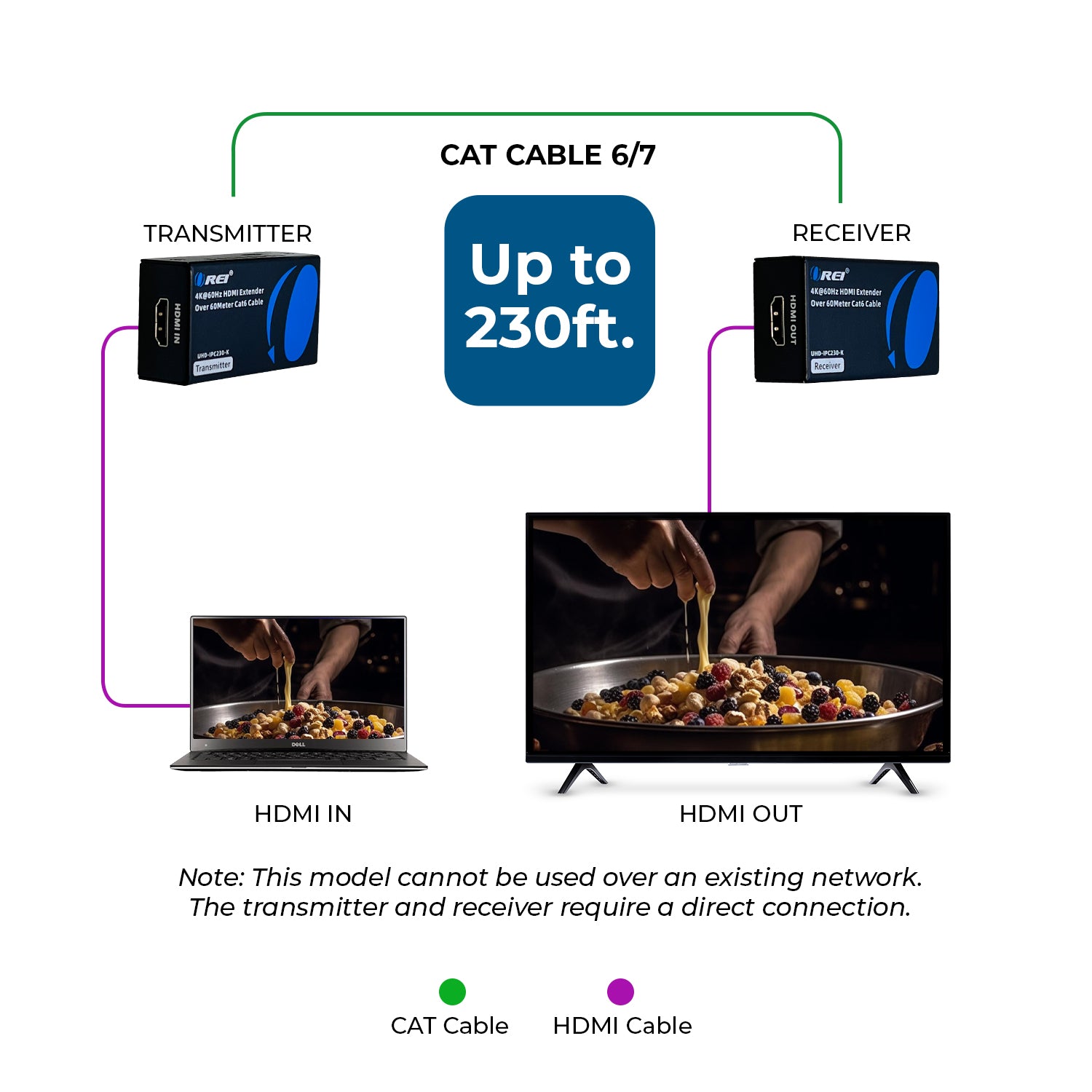

This OREI HDMI extender balun allows you to transmit HDMI audio/video signals over CAT/6/7 cable with zero latency along with maintaining original audio/video quality. It supports up to 4K@60Hz YUV 4:4:4 resolution and extends the transmission distance up to 230 feet using high-quality CAT cables. OREI technology transmits uncompressed HDMI audio and video, RS-232 serial, and Bi-directional IR control signals up to 230 feet and supports up to 18 Gbps transmission. The OREI installation can control RS-232 signal devices such as scanners and touchscreen display at baud rates up to 115 kbps.

Compact, durable, and easy to set up and operate. Ideal for home, businesses, test bench facilities, data centers, and help desks. You can also operate a set-top box or a Blu-ray player using its remote when at the remote monitor and vice versa.

HDMI Loop-out - Connect HDMI display to the transmitter for output to local display at the source.

Bi-directional IR control - Enables source devices to recognize remote commands from the remote display or control the remote display from the source device.

Digital Audio-out - SPDIF audio output on receiver for Digital audio output when the audio stream is along from the source.

AUDIO AND VIDEO

Transmitter:	INPUT PORTS:	1x HDMI Type A [19-pin female] 1x IR IN [3.5mm Stereo Mini-jack]
	OUTPUT PORTS:	1x HDMI Type A [19-pin female] 1x CAT OUT [RJ45, 8-pin female] 1x IR OUT [3.5mm Stereo Mini-jack]
Receiver:	INPUT PORTS:	1x CAT IN [RJ45, 8-pin female] 1x IR IN [3.5mm Stereo Mini-jack]
	OUTPUT PORTS:	1x HDMI Type A [19-pin female] 1x IR OUT [3.5mm Stereo Mini-jack] 1x SPDIF OUT [S/PDIF]

COMPLIANCES

HDMI Compliance:	HDMI 2.0
HDCP Compliance:	HDCP 2.2

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@30Hz:	229 Feet
1080p@60Hz:	229 Feet

VIDEO OUTPUT

Video Bandwidth:	18Gbps
Video Resolutions:	480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/60Hz 4096x2160@24/25/30Hz
Color Space:	RGB YCbCr
Color Depth:	12bit *3

CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT

CEC Function:	No
ARC Function:	Yes
USB KVM Function:	No
PoC/PoE Function:	Yes
IR Controller:	Bidirectional IR
Downscaler Function:	No
Over Network/IP Function:	No
HDBaseT Function:	No
RS-232 Function:	No

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	1

SWITCHES

EDID Management:	No
EQ Dip Switches:	No
ARC:	Yes

AUDIO OUTPUT

HDMI Audio Formats:	LPCM/DTS-HD/DTS-Audio/ Dolby Digital 5.1CH
SPDIF/Optical Audio Formats:	LPCM/DTS-HD/DTS-Audio/ Dolby Digital 5.1CH
L/R Audio Formats:	NO L/R audio output

SIGNALS

TMDS Signals:	0.7 ~ 1.2Vp-p(TMDS)
DDC Signals:	5Vp--(TTL)

PERFORMANCE & INTERFACE

Transmission Type:	Over CAT6 Cable
Transfer Method:	IPcolor Transmission Technology
Latency:	Zero Latency
Transmission Distance:	229 Feet Over CAT6
Maximun Pixel Clock:	594MHz

DIMENSIONS & WEIGHT

Transmitter:	Height:	26.2mm
	Width:	99mm
	Depth:	106mm
	Weight:	210g
Receiver:	Height:	26.2mm
	Width:	99mm
	Depth:	106mm
	Weight:	210g

PROTECTION

Operation Temperature:	0～50℃
Storage temperature:	-30~70°C
Relative Humidity:	0~90%RH
ESD Protection:	IEC61000-4-2
Electrostatic Protection of the whole Machine:	1a Contact discharge level 3 1b Air discharge level 3 Implementation of the standard: IEC1000-4-2

RJ-45 CONNECTOR Type

WE/SS 8P8C

POWER

Power Consumption (Max):	Transmitter:	<4W
	Receiver:	<4W
Power Supply	DC5V/2A

PHYSICAL PROPERTIES

Color:	Black
Housing:	Aluminum Alloy Material + Crystal Panel
Processing Technology:	IPcolor Transmission Technology
Finishing:	Grit blast

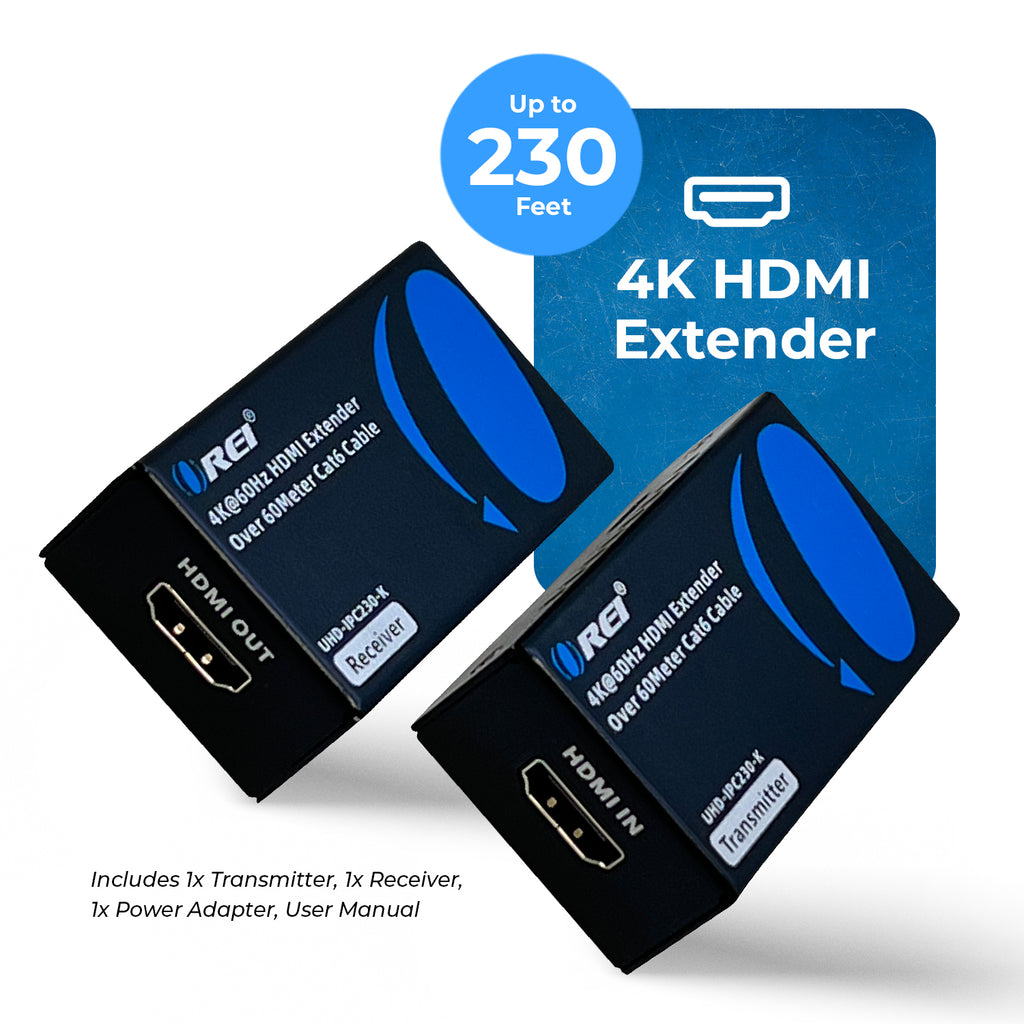

PACKAGE CONTENTS

1X Transmitter unit

1X Receiver unit

1X DC5V/2A Power Adapter

1X User manual

1X IR blaster extension cable

1X IR receiver extension cable

8X Mounting brackets

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

UHD-IPC230-K User Manual Download

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

You can extend the display devices up to 230 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.

Please contact us so that we can troubleshoot the issue.

Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.

Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
