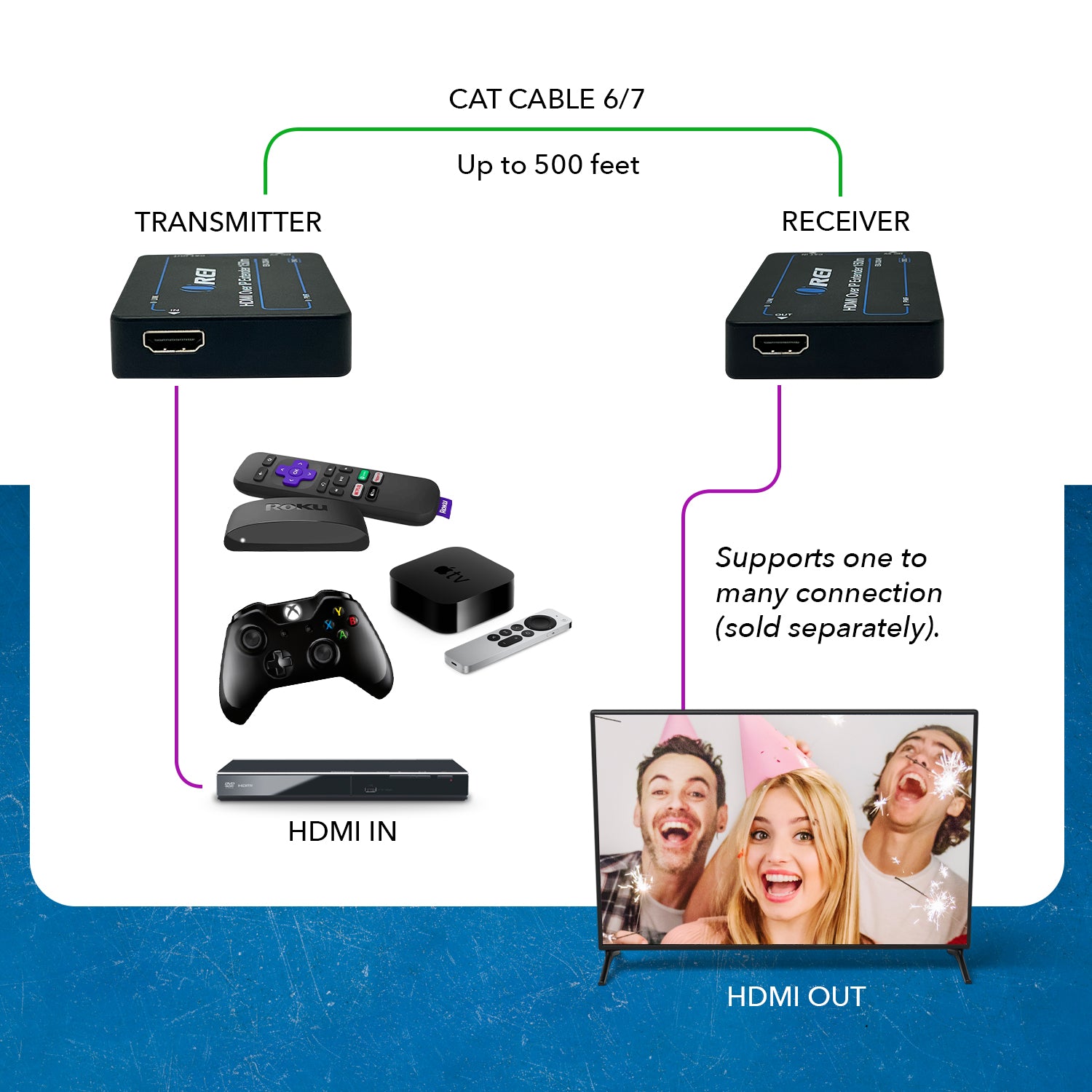

It can transmit HDMI 1080P signal to above 100M (330FT) by using UTP Cat5e6 Designed to convert HDMI signal to standard TCP/IP and transmit by internet cable or Lan.
With the advantage of TCP/IP standard Extend 120 meters more by adding one more Ethernet router.

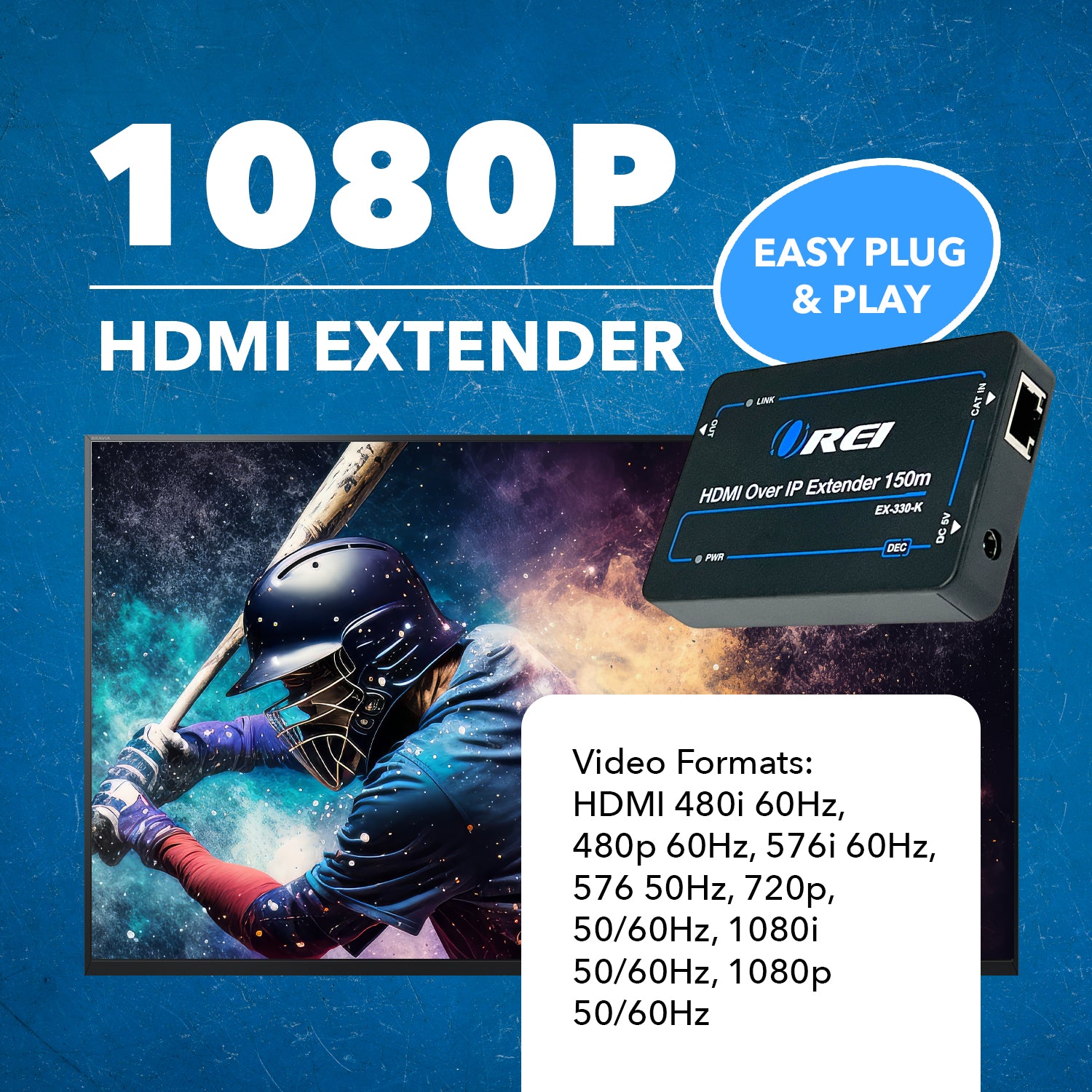

Apply M-Jpeg technique to process image compressing and with little image quality loss Support HDMI 480i@60Hz, 480p@60Hz, 576i@60Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60HZ, 1080P@50/60Hz.
AUDIO AND VIDEO
Transmitter:
INPUT PORT: 1x HDMI Female port
OUTPUT PORTS: 1 x CAT6
Receiver:
INPUT PORT: 1 x HDMI Female port
OUTPUT PORTS: 1 x CAT6
COMPLIANCES
HDMI Compliance
HDMI 1.3
HDCP Compliance
HDCP 1.1
DVI Compliance:
DVI 1.1
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
1080p@60Hz:
330 Feet
VIDEO OUTPUT
Video Bandwidth:
2.25Gbps (single link)
Video Resolutions:
1080p@60Hz
Color Space:
YCbCr(4:2:2), YCbCr（4:4:4), RGB
Color Depth:
1080P/60Hz, YCbCr（4:2:2, 4:4:4, RGB 8\10\12bit)
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
CEC Function:
No
ARC Function:
No
USB KVM Function:
No
PoC/PoE Function:
No
IR Controller:
Yes
Downscaler Function:
No
Over Network/IP Function:
Yes
HDBaseT Function:
No
RS-232 Function:
No
Buttons
Reset:
This is factory reset button. When the Receiver system functions have been changed, pressing this button for 10seconds can realize factory reset
AUDIO OUTPUT
HDMI Audio Formats:
PCM 2.0@44.1KHz, 48KHz sampling bit is 16bit/20bit/24bit
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 330 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.

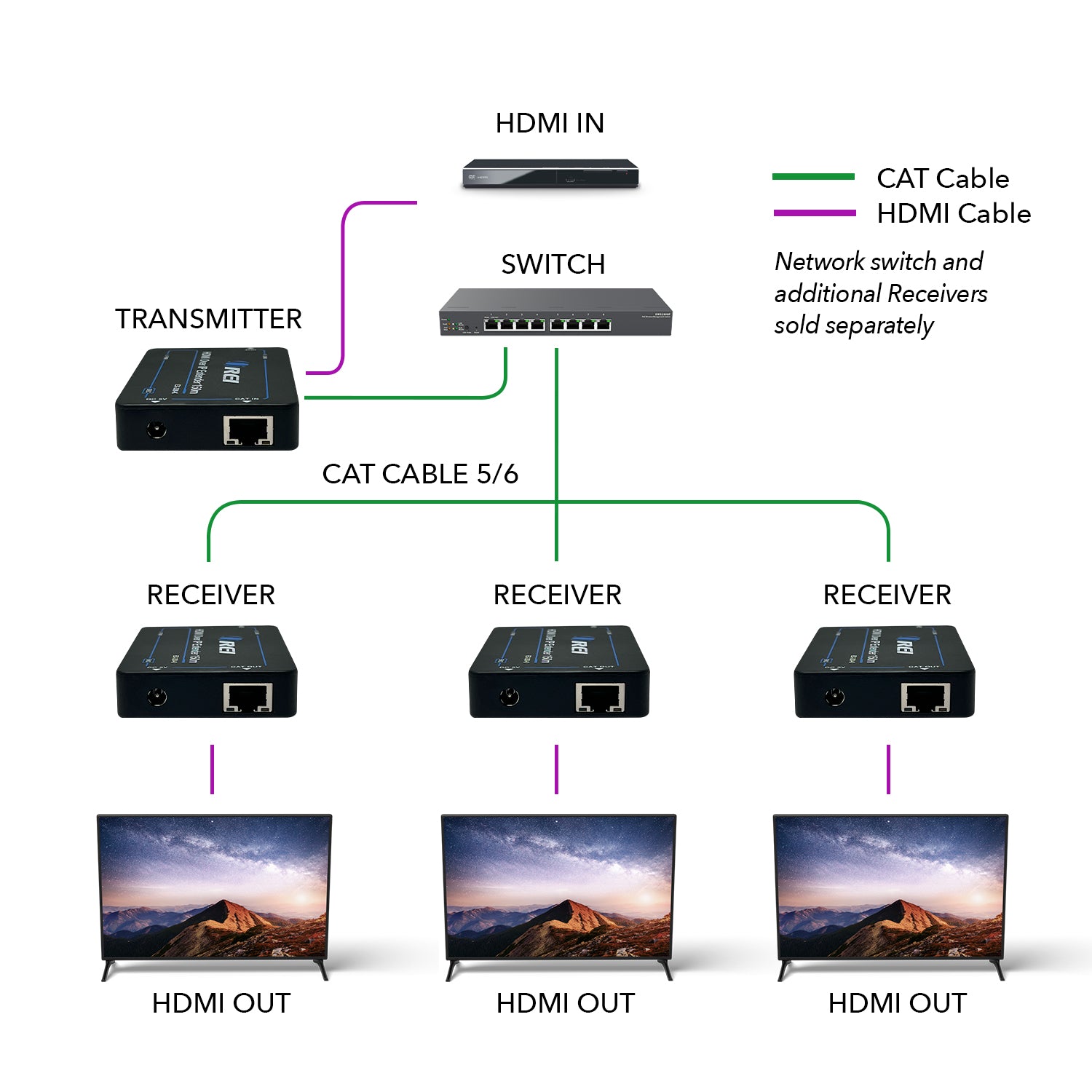

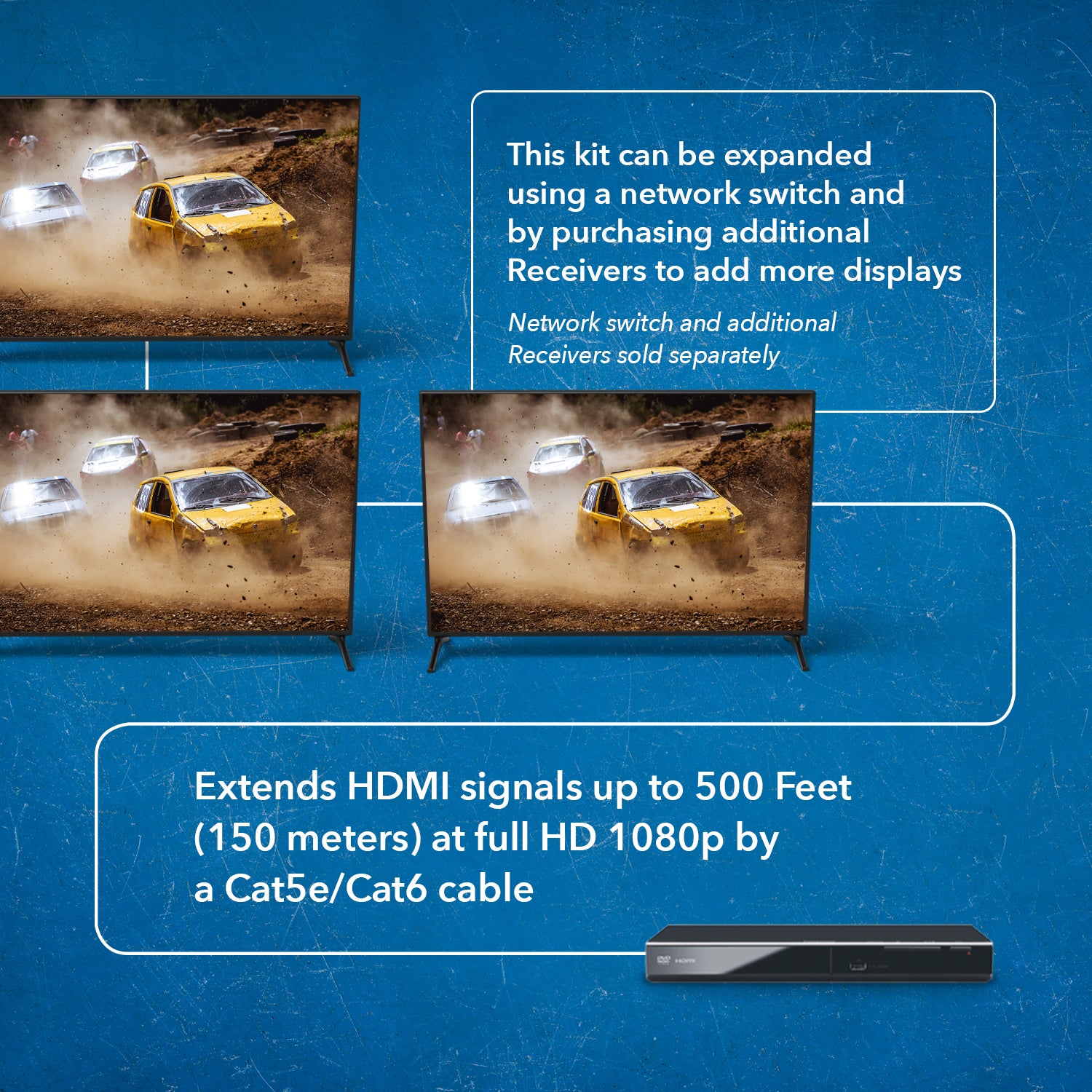

You can connect up to 253 additional receivers with this device using a network switch as a mediator.
Yes, this product supports Over IP function & you will be able to connect additional receivers via a network switch.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
EX-330-K User Manual Download
