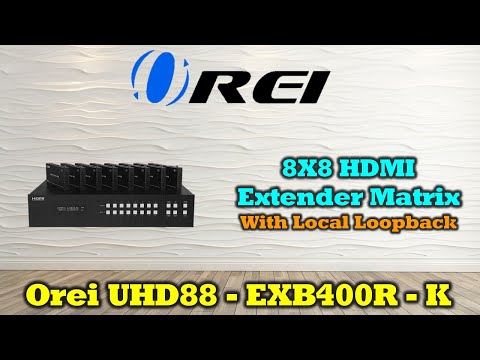

4K 8x8 HDMI Matrix Switcher Extender & HDBaseT Over CAT5e/6/7 Cable Up To 500 Feet (UHD88-EXB400R-K)

4K 8x8 HDMI Matrix Switcher Extender & HDBaseT Over CAT5e/6/7 Cable Up To 400 Feet (UHD88-EXB400R-K)

Name: 4K 8x8 HDMI Matrix Switcher Extender & HDBaseT Over CAT5e/6/7 Cable Up To 400 Feet (UHD88-EXB400R-K)
Brand: OREI.COM
SKU: UHD88-EXB400R-K
Price: 1,999.99 USD
Availability: InStock

$1,999.99

Shipping calculated at checkout.

SKU: UHD88-EXB400R-K

Supports HDBaseT 4K@60Hz YUV 4:4:4 up to 400 feet
Audio de-embedded is supported via analog and coax ports
Supports PoC, Bi-directional IR, RS-232, LAN and Web GUI

Overnight shipping*:

Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Quantity

Reseller & Installer Discounts

Add to Wishlist

30 Days Return

1 Year Warranty

Free shipping in USA

More Details

OREI UHD88-EXB400-K HDMI MATRIX SWITCHER EXTENDER - 500 FEET

Key Features:

HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
Support 18Gbps lossless compressed HDBaseT signal transmission
HDMI ports transmit 18Gbps lossless uncompressed video bandwidth
Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & HDBaseT ports
8 HDMI inputs, 8 HDMI & HDBaseT mirrored outputs
Support 4K->1080P Down Scaler for each output port
HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
HDBaseT output can extend video transmission distance up to 492ft / 150m for 1080p or 394ft / 120m for 4K2K via a single Cat 5e/6/7 cable
HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS HD Master Audio)
Support IR matrix
Audio de-embedded is supported via analog and coax ports
Advanced EDID management and CEC control are supported
24V POC on all HDBaseT ports
1U rack-mounted design with front panel OLED display
Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
This unit requires only one power adapter to work

Few sample applications:

The 18Gbps 8x8 HDBaseT(150M) Matrix can connect 8 HDMI sources to 16 displays. It features 8 HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output that runs simultaneously. HDBaseT output can extend video transmission distance up to 492ft / 150m via a single Cat 5e/6/7 cable and the resolution is up to 4K2K@60Hz 4:4:4.

Audio de-embedded to analog and coaxial audio is supported. Each HDMI output supports 4K2K to 1080p downscaler independently.

The product supports the IR matrix. The IR signal is one-to-one control at the Matrix end, but the IR signal follows the HDMI video channel at the HDBaseT Receiver end.

The product provides an intuitive set of the front panel with an OLED screen and supports control via front panel buttons, IR remote, RS-232, LAN, and Web GUI.

HDBaseT Technology - Uncompressed Signal for Zero Latency. A good quality CAT5e/6/ STP shielded cable is essential in delivering quality content. Shielded CAT6 is recommended for better performance. Avoid using signal converters/adapters. Supports POE Power Over Cable Function, so only a power adapter is required at the Transmitter End.

AUDIO AND VIDEO

Transmitter:	INPUT PORTS:	8x HDMI Type A [19-pin female]
	OUTPUT PORTS:	8x HDMI Type A [19-pin female]
		8x HDBaseT port [RJ45]
		8x Coaxial audio [3.5mm Stereo Mini-jack]
		8x balanced analog audio [5-pin Phoenix connector]
	CONTROL PORTS:	9x IR IN [3.5mm Stereo Mini-jack]
		9x IR OUT [3.5mm Stereo Mini-jack]
		1x TCP/IP [RJ45]
		1x RS-232 [D-Sub 9]
Receiver:	INPUT PORTS:	1x HDBT IN [RJ45, 8-pin female]
	OUTPUT PORTS:	1x HDMI Type A [19-pin female]
		1x AUDIO OUT [3.5mm Stereo Mini-jack]
	CONTROL PORTS:	1x IR IN [3.5mm Stereo Mini-jack]
		1x IR OUT [3.5mm Stereo Mini-jack]
		1x RS-232 [3-pin Phoenix connector]
		1x SERVICE [Mini-USB, Update port]

COMPLIANCES

HDCP Compliance	HDCP 2.2 and HDCP 1.x
HDMI Compliance	HDMI 2.0b

SUPPORTED CAT CABLES

CAT5e, CAT6, CAT7:

We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

EXTENDING DISTANCE

4K@30Hz:	Up to 400 Feet
1080p@60Hz:	Up to 500 Feet

VIDEO OUTPUT

Video Bandwidth:	18 Gbps
Video Resolutions:	Up to 4K2K@60Hz (YUV 4:4:4)
Color Space:	RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
Color Depth:	8-bit, 10-bit, 12-bit (1080p@60Hz), 8-bit (4K2K@60Hz, YUV4:4:4), 8-bit, 10-bit, 12-bit (4K2K@60Hz, YCbCr 4:2:2/4:2:0)
HDR:	HDR10, HDR10+, Dolby Vision, HLG

CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT

CEC Function:	Yes
ARC Function:	No
USB KVM Function:	No
PoC/PoE Function:	Yes
IR Controller:	Yes
Downscaler Function:	Yes
Over Network/IP Function:	No
HDBaseT Function:	Yes
RS-232 Function:	Yes

LOOP-OUT/LOCAL PORT

Has loop out port:	Yes
Number of Loop out ports:	8

SWITCHES

EDID Management:

This HDMI Matrix has 21 pre-defined EDID settings, 2 user-defined EDID modes and 16 copy EDID modes. You can select defined EDID mode or copy EDID mode to input port through on-panel button, RS-232 control or Web GUI

AUDIO OUTPUT

HDMI Audio Formats:	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Coax Audio Formats:	PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1
Analog Balanced Audio Formats:	PCM 2.0Ch.

SIGNALS

Vmax:	2Vrms
SNR:	＞90dB
THD+N Ratio:	＜0.1%（V_max） 0.001%~0.01%（V_best）
Crosstalk:	＞80dB
TMDS Signals:	3.3V
DDC Signals:	5V

DIMENSIONS & WEIGHT

Transmitter:	Height:	88.6mm
	Width:	440mm
	Depth:	374mm
	Weight:	6.54Kg
Receiver:	Height:	18mm
	Width:	140mm
	Depth:	65mm
	Weight:	155g

PROTECTION

Operation Temperature:	0°C ~ 40°C / 32°F ~ 104°F
Storage temperature:	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity:	20~90% RH (non-condensing)
ESD Protection:	Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Frequency Response:	20Hz~20kHz ±0.5dB

RJ-45 CONNECTOR Type

WE/SS 8P8C

POWER

Power Consumption (Max):	125W

Power Supply	AC 100 - 240V 50/60Hz

PHYSICAL PROPERTIES

Color:	Black
Housing:	Metal Enclosure

PACKAGE CONTENTS

1x 18Gbps 8x8 HDBaseT(150M) Transmitter

8x HDBaseT Receivers

1x Matrix IR Remote

1x 100~240V AC 50/60Hz Power cable

1x RS-232 serial cable (1.5 meters, male to female head)

8x 3-pin Phoenix Connector

8x 5-pin Phoenix Connectors

9x IR Blaster cable (1.5 meters)

9x IR Receiver cable (1.5 meters)

18x Mounting Ear (Matrix and Receiver)

1x User Manual

WARRANTY

1-Year Manufacturer's Warranty

Quick Setup & Installation guide

UHD88-EXB400R-K User Manual Download

UHD88-EXB400R-K RS-232 Commands

UHD88-EXB400R-K IR Codes

UHD88-EXB400R-K Control 4 Driver

FAQs

Yes, you can purchase these things directly from us. Please contact us & we will assist you further.

No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.

Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.

Yes, you can implement the daisy chain method.

Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.

We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.

Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.

Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.

You can extend the display devices up to 500 Feet when using with a shielded CAT6 cable.

The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.

If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
