Routes 6 HDMI sources to 6 displays including 4 HDBaseT outputs and 2 local outputs
Supports resolutions up to 4K@60Hz (YUV 4:4:4) on all HDMI ports
Supports automatic 4K@60Hz (YUV 4:4:4) to 4K@60Hz (YUV 4:2:0) conversion for all HDBaseT outputs

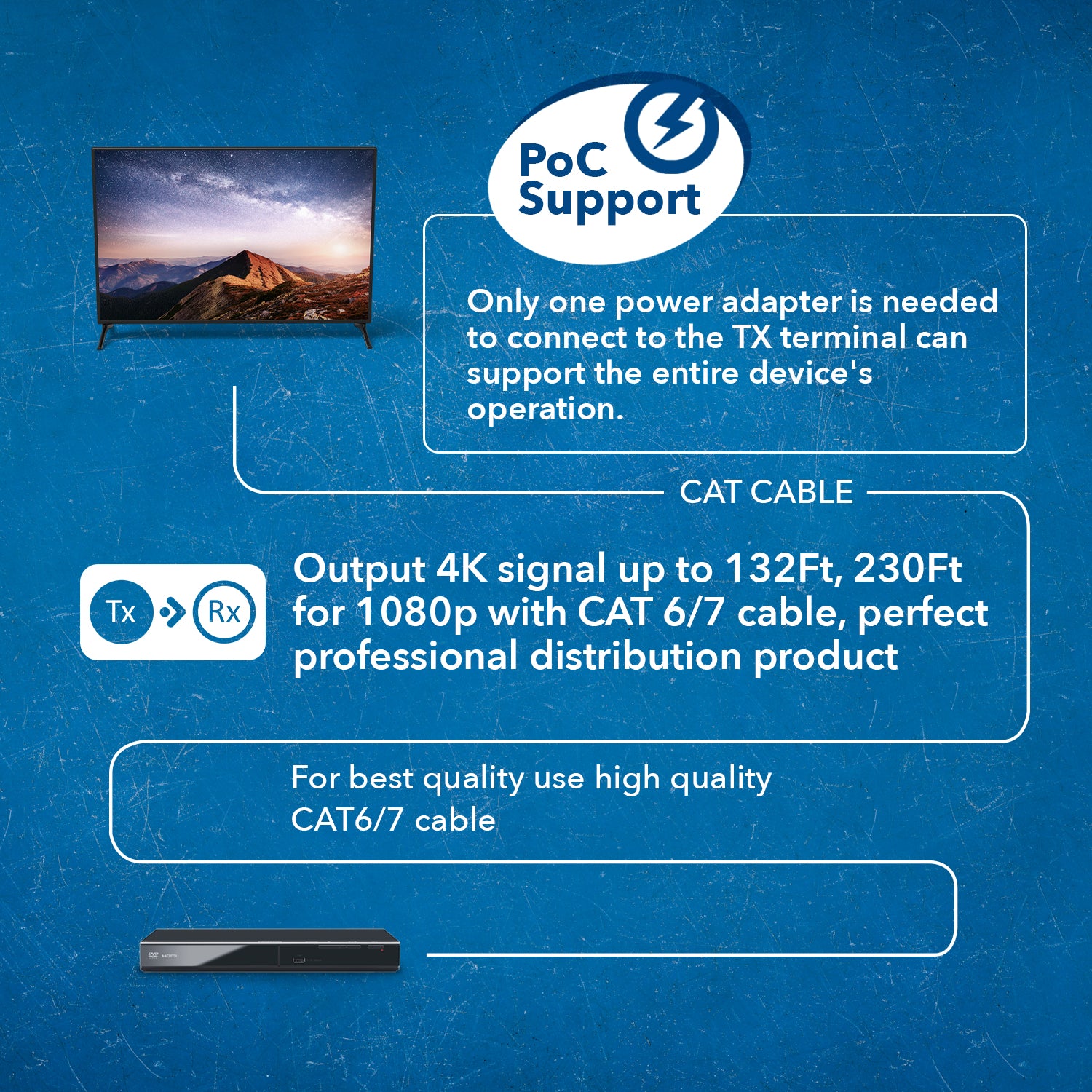

4K signals can be transmitted up to 130 feet/40 meters and 1080p up to 230 feet/70 meters via CAT6/7
Supports LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS X
Built-in independent audio matrix with Volume, Mute and Audio delay adjustment for lip-sync (LPCM only)
HDR10, Dolby Vision, ARC, CEC and smart EDID management supported

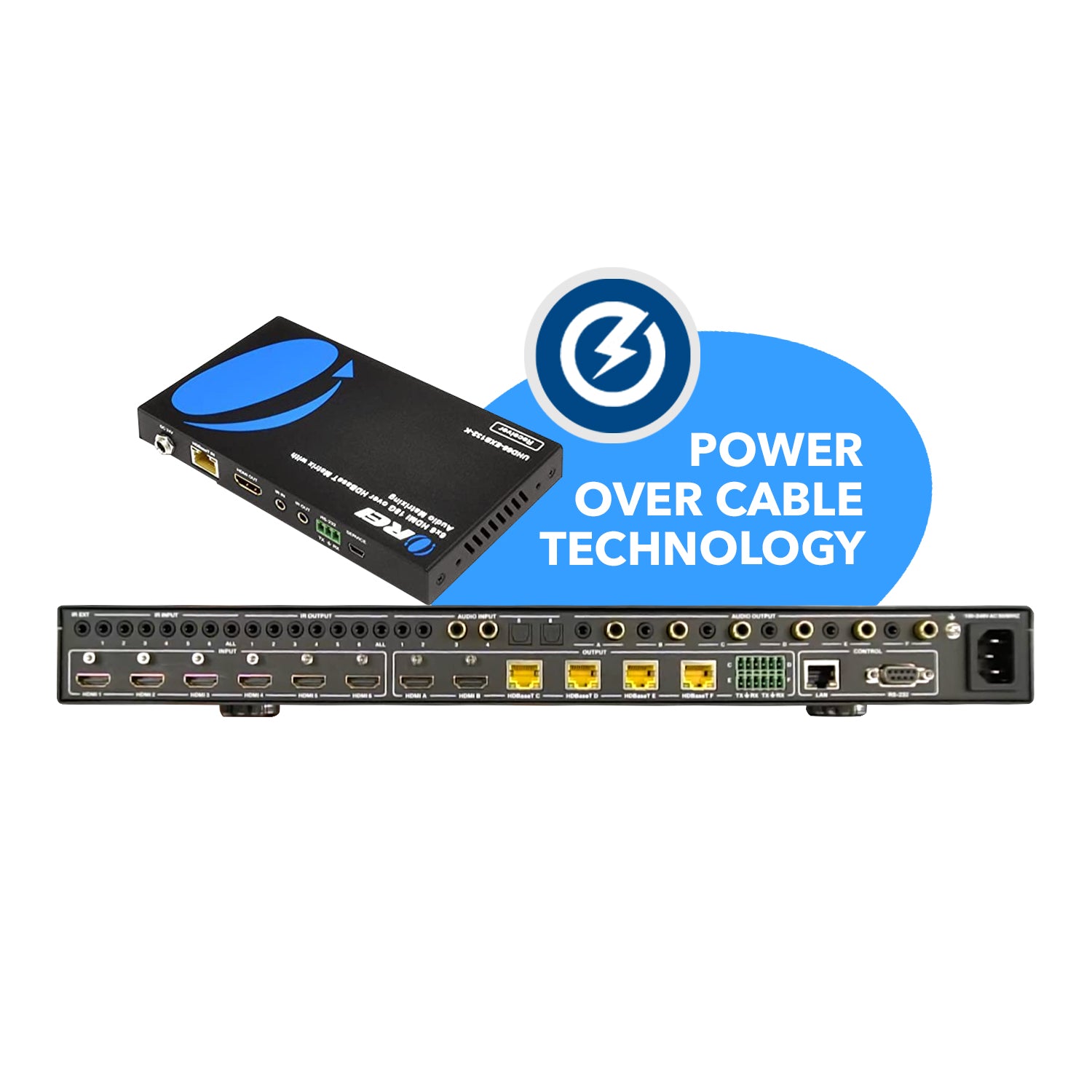

24V POC on all HDBaseT ports
Control is via on-panel Button, IR, RS-232, Telnet and Web GUI

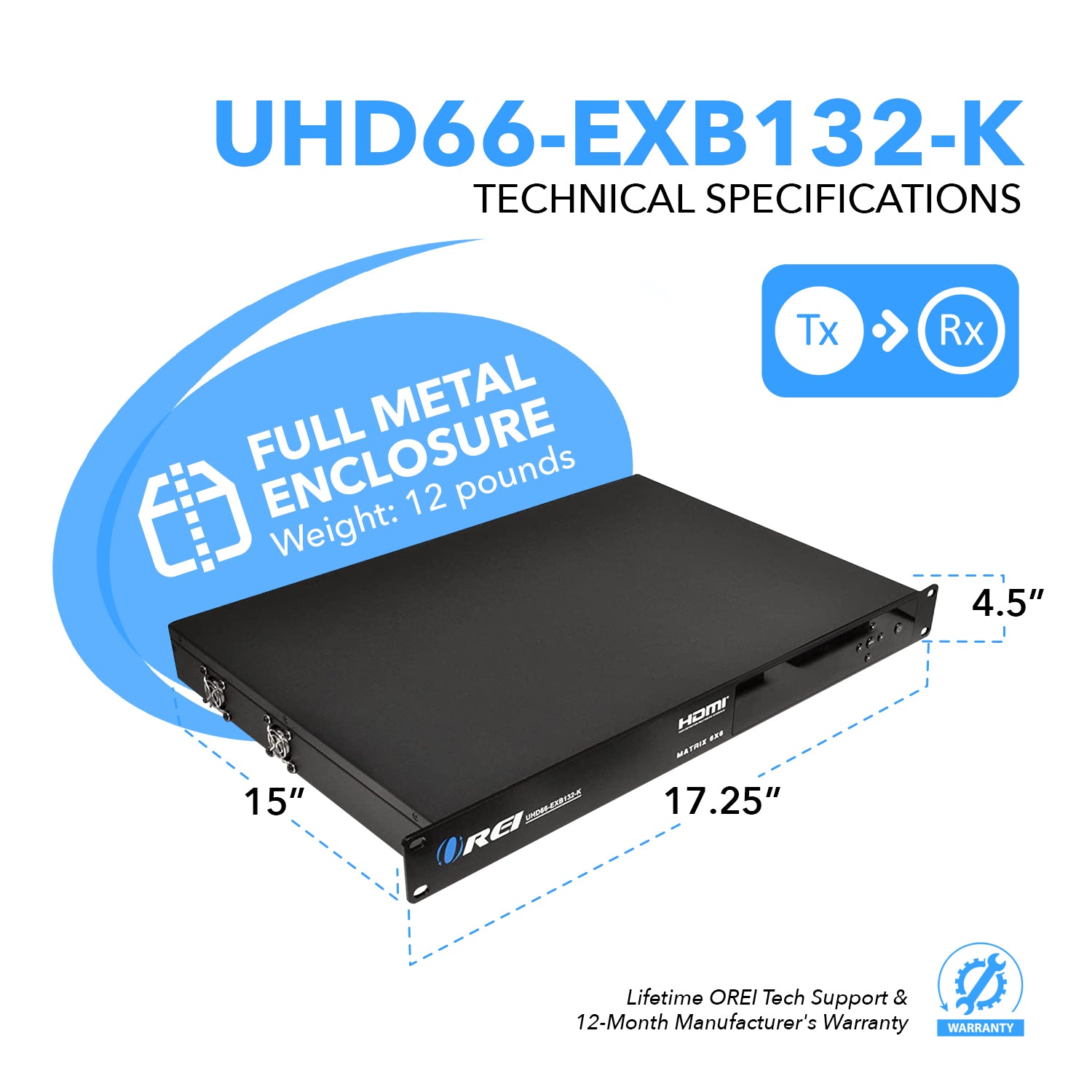

1U rack mounted design with aluminium front panel housing
This unit requires only one power adapter to work

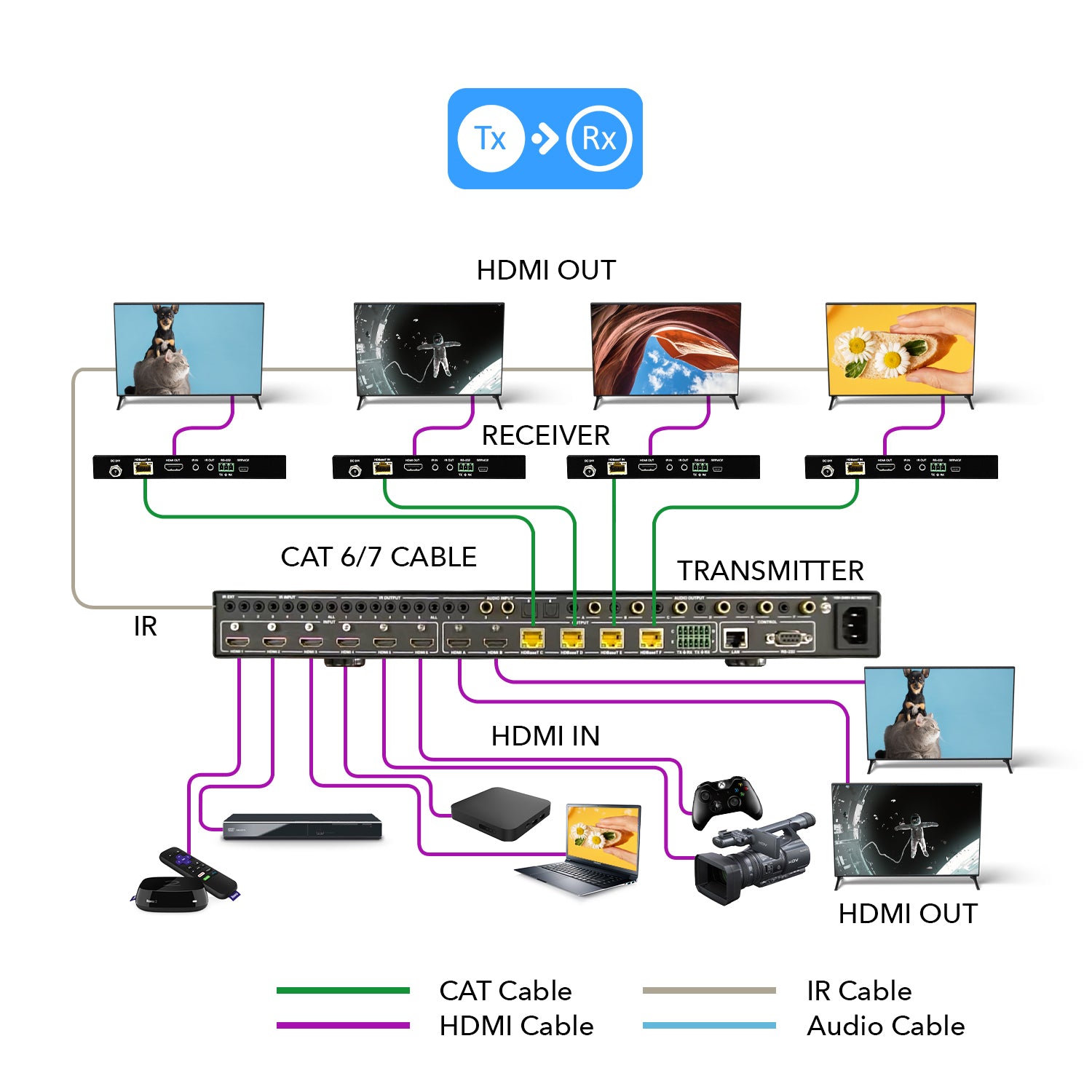

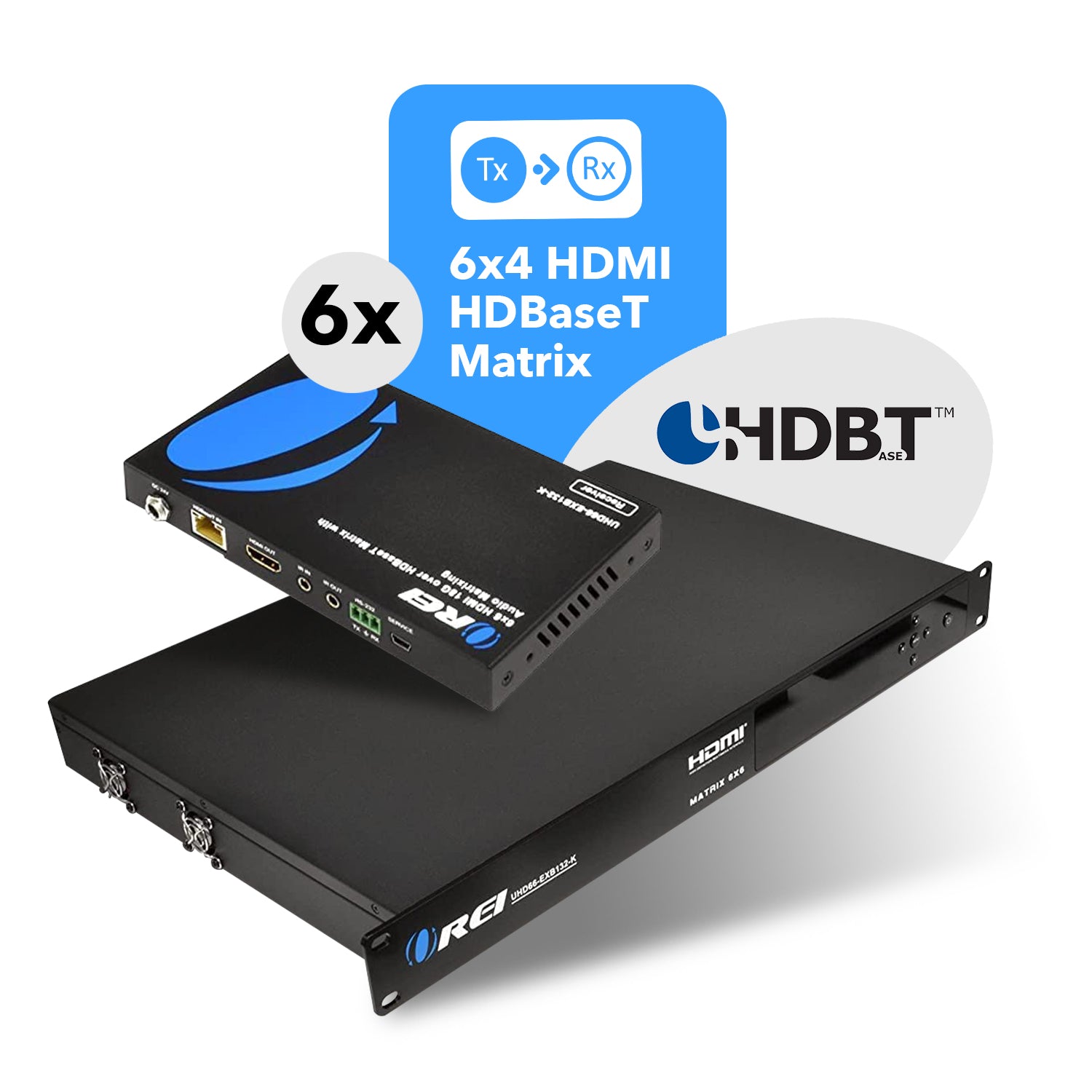

UHD66-EXB132-K is 6x6 HDMI HDBaseT matrix supports the transmission of video (resolutions up to 4K@60Hz 4:4:4, HDCP 2.2, HDMI 2.0) and multi-channel digital audio from 6 HDMI sources to 4 HDBaseT outputs and 2 independent HDMI 2.0 outputs.
HDBaseT outputs allow transmission via a single CAT5e/6/7 cable up to 230 feet and the HDMI Loop outputs support cable lengths of up to 33 feet. This matrix built-in an independent 18x12 digital audio matrix with volume/delay tuning and also supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTSHD Master Audio as well as 3D video content pass-through.
The matrix can be easily controlled via the front panel button, IR, RS-232, Telnet and Web GUI.
AUDIO AND VIDEO
Inputs:
6x HDMI Type A [19-pin female]
2x L/R Audio IN [3.5mm Stereo Mini-jack]
2x Optical Audio In [S/PDIF]
2x Coaxial Audio In [S/PDIF]
8x IR In [3.5mm Stereo Mini-jack]
4x RX-232 [3pin Phoenix Jack]
1x TCP/IP [RJ45]
OUTPUTS:
2x HDMI Typpe A [19-pin female]
4x HDBaseT Out [RJ45]
6x L/R Audio Out [3.5mm Stereo Mini-jack]
6x Optical Out [S/PDIF]
7x IR Out [3.5mm Stereo Mini-jack]
COMPLIANCES & PROTOCOLS
HDMI Compliance:
HDMI 2.0b
HDCP Compliance:
HDCP 2.2 & 1.4
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@60Hz:
130 Feet
1080p@60Hz:
230 Feet
VIDEO OUTPUT
Video Bandwidth:
Up to 18 Gbps
Video Resolutions:
Up to 4K@60Hz (YUV 4:4:4), 1080p@120Hz, 1080p 3D@60Hz
Color Space:
RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth:
10-bit, 12-bit
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 500 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Yes, this product supports PoC/PoE function, you need only one power adapter at either transmitter side or the receiver side to power both units.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
