4K@60Hz 4x4 Seamless Matrix with Video Wall (UHDS-404VW)


$499.00 $579.99
Shipping calculated at checkout.
SKU: UHDS-404VW

  • 4x4 Matrix Switch with Video wall
  • Video resolutions up to 4K@60Hz
  • Features Advanced EDID management

Overnight shipping*:
Two days shipping:

*Overnight shipping doesn't include Weekends, or any holidays.

Minus Plus
Reseller & Installer Discounts
Add to Wishlist
30 Days Return
30 Days Return
1 Year Warranty
1 Year Warranty
No-Contact Delivery
Free shipping in USA
More Details Right

UHDS-404VW: 4K@60Hz 4x4 Seamless Matrix with Video Wall

Key Features:

  • HDMI 2.0b, HDCP 2.2 compliant
  • 2 operational modes: - 4×4 Matrix (seamless switch) - Video wall (2×2, 4×1 or 1×4 configuration)
  • Supports seamless video switching
  • Video inputs support all industry standard video resolutions including VGA-WUXGA (up to 1920×1200 @60Hz) and 480i-4K (3840×2160 @60Hz 4:4:4, 4096×2160 @60Hz 4:4:4)
  • HDMI outputs support upscale or downscale to any resolution, up to 4096×2160@60Hz 4:4:4
  • Supports LPCM, DD, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
  • Advanced EDID management

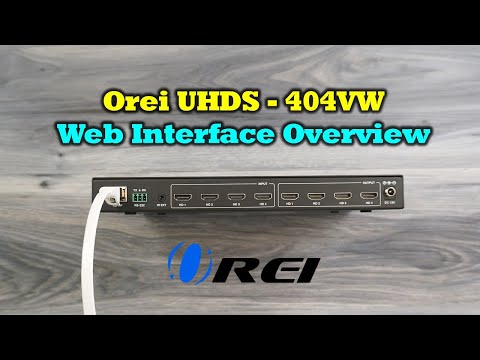

  • Web interface module for control and configuration of Matrix
  • Controlled by front panel buttons, IR Remote, RS-232, and TCP/IP
  • 3rd party drivers are available for all major household control brands

The UHDS-404VW is a versatile video processing system designed for multi-purpose use. It offers two configurable modes: a 4×4 seamless matrix switcher or a 2×2, 4×1, or 1×4 video wall controller. In switcher mode, it can display any of the 4 HDMI inputs on any of the 4 HDMI output displays. In video wall mode, it divides one display across 2 to 4 devices, creating a super display of multiple screens. The system includes a web browser interface module for convenient control and configuration, whether used stand-alone or with a third-party control system. Control options consist of front-panel buttons, IR remote control, RS-232 interface, and LAN port (TCP/IP).
